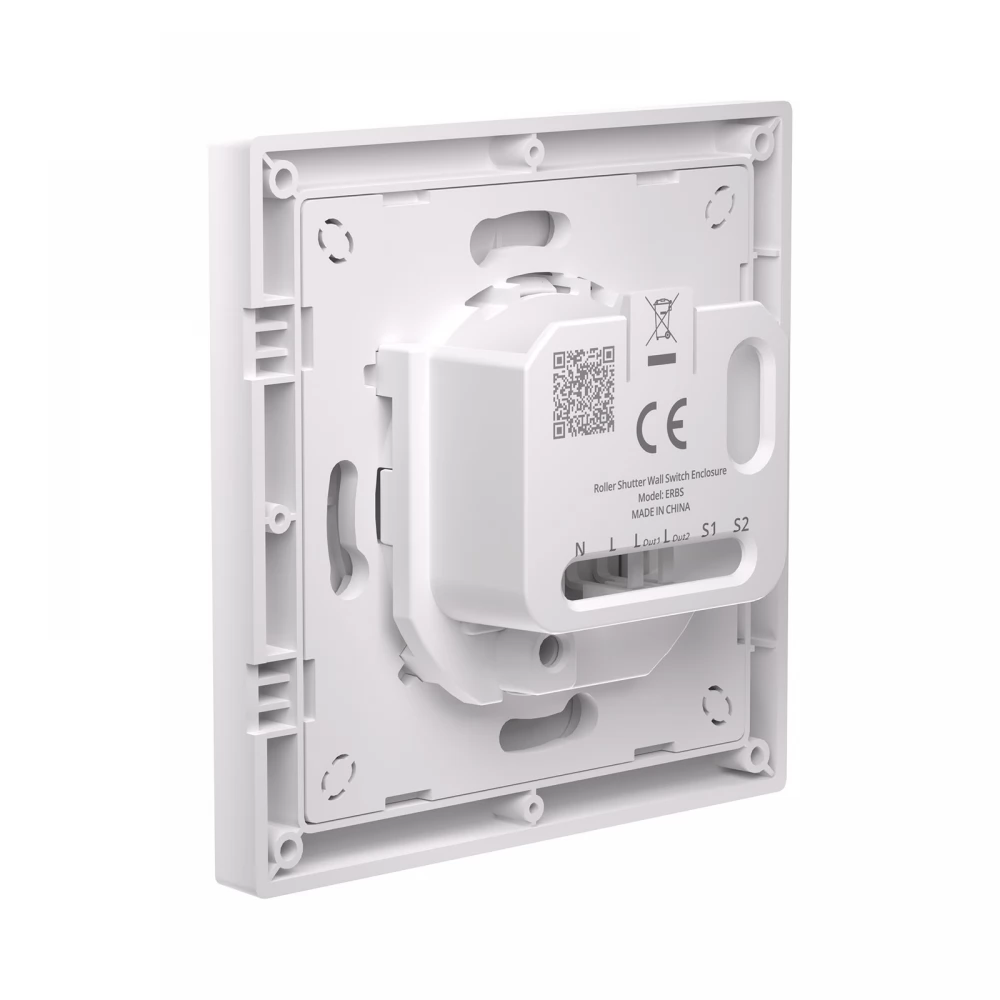

SONOFF ERBS shutter control mural switch MINI-RBS and MINI-ZBRBS module

SONOFF ERBS is an additional shutter control switch specially designed for the MINI-RBS module. Its base material is durable polycarbonate plastic, which is fire-resistant, scratch-resistant and does not deform over time. The clip-on design enables quick and easy installation, while the ergonomic, micro-curved button ensures a more natural and comfortable use.

The switch is ultra-thin (only 21 mm thick), so it fits perfectly into European standard circular (Φ60-80 mm) or size 86 wall boxes. The user experience and aesthetics are both excellent.

Main product features

- Cover made of polycarbonate is fire-resistant, scratch-resistant and non-deforming in the long term.
- Clip-on installation, simple and quick installation without any complicated cabling.
- Micro-curved button design provides soft and precise handling that matches the user's hand movement.
- Ultra-thin design, only 21 mm thick, fits perfectly into standard EU wall boxes.

Other features

- Installation category: particularly compact and thin casing, which is also suitable for narrower wall boxes.
- Size: 86 × 86 × 34 mm compatible with a standard 86 wall bracket, while its front side is only 21 mm thick
- Operating temperature range: between -10 °C and +40 °C
- Color: white, neutral, for standard indoor use.
- Safety material certifications: fire-resistant PC casing ensures electrical safety.

Description:

- Manufacturer: Sonoff
- Article number: SON-KAP-ERBS
- Factory article number: ERBS
- Bar code: 6920075743425
- Color: White

Installation / operation

- Plug&Play installation: Yes
- Operating ambient temperature: 10°C-40°C
- Operating ambient humidity: 0%-100% RH
- IP protection: Indoor device

Electrical properties

- Impulse/ toggle switch: Yes

Other

- Dimensions: 8.5 × 3.0 × 8.5 cm
