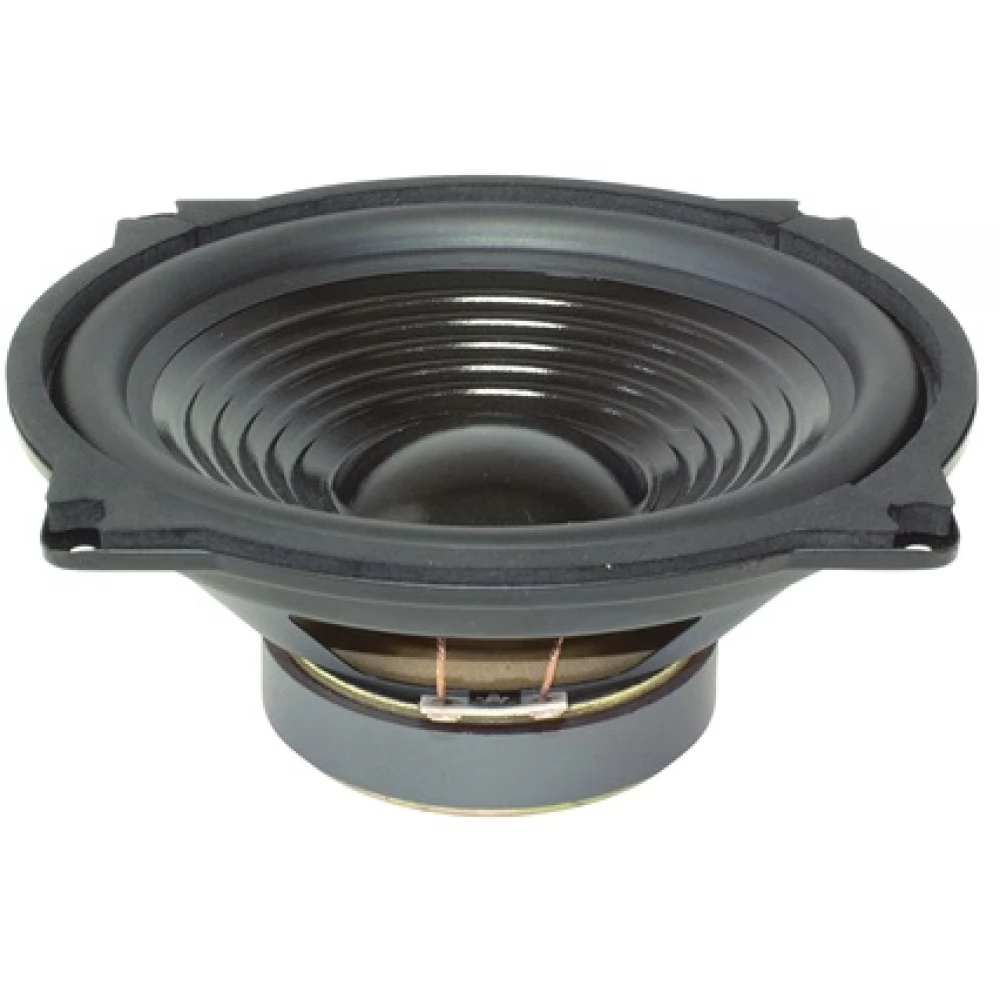

SOMOGYI ELECTRONIC Mélysugárzó SBV 2020

The SBV 2020 built-in subwoofer is suitable for repairing VIDEOTON sound boxes as well as for replacing speakers that fit into other older types of speakers.
The musical performance of the device with an impregnated paper cone is 80/50 W, its frequency range is 45 - 5,000 Hz, while its sensitivity is 85 dB.
The coil body made of aluminum provides adequate support. Another advantage is that it is compatible with outdated factory-type speakers that are ready for replacement.
Diameter of the subwoofer: 200 mm.

- Speaker nominal diameter 200 mm
- Not filled with ferrofluid
- The material of the cone is PC
- Speaker impedance 8 Ω
- Loudspeaker load capacity 80 / 50 W
- Frequency transmission 45 5000 Hz
- Speaker sensitivity 85 dB
- Voice coil 1" 2 layers
- Tube body aluminum
- Magnet 20 Oz
