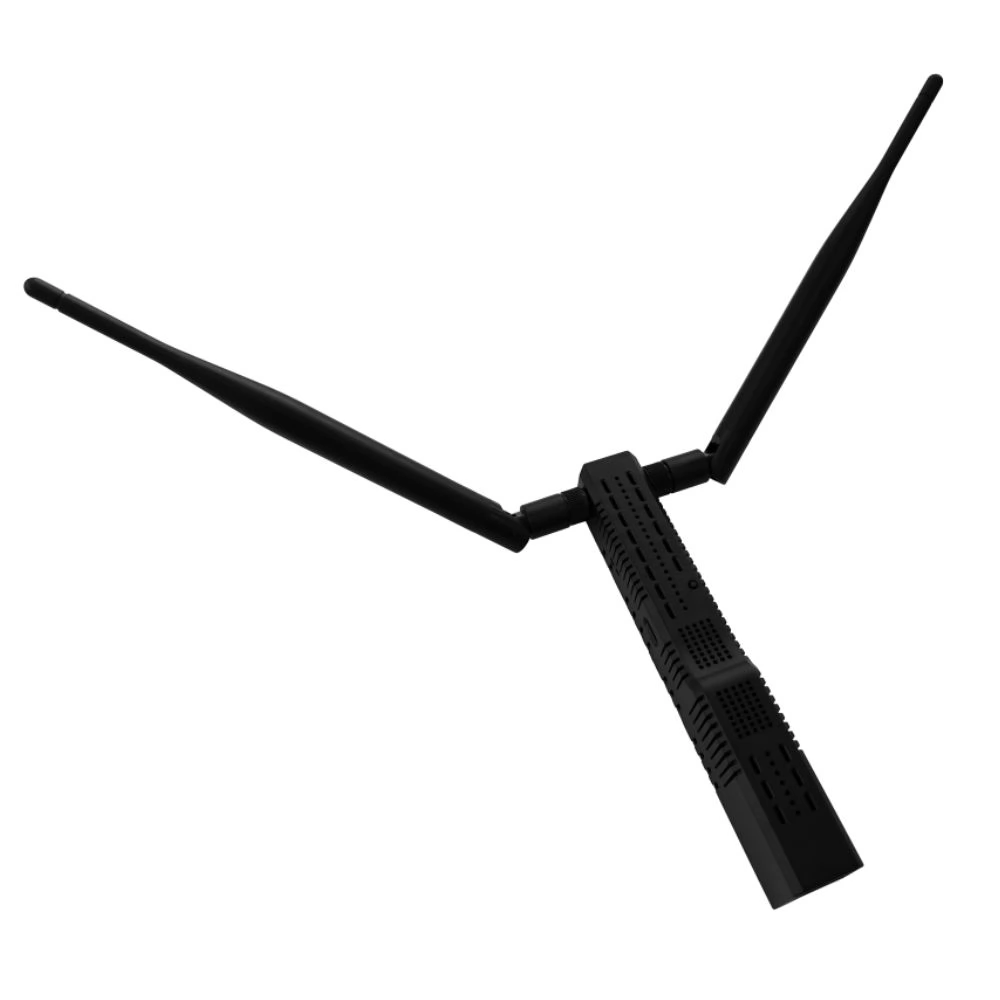

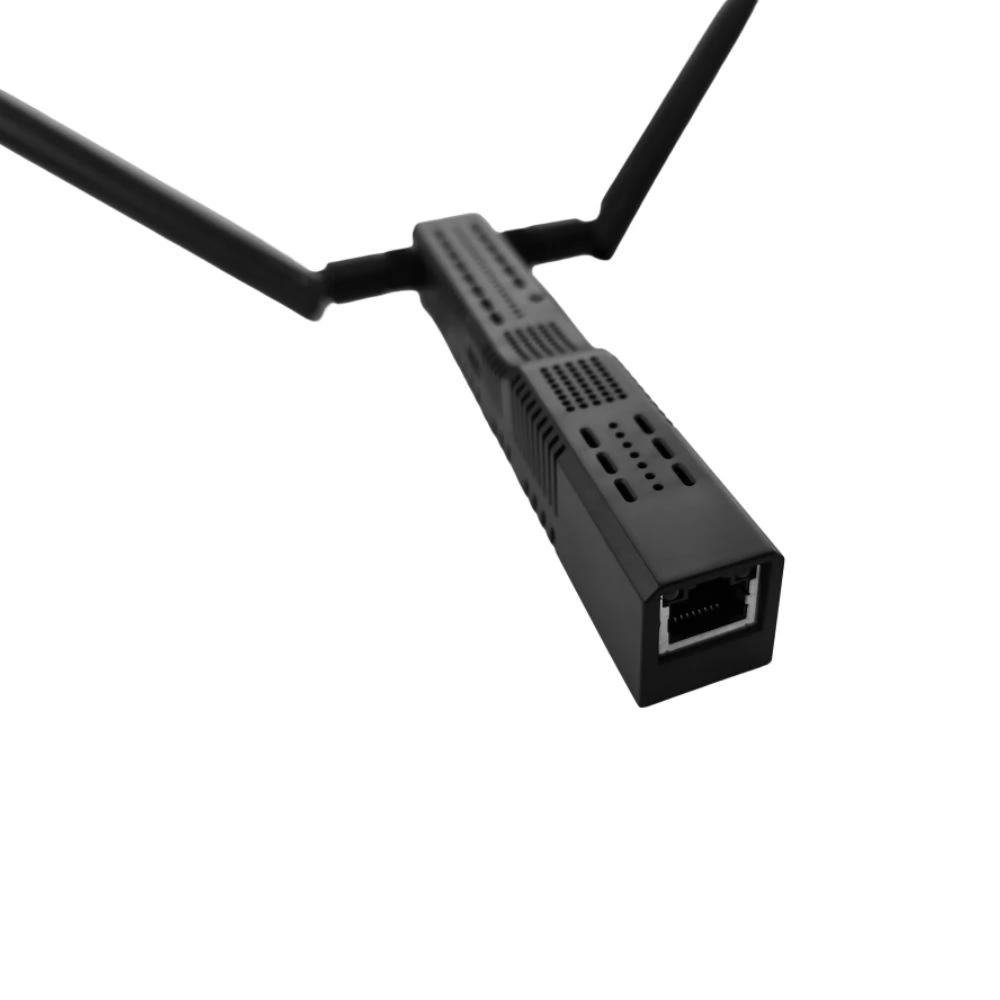

SLZB-MR1 is a platform-independent, universal Zigbee adapter that also features Ethernet, Poe, USB and Wi-Fi connections. You can connect the device locally via USB to the HUB, wired Ethernet connection, POE even with power supply, or even through Wi-Fi to the local HUB.

SLZB-MR1 is the latest and most powerful Zigbee + Thread gateway that can operate the Zigbee and Thread Networks at the same time thanks to multiprotocol design, all with two separate chips, making it ideal for a future-proof, flexible solution to Home Assistant, Zigbee2MQT, or Matter.

Why choose SLZB-MR1?

- Multiprotokol Control: Two Radio Chips (TI CC2652P7 + Silabs EFR32MG21), separate for Zigbee and Thread
-Matter-over-Thread Support: Ready for Future Standards, Whether Openthread Border Router mode
-3 connection mode: You can use it via USB, Ethernet or Wi-Fi
- Firmware: Supports Z-Stack and Human/EZSP stacks on an updated web interface
- SLZB system: zhub mode, VPN, OTA updates, multilingual support and customizable features
- Low consumption: With only 1.5W full operation, with USB-C or POE power supply

Main features

- +20 dbm tax power on all channels
- ESP32 -based, reliable operation
- Compatible Home Assistant, Zigbee2mqtt, Zha, Domoticz, Openhab, Matter, Node-Red platforms
- 2 pieces of external SMA antenna + built -in PCB antenna
- 6 LEDs for status signal, multifunction control button
- Din-rail (with accessory) or wall mounted, screw and glue fastening

Compatibility and integration

SLZB-MR1 is the perfect companion in home automation:

- Home Assistant: Full Support under Zha and Zigbee2mqtt
- Zigbee2MQTT: Advanced Device and Network Management
-Matter: Ready for the future Matter-over-Thread Support
- Node-Red: Automation Visually
- MQTT systems: compatible with Domoticz, Openhab and other solutions

Power supply

- USB-C Input (5V DC)
- POE Support (via 48V Ethernet)
- Energy saving operation: Up to 1.5W full system use

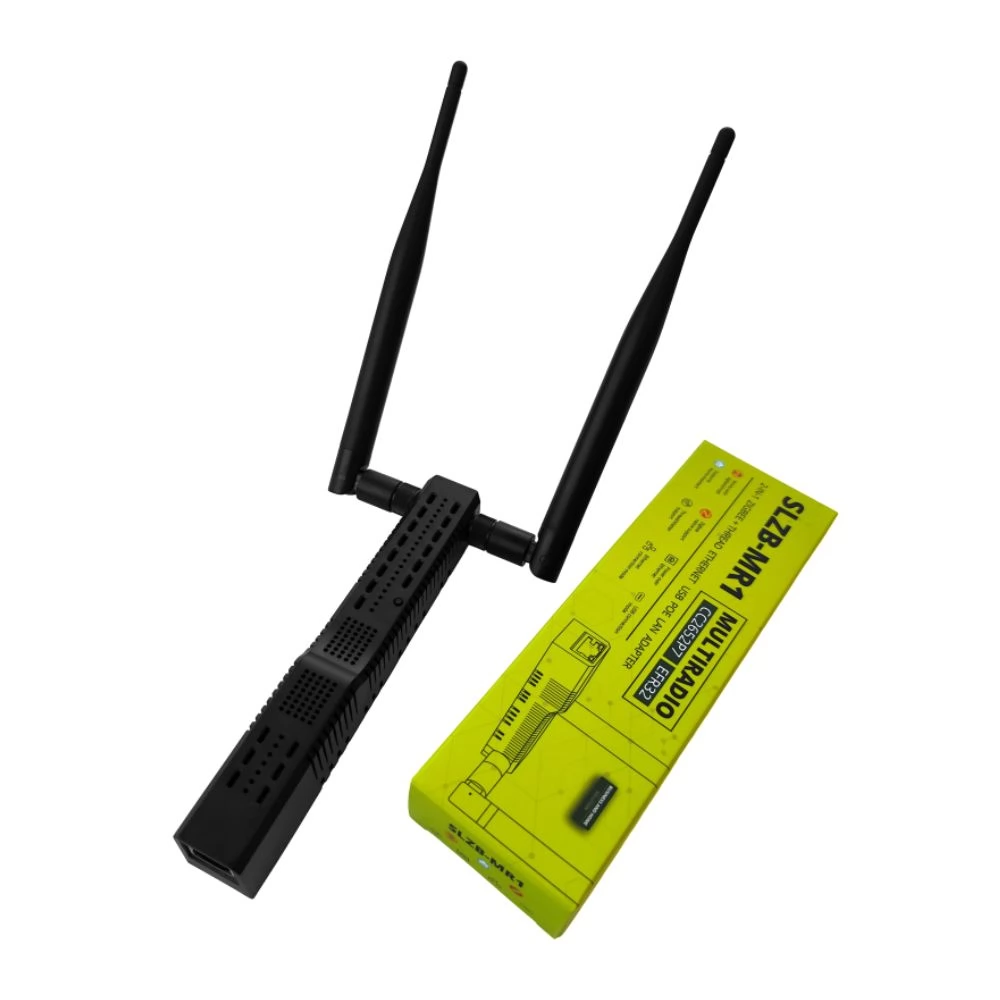

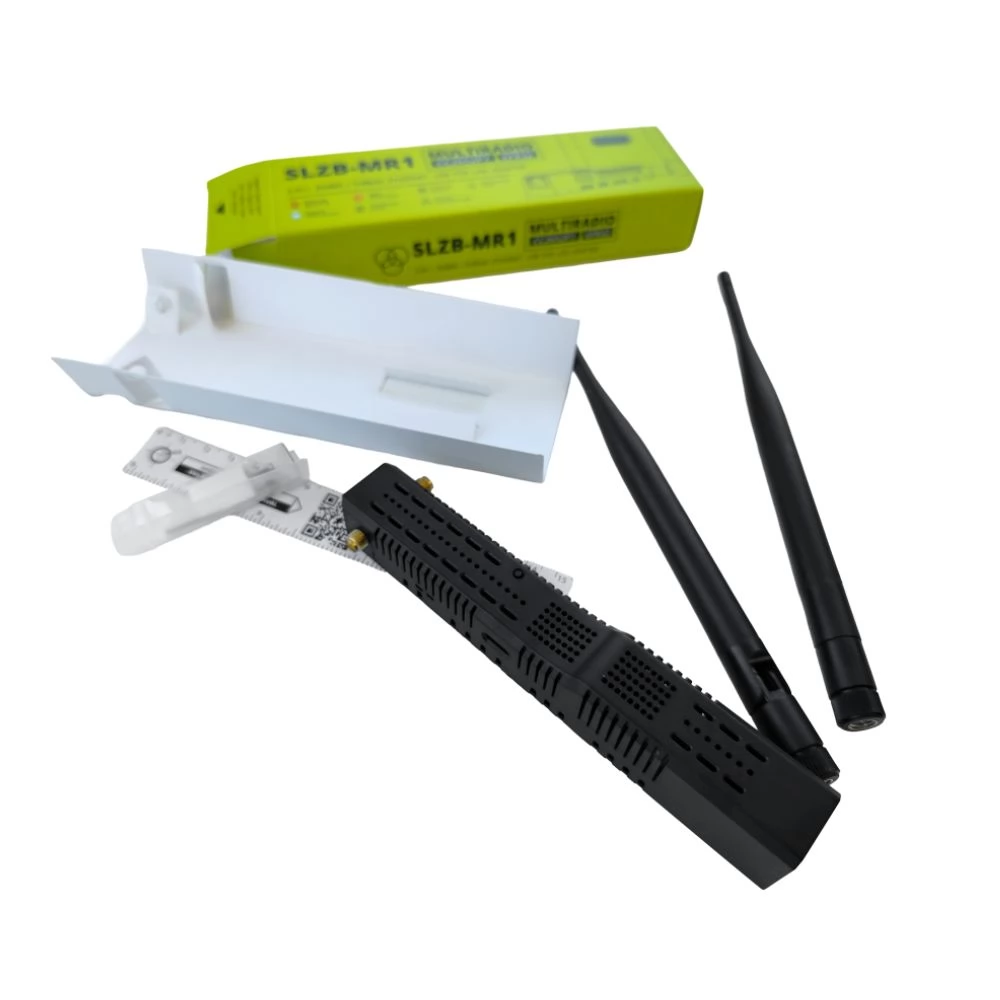

Box contents

- SLZB-MR1 gateway
- 2 high profits 2.4 GHz antenna
- USB-C cable
- Fixing screws, mini screwdriver, tape
- Fast commissioning instructions

Ideal choice if:

- You want to manage Zigbee and Thread networks using a single device
- Matter support is important to you
-You want to connect via USB, LAN or Wi-Fi
- You use Home Assistant, Zigbee2MQTT or other open source system

Description:

- Manufacturer: Smlight
- Factory article number: SLZB-MR1
- Color: black
- Plug & Play Installation: Yes

Operation / Operation

-Operating power supply: 5V DC, POE (Power-Iver-Ethernet)

Supported protocols

- Ethernet / wired network (RJ-45): Yes
- Wi-Fi: Yes
- Zigbee: Yes, Zigbee 3.0
- Thread: Yes
- Z-Wave: No
- RF / Radio Control: No
- Bluetooth: No

Remote control, smart control

- You can be controlled from the internet from a distance: Yes
- Web (browser) Admin interface: Yes
- Cloudy (Cloud) mode (with factory firmware): No
- Local network mode (with factory firmware): Yes
- MQTT Support (with factory firmware): zigbee2mqtt

Other

-Article number: SML-Hub-Slzb-Mr1
- Communication protocols: Ethernet, Thread, Wi-Fi, Zigbee
- Main category: hub
- Matter standard compatible: yes
- Bar code: 599957203217
- Dimensions: 16.0 × 2.4 × 2.8 cm
