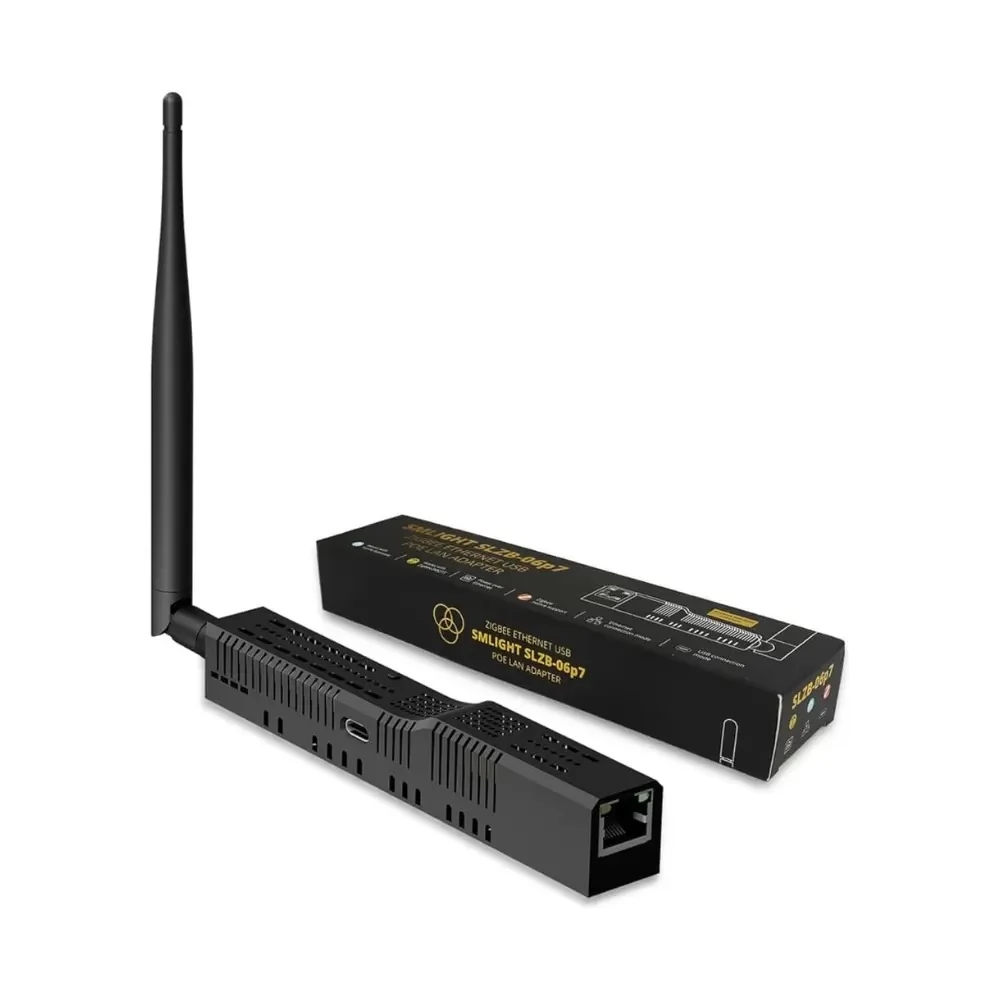

The SLZB-06P7 is a platform-independent, universal Zigbee adapter that also features Ethernet, Poe, USB and Wi-Fi connections. You can connect the device locally via USB to the HUB, wired Ethernet connection, POE even with power supply, or even through Wi-Fi to the local HUB.

The device is designed specifically to support Zigbee -based smart home systems such as Zigbee2MQTT and ZHA.

For a larger Zigbee network, multiple coordinators can be used with one server, so the Zigbee network can be elasticized by installing multiple adapters.

The 20-piece signal amplifier significantly increases the stability and range of the connection between the zigbee devices, especially for greater distances or physical obstacles. And the 5-piece antenna provides a strong signal in a wide area, which makes it ideal in environments where several Zigbee devices have to connect.

The SLZB-06P7 device supports both Zigbee 3.0 modes: it can operate as a coordinator or router. The device mode can be easily changed by installing the appropriate firmware, which can be performed via the web interface. This allows users to switch flexibly between the coordinator and the router to the specific network needs.

The SLZB-06P7 coordinator can operate as a Matter-over-Thread router through an Ethernet connection thanks to the latest update of the Openthread Border Router accessory. The new function allows communication between the Matter protocol and the Thread network, strengthening the integration of smart home devices.

Hardware:

The device uses CC2652P7 and ESP32 chips, which provides a stable, reliable connection for simultaneous control of up to 300 Zigbee devices. The module arrives with pre-installed firmware, so it's ready for use immediately.

The SLZB-06P7 adapter is a more advanced version of the SLZB-06 and uses the Texas Instruments CC2652P7 chip, which provides more power and stable operation for both zigbee Home Automation) and Zigbee2MQTT.

The main difference between SNZB-06 and SNZB-06P7 is the chip they use. The SNZB-06 uses the CC2652P chip, while the SNZB-06P7 has a more advanced CC2652P7 chip, which has more memory (152 kb vs. 88 kb). This gives the SNZB-06P7 better performance, especially for more complex tasks.

The SLZB-06P7 is also an ideal choice for DIY smart home fans as it includes the necessary pinouts for both ESP32 and CC2652P7 chips. This allows users to make various changes, such as providing direct access to chips for development or installing unique firmware. The device thus provides maximum flexibility to those who like to develop their own solutions and customize the operation of the device.

Main features:

- Chipset: The CC2652P7 chip is completely compatible with Zigbee2MQTT and Home Assistant Zha systems.
- Contact: USB, Ethernet and WiFi support. The mode can be selected in Firmware (remotely through web interface) and locally at the touch of physical button.
-Power supply: The SLZB-06P7 device can be provided in two ways: POE (Power Over Ethernet) or Type-C connector.
- POE (Power Over Ethernet) Support. There is no need for a separate power supply when using POE, as the power supply is provided through the Ethernet cable, according to the standard 802.3AF. (The POE adapter is not included in the product, which is available separately.) POE supports simple installation of the device with an Ethernet connection, so no separate power source is required. This can be particularly useful if the device is farther away or if you want to use less wiring.
-Firmware Support: The module arrives with an open source firmware, which can be updated remotely (in the form of OTA over-their update) or can be updated via USB.
-Easy installation: The coordinator works in a "plug-and-play" manner and already has a pre-installed firmware on arrival.
- Equipment: The SLZB-06P7 is easy to install on a wall or even under the table as it is compatible with both recording modes. You can use the two -sided adhesive tape or screws in the package to secure secure securing so that the device can be placed anywhere where it best suits your needs.
- Antenna power: 20 signal amplifiers + 5 Antenna Antenna plus coverage and excellent signal quality. It has three dimensions rotating antenna that allows the antenna to be optimal for best signal quality. Rotability ensures that the antenna is as well as possible to environmental conditions, thus improving the stability and range of communication between Zigbee tools.

Package contents:

- SLZB-06P7 Zigbee LAN Coordinator
- 5 pieces of antenna
-Micro-Uusb to Type-C converting cable
- Fixing screws
