Switch between up to four video sources and five fully customizable scenes with the push of a button
High performance video and audio processor with Octa Core CPU

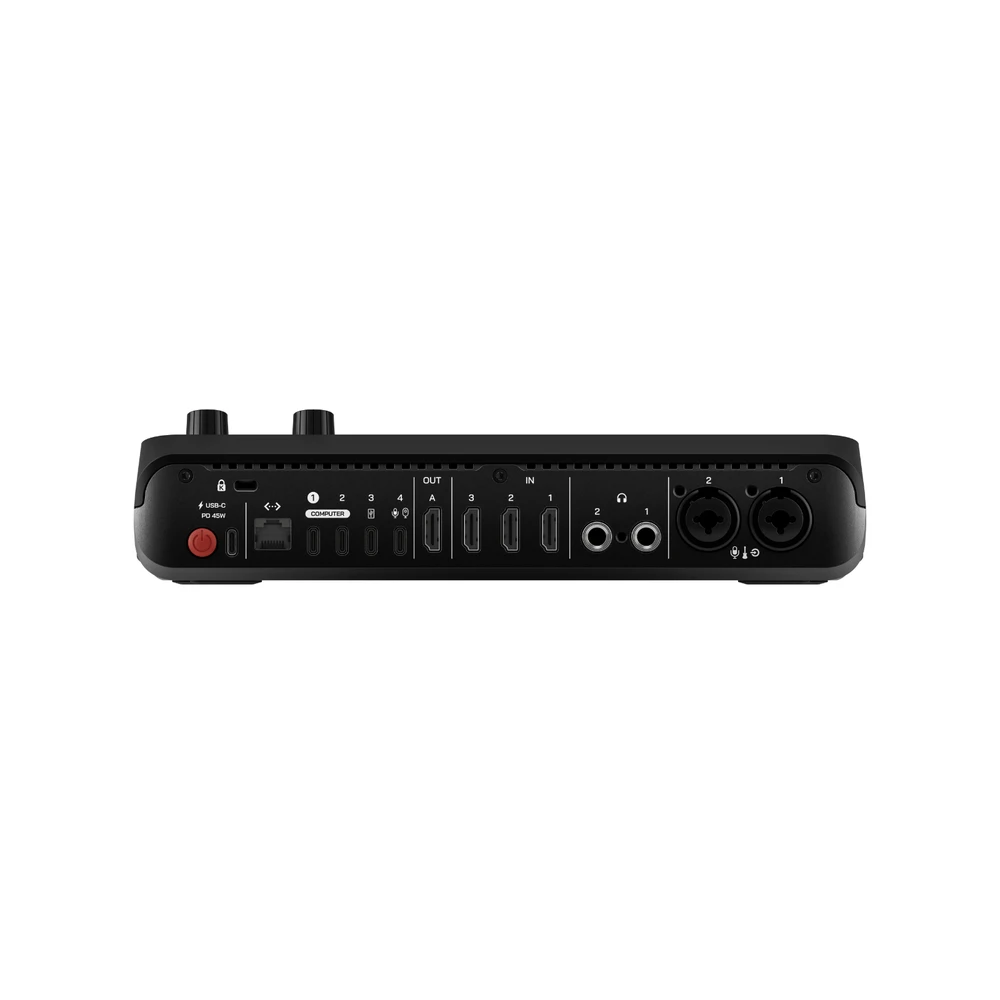

Three full HD (1080p) HDMI inputs with automatic frame rate conversion and one configurable HDMI output for program, preview and multiview viewing
A flexible USB-C port for connecting webcams and RØDE USB audio devices for additional video and audio sources
Two studio-grade Neutrik® XLR-6.3TRS combo jacks with ultra-low-noise, high-gain Revolution Preamps™ preamps for pristine recording of XLR mics, instruments, or any other audio source
Double integrated wireless receiver for direct connection of RØDE Series IV wireless microphones
Top-quality integrated APHEX® audio processor with EQ, compressor, noise gate, low-cut filter, de-esser functions and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
Network camera support, handling up to four NDI® inputs and one output over Ethernet, including control of PTZ cameras. It also supports dual-camera streaming with the free RØDE Capture app on iOS devices.

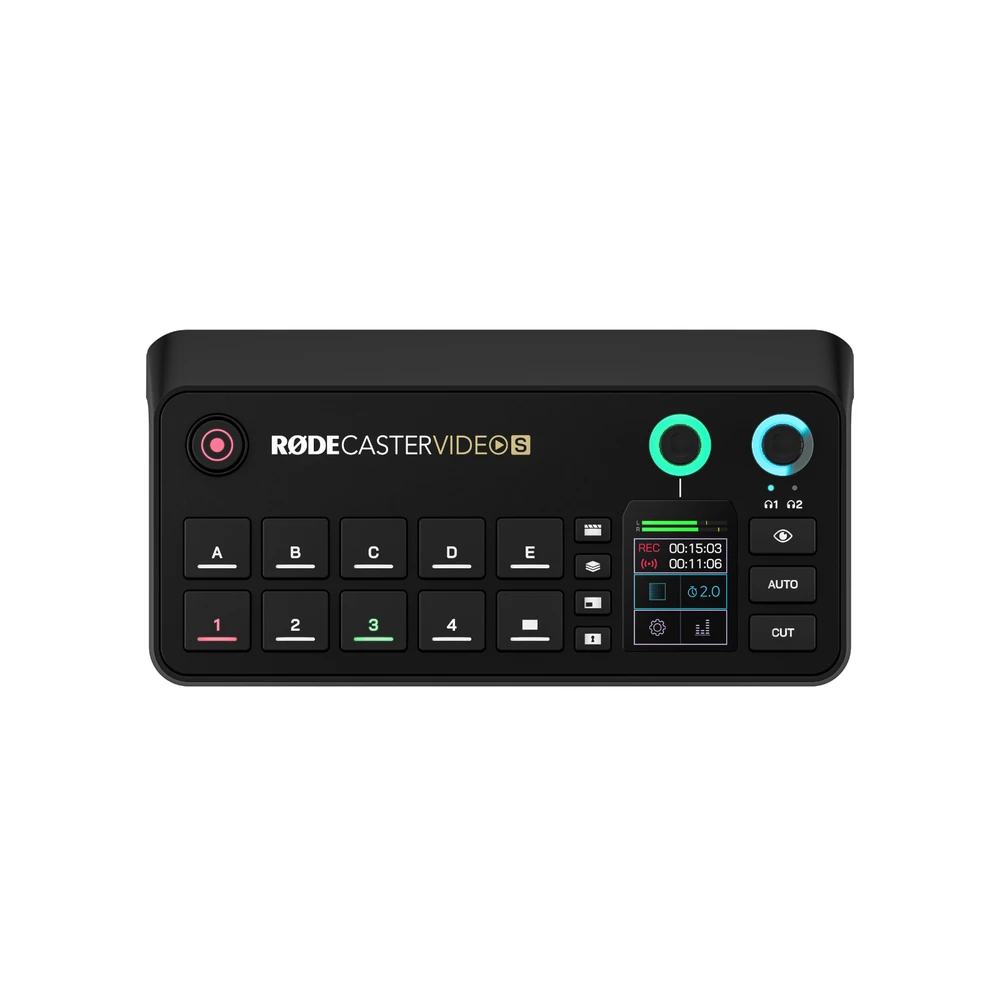

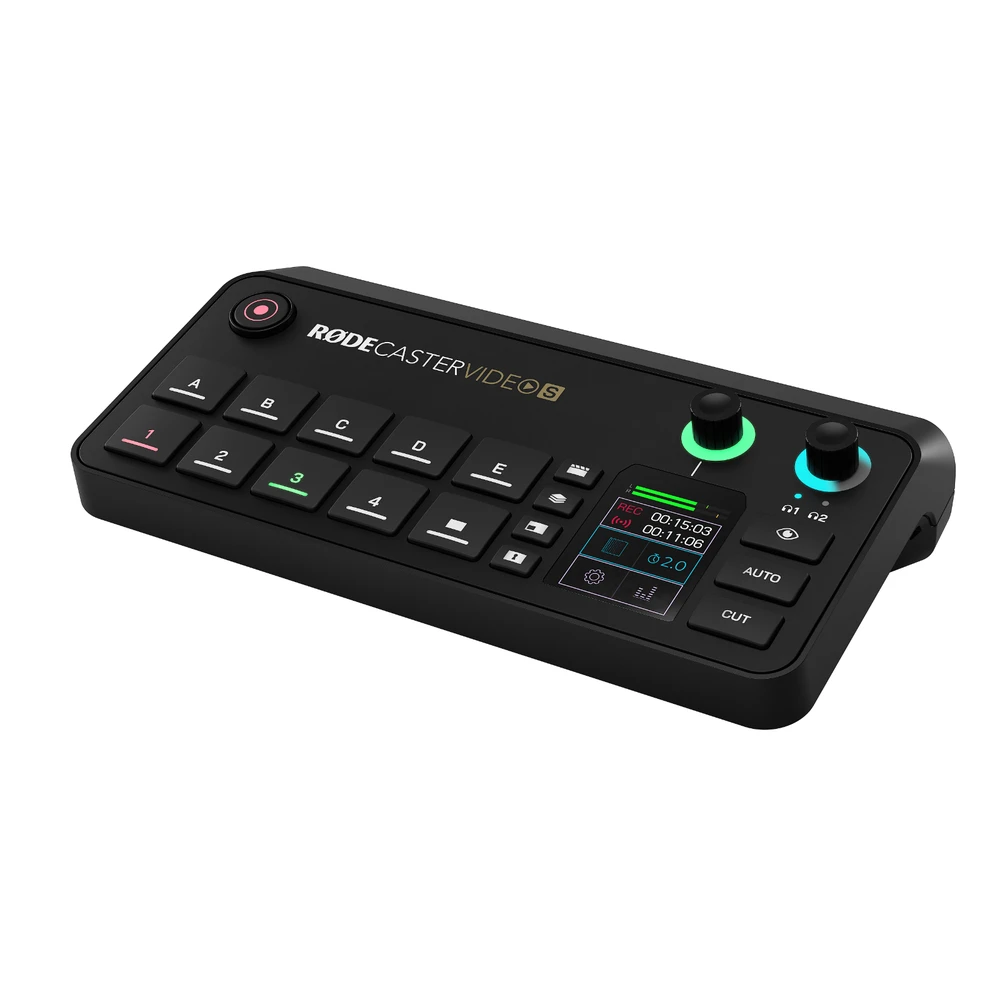

2” high-resolution touch screen and a large, universal rotary knob for quick configuration and settings management
Ability to create five complex scenes with multiple layers of video, media and graphics that can be saved and recalled at the touch of a button
Automatic chroma keying for easy background replacement for media or live video inputs
Media playback, graphics overlays, chroma keying, transitions and multi-source scene creation are available directly on the physical interface
Innovative "Inspect" function for quick and easy preview and configuration of any input or scene
Intelligent mixing for seamless, automatic switching of video sources and scenes controlled by audio sources
Direct streaming to all major platforms via Wi-Fi and Ethernet connections, or via USB with streaming software
Direct recording to external USB storage device, including ISO recording for post-editing flexibility
Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via the RØDECaster app
Designed and manufactured at RØDE's world-class facilities in Sydney, Australia
24 GB of built-in storage, of which 20 GB can be freely configured for storing media, graphics and overlays.
