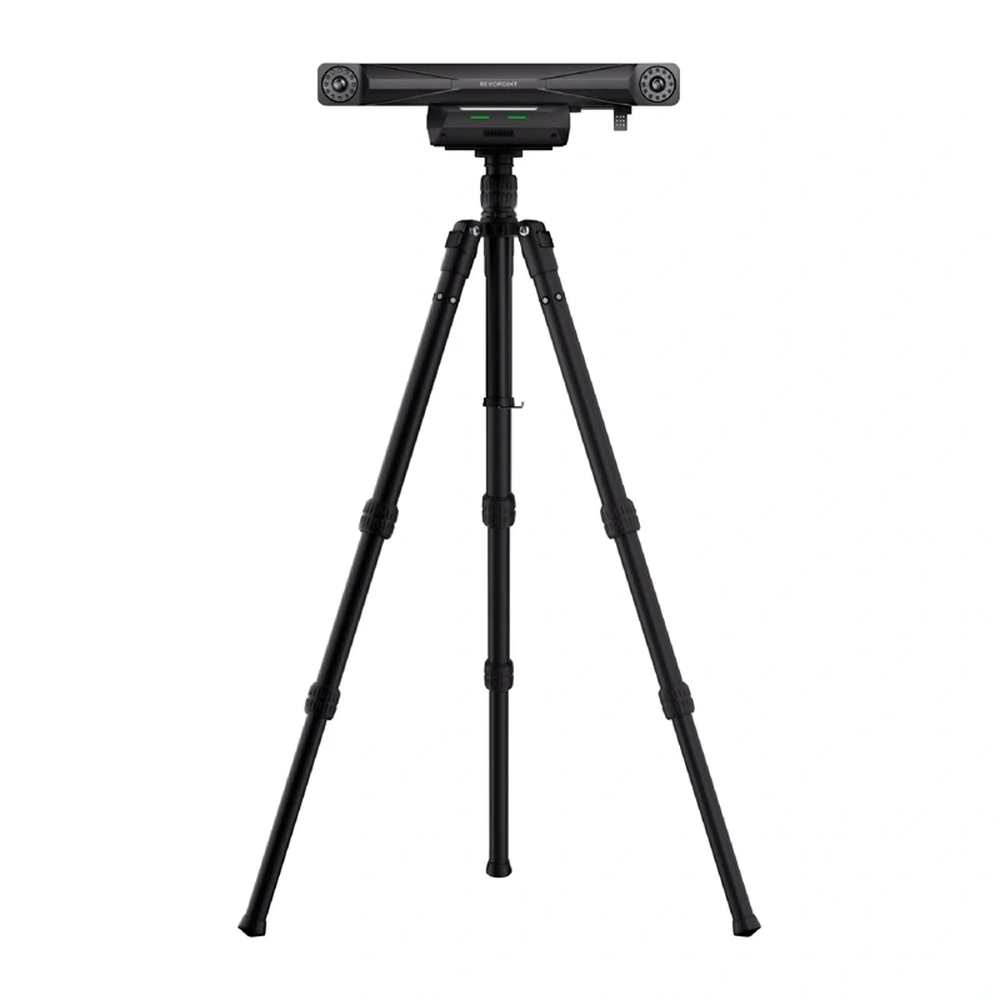

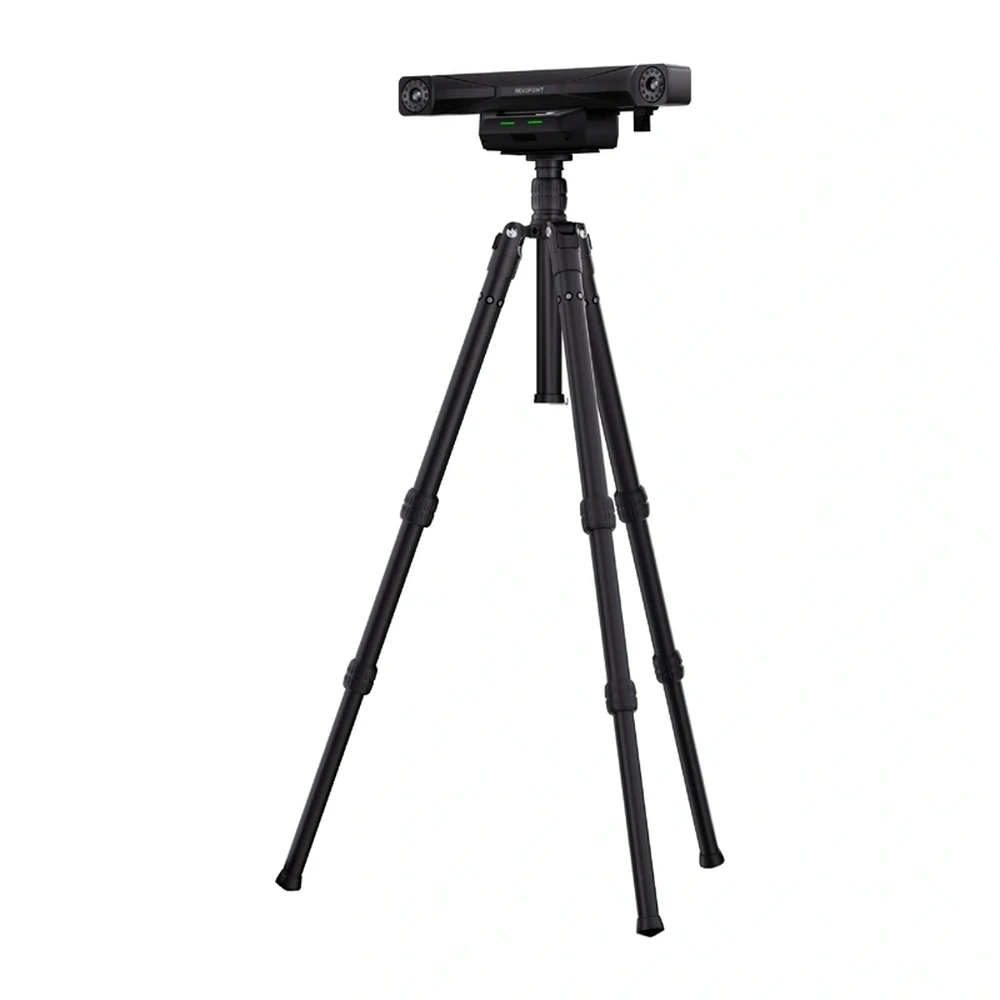

Revopoint Trackit SR CMM 3D optical scanner

Work faster, more accurately and comfortably, no matter where you take measurements. The Revopoint Trackit SR combines high scanning accuracy with wireless operation, advanced optical tracking and three scanning modes, making it easily adaptable to a wide variety of applications. Weighing just 1kg, its lightweight design makes it easy to transport, and as it can scan both small parts and large objects, it is an ideal choice for professional work environments. The package is completed by the dedicated Revo Measure and Revo Track software, which simplify measurements and further processing of recorded data.

Three scan modes for every task

The Revopoint Trackit SR offers three special modes that allow you to choose the scanning method that best suits the given object. The long-range mode uses 17 parallel laser lines, which enables efficient fixation of larger parts. If capturing fine details is essential, a system of 30 intersecting laser lines ensures high data density. At the same time, a single laser line effectively reaches deep holes and hard-to-reach areas, increasing the device's versatility when working with challenging models.

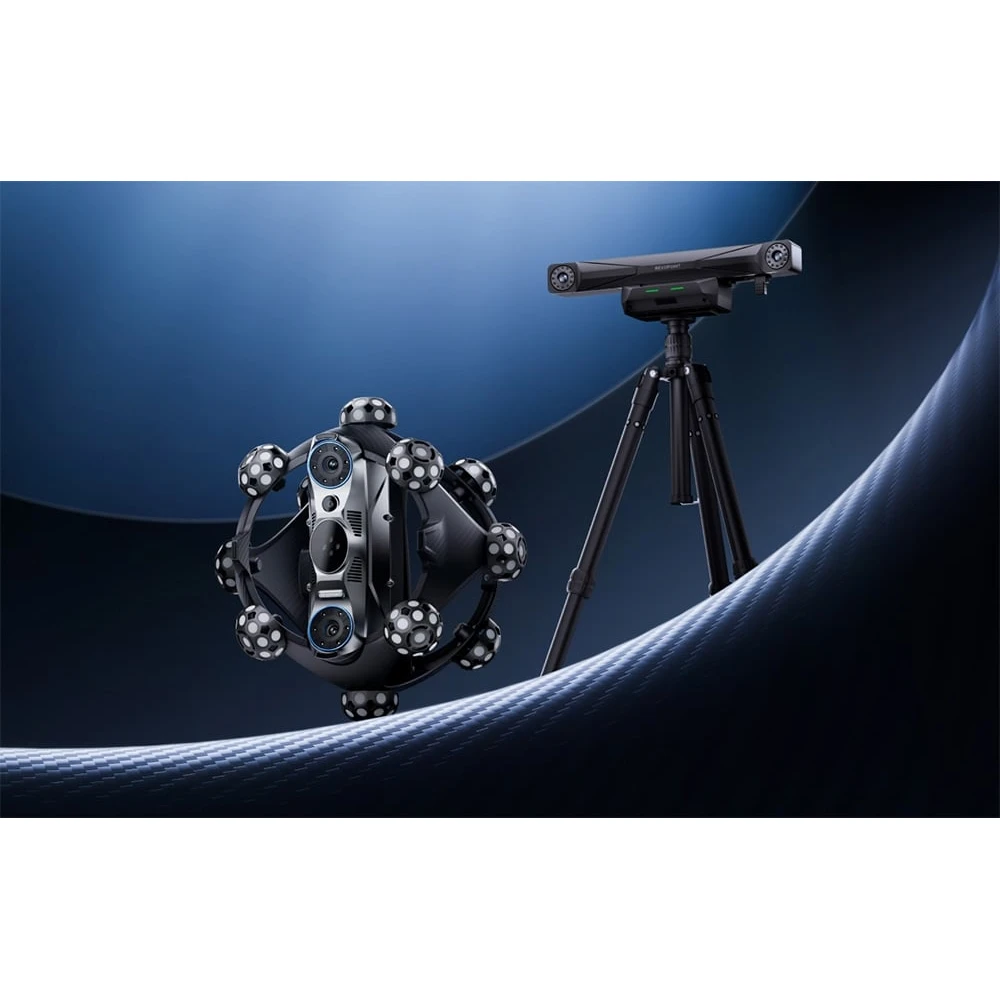

High accuracy and marker-free tracking

The advanced optical tracking system eliminates the need for markers, simplifying the preparation of the model for scanning and speeding up the entire process. The scanner provides a volumetric accuracy of 0.02 + 0.04 mm × L (m), which enables extremely accurate geometric representation even for large objects. The short thermal stabilization time of only two minutes allows you to start working quickly without having to wait a long time for the device to be ready. The Trackit SR is therefore ideal for all applications where both measurement accuracy and high productivity are essential.

Wireless operation for large objects

The Trackit SR is designed with maximum freedom of movement in mind. Wireless scanning eliminates the limitations caused by cables, and support for wireless multi-position stations allows you to quickly set up a workstation for digitizing large objects. This solution significantly simplifies the work related to complex projects and facilitates scanning in different locations. The low weight of the device - only 1 kg - further increases user comfort during longer measurement sessions and field work.

Ready to use in any conditions

The calibration process has been optimized so that the entire system takes less than 20 minutes to set up, so you can get to actual scanning faster. The device also stands out for its ability to operate outdoors at a light intensity of up to 100,000 lux, thus ensuring high-quality data collection even in very bright conditions. In addition, the scanner creates detailed texture maps and accurately reproduces colors, ensuring that digital models have both precise geometry and a natural surface appearance. Combined with Revo Measure and Revo Track software, it forms a comprehensive tool for professional 3D scanning and post-production.

Contents of the set

scanner
following
two-axis gimbal with automatic calibration
stand
gimbal adapter
quick connector
calibration plate
calibration bar
power supply
tracking cable (PC)
scanner cable (PC)
scanner cable (tracker - scanner)
gimbal cable (tracker - gimbal)
cable case
magnetic markers x20
markers x200
wheeled carry bag
scanner batteries x2

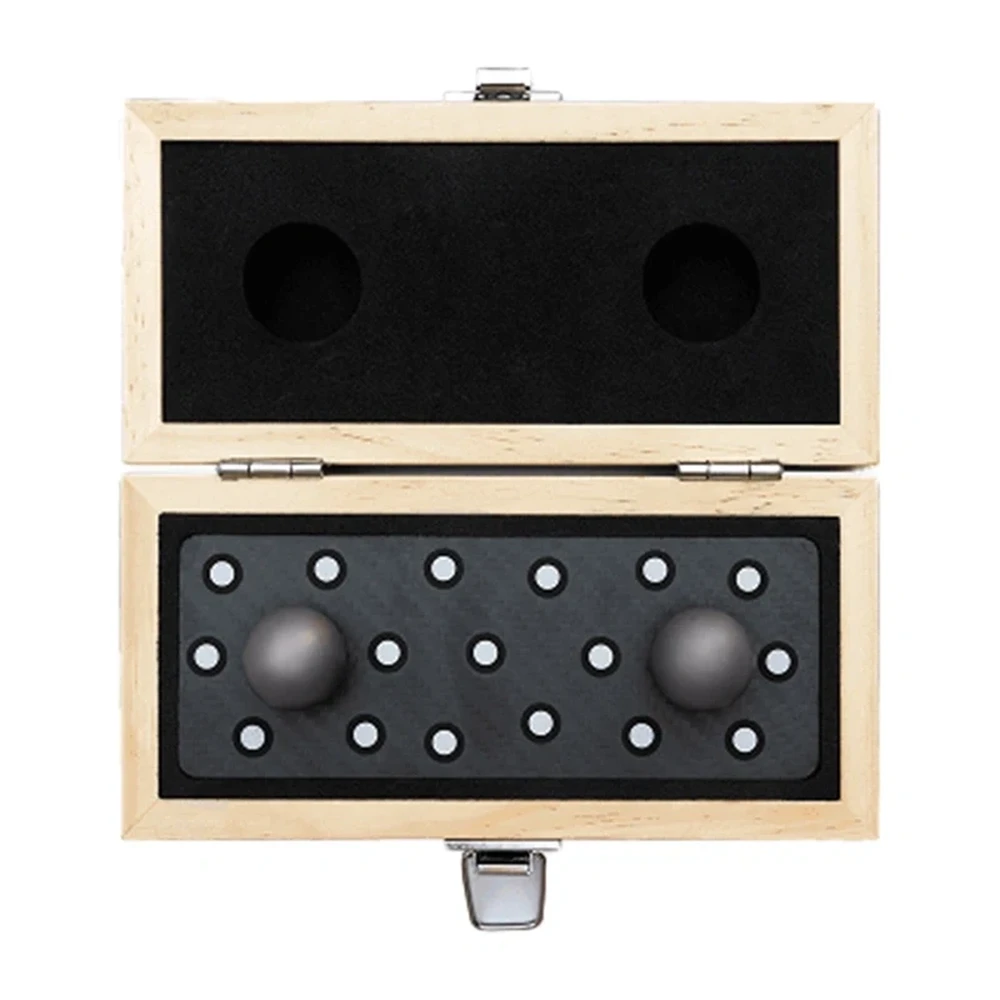

calibration plate with spheres (spherical plate)
Revo Measure software (one-year subscription, available on Windows 10/11)
battery holder
battery holder charging cable
scanner battery charger
user manual
