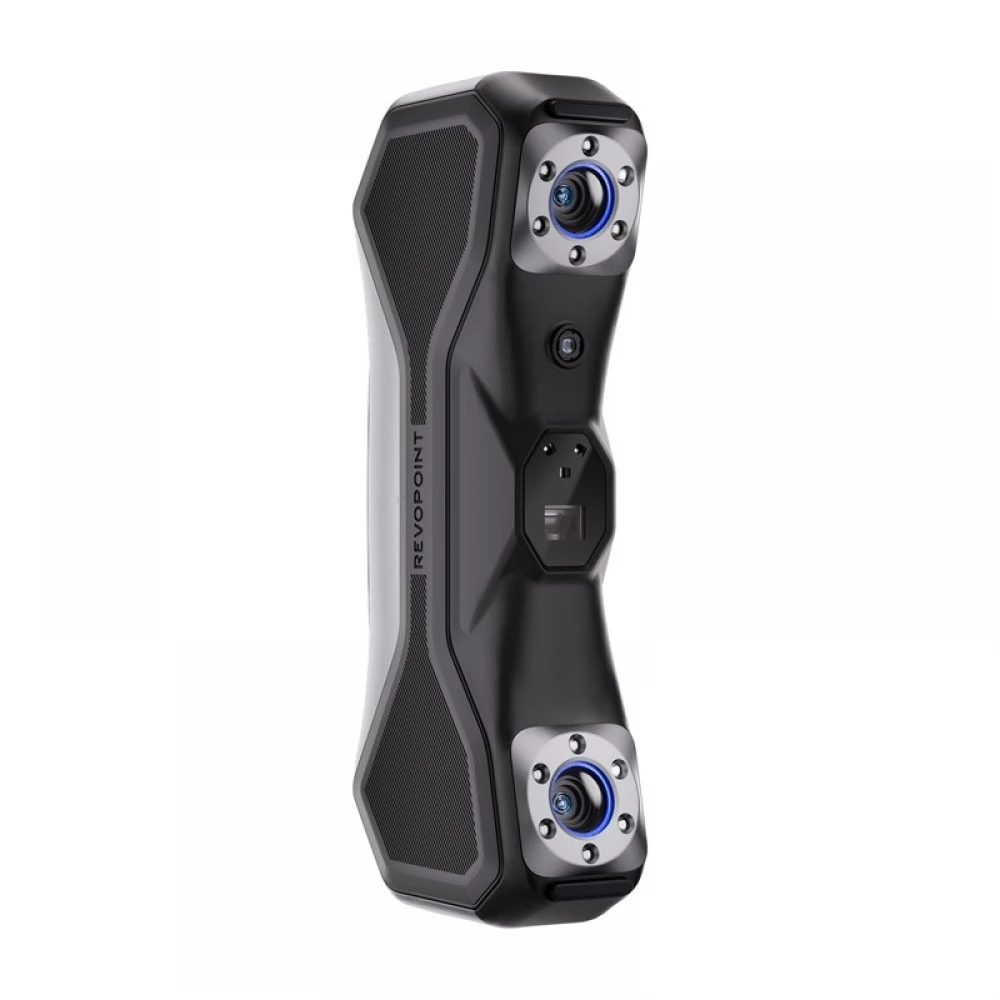

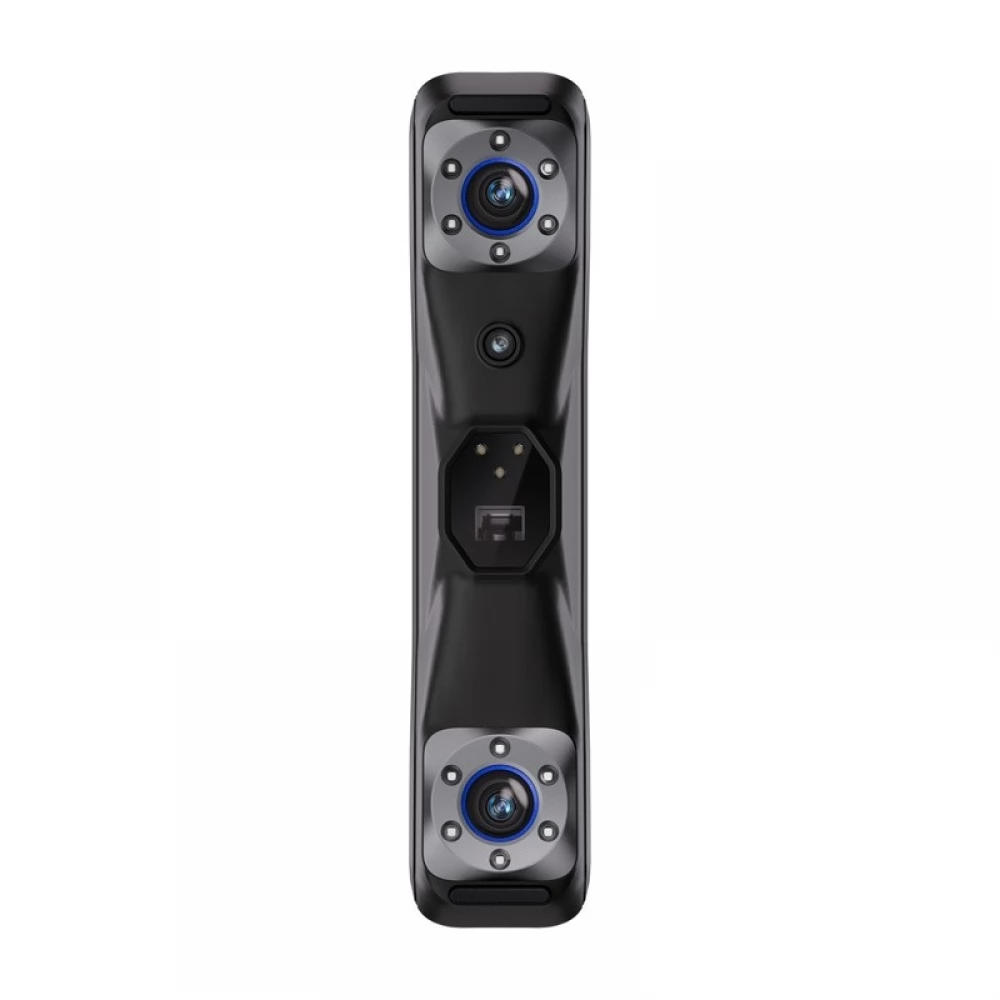

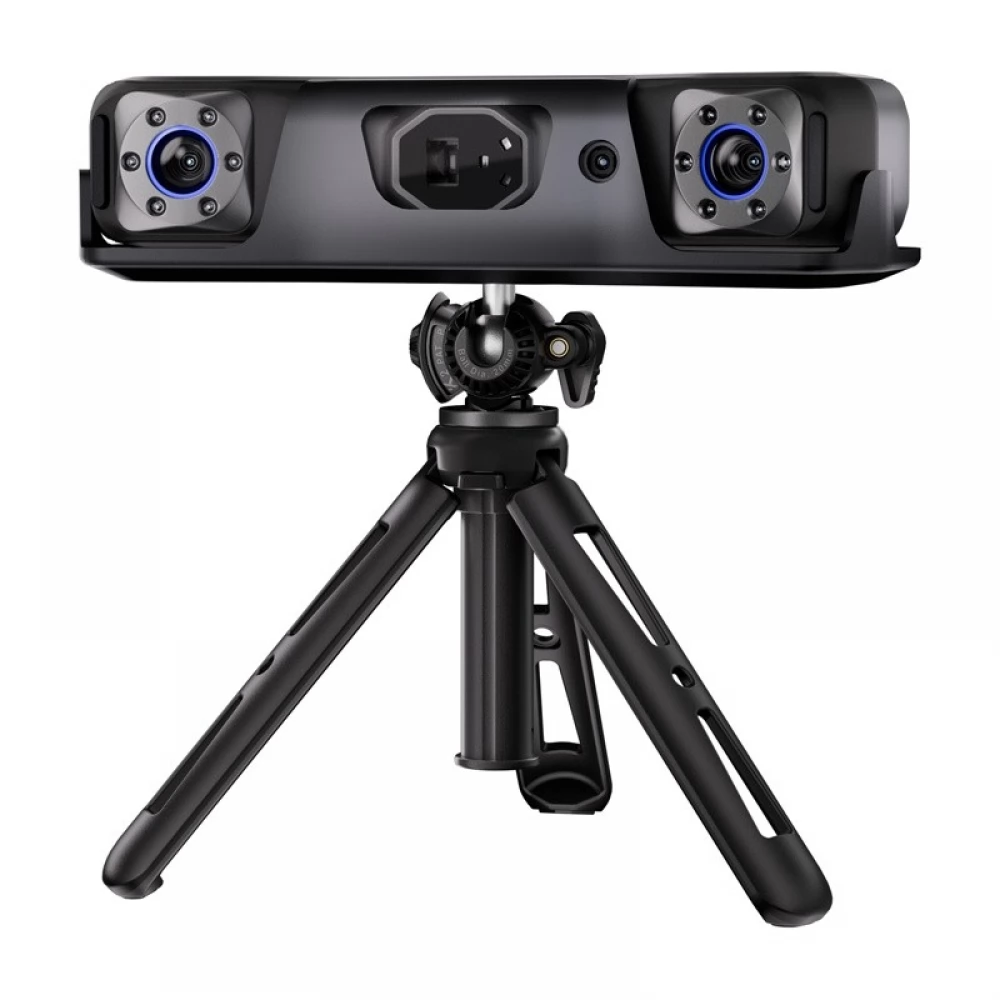

Discover the unparalleled accuracy and versatility of the Revopoint Metrox advanced scanner - a very light tool that combines a hybrid multi -band laser and full -screen structured blue light up to 7,000,000 points per second, with 0.03 mm accuracy. The four scanning modes allow for perfect reproduction of both smooth, shiny surfaces and the most complex details, while the enclosed rotary plate and intuitive Revo scan software provide the CAD (computer design, a process that creates, analyze, change and document designs or quality control. Revopoint Metrox is a device that raises its plans to the next level and finds its path in many situations - from Reverse Engineering to 3D printing to prototypes. The standard version includes a marker block kit.

Pioneering 3D scanning technology
The Revopoint Metrox, with a combination of hybrid multi -band laser and total blue structured light, allows for a professional 3D modeling of small and medium -sized objects. The device can capture the most complicated details and invisible surface features with up to fourteen crossing laser lines and seven parallel lines and the stunning light structure of 62, reaching up to 0.01 mm single-cubic accuracy and 0.03 mm full accuracy. Such a detailed work makes the scanner an excellent choice for all demanding users.

Versatility in a device
The Metrox model does not require a matte spray to scan the bright or black surfaces. The device quickly records the data in multi -lane laser mode at up to 800 000 points per second and in full field light mode at up to 7,000,000 points per second. The flexible mounting area (160 × 70 mm from 200 mm to 320 × 215 mm from 400 mm) is ideal for both engineering studios and design offices. This tool revolutionizes the way of scanning objects.

Automation and intuitive treatment

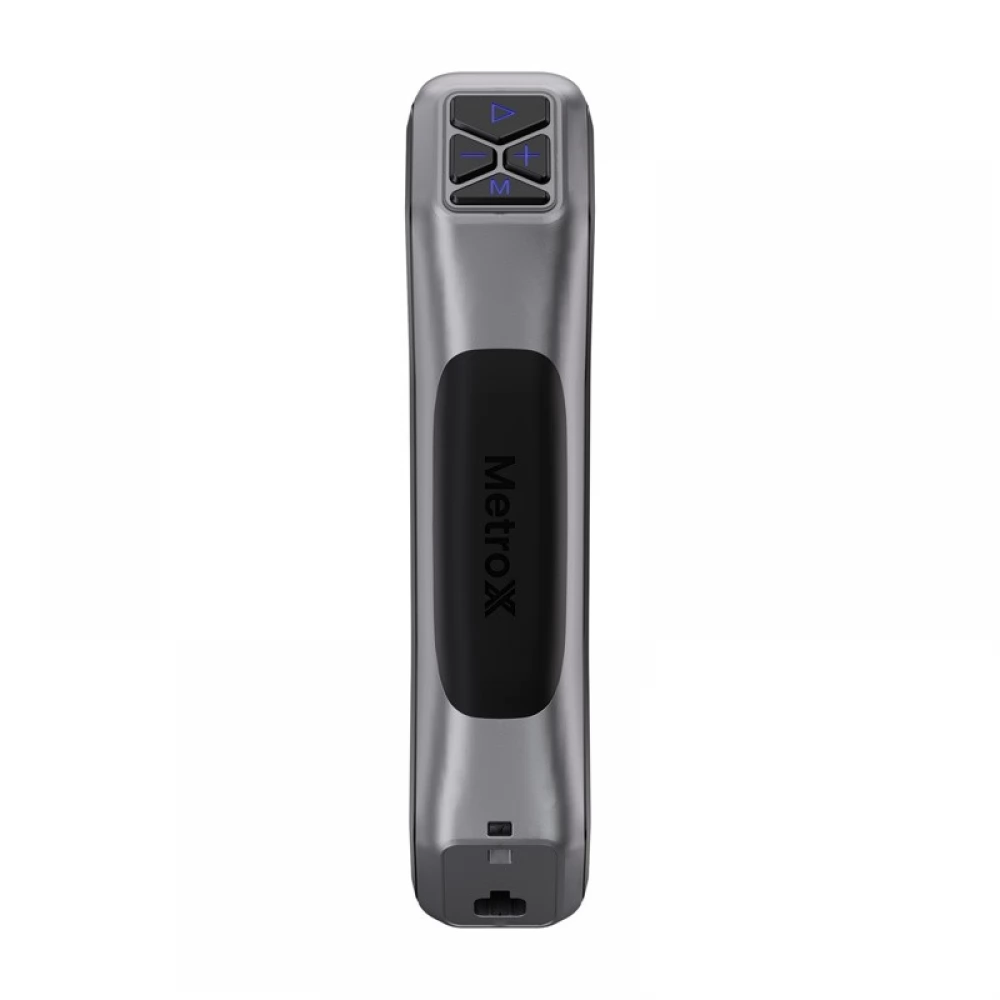

The Revo Scan and the Metrox system create the digital twin brother of an object at the touch of the automatic two -axle rotary disc, so no manual positioning is required. The four -button, real -time control panel allows you to stop operation, depth -camera exposure and digital zoom adjustment, while the built -in RGB HD (Red Green Blue, three -colors - red, green and blue - abbreviation) camera provides accurate color rendering. With the four scanning modes, you can adjust the device to your current needs to accurately reproduce what you need most.

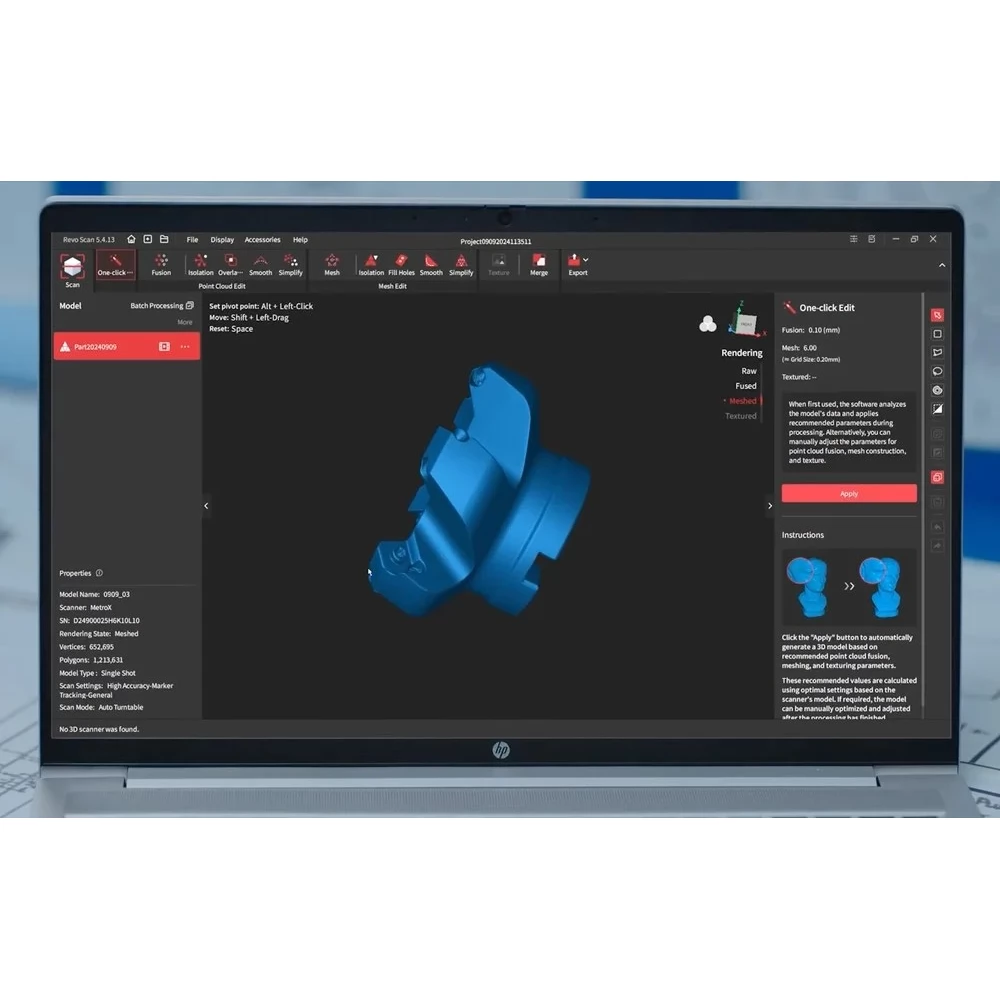

Revo Scan software
Revo Scan is an extremely intuitive device that helps you throughout the scan process - from the adjustment of the scan parameters to the automatic or manual processing of the point cloud to the editing, the merger of the model segments, and to export to PLY, OBJ, STL, ASC, 3MF, GLTF or FBX. You can easily remove unwanted data, smooth out surfaces, fill the cavities and combine partial scans to create a consistent model that is ready for further processing in software such as Quicksurface, Geomagic Wrap, or Geomagic Control. The built -in calibration wizard provides accurate and reliable measurement results.

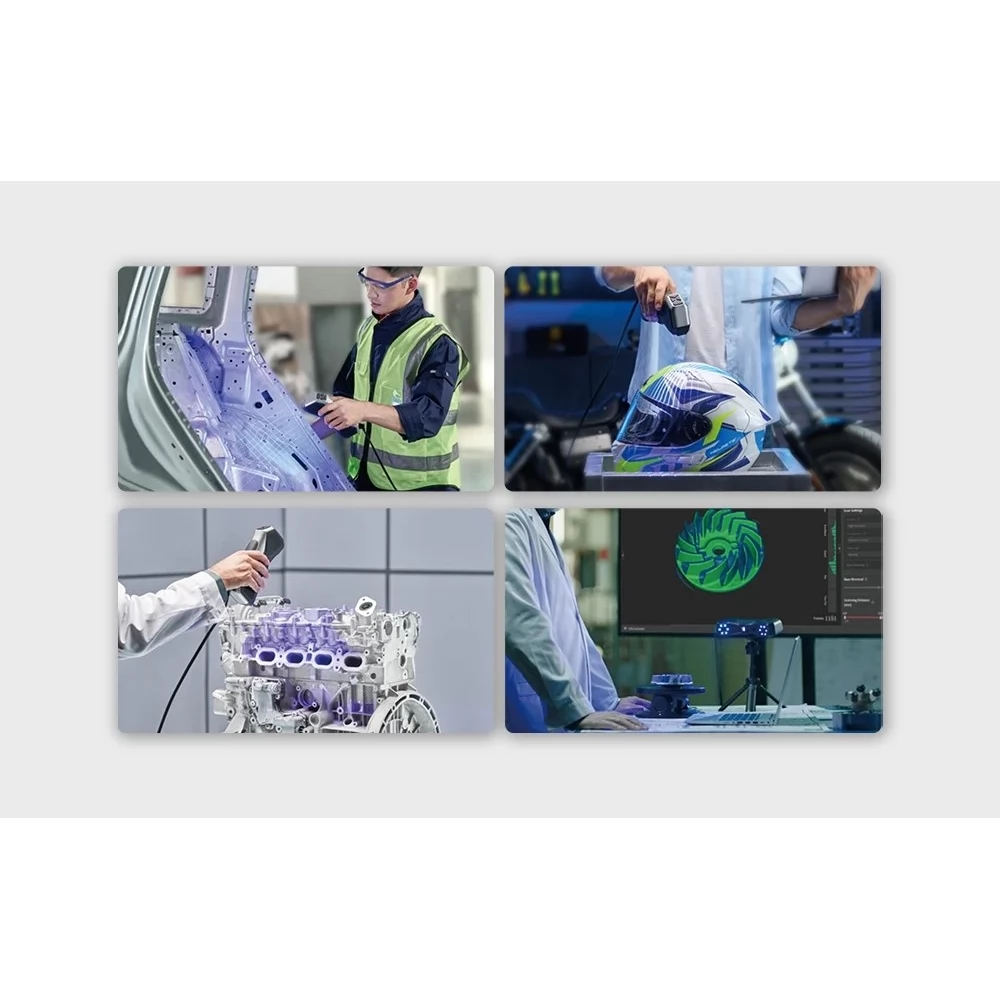

Professional applications
Revopoint Metrox will prove its value in reverse measurement processes, allowing the scan-to-cad (process of transforming physical objects or documents to 3D digital CAD model) to quickly create 3D models. It will be great in quality control, where the identification of errors and differences during production can be quickly done; In incrementary technology, creating loyal digital twin siblings for 3D prints; Or in fast prototype production, where well -sized models minimize iterations and save time and resources.

Thoughtful design

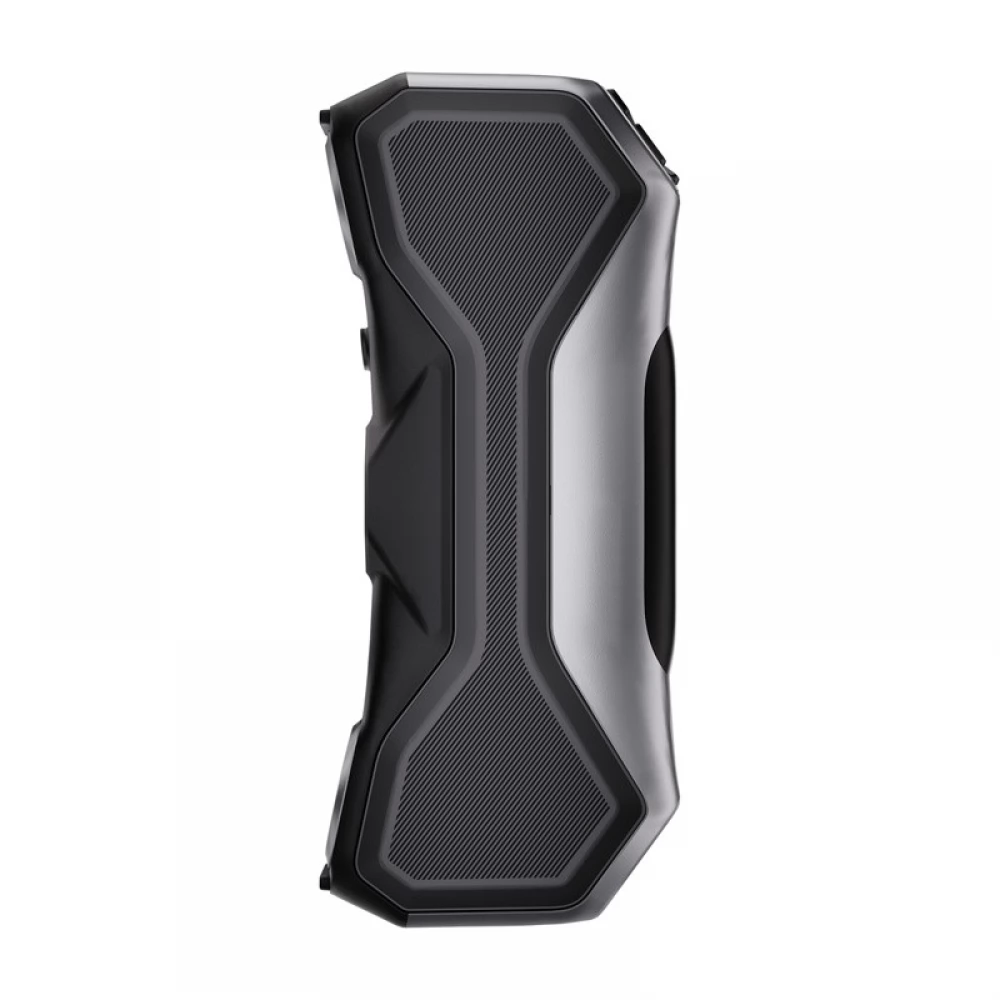

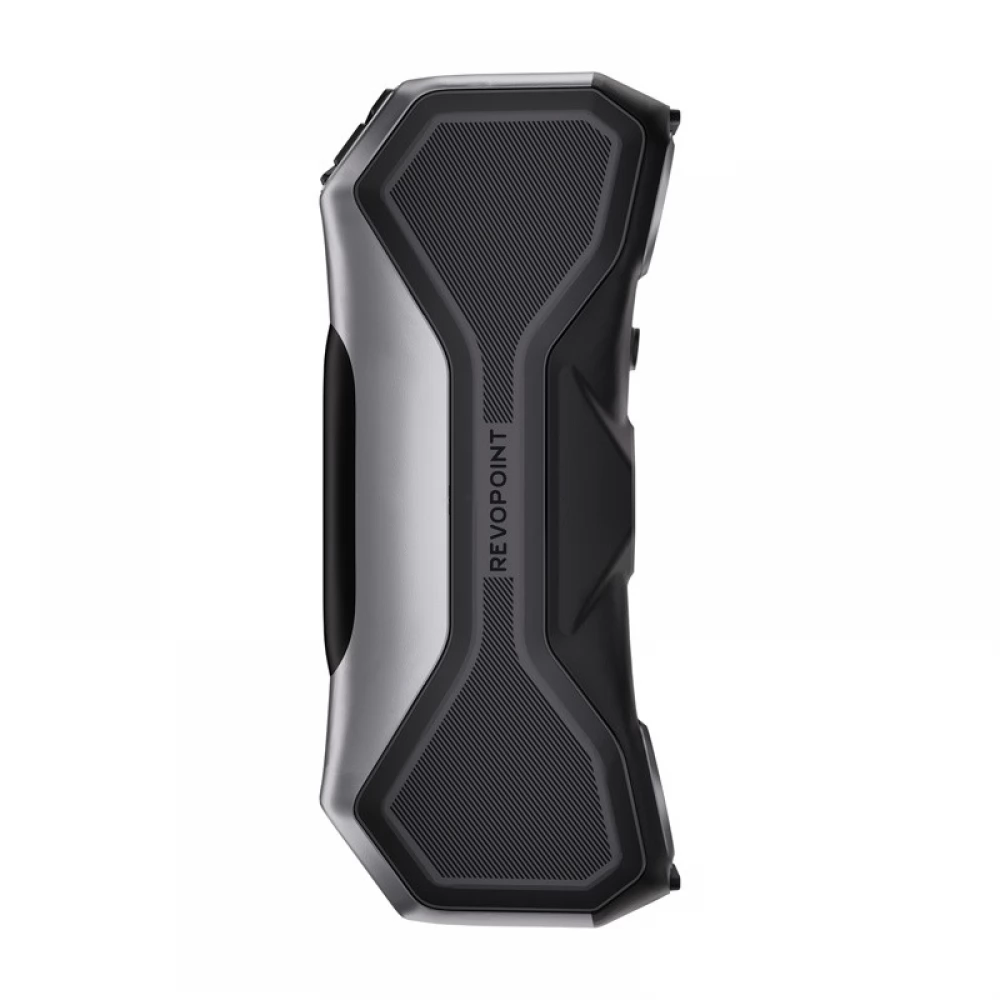

The Revopoint Metrox scanner weighs only 508 g and 209 x 88 x 44 mm, so it is extremely convenient. You can easily pack it in the enclosed storage case and do not take much space in your work area. Enjoy hours working for hours without feeling uncomfortable with Revopoint Metrox!

Enhanced version for greater comfort
The attached Marker Block Kit significantly saves time by reducing the number of markers required when setting the laser scan or scanning the characterless objects in full field mode (this mode uses the entire camera of the camera to record the object data simultaneously instead of scoring it on point or line). The markers can be reused and combined in any configuration.

Technical
