PHANTEKS NEXLINQ HUB: The ideal solution for easy control of fans and lighting. Phanteks Nexlinq Hub is a perfect tool that allows you to control your fans and lighting easy. With the NEXLINQ Windows application, you can accurately control the speed of fans and the intensity of the lighting, adjusting to your needs. The modern, easy -to -use surface of the application also provides useful system information.

- Intuitive NEXLINQ Windows application: Simple and precise control over fans and lighting
- Supports Windows Dynamic Lighting and USB connections
- Fans are automatically adjusted to CPU or GPU temperature
- Personalized RGB lighting: gives your computer a unique look

Simple installation, complete control
You can connect various fans and lighting devices to the NEXLINQ HUB versatile options. The control can be done through a motherboard using Windows Dynamic Lighting or directly with NEXLINQ. With intuitive PWM curves, you can automatically or manually adjust the speed of the fans based on the current temperature of the CPU or GPU. A wide selection of lighting effects gives you the opportunity to personalize your computer and visually highlight its unique style.

Excellent compatibility for all configurations

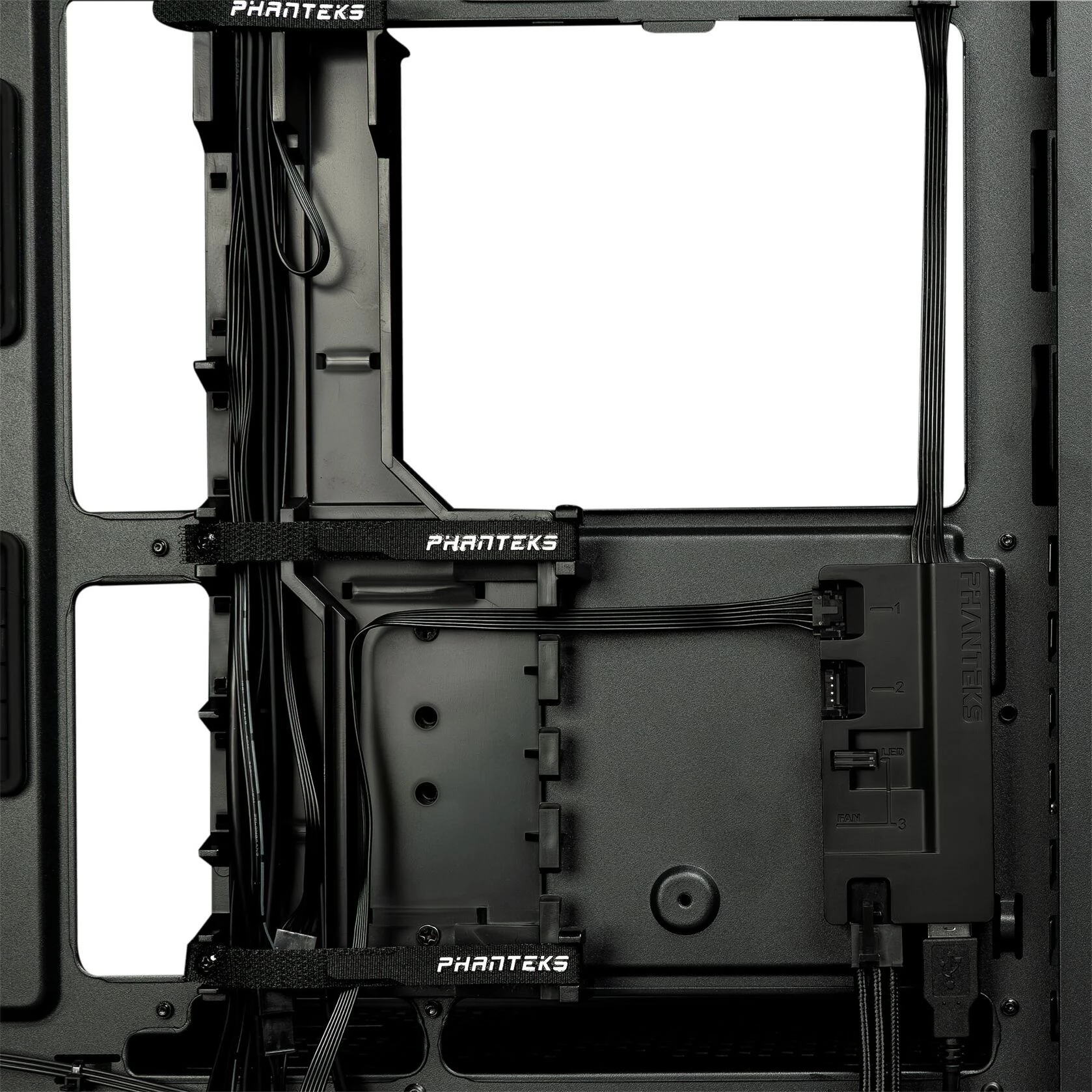

The NEXLINQ HUB supports a variety of connection methods and guarantees long life and reliable operation through its robust design. Fast and easy to fix with magnet or velcro fastening. The power supply is provided by a 6 -pin PCIe connector capable of delivering up to 108 watts - which is plenty for larger systems.

Technical data
- Product Size (H X SZ X M): 95 x 45 x 18 mm
- Color: black
- Materials: PC, ABS
- Power connector: PCI-E 6pin
- Input power: 12V DC, 9A
- Input rated power: 108W

Input sources
- Linq6 motherboard input
- USB NEXLINQ app
- USB Windows Dynamic Lighting

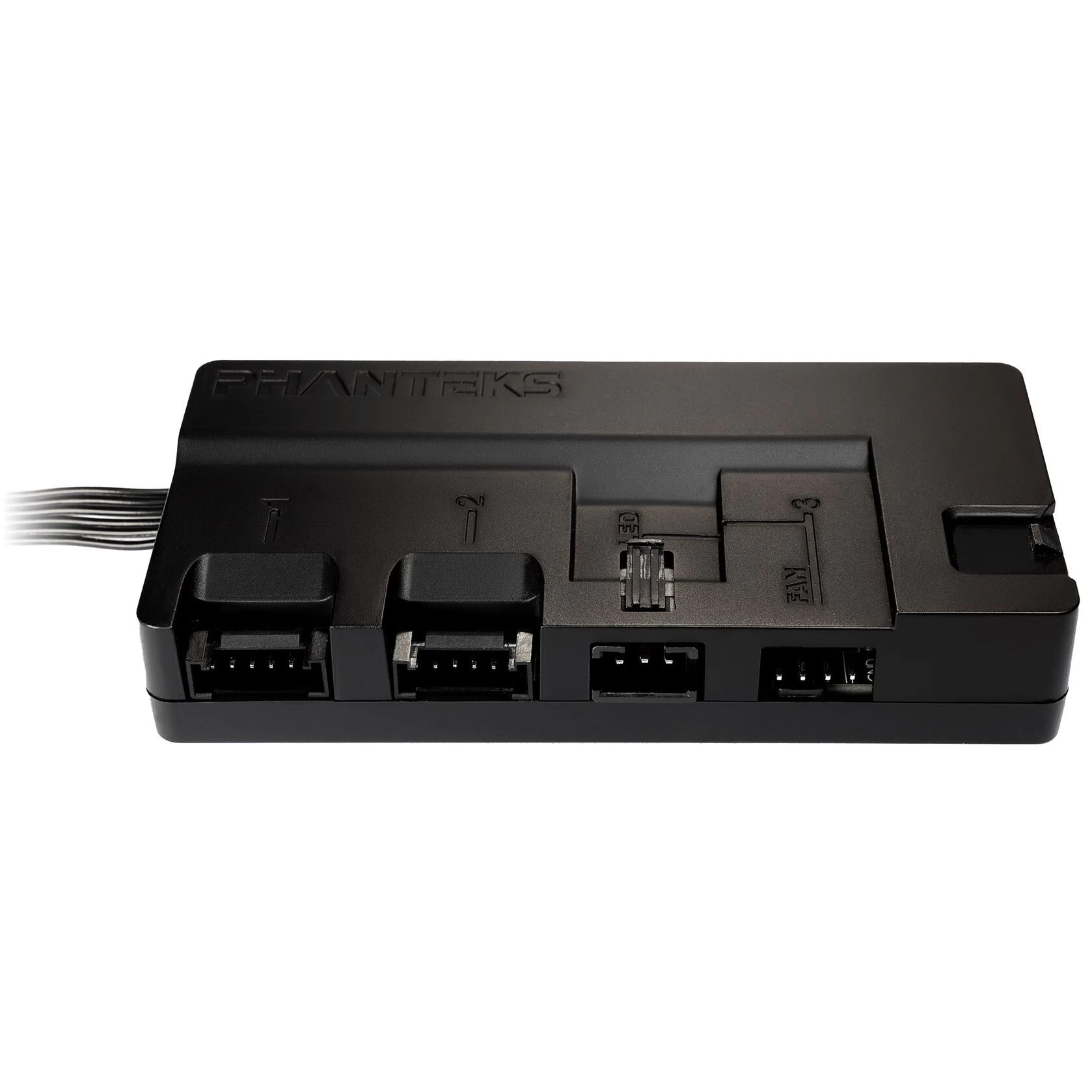

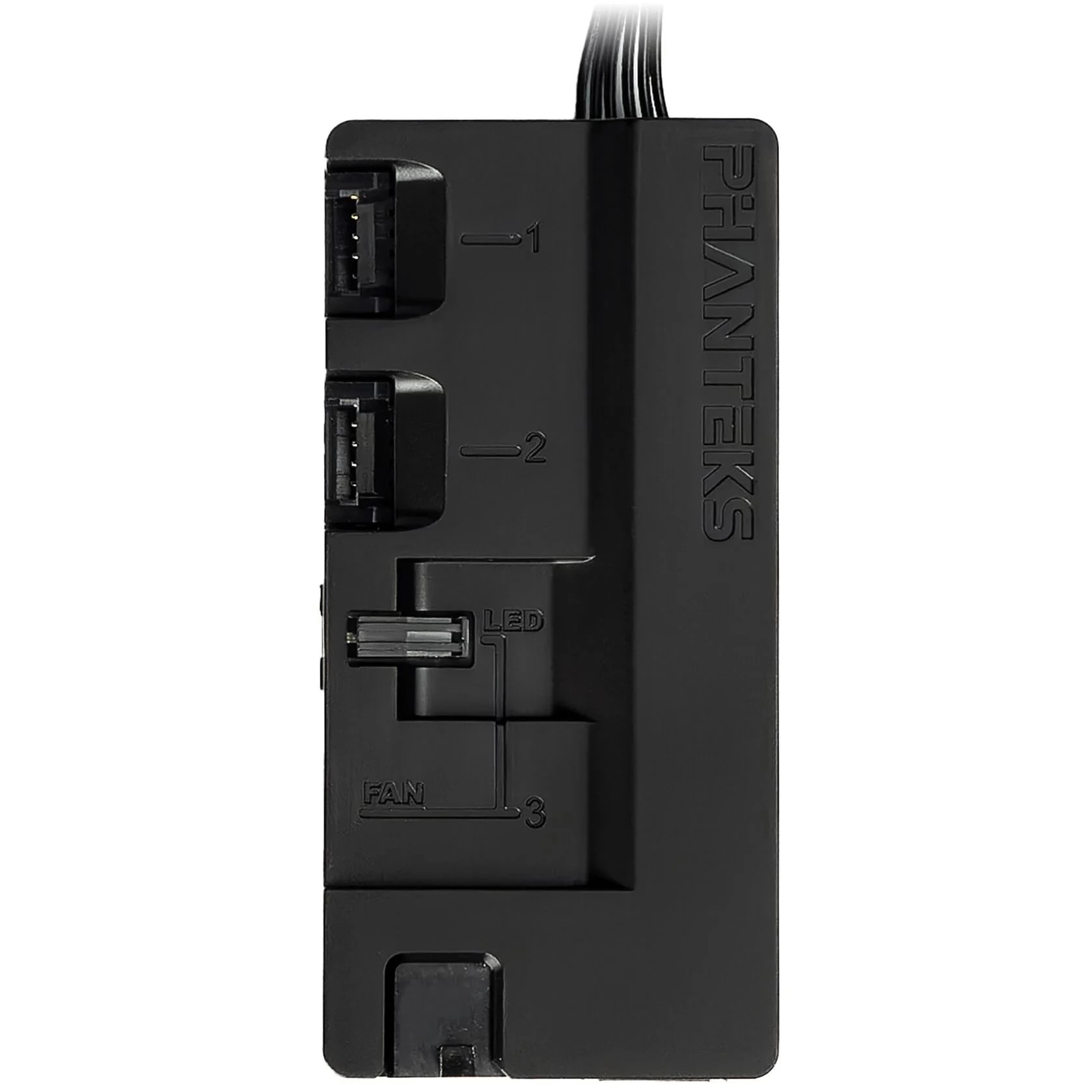

Output connector ports
- Port 1 & 2: Linq6 connector
-Port 3: 4-Pin PWM + DRGB 3-PIN JST
- Fixing method: magnet or velcro fastener

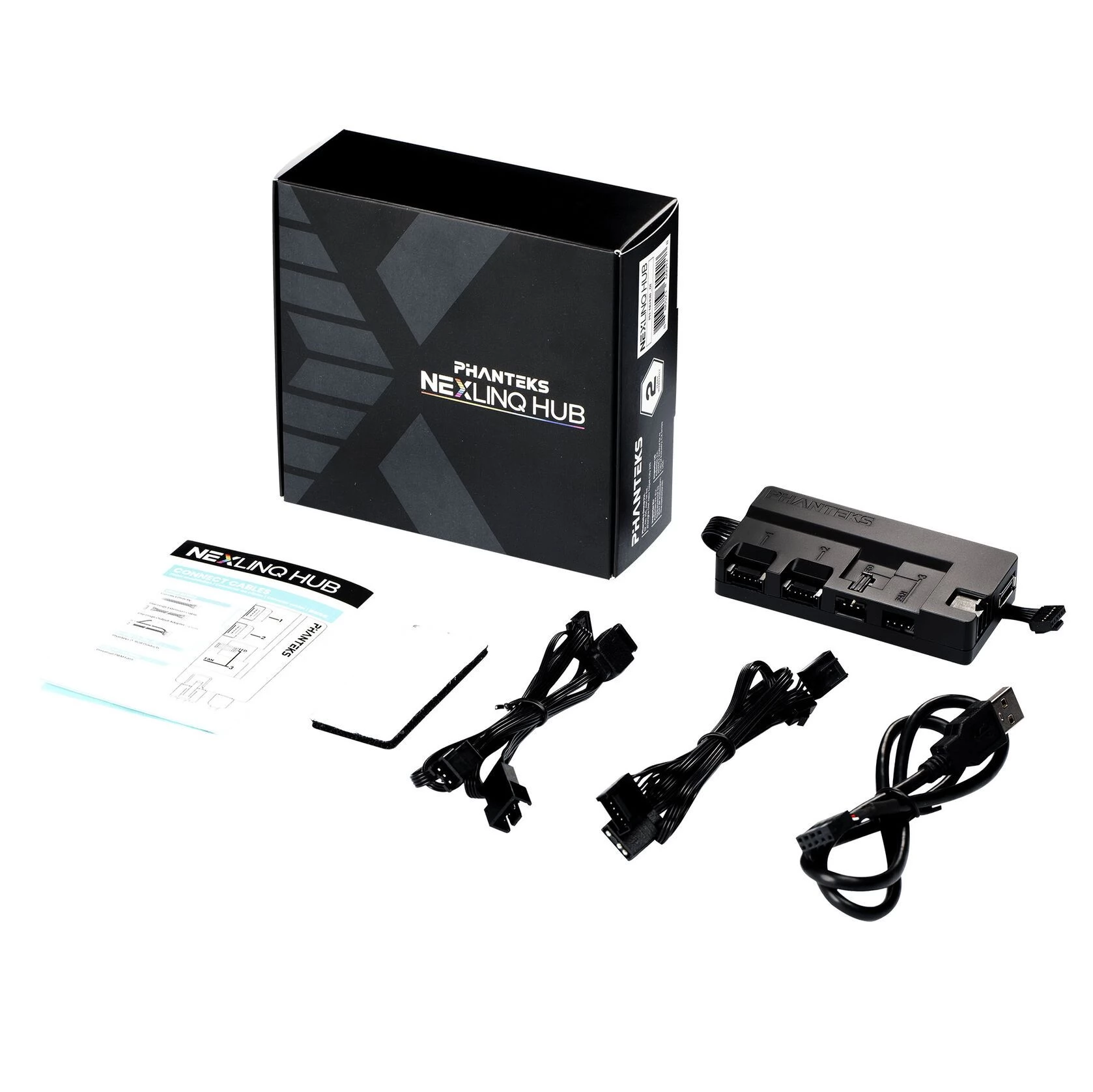

Packaging content
- 1x NEXLINQ control center
- 1x USB 2.0 cable, 600 mm
- 1x Linq6 motherboard adapter, 500 mm
- 1x Linq6 output adapter, 500 mm
- 1x Velcro Strip, 70 mm x 30 mm
- 1x installation guide
