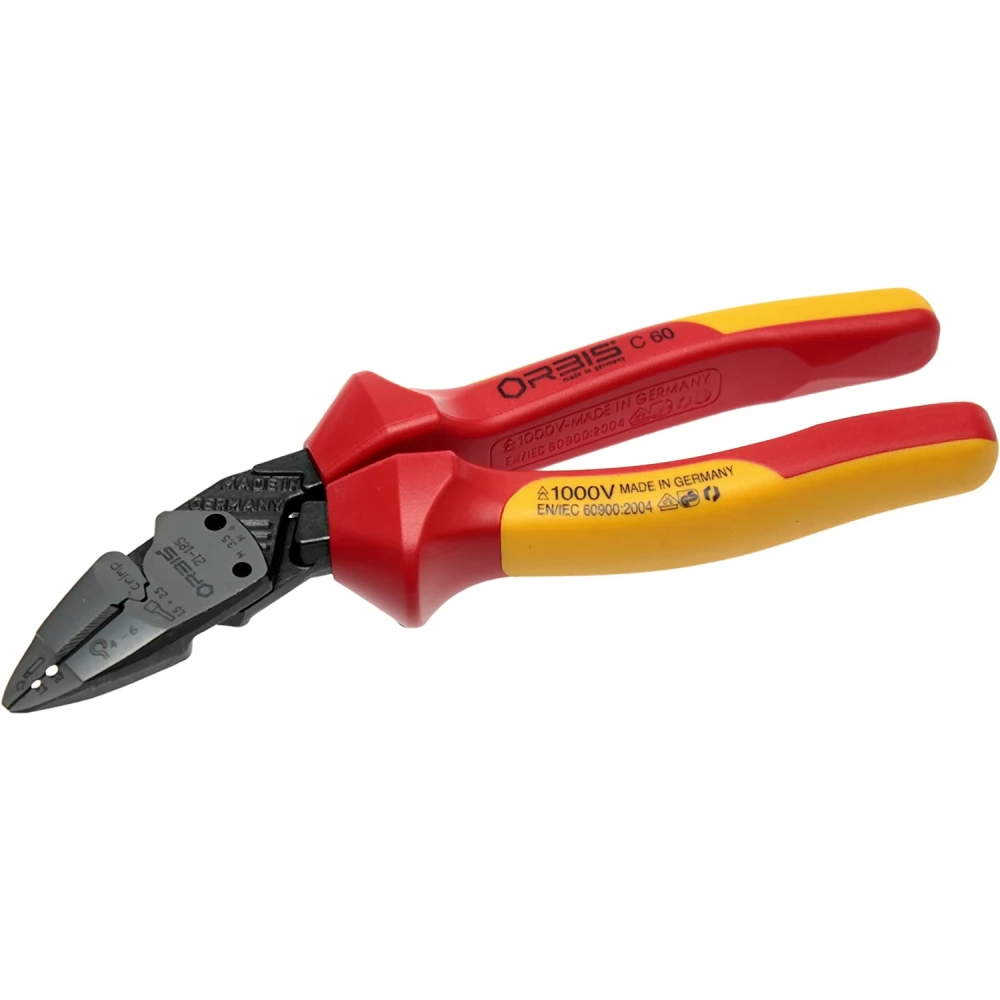

ORBIS Evomaxx 21-185/40RV C60 VDE side cutter clamp 180 mm

Induction-hardened precision edges (approx. 64 HRC) for piano strings. Precision wire stripping knives for single-core (solid) 1.5 and 2.5 mm2 wires. Precise crimping structure for 1.5 and 2.5 mm2 ferrules....
Warranty
NOT ON STOCK
The product is not available. Please click on the button to receive a notification if it is available again.

Substitute products

    Product description

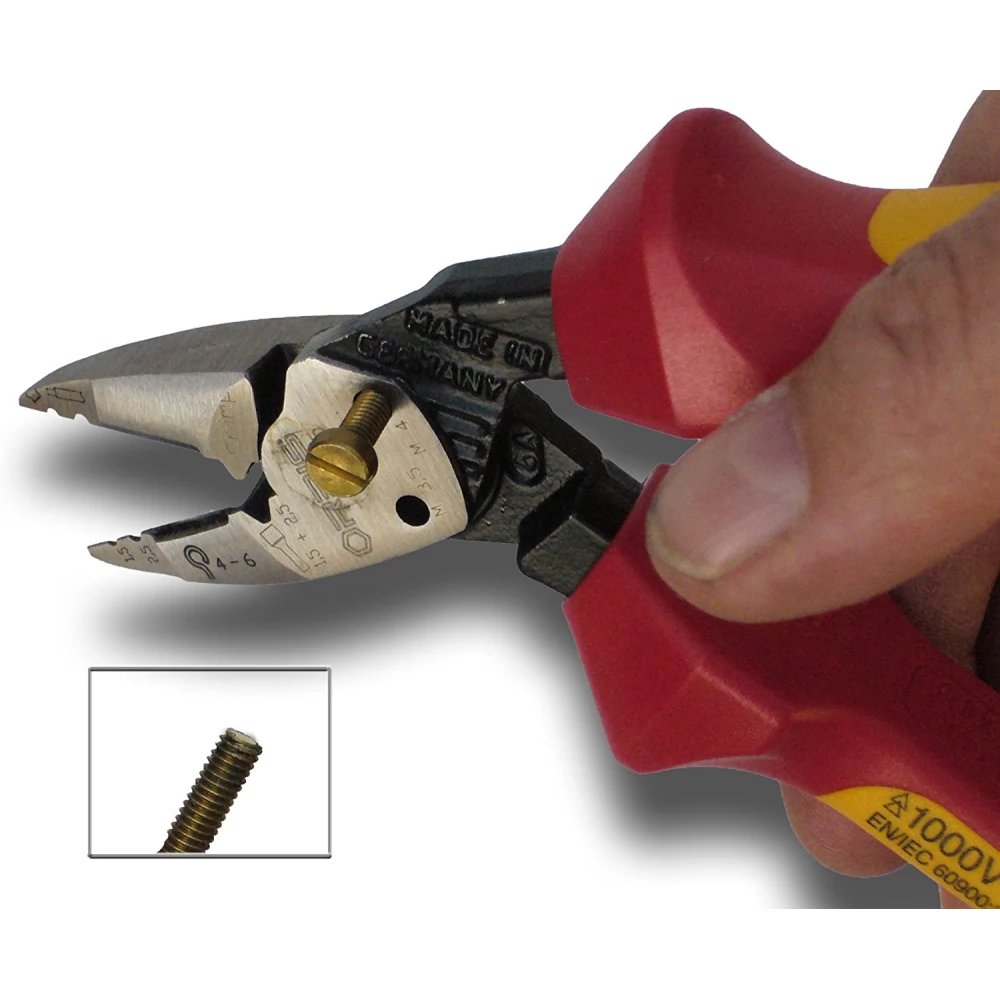

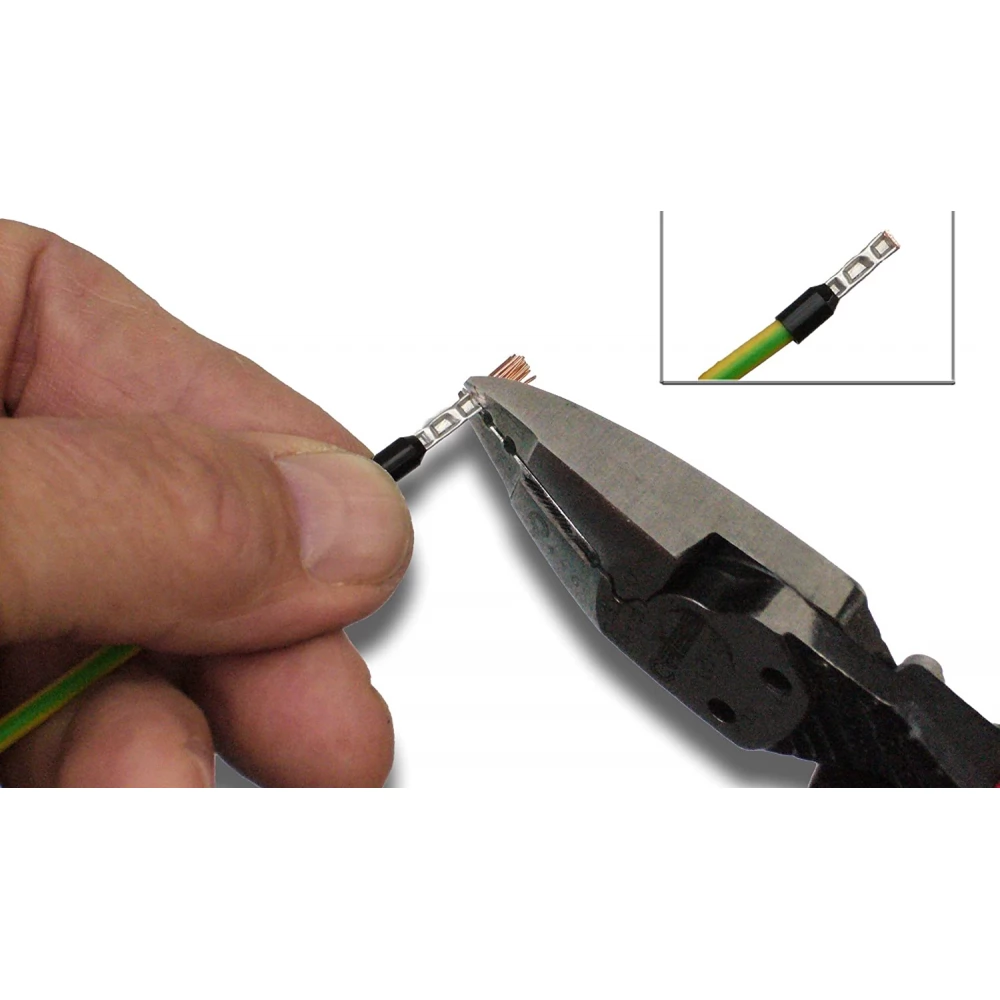

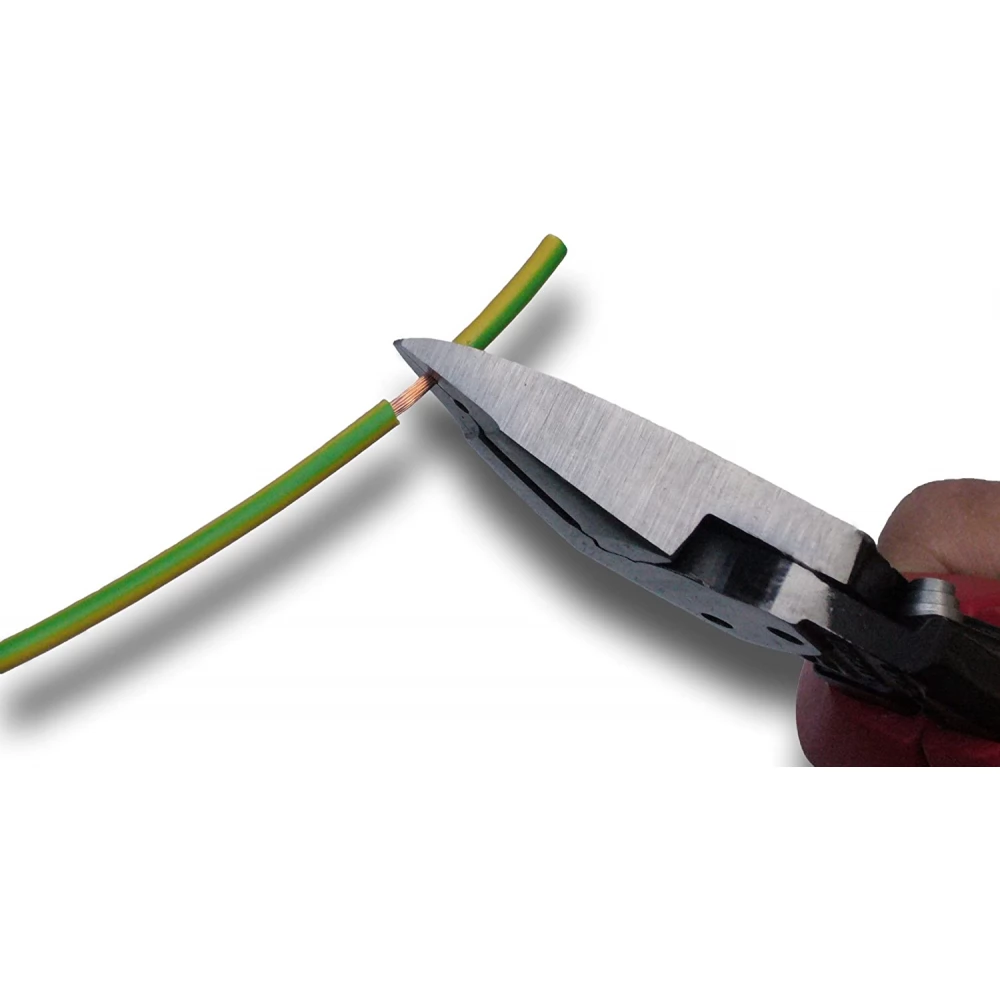

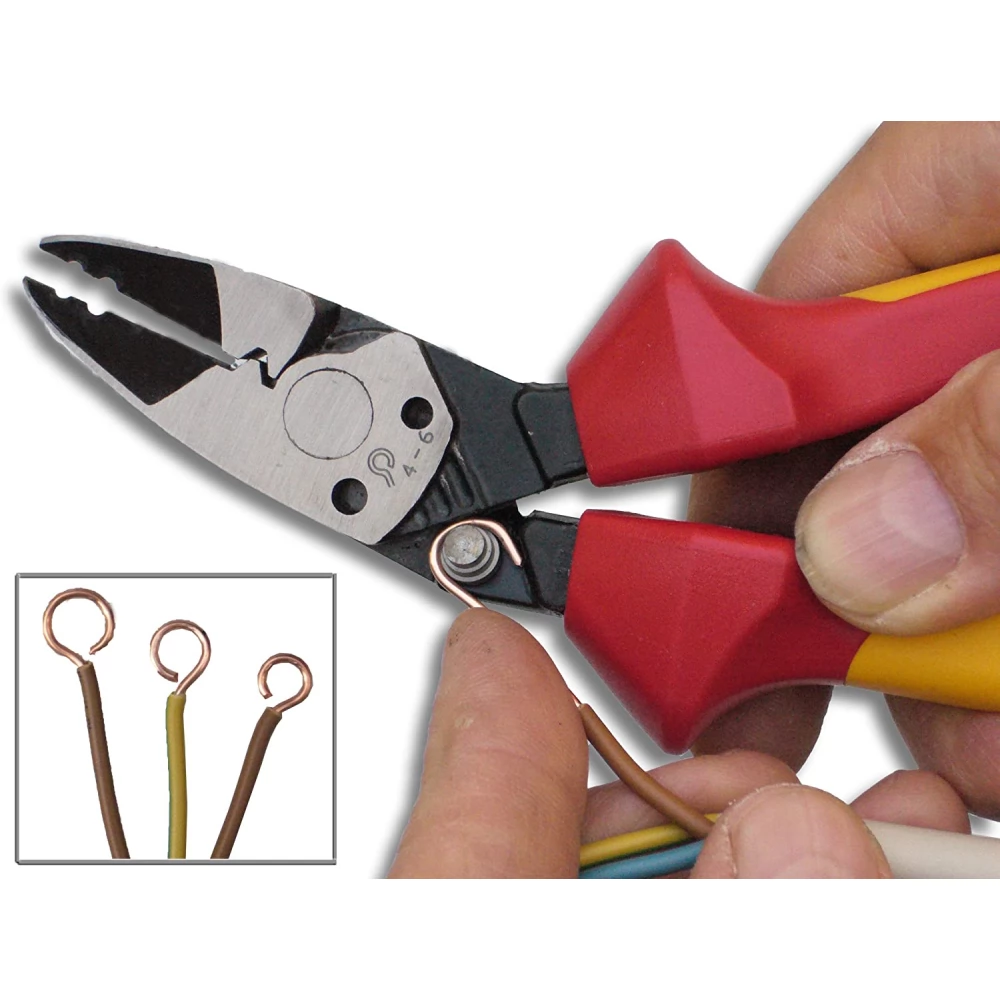

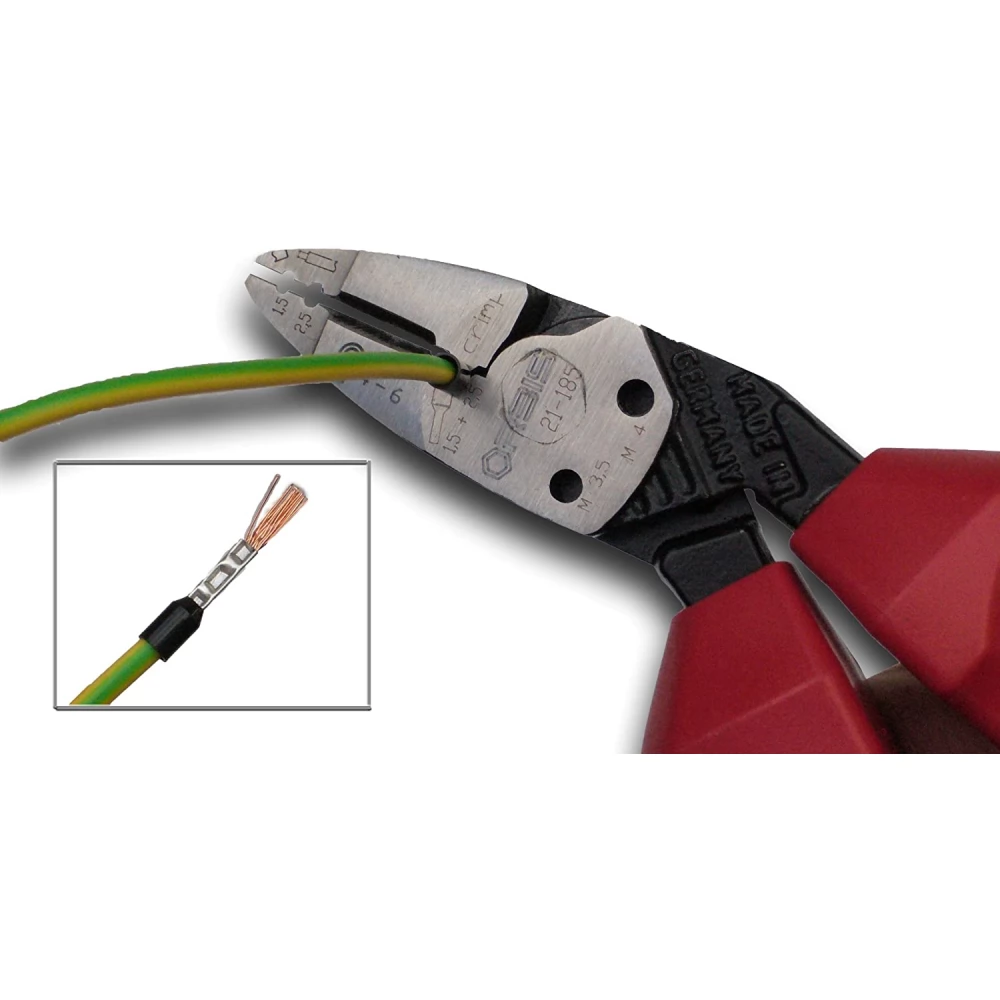

    Induction-hardened precision edges (approx. 64 HRC) for piano strings. Precision wire stripping knives for single-core (solid) 1.5 and 2.5 mm2 wires. Precise crimping structure for 1.5 and 2.5 mm2 ferrules. Cutting edge for flat cutting of M3.5 and M4 brass and copper screws. Bending device for bending lugs for solid ⌀ 4, 5 and 6 mm red copper wires. Handles with thick-walled handles, insulated up to 1000 V according to DIN EN 60900 / VDE 0682-201. High cutting and pressing performance due to the optimal gear ratio.

    Usage
    Ideal for electronic assembly work - curved design for better ergonomics and a clear view of the work area.

    Basic material
    Special tool steel, matt gloss grips, handles coated with multi-component material.

    Specifications
    - Total length: 180 mm
    - Cutting performance: Piano string ⌀ 2 mm
    - Bent head: 25 °
    - Wire ⌀ stripping: 1.5 mm; 2.5 mm
    - For ferrules: 1.5 mm²; 2.5 mm²
    - Standard: DIN EN 60900 / VDE 0682-201
    - Handle: Multi-component handle
    - Manufacturing process: Induction hardened edges (approx. 64 HRC).
    - Base material: Special tool steel
    - Grip surface: shiny
    - Weight: 270 g
    - Product type: Cutting pliers
