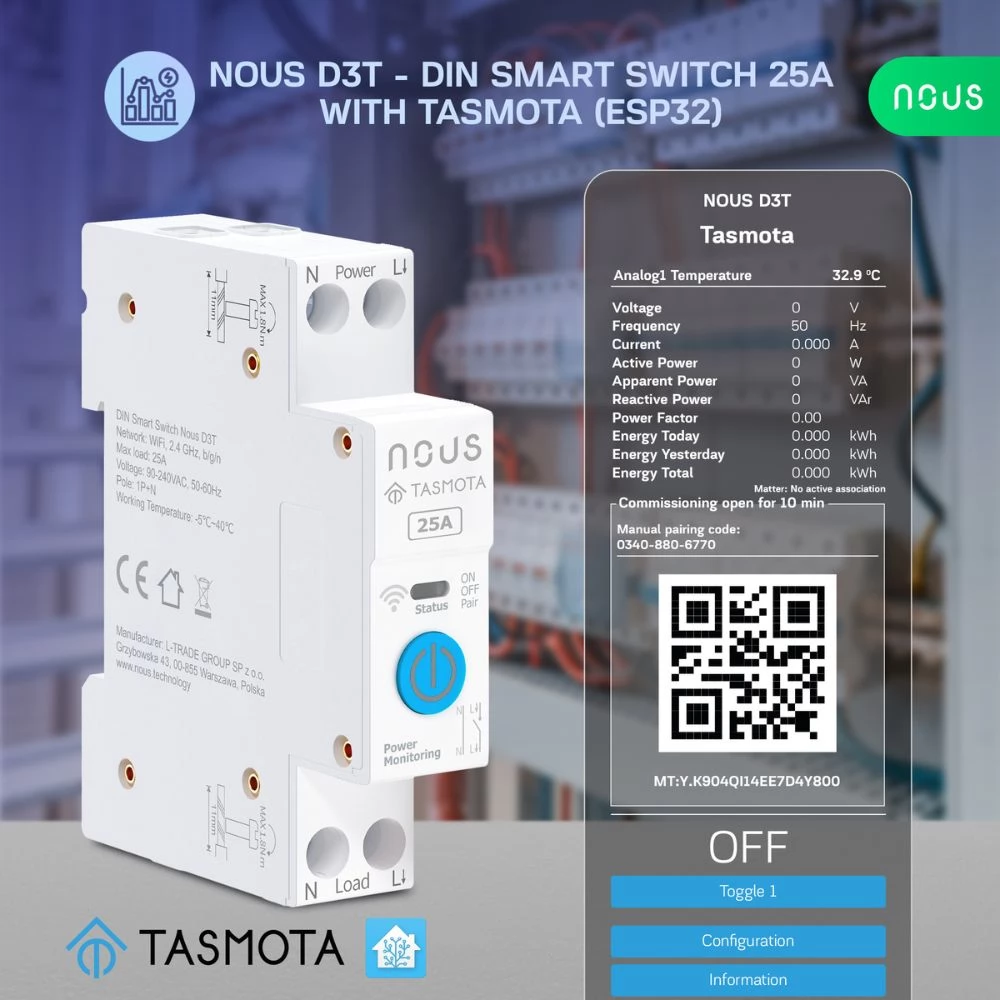

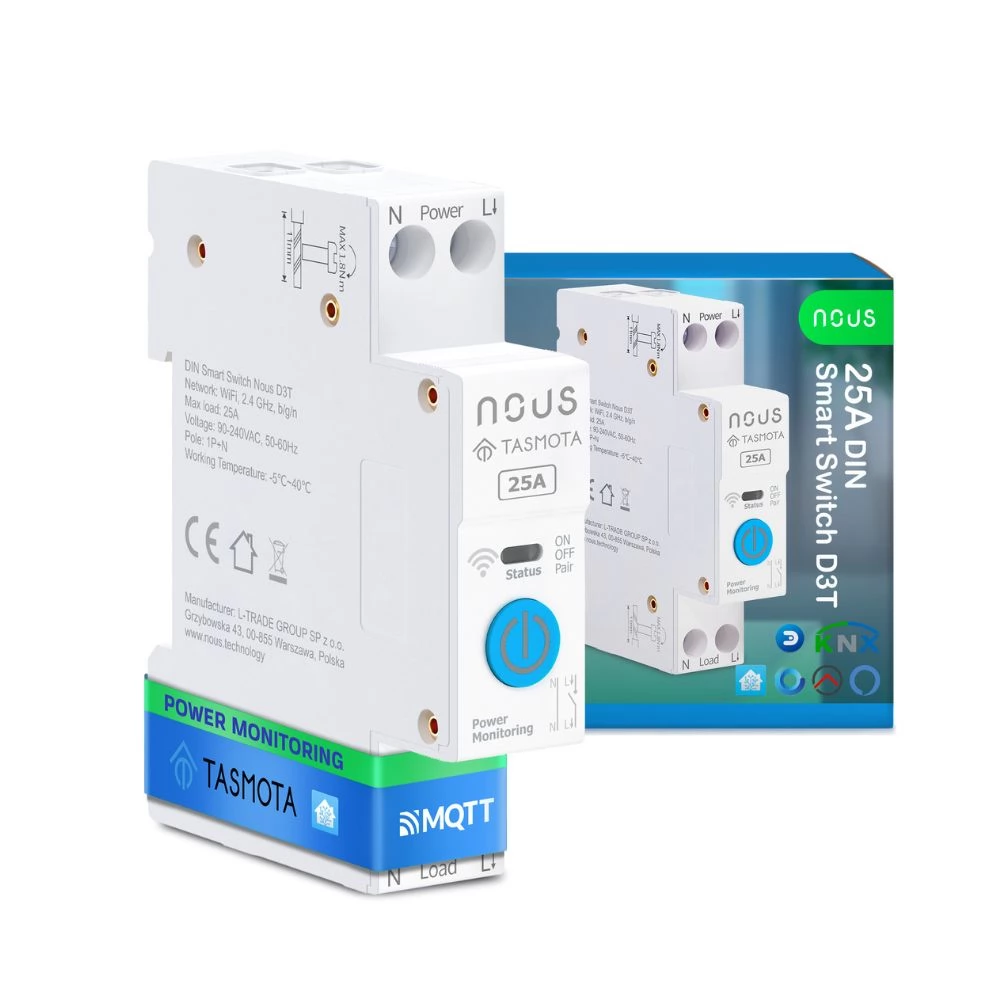

NOUS D3T is a smart Wi-Fi relay module that can be installed on the DIN rail of an electrical cabinet, specially designed for smart control and consumption measurement of electrical devices. The module's maximum capacity of 25A makes it suitable for controlling the largest household circuits and consumers.

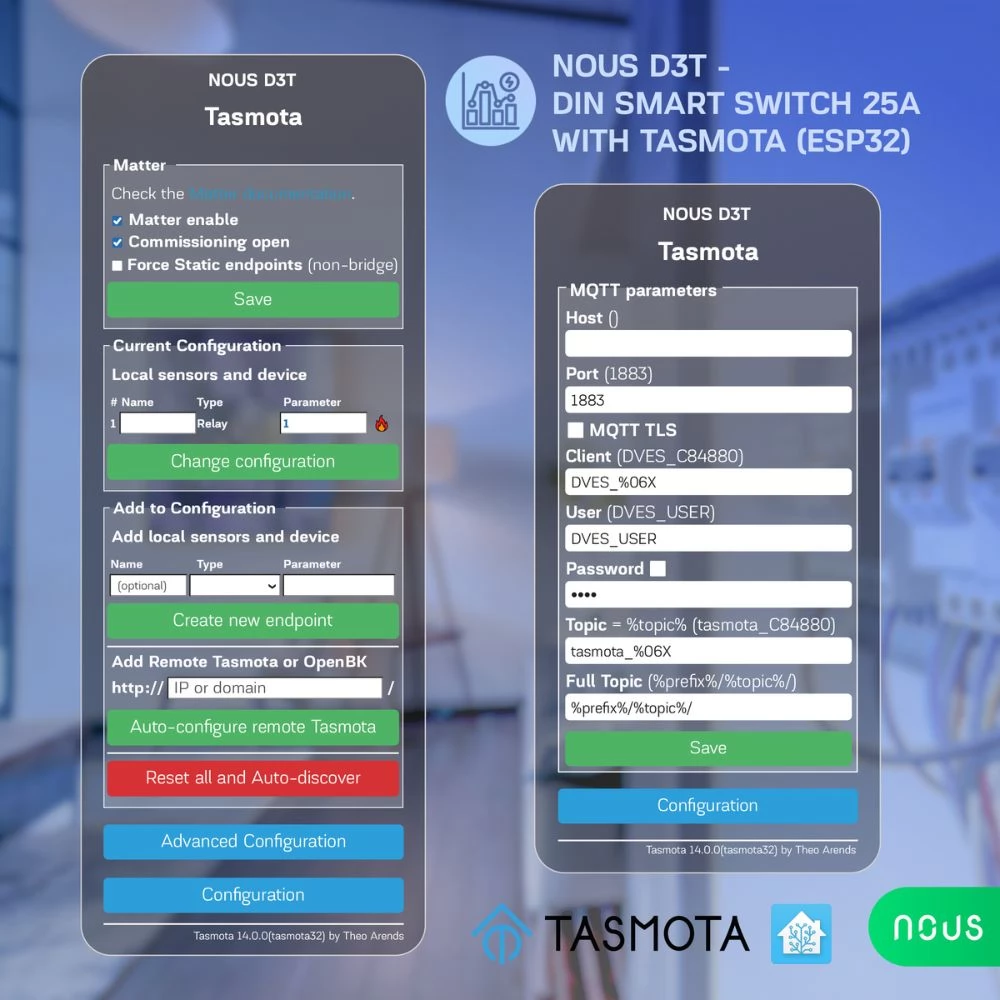

The open source Tasmota firmware offers flexible configuration and integration options. It enables the fully local operation of the smart relay module, for which a local web configuration interface is available on the device. Thanks to the Tasmota firmware, the device also supports the MQTT protocol, so it can be well integrated with most open source systems, such as the Home Assistant. Note: Tasmota firmware is not a commercial product and only limited community technical support is available.

Thanks to its compatibility with the Matter standard, the Nous D3T can also be used with popular smart home platforms such as Apple HomeKit, SmartThings, Google Home, Alexa or eWeLink.

Other compatible platforms: AWS IoT, Domoticz, Homebridge, HomeSeer, IP Symcon, KNX, NodeRed, nymea, OctoPrint, openHAB, Otto, IOBroker, Mozilla WebThings Adapter, Tasmohab, Homematic ip. More information about Tasmota's integration options: https://tasmota.github.io/docs/Integrations/

This high-quality, compact, yet powerful device is an ideal choice for use in both home and industrial environments. The module's user-friendly design allows for quick installation, while robust materials and reliable operation provide long-term security for users.

Main features:

- Brand: NOUS
- Type: D3T
- Color: White
- Material: PC/ABS (V0)
- Consumption measurement: Yes
- Switch on the module: Yes
- Input for external switch: No
- Certificates: CE, RoHS

Technical data:

- Size: 82x50x15 mm
- Maximum load: 25A
- Operating temperature: -25 70 ℃
- Operating voltage range: 90V-240V AC
- IP protection: IP20
- Communication standard: Wi-Fi IEEE 802.11b/g/n, 2.4 GHz only
- Protocols: MQTT
- Compatible with Matter smart home standard
- Smartphone control: Local web interface, Home Assistant hub; Through Matter connection: Google Home, Alexa, SmartThings, Apple HomeKit, etc.
- Compatibility with voice assistants: Alexa, Google Assistant and Siri (only via Home Assistant or Matter connection)

Integration and compatibility:

NOUS D3T can be easily integrated into various smart home systems, such as the Home Assistant, and with the support of the Matter protocol, it is also compatible with, for example, Google Home, Alexa, SmartThings, Apple HomeKit and eWeLink platforms.

Installation and use:

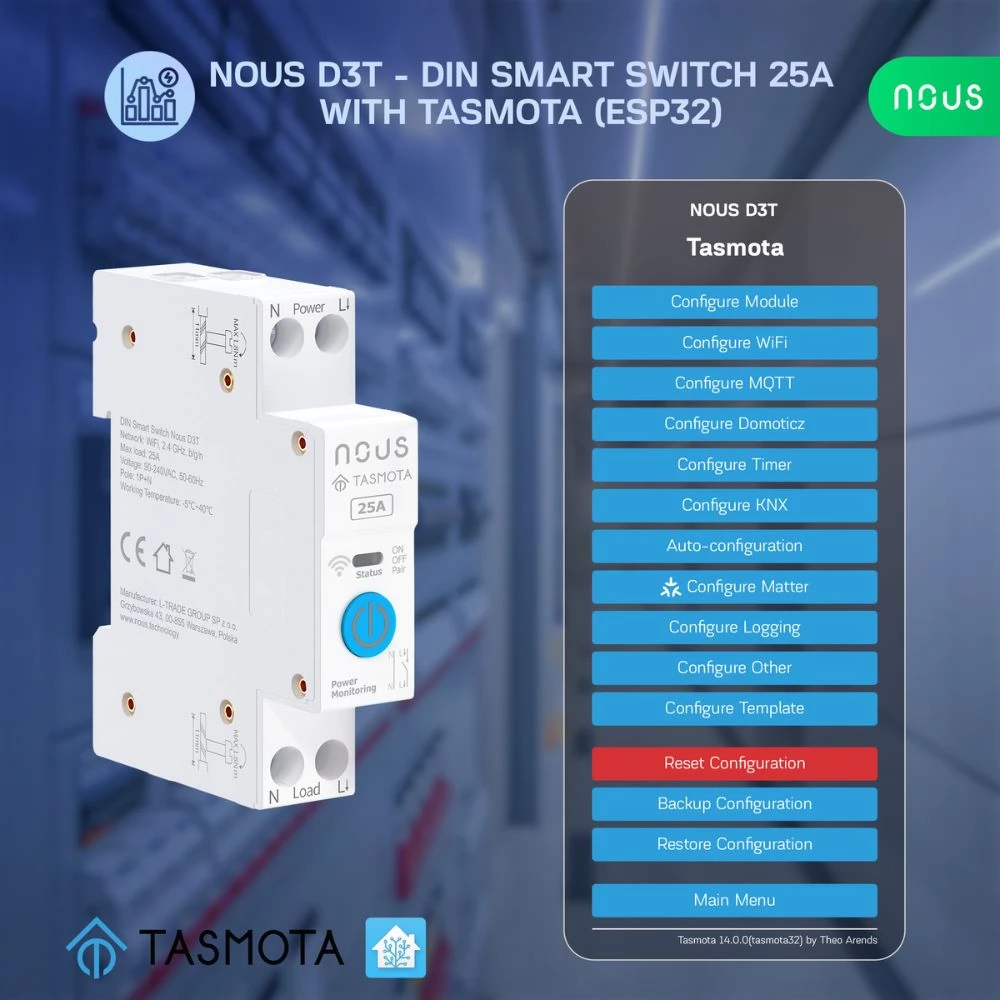

The device can be mounted on a DIN rail and, thanks to the Tasmota firmware, can be flexibly configured, even for completely local use. When connecting to a Wi-Fi network, make sure that the network operates on a 2.4 GHz frequency, as the device does not support 5 GHz Wi-Fi networks. After connection, adjustment and calibration can be performed via the web interface.

The NOUS D3T is an ideal choice for those looking for a reliable and versatile high-performance smart relay for electrical cabinet DIN rail mounting for their home automation needs, especially when integration with open source smart home systems or Matter standard compatible systems is required.
