Nous Zigbee -based solutions use the tuya environment, which is an ecosystem of smart home. The Zigbee protocol is energy efficient, stable thanks to the MESH network, and allows easy wireless connection of devices to a central gateway. The NUS gateways are compatible with the Tuya Apla, but can also be paired for the NUD's own application. The Zigbee passageways are responsible for connecting the Zigbee devices with the Wi-Fi network at home to provide remote control and automation.

Gateway

NUD passages eg. Nous E1 plays a central role in your smart home. These tools ensure that all Tuya Zigbee-compatible devices, such as smart switches, thermostats, sensors and light sources, work smoothly.

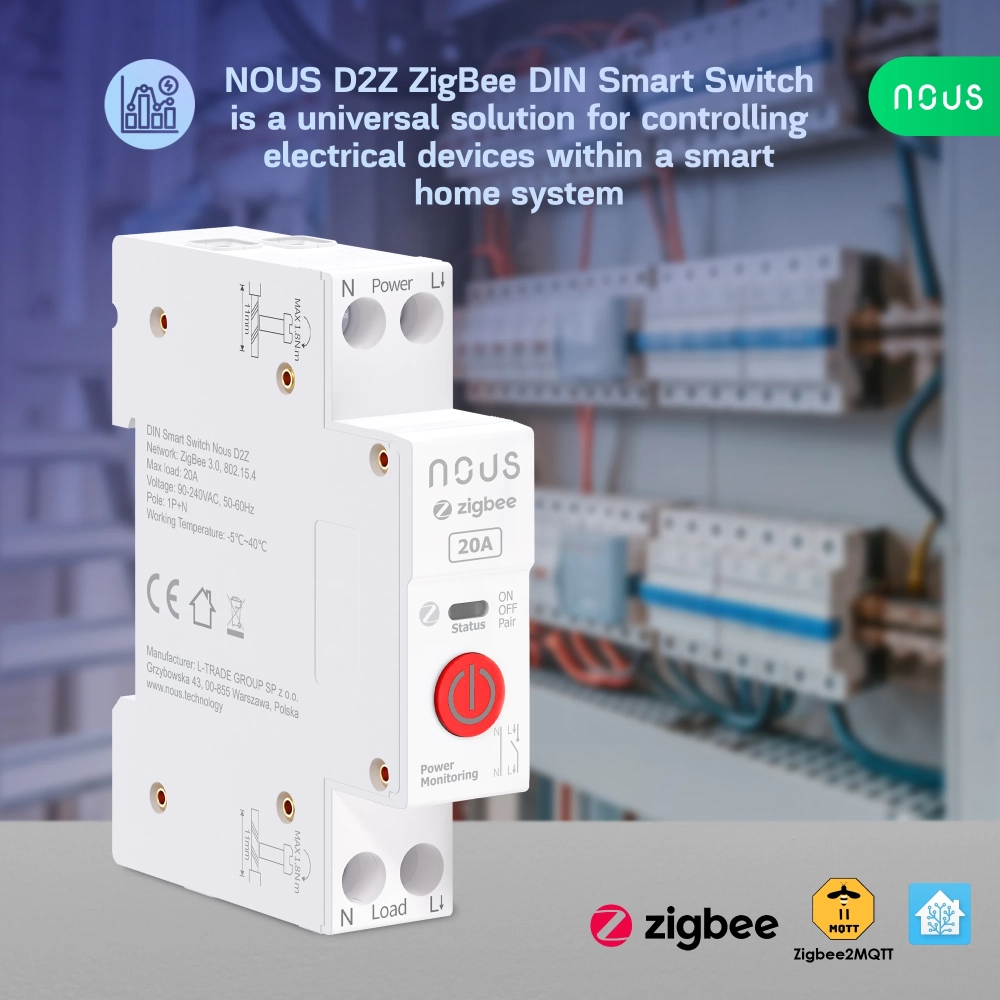

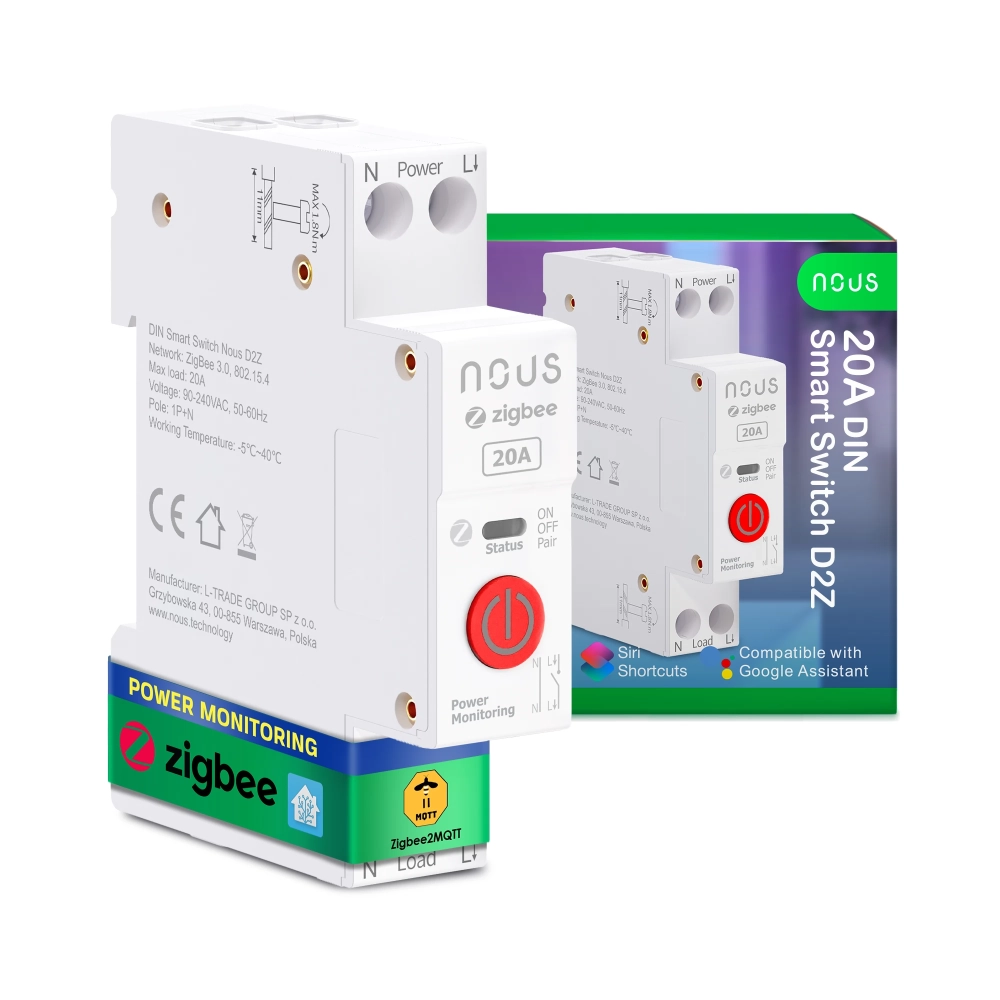

The NUSUD D2Z is ​​a Zigbee DIN rail-mounted smart relay module that allows the devices connected to it to be remotely and automatically controlled via smartphone or tablet. The device has a mechanical button and status indicator LED and equipped with an electromechanical relay. This is a Zigbee smart jelly, so you will definitely need a Zigbee passage to operate. This product variant is capable of switching a maximum current of 20A.

Main features

- Remote control and monitoring:

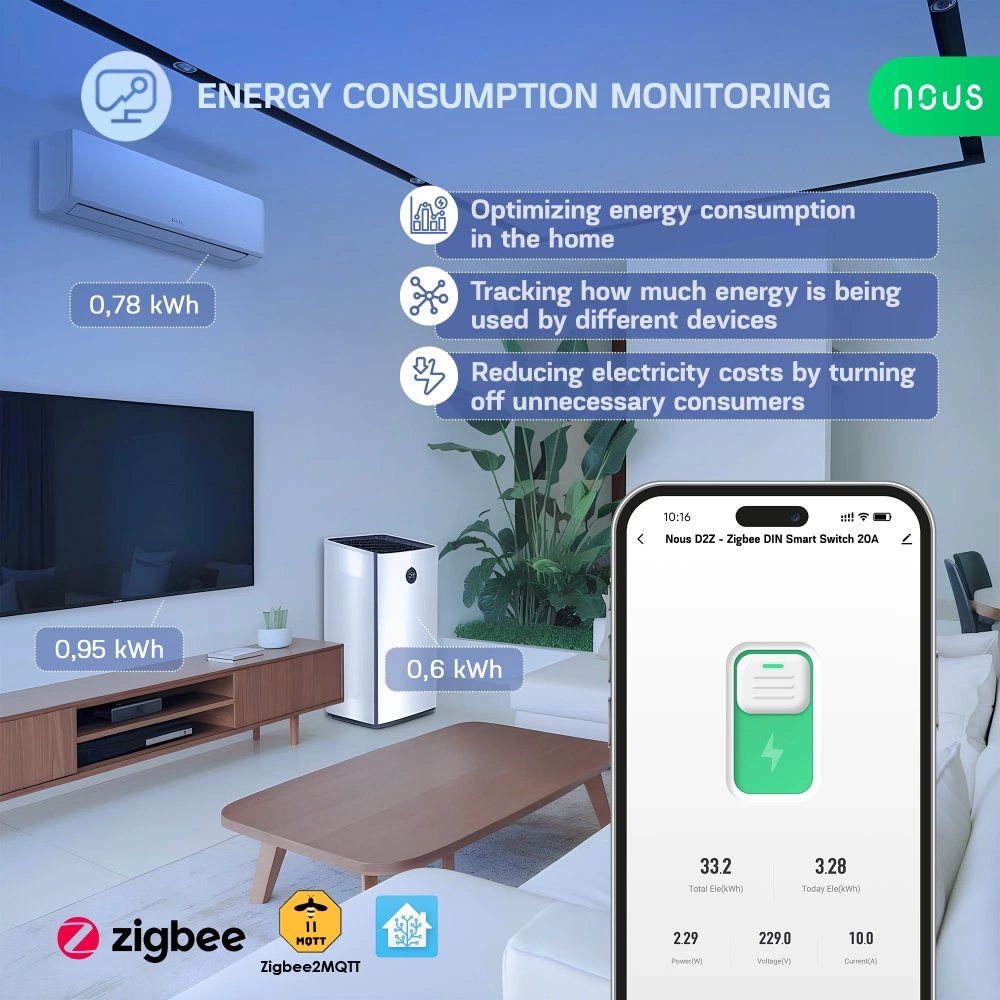

- Turn on or off the devices from your smartphone wherever you are. This clever device also allows for real -time control of energy consumption.
- Timing and automation options:
- You can set timed switches or automate the operation, for example, on the basis of the time of day or other conditions. The possibilities of this are highly dependent on the functions of the central unit.
- Support for voice control:
- Nous D2Z is ​​compatible with Amazon Alexa and Google Assistant systems, so you can control the devices with audio control (depending on the Zigbee center).
- Compact design:

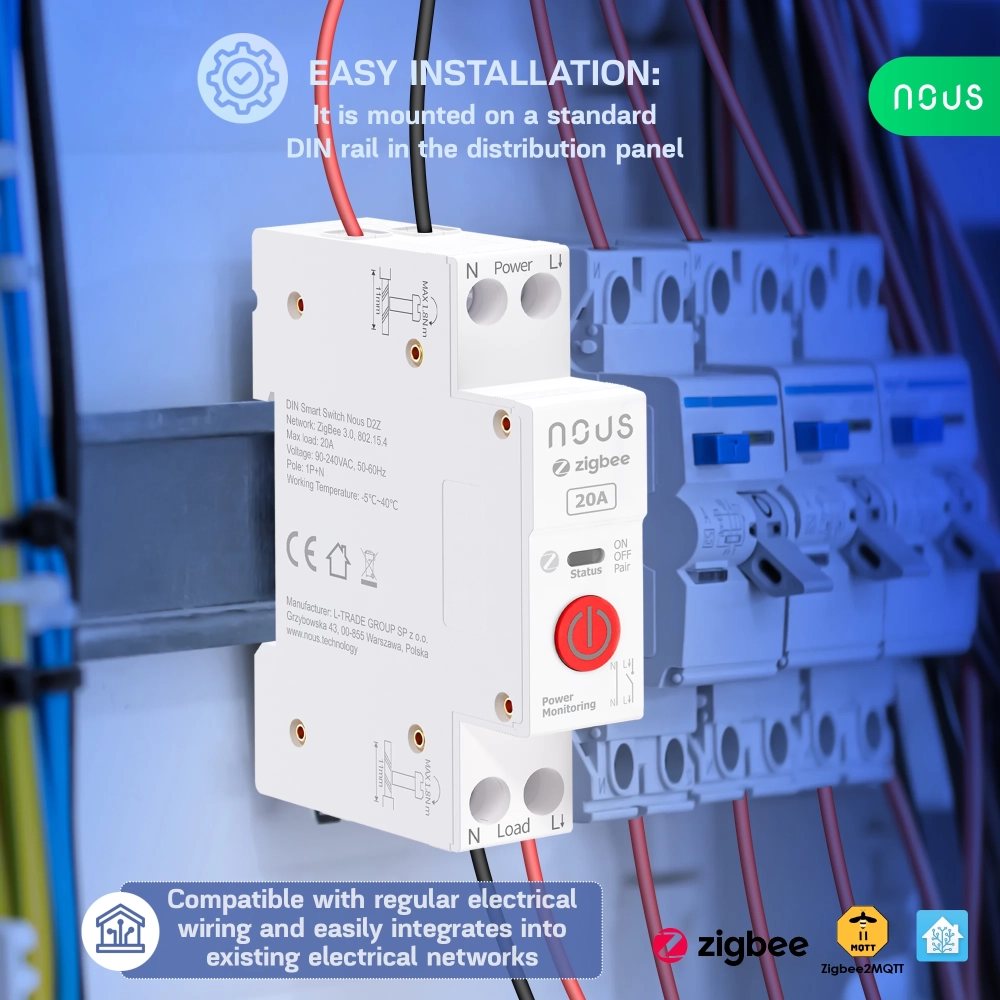

- The DIN rail module fits perfectly into the electrical distribution cabinets, offering space -saving and practical solution

Integration and compatibility:

- NUDU D2Z is ​​compatible with NUS Smart Home, which allows you to control and automate the devices easy.
- Thanks to the Zigbee protocol, it can also be used with other Tuya-compatible Zigbee gateways, making it easy to integrate into your existing smart home system.

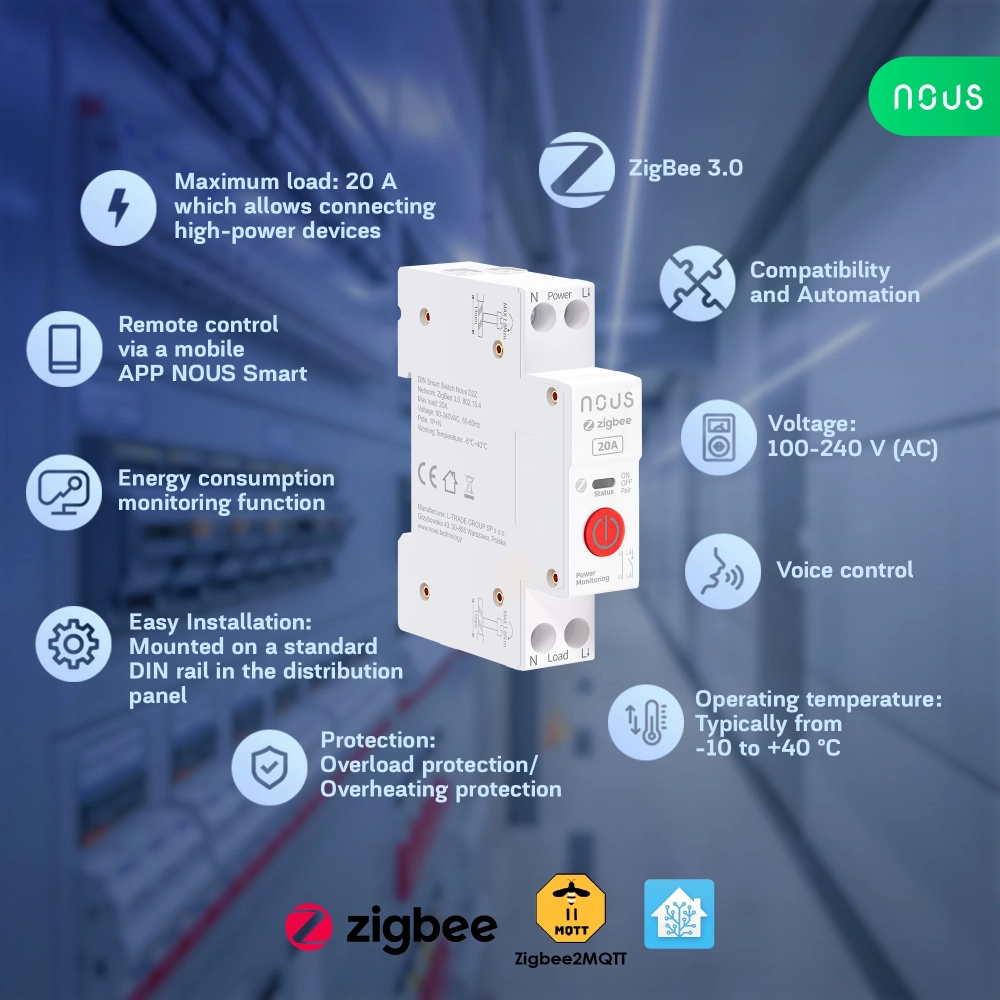

Technical data:

- Power voltage: 110-240V AC
- Protocol: 802.15.
- Communication: Zigbee 3.0 Protocol (Tuya)
- Maximum load: 20A
- wiring: l + n
- Number of relay can be switched: 1p
- Operating temperature: -5 ~ +40
- Compatibility: Nous Smart Home Application (Android/iOS), Tuya Zigbee
- Meters: 82mm x 66mm x 16mm
- IP protection: IP20

Note: The device requires a Zigbee passage (eg Nous E1 or other Tuya-compatible Zigbee gateway).
With the nous D2Z smart relay module, you can control your home electrical appliances comfortably and safely anywhere.

Description:

- Manufacturer: NUD
- Factory Article Number: Nous D2Z
- Color: white

Operation / Operation

- Operating power supply: 110V-240V AC
- Din-rail mounted: Yes
- Operating ambient temperature: 5 ° C 40 ° C
- IP protection: IP20

Controlled (/measured) circuit

- Dimemification / brightness control: No
- Consumption Measurement: Yes
- Number of poles on: 1p
- Potential -free switching: No
- NO/NC switch: No
- Nominal voltage: 90V-240V AC
- Nominal current: 20A

Electricity properties

- Local / manual switching: yes
- Input for external switch: No

Supported protocols

- Ethernet / wired network (RJ-45): No
- Wi-Fi: No
- Wi-Fi standards: No
- Zigbee: Yes, Tuya Zigbee
- Thread: No
- Z-Wave: No
- RF / Radio Control: No
- Bluetooth: No

Remote control, smart control

- Direct (local) remote control: no
- Distance to the Internet: yes if it is connected to the Zigbee passageway
- Manufacturer's smartphone app: Tuya app (recommended) or nous app
- Web (browser) Admin interface: Depending on Zigbee Bridge
-Cloudy mode (with factory firmware): Depending on Zigbee Bridge
- Local network mode (with factory firmware): Zigbee depending on the gateway
- Rest API Support (with factory firmware): No

Smart features

- Timer: Depending on Zigbee Bridge

Other

- Number of output circuits: 1
- Communication protocols: Zigbee
- Size: 82 x 15 x 50 mm
- Main category: relay
- Dimensions: 8.2 × 1.5 × 5.0 cm
