NOUS's Zigbee-based solutions use the Tuya environment, which is an ecosystem of smart home devices. The Zigbee protocol is energy-efficient, stable thanks to the MESH network, and enables simple, wireless connection of devices to a central gateway. NOUS gateways are compatible with the Tuya app, but can also be paired with NOUS's own application. The task of Zigbee gateways is to connect Zigbee devices to the home Wi-Fi network, thus providing remote control and automation.

NOUS Gateway

NOUS gateways e.g. NOUS E1 play a central role in your smart home. These devices ensure that the controls of all Tuya Zigbee-enabled devices, such as smart switches, thermostats, sensors and light sources, work together seamlessly.

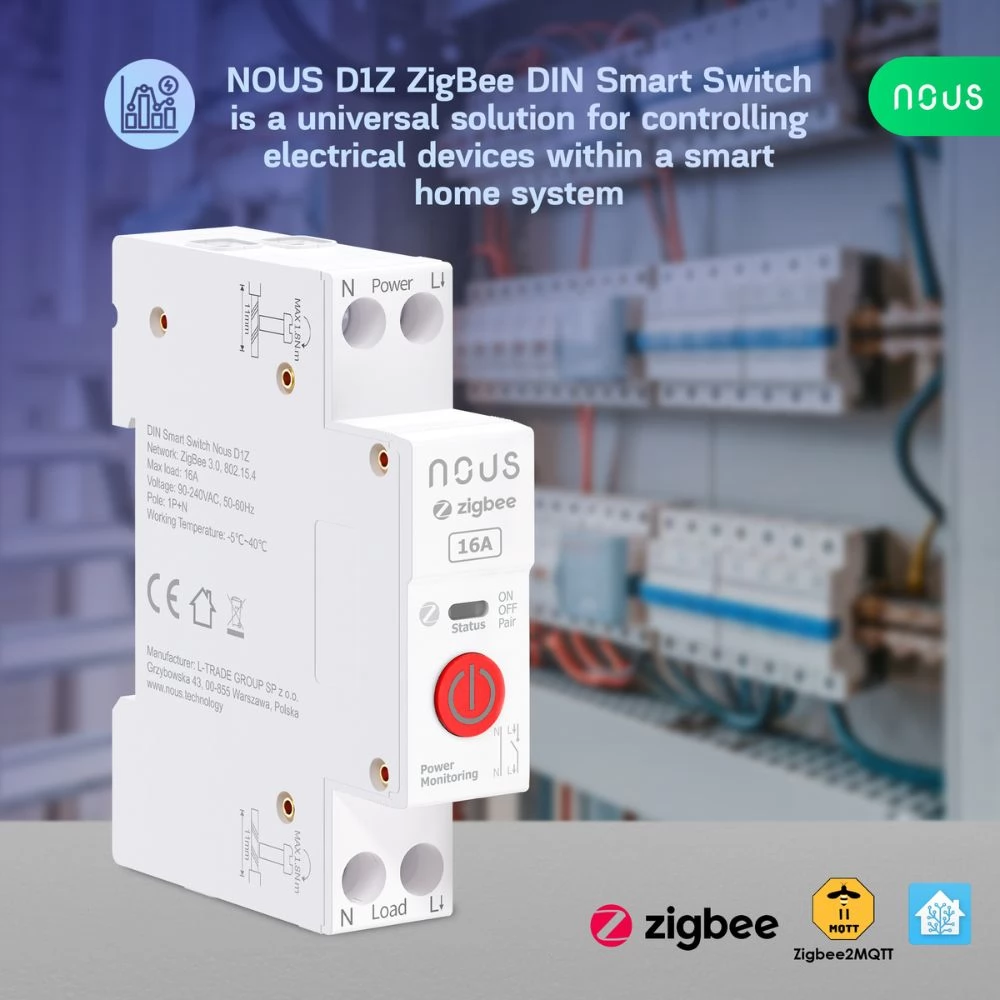

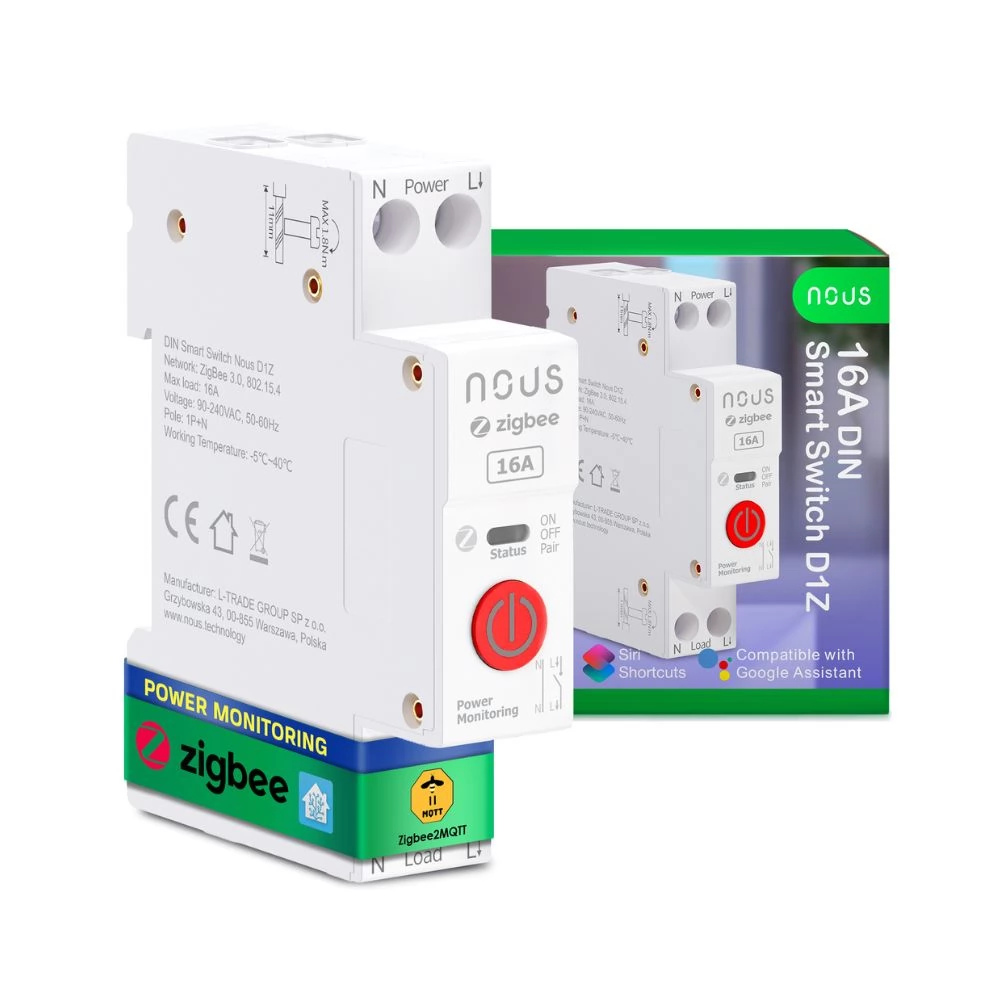

NOUS D1Z is a Zigbee DIN-rail mounted smart relay module that enables remote and automatic control of connected devices via smartphone or tablet. The device has a mechanical button and a status LED, as well as an electromechanical relay. This is a Zigbee smart relay, so you will definitely need a Zigbee gateway to operate it. This product variant can switch a maximum current of 16A.

Main features

- Remote control and monitoring:

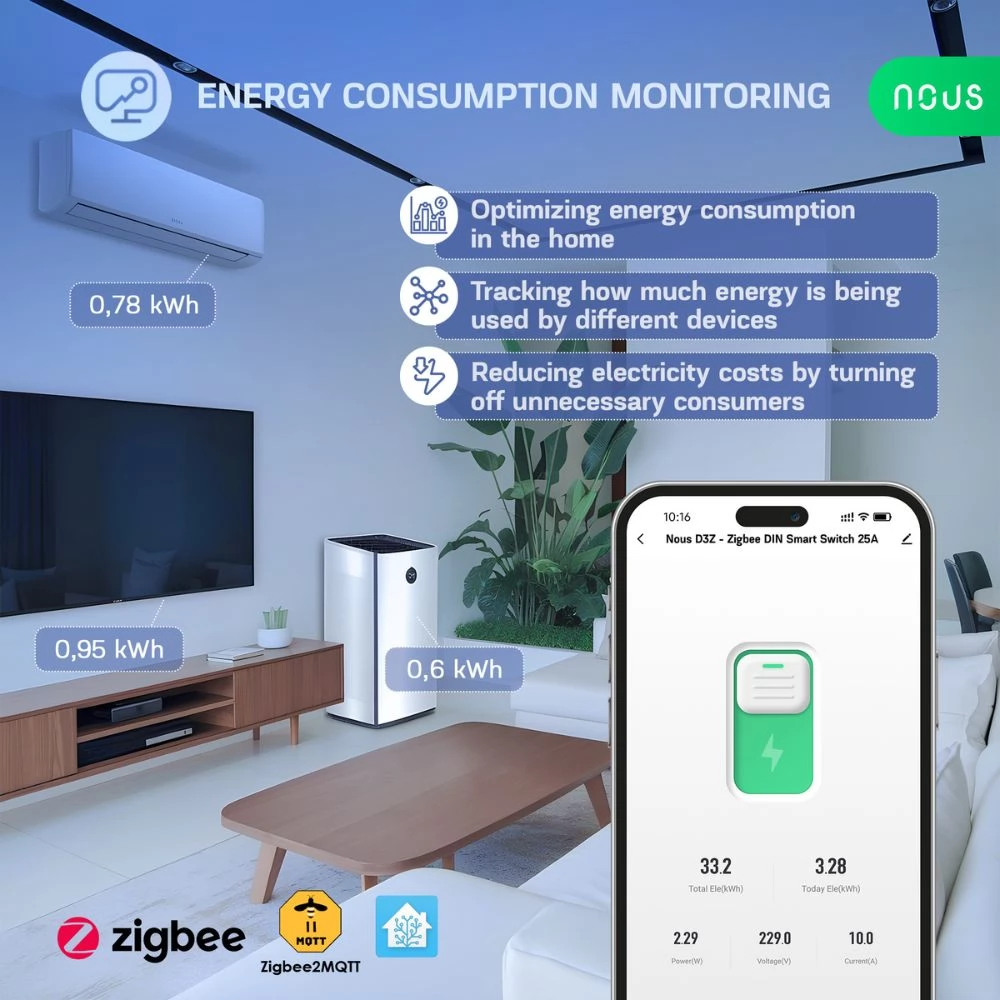

- Turn devices on or off from your smartphone, wherever you are. This smart device also enables real-time monitoring of energy consumption.
- Timing and automation options:
- You can set timed switches or automate the operation based on, for example, time of day or other conditions. The options for this largely depend on the functions of the central unit.
- Voice control support:
- NOUS D1Z is compatible with Amazon Alexa and Google Assistant systems, so you can even control the devices with voice control (depending on the ZigBee center).
- Compact design:
- The DIN rail mounted module fits perfectly into electrical distribution cabinets, offering a space-saving and practical solution

Integration and compatibility:

- NOUS D1Z is compatible with the Nous Smart Home app, which allows easy control and automation of devices.
- Thanks to the Zigbee protocol, it can also be used with other Tuya-compatible Zigbee gateways, so it can be easily integrated into your existing smart home system.

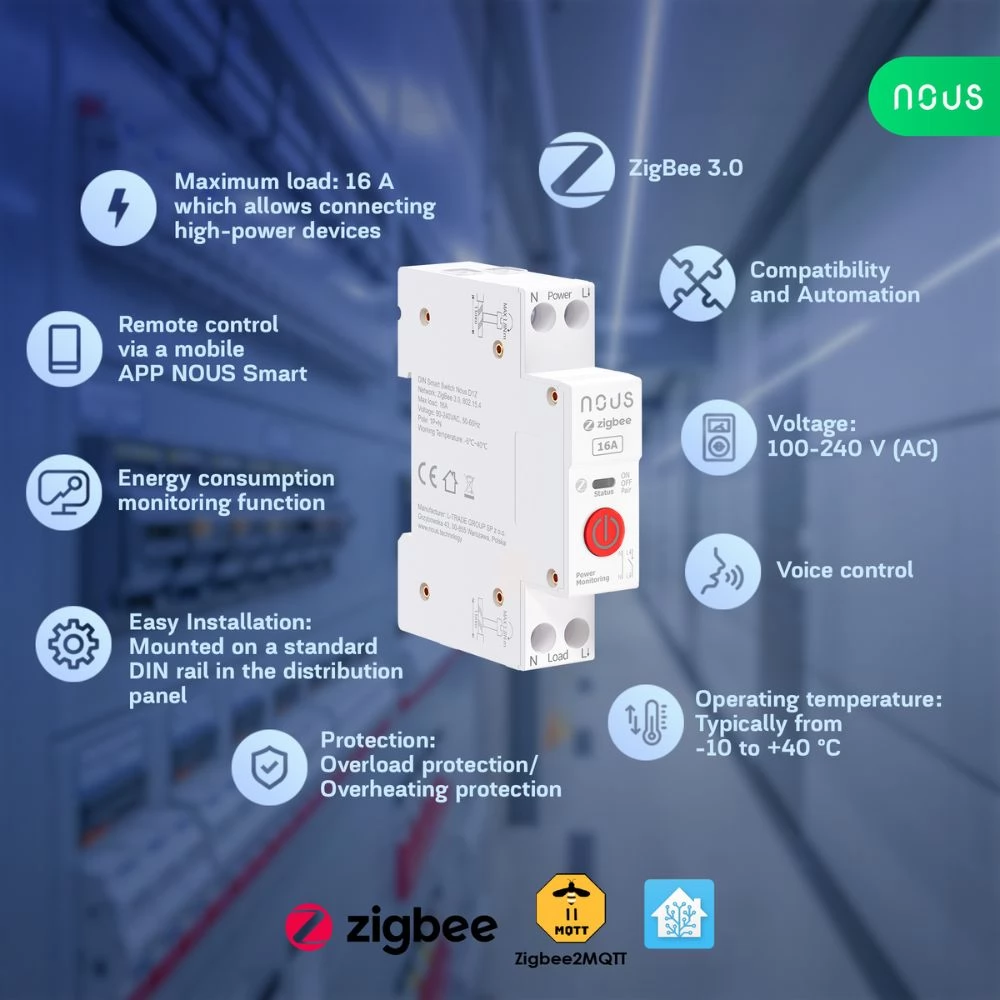

Technical data:

- Supply voltage: 110-240V AC
- Protocol: 802.15.
- Communication: Zigbee 3.0 protocol (Tuya)
- Maximum load: 16A
- Connection: L + N
- Number of switchable relays: 1P
- Operating temperature: -5 ~ +40
- Compatibility: Nous Smart Home application (Android/iOS), Tuya Zigbee
- Meters: 82mm x 66mm x 16mm
- IP protection: IP20

Note: A Zigbee gateway is required to connect the device (e.g. Nous E1 or other Tuya-compatible Zigbee gateway).

With the NOUS D1Z smart relay module, you can comfortably and safely control your home's electrical appliances, wherever you are.

Description:

- Manufacturer: Nous
- Factory article number: NOUS D1Z
- Product type: Tuya Zigbee 16A switch relay for DIN rail
- Color: White

Installation / operation

- Operating power supply: 110V-240V AC
- Connection: 230V AC (phase and neutral)

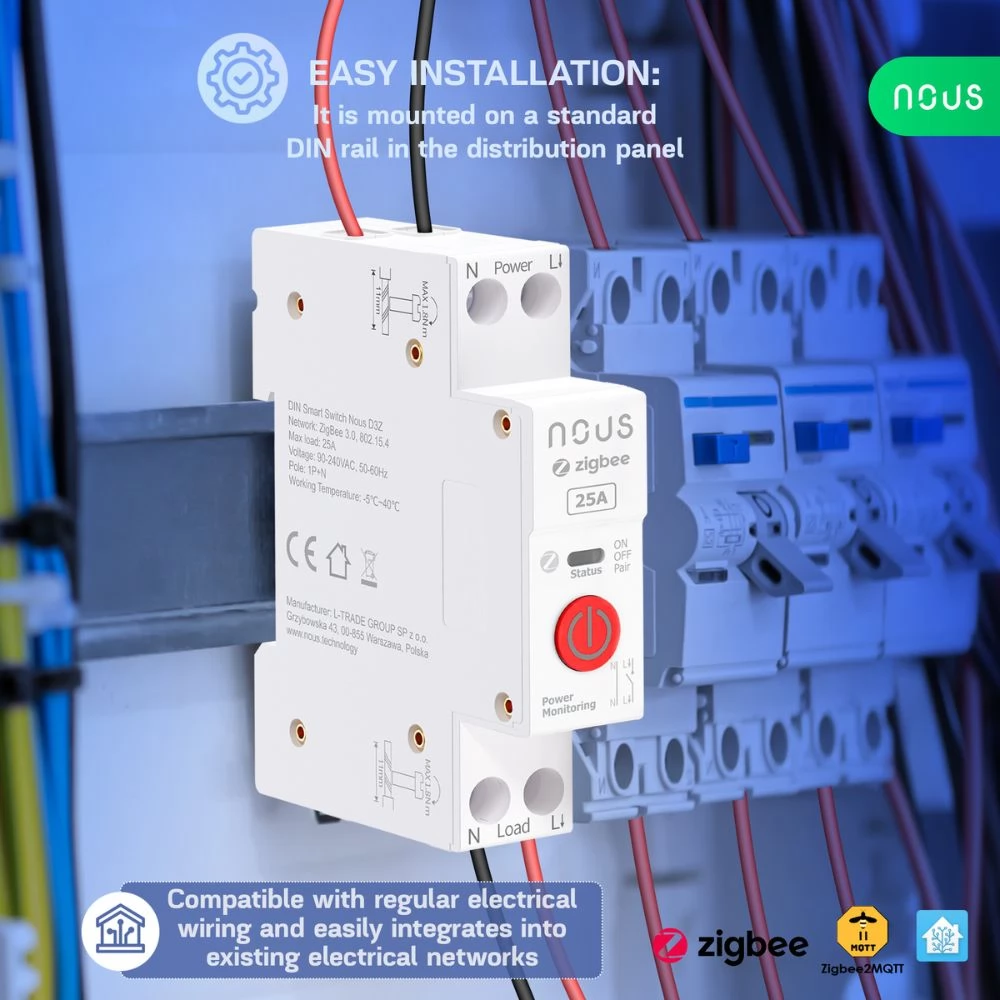

- Fixing / installation: Electrical cabinet can be mounted on a DIN rail
- Can be mounted on a DIN rail: Yes
- Operating ambient temperature: 5°C +40°C
- IP protection: IP20

Controlled (/measured) circuit

- Switch / switch relay: Yes
- Dimming / Brightness control: No
- Consumption measurement: Yes
- Number of circuits: 1
- Number of switched poles: 1P
- Potential-free switching: No
- NO/NC switching: No
- Rated voltage: 90V-240V AC
- Nominal current: 16A

Electrical properties

- Local / manual switching: Yes
- Input for external switch: No
- Alternative switching / crossover switching: No

Supported protocols

- Ethernet / wired network (RJ-45): No
- Wi-Fi: No
- Zigbee: Yes, Tuya Zigbee
- Thread: No
- Z-Wave: No
- RF / radio control: No
- Bluetooth: No

Remote control, smart control

- Direct (local) remote control: No
- Can be controlled remotely via the Internet: Yes, if connected to a Zigbee gateway
- Manufacturer smartphone app: Tuya app (recommended) or Nous app
- Web (browser) admin interface: depending on Zigbee Bridge
- Can be switched by voice control: depending on the Zigbee gateway
- Cloud mode (with factory firmware): depending on Zigbee Bridge
- Local network mode (with factory firmware): depending on the Zigbee gateway
- REST API support (with factory firmware): No

Smart functions

- Timed: Depending on the Zigbee Bridge
- Other
- Communication protocols: ZigBee
- Product type: Consumption meter, switching relay
- Size: 8.2 x 5 x 1.5 cm
- Dimensions: 8.2 × 1.5 × 5.0 cm
