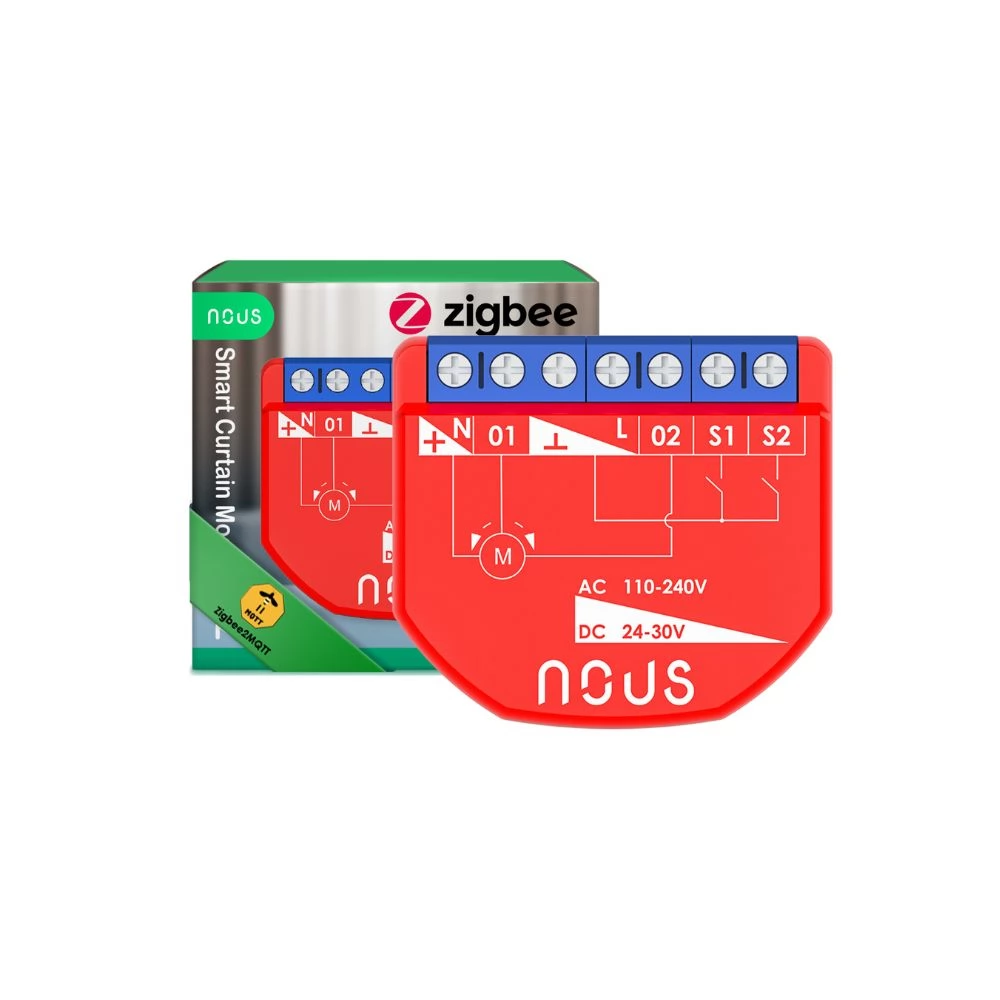

One of the new products of the European brand Nous is the Nous B4Z two-circuit smart relay with consumption meter and Tuya Zigbee chip, which is used for the smart control of shutter motors, motorized blinds, motorized curtains and other two-way motors, even mounted behind the light switch assembly.

The Nous B4Z relay module has a Tuya Zigbee chip, for remote control it needs to be connected to a Tuya Zigbee gateway using the Tuya / SmartLife smartphone APP.

The Nous B4Z Tuya ZIgbee smart motor control module is a 2-circuit smart relay module with a built-in power meter function, supports 100-240V AC or 24-30V DC power supply, and can be connected to Nous's own Zigbee hub or other standard with the built-in Tuya Zigbee chip Also for Tuya Zigbee gateway.

Nous's own Nous APP is also suitable for phone control of the device, but it can be used with the Tuya app, in which case, according to experience, more functions are available.

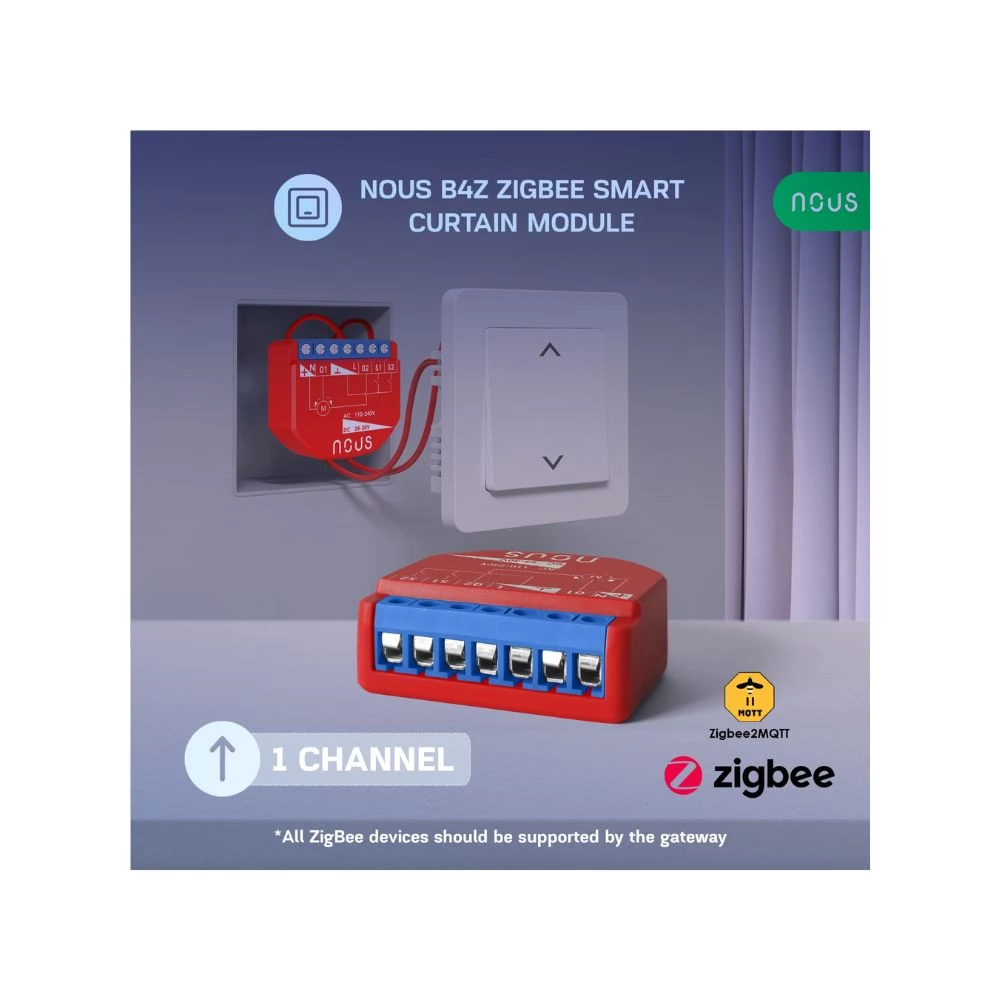

Thanks to its small size, it also fits in normal-depth wall sockets, behind traditional light switches. It has the 1-1 input to control the motors up/down (or open/close), so the smart wall shutter switches can still be used as before.

Nous B4Z is a relay module for the Tuya smart home system, it basically works in cloud mode. However, in the case of Tuya Zigbee gateways that work without an Internet connection and can cache and run the automations locally, the automations can also work without an Internet connection.

When connected to a Tuya Zigbee gateway, it also supports Amazon Alexa, Google Assistant and (for iOS phones) Siri voice control.

Main characteristics:

- Tuya Zigbee chip connection: connects to Tuya Zigbee gateways via 2.4 GHz Tuya Zigbee protocol.
- It is used to control the motor: it switches the two circuits alternately (with so-called interlocking or switching). Especially suitable for shutter and motor control.
- Consumption measurement: accurate real-time energy consumption monitoring.
- Can be installed in a wall socket: the module can be installed behind the switches, so it discreetly smartens up the selected traditional switch family.
- Voice control: Compatible with the Google Assistant and Amazon Alexa systems, so it can also be controlled by voice control (for Tuya Zigbee gateways).

Description:

- Manufacturer: Nous
- Factory article number: NOUS B4Z
- Color: Blue

Installation / operation

- Operating power supply: 110V-240V AC / 24-30V DC
- Connection: requires 110-240V AC (phase and neutral) or 24V-30V DC connection
- Fixing / mounting: Can be installed in a wall mounting box
- Can be mounted on a DIN rail: with a DIN rail adapter (not included)
- Operating ambient temperature: 0°C-40°C
- IP protection: IP20

Controlled (/measured) circuit

- Switch / switch relay: Yes
- Dimming / Brightness control: No
- Number of circuits: 1 (OPEN/CLOSE)
- Number of switched poles: 1P
- Potential-free switching: No
- NO/NC switching: No
- Rated current: AC: 10A/circuit, total max. 16A, DC: 10A

Electrical properties

- Input for external switch: Yes
- Interlock / shift switch mode: Yes

Supported protocols

- Ethernet / wired network (RJ-45): No
- Wi-Fi: No
- Zigbee: Yes, Tuya Zigbee
- Thread: No
- Z-Wave: No
- RF / radio control: No

Remote control, smart control

- Direct (local) remote control: No
- Can be controlled remotely via the Internet: Yes, Tuya connects to the Internet via a Zigbee Bridge
- Cloud mode (with factory firmware): in the case of a Tuya Zigbee gateway, it is connected to the Tuya cloud by default, depending on the Zigbee Bridge
- Local network mode (with factory firmware): depending on Zigbee Bridge
- MQTT support (with factory firmware): ZHA, Zigbee2MQTT

Smart functions

- Notification functions: depending on Zigbee Bridge
- History: Depending on Zigbee Bridge

Other

- Manufacturer smartphone app: Tuya app (recommended) or Nous app
- Timed: Depending on the Zigbee Bridge
- Dimensions: 4.2 × 3.7 × 1.6 cm
