Super quiet, yet brilliantly versatile

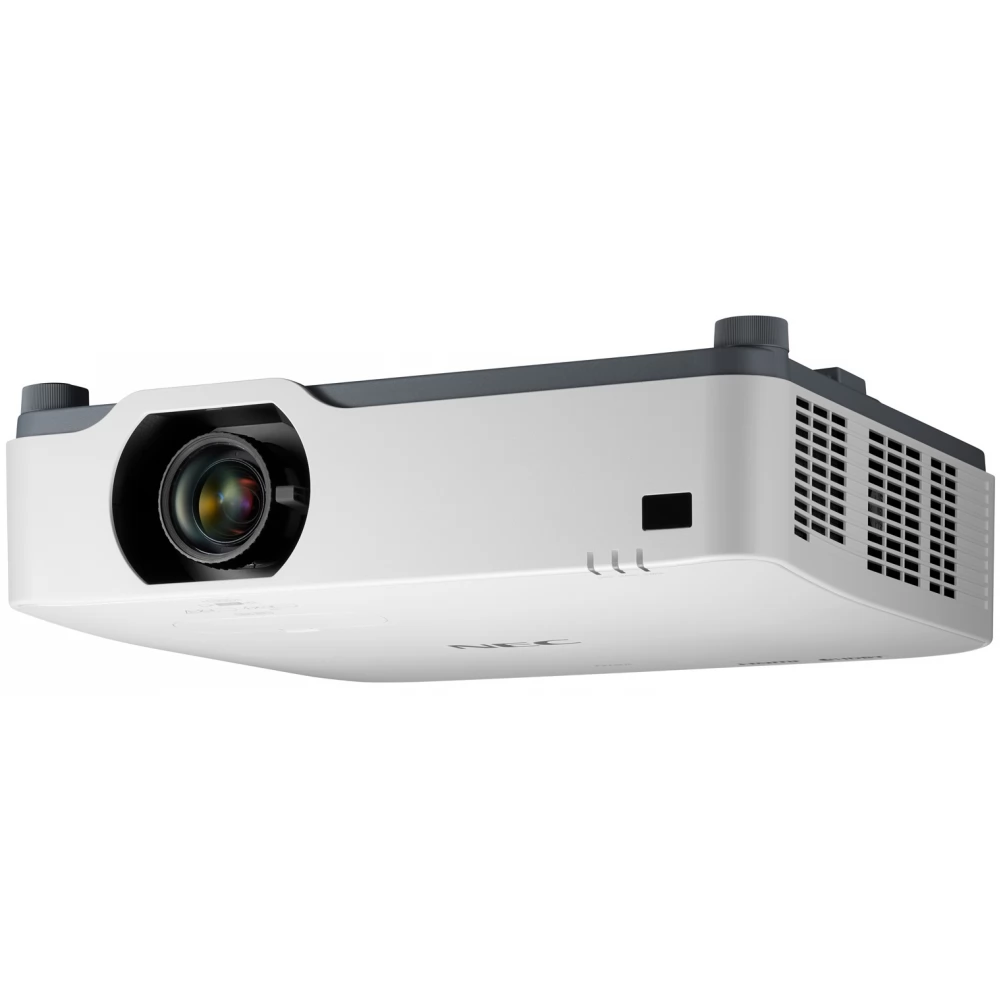

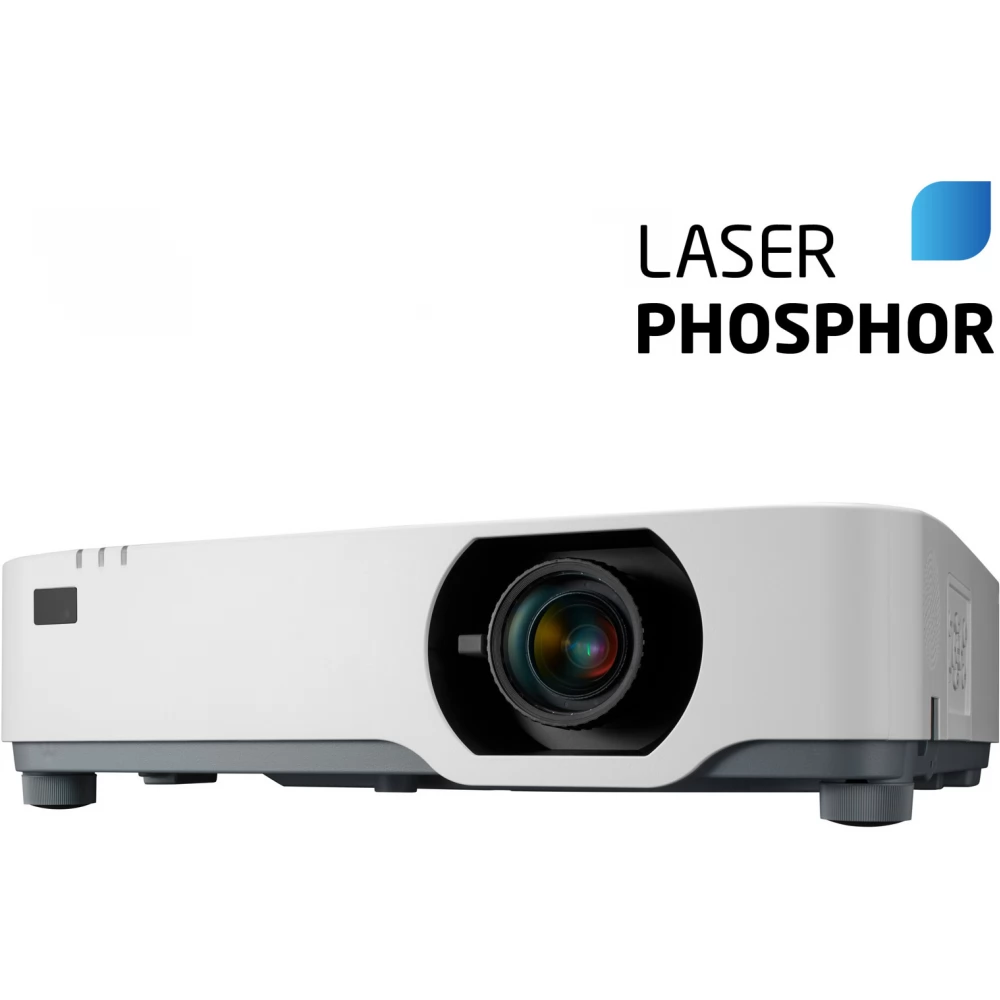

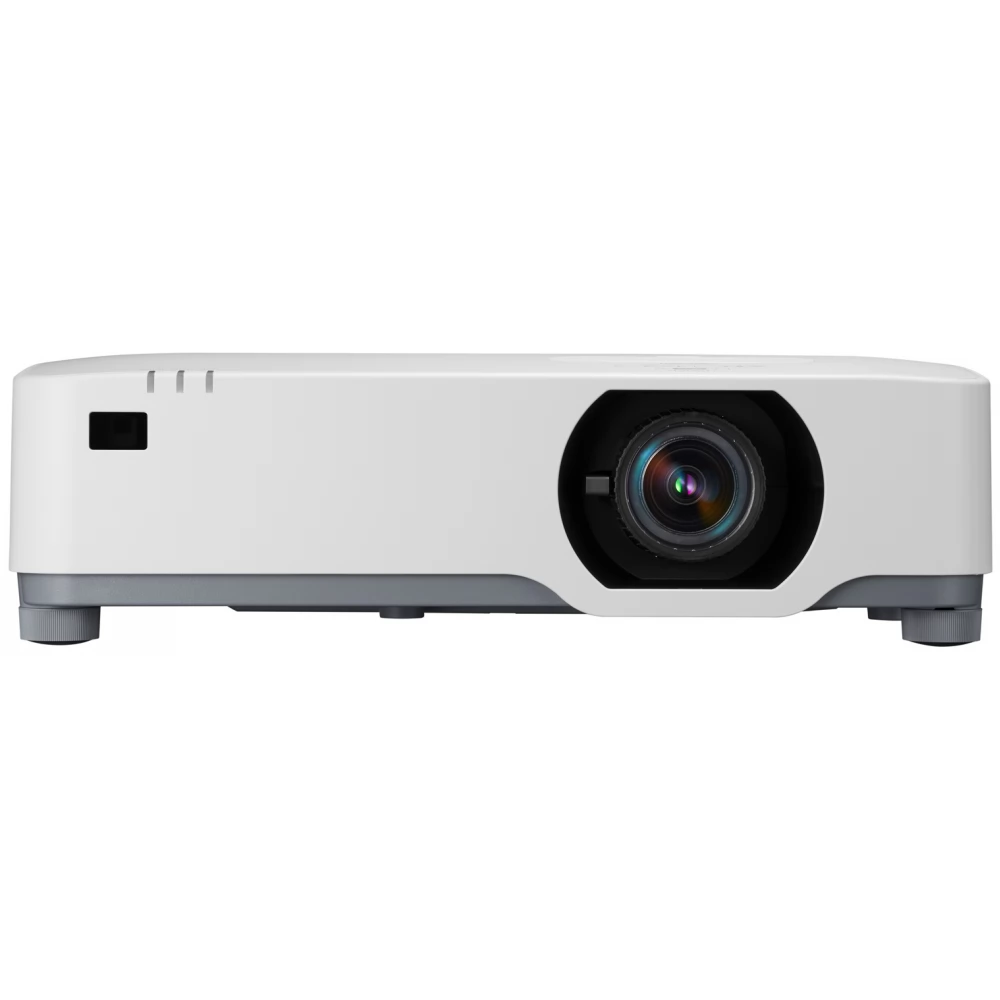

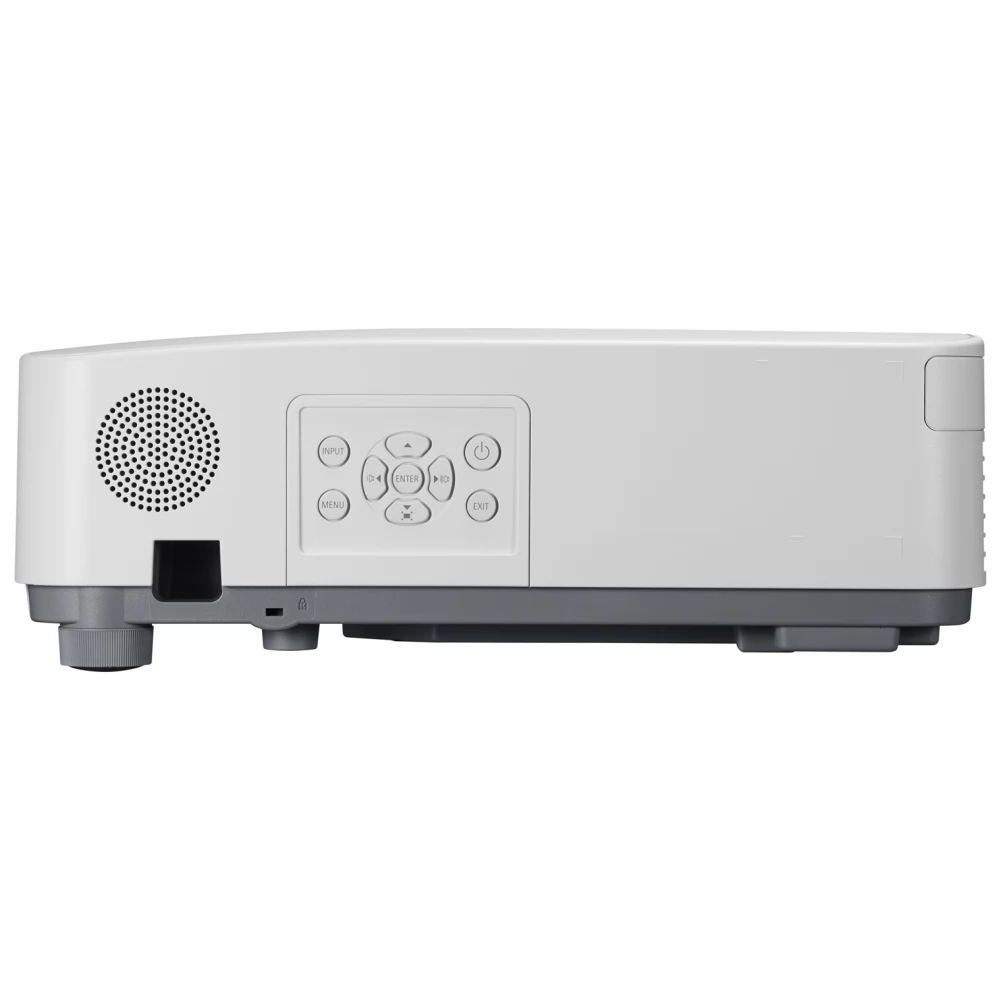

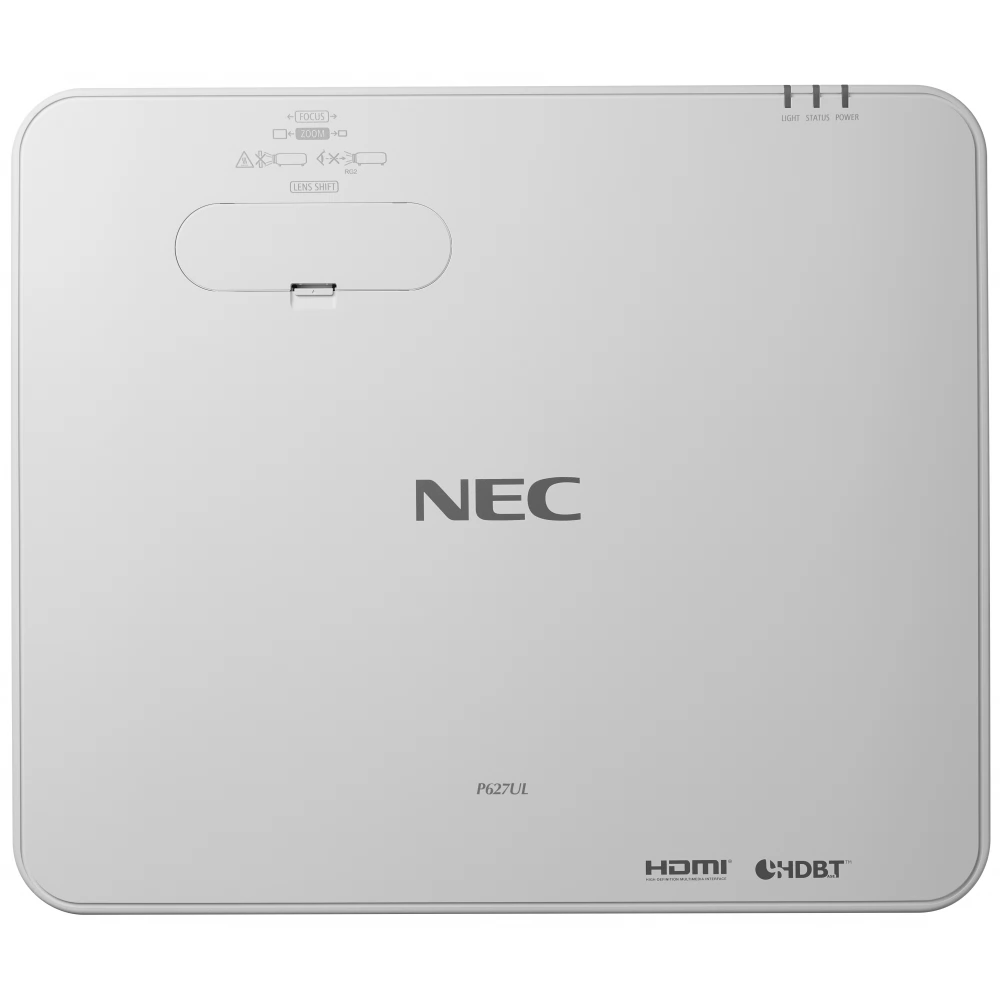

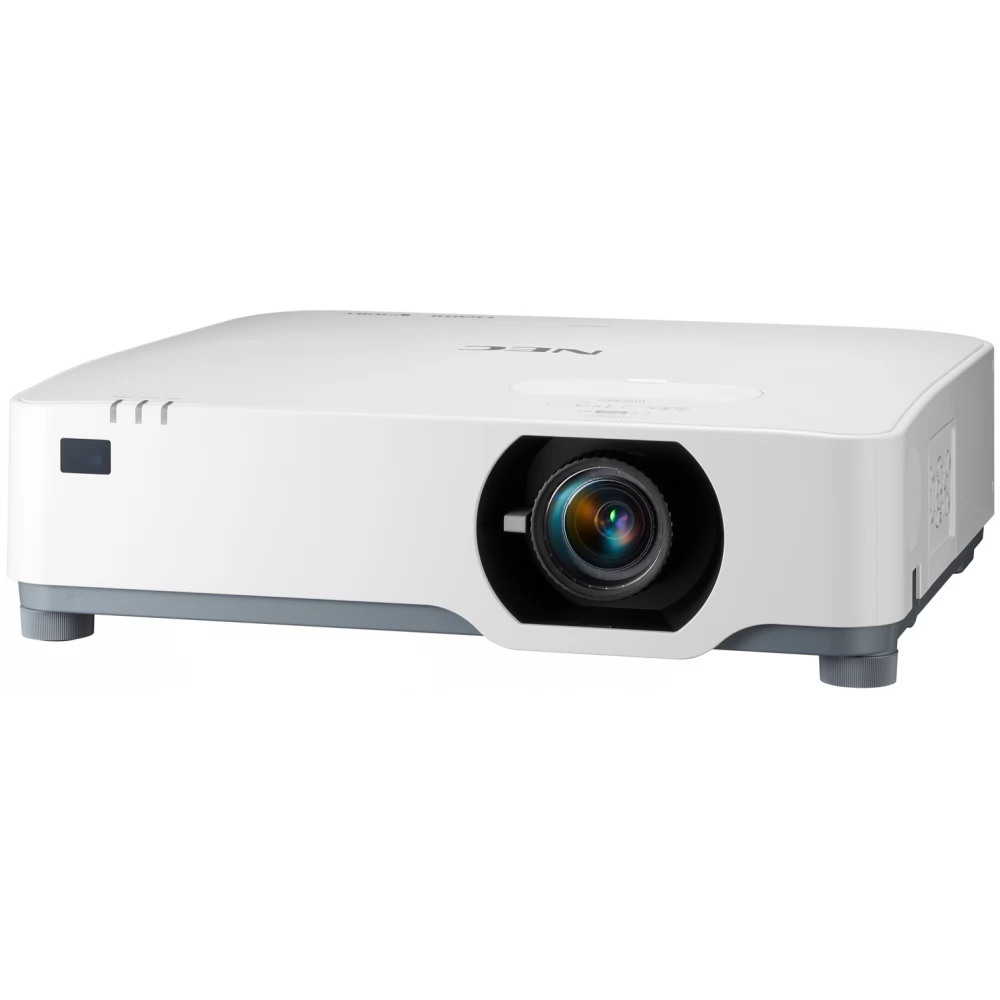

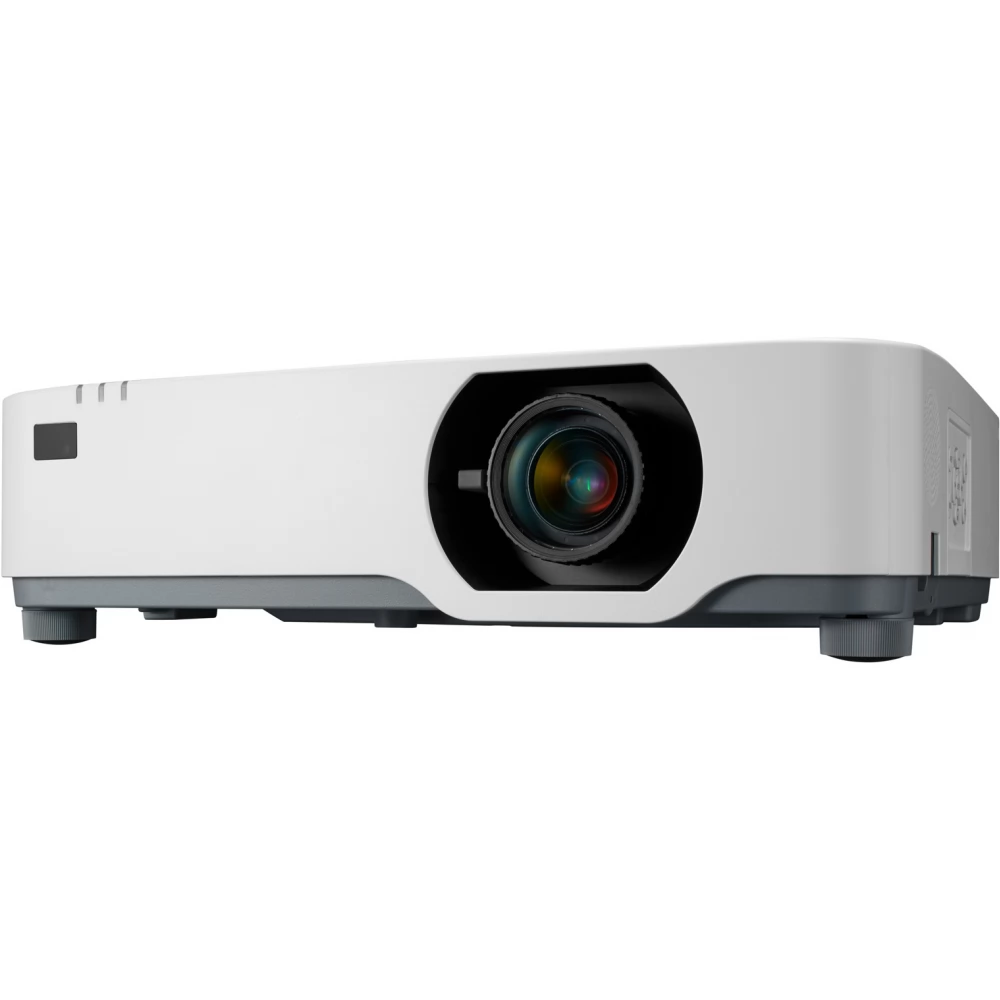

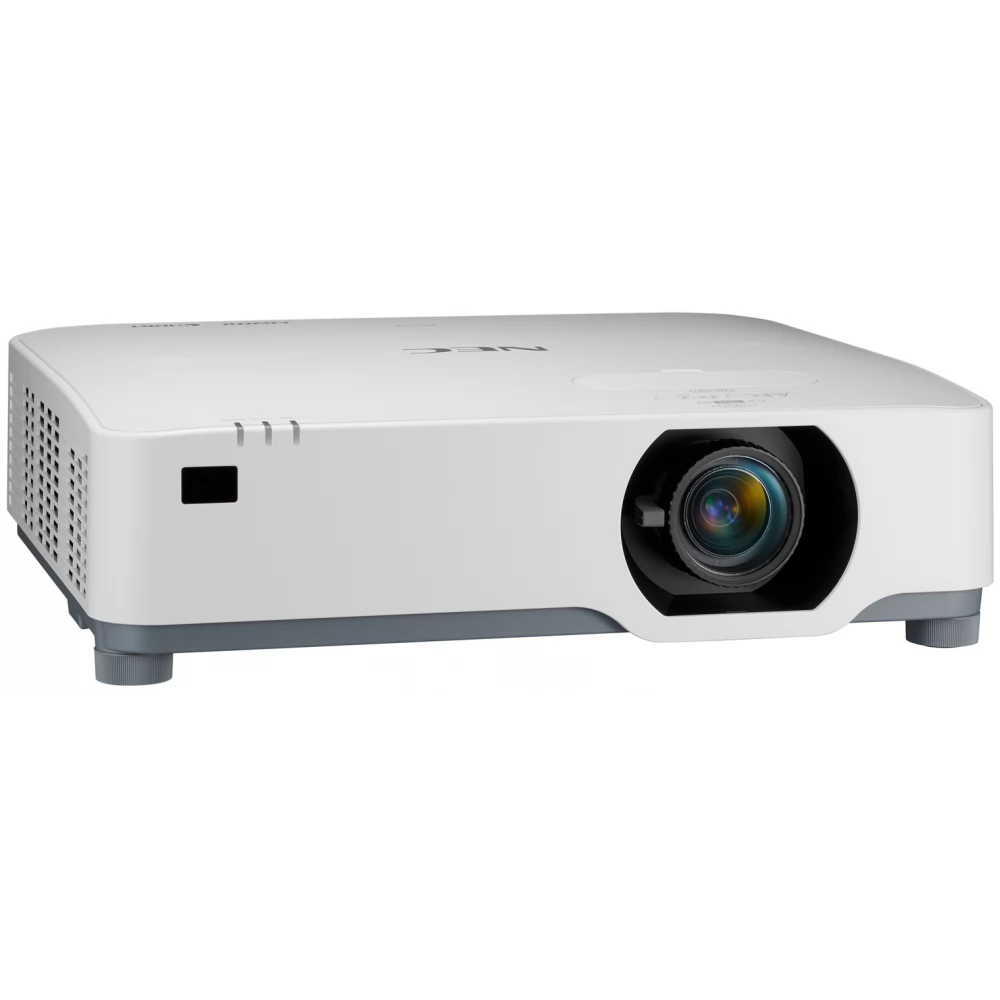

Innovation based on the real needs of users results in the P627UL laser projector, which is so quiet that it remains undetected for 6200 ANSI lumens of brightness, which is clearly visible in brightly lit areas. The new standard in quiet operation, 22dB in Eco mode is quieter than the ticking of a clock, unmatched by any other installable projector. With 4K@30Hz input processing, comprehensive connectivity and WUXGA resolution support, the future-proof projector delivers an eye-catching visual experience.

Set it and forget it - maintenance free with a long 20,000 hour lifespan, fully enclosed optical engine and laser light source means filter and lamp changes are obsolete; Coupled with a minimum power consumption of just 318W in normal mode, the P627UL ensures low operating costs.

With optional WiFi and built-in MultiPresenter for wireless presentation and screen sharing, it's the ideal meeting and classroom tool, but also meets the needs of rental and staging companies and digital signage use cases.

Advantages

- No filter service required. The fully enclosed optical laser LCD motor enables a filter-free design. Brilliant color brilliance is maintained and service costs no longer need to be in the budget.
- Low noise level with 22dB, quiet technology will not disturb the meeting.
- Future-proof input management thanks to 4K@30 Hz input processing.
- Thanks to the laser light source, it is not possible to change the lamp for 20,000 hours.
- Risk group 2 due to compliance with risk group 2, no prescribed safety precautions are required.

Description:


- Projection technology: 3LCD technology
- Native resolution: 1920 x 1200 (WUXGA)
- Aspect ratio: 16:10
- Contrast ratio: 600000:1
- Brightness: 6200 ANSI Lumen (approx. 60% in Eco mode)
- Lamp: Laser light source
- Light source lifetime [hours]: 20,000
- Lens: F= 1.5–2.1, f= 17.2–27.7 mm
- Lens shift: H:±29, V:+60,-0
- Keystone correction: +/30° manual horizontal / +/30° manual vertical
- Projection factor: 1.23 2:1
- Projection distance [m]: 0.8 12.9
- Screen size (diagonal) [cm] / [inches]: Maximum: 762 / 300"; Minimum: 76.2 / 30"
- Zoom: Manual; x1.6
- Focus adjustment: manual
- Supported resolutions: 1920x1200 (maximum resolution of analog input); 3840 x 2160 (maximum resolution of digital input); 3840x2160 @ 30Hz digital

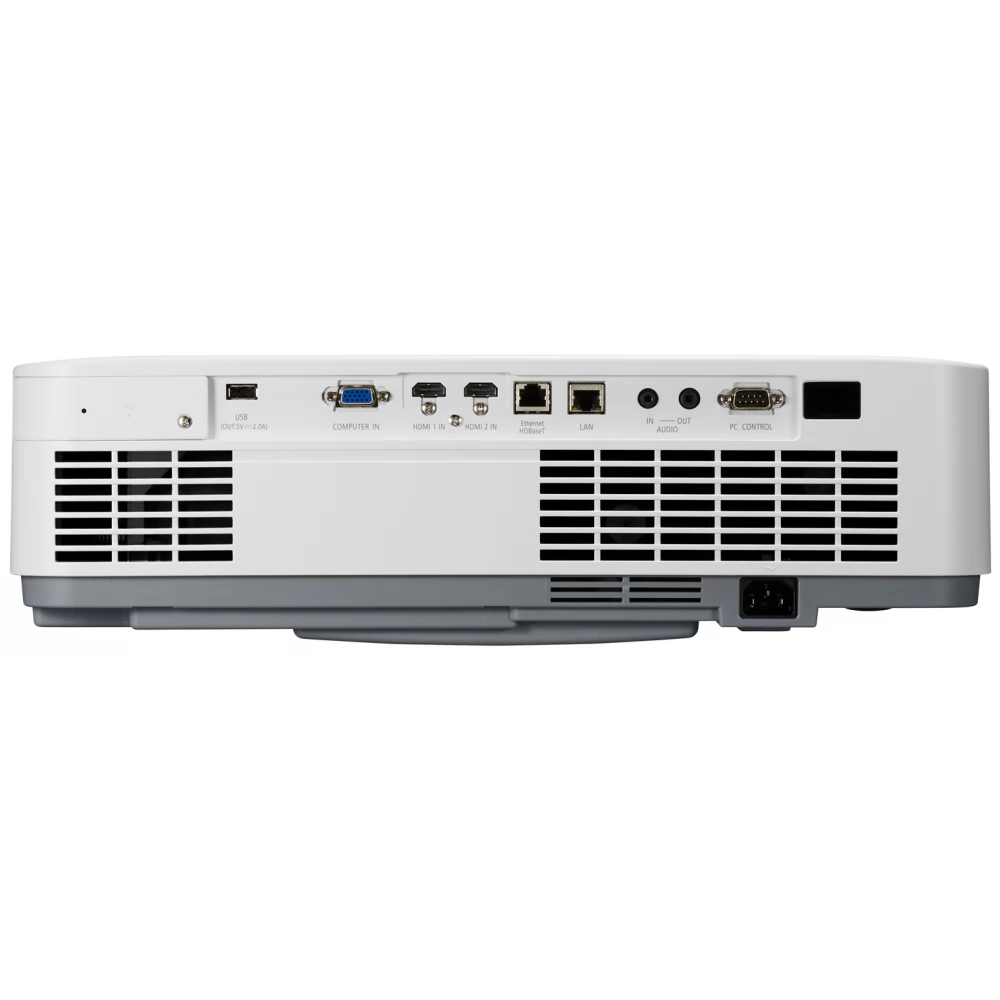

CONTACT

- RGB (analog): Input: 1 x Mini D-sub 15 pin
- Digital: Input: 1 x HDBaseT; 2 x HDMI™ with HDCP support
- Audio: Input: 1 x 3.5 mm stereo mini jack for computer analog; 2x HDMI audio
- Output: 1 x 3.5 mm stereo mini jack connector (changeable)
- Control: Input: 1 x D-Sub 9-pin (RS-232) (male)
- LAN: 1 x RJ45; Optional WLAN
- USB: 1 x type B (for service); 1x type A (USB 2.0 high speed) with 2.0A power supply; 1x type A (W-LAN key)
- Video signals: NTSC 3.58; NTSC 4.43; BUDDY; PALM; PAL-N; PAL60; NOTHING

REMOTE CONTROLLER

- Remote control: Aspect ratio; Voice control; Automatic adjustment; Eco Mode Control; Freeze function; Help function; ID set; Keystone correction; Zoom function; Page (up, down); Image adjustment; Mute picture; Power supply (on-off); Presentation and mouse control; Selection (up, down, left, right); Source selection

ELECTRONIC

- Power supply: 100-240 V AC; 50 60 Hz
- Power consumption [W]: 318 (normal) / 237 (Eco) / 1.6 (mains standby) / 0.3 (standby)

MECHANICAL

- Dimensions (W x H x D) [mm]: 480 x 122 x 407 (without lens and legs)
- Weight [kg]: 9.7
- Fan noise [dB (A)]: 22/27 (Eco / Normal)
- Color variants: white

ENVIRONMENTAL CONDITIONS

- Operating temperature [°C]: 5-40
- Operating humidity [%]: 20-80
- Storage temperature [°C]: between -10 and 50
- Storage humidity [%]: 20-80

ERGONOMICS

- Safety and ergonomics: CE; EAC; ErP; RoHS; TUEV type approved; TüV GS
- Speakers [W]: 1 x 20 (mono)

ADDITIONAL CHARACTERISTICS

- Special features: Auto Power ON/OFF; Carbon saving meter; Constant brightness mode; Controller ID function; DICOM simulation; Direct shutdown function; Free Tilt; HDBaseT; Help function; HTTP browser control; Kensington security slot; Key lock; Setting the light source; Magnification; Mouse control with USB display; MultiPresenter function; NaViSet Administrator 2; Optional user logo; OSD in 30 languages; Password security system; Plug&Play W-LAN option; Portrait adjustment; Quick start; Source selection with beep function; Test sample; Unique energy-saving functions; USB Viewer; Virtual remote control for direct computer control
