MOES ZigBee thermostat for water heating ZHT-SR-GA-WH-MS

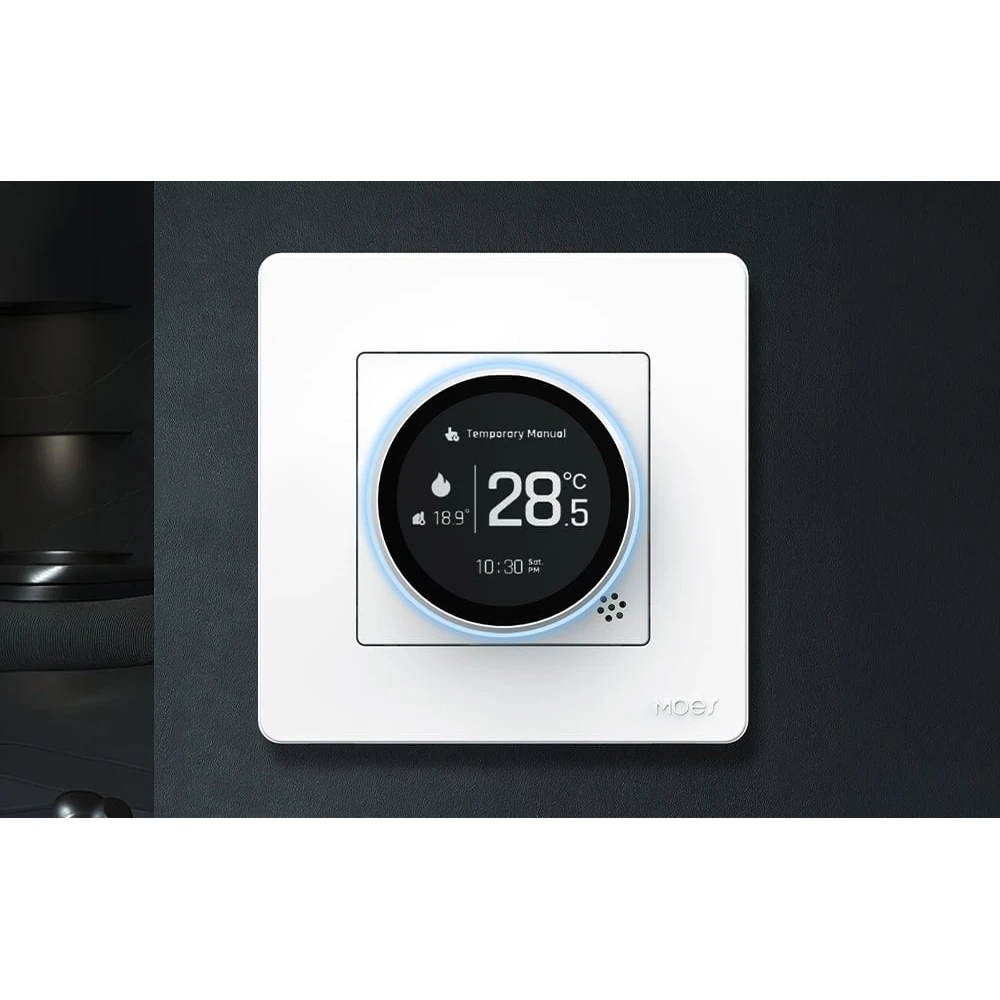

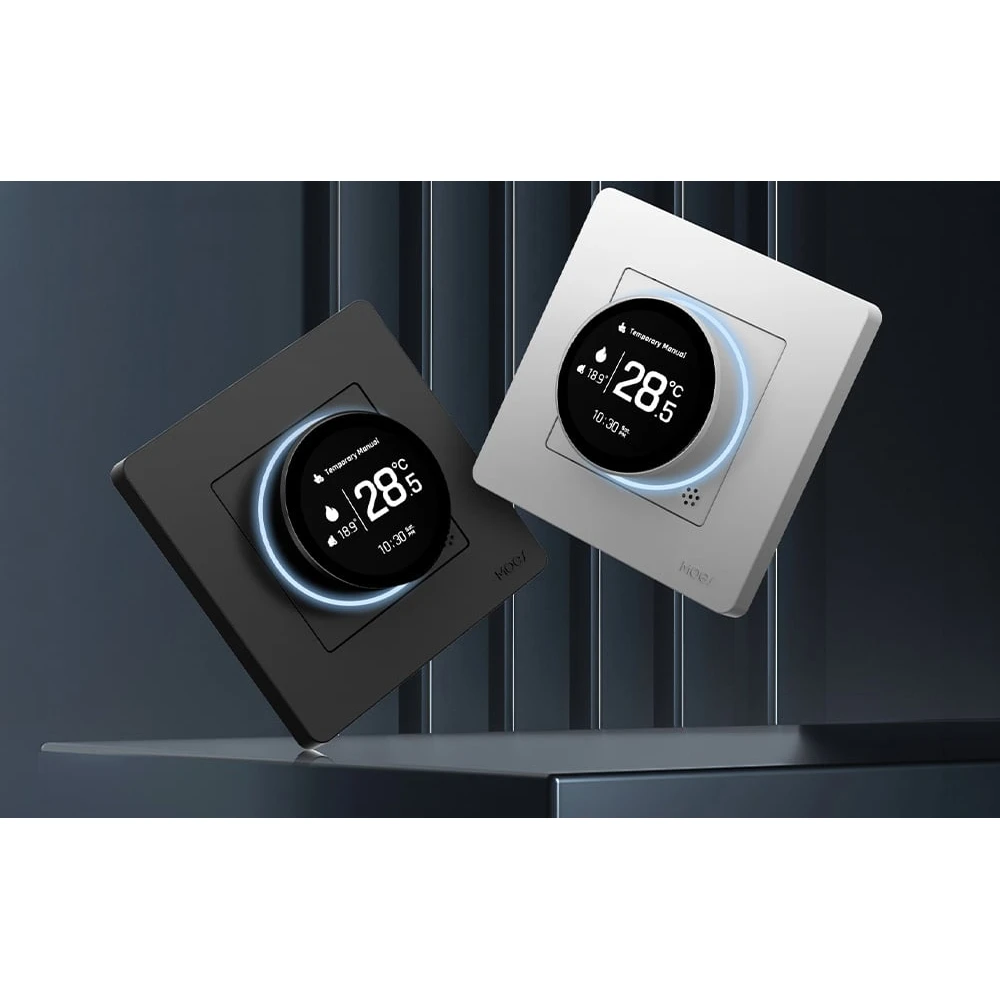

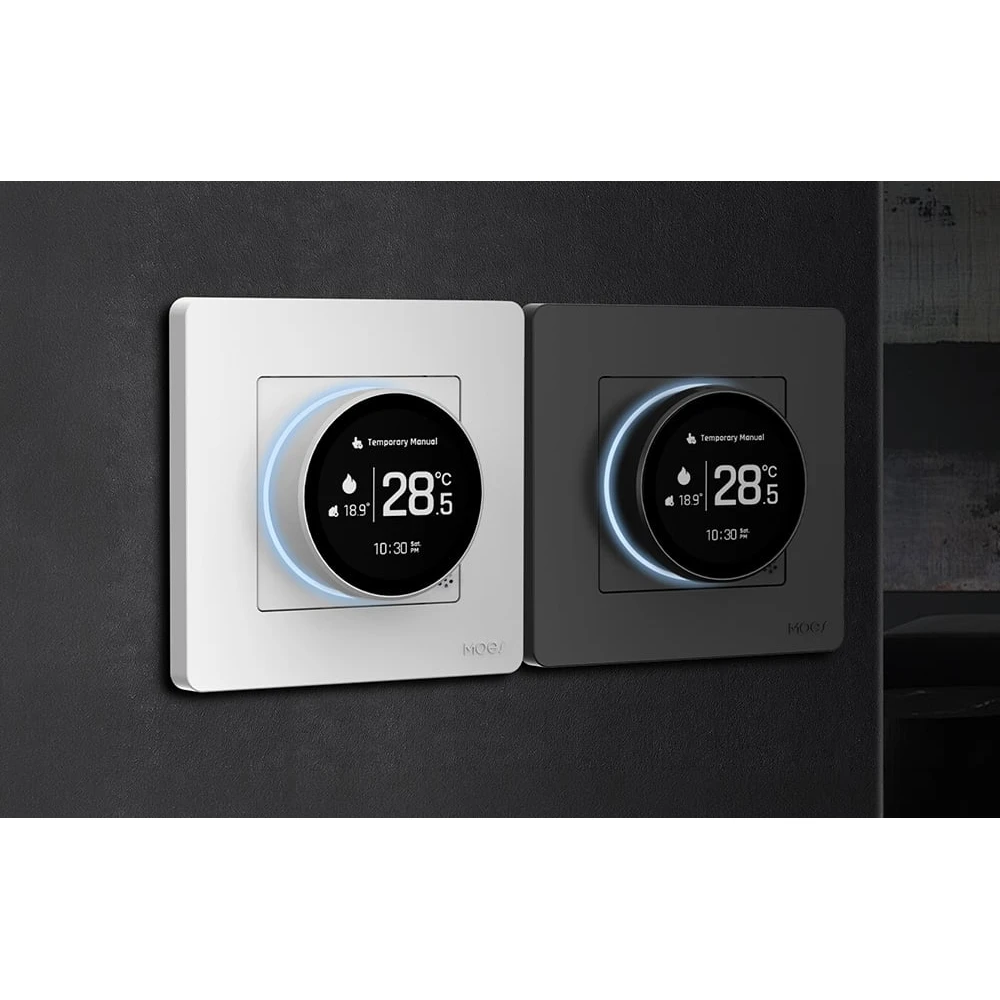

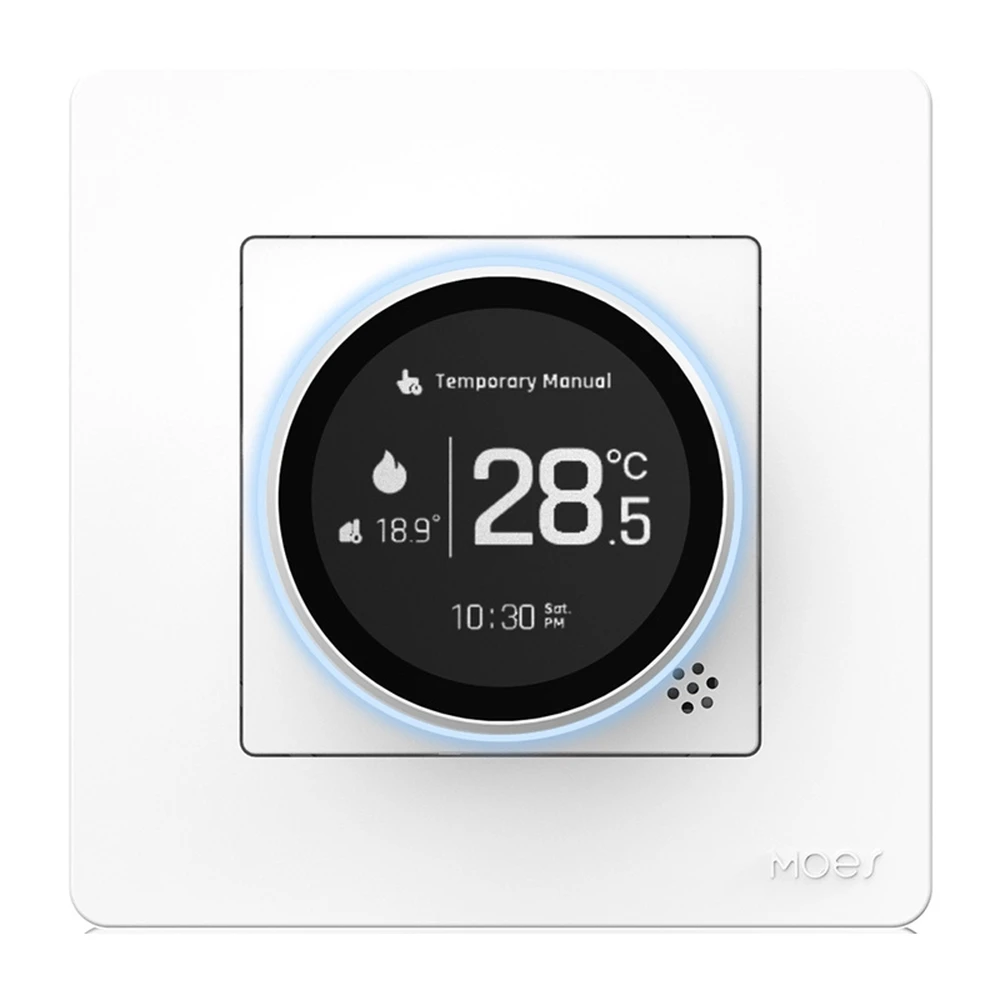

The MOES ZHT-SR-GA is a ZigBee 3.0 thermostat designed to control water heating, combining precise temperature regulation with convenient remote control. It supports a range of 5 to 35 °C with ±1 °C accuracy, runs on 95 to 240 VAC and switches loads up to 5 A, making it well suited to hydronic heating systems. The backlit button and clearly readable display keep operation simple. A ZigBee gateway is required to integrate the unit into a smart home.

An NTC3950 (10K) sensor provides accurate temperature measurement and holds the set level steadily. The room and display range runs from 5 to 70 °C, and the device operates reliably at 0 to 45 °C and 5 to 95% relative humidity, non-condensing. The timer accuracy is better than 1%.

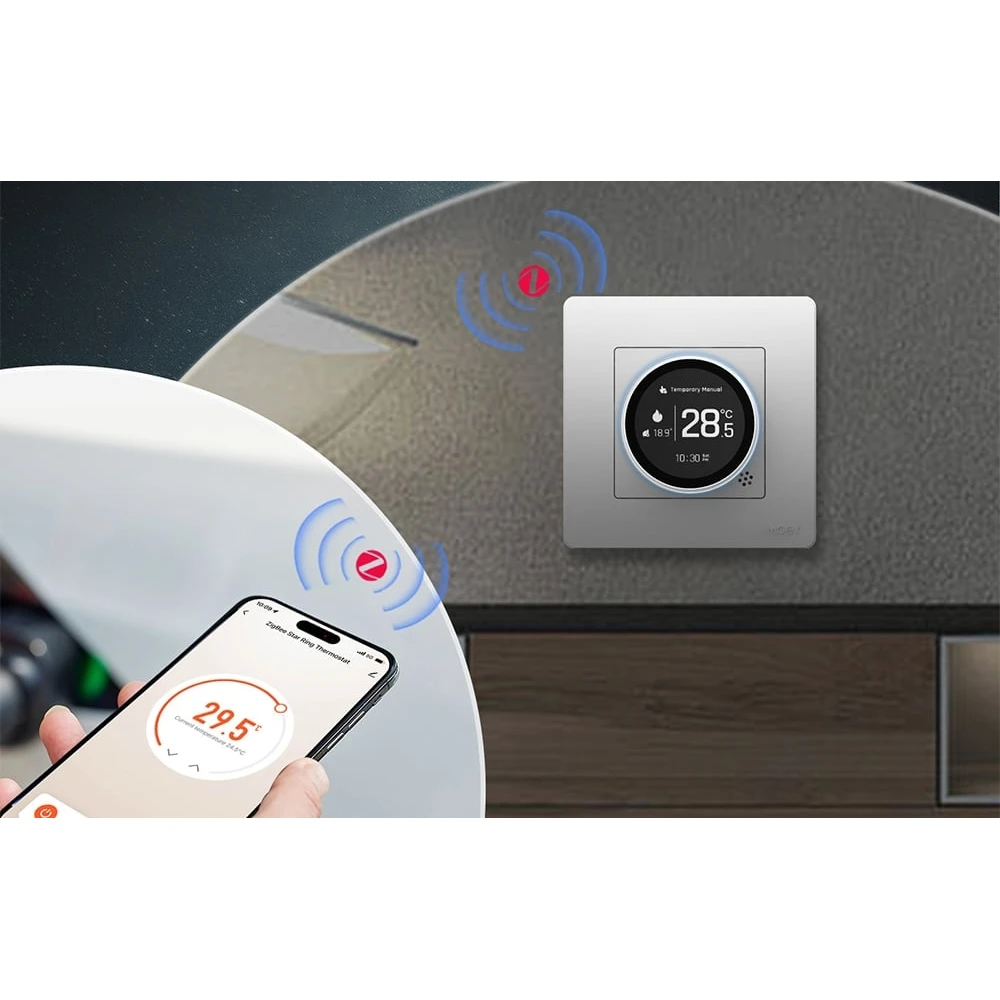

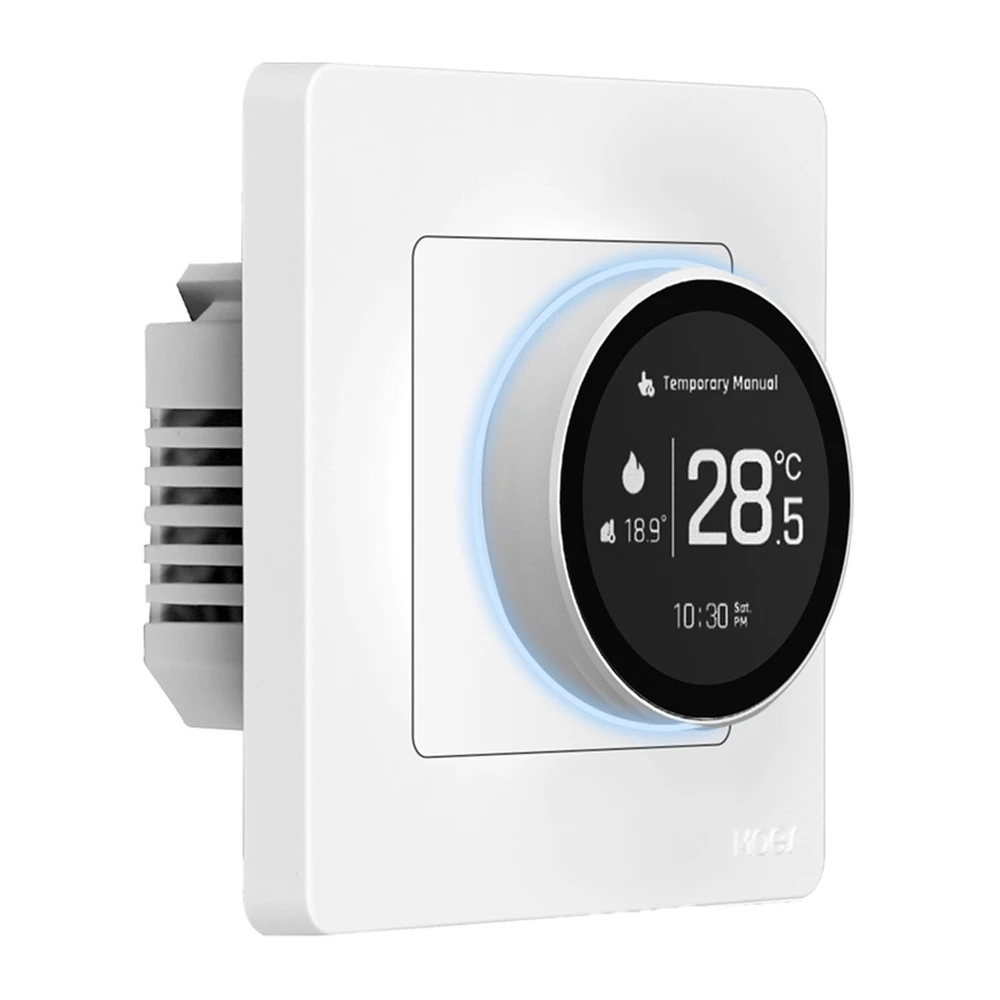

Thanks to ZigBee 3.0, the thermostat works with the MOES, Tuya Smart and Smart Life apps, allowing full control from a smartphone. Schedules with up to six intervals per day, a child lock and power-outage memory that restores previous settings are included. It is compatible with Amazon Alexa and Google Assistant. The flame-retardant PC+ABS housing fits 86 × 86 mm wall boxes or European 60 mm round boxes.
