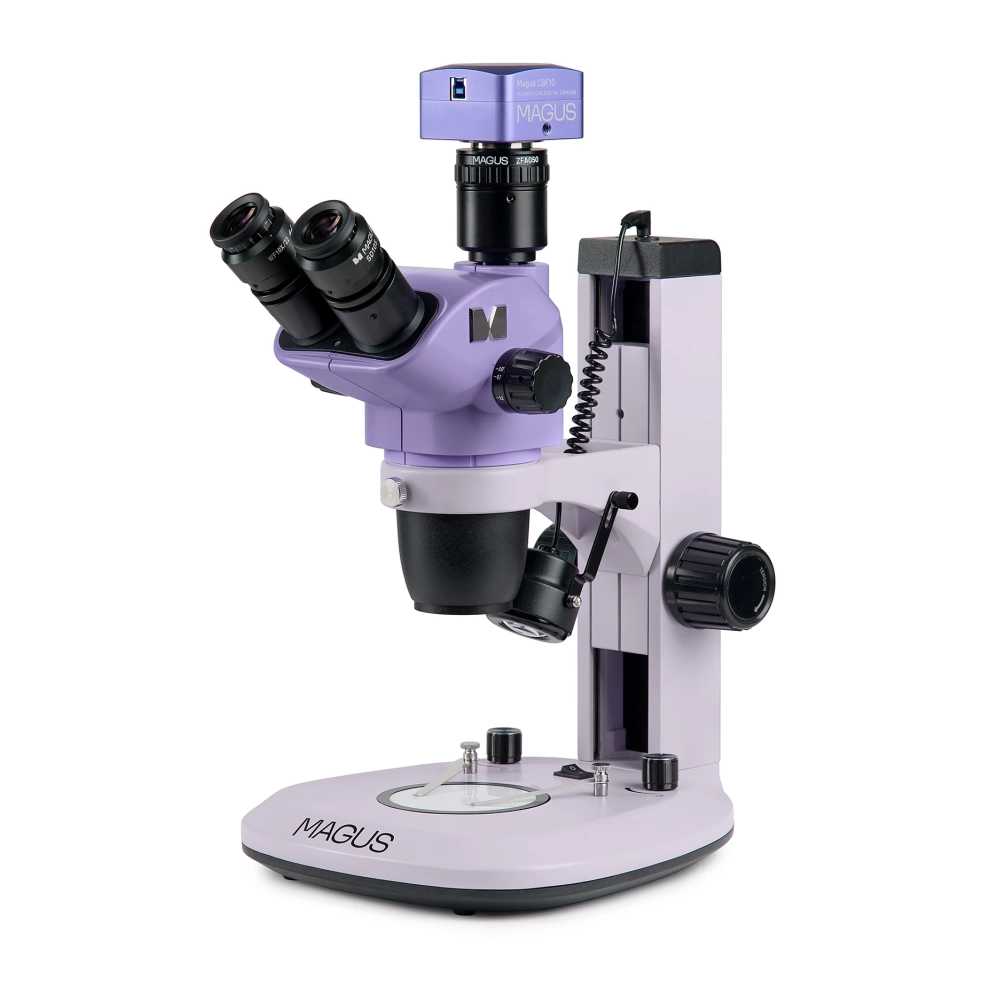

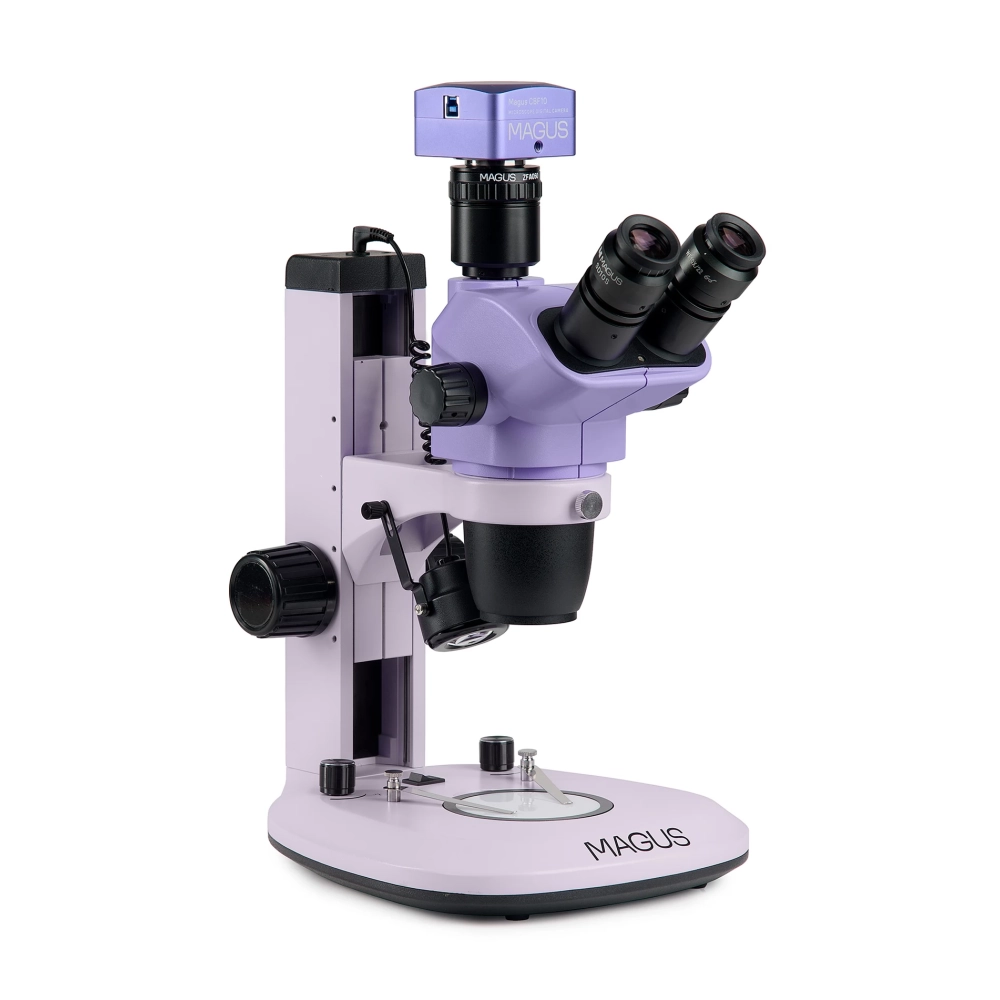

The Greenough Optical stereomicroscope provides the exact details of the surface topography without loss of spatial orientation, thus providing a great depth in observation of three -dimensional objects.
The microscope can be infinitely modified by factor 6.7 to enlarge between 6.7x and 45x, while maintaining 105 mm work distance. It has built -in and reflected light to study translucent and non -translucent objects. The microscope can also be equipped with polarized and dark -visible accessories.
The digital microscope camera captures the observation process as well as intermediate and final results. On the stereomicroscope, an 18 MP sensor provides the required resolution. At the lowest degree of magnification of the microscope, the 1/2.3 "sensor with a 0.5x adapter provides a 18.3x13.7 mm field of view on the computer screen.

The microscope can also be used for restoration, assembly and quality control, as well as zoological and botanical tasks.

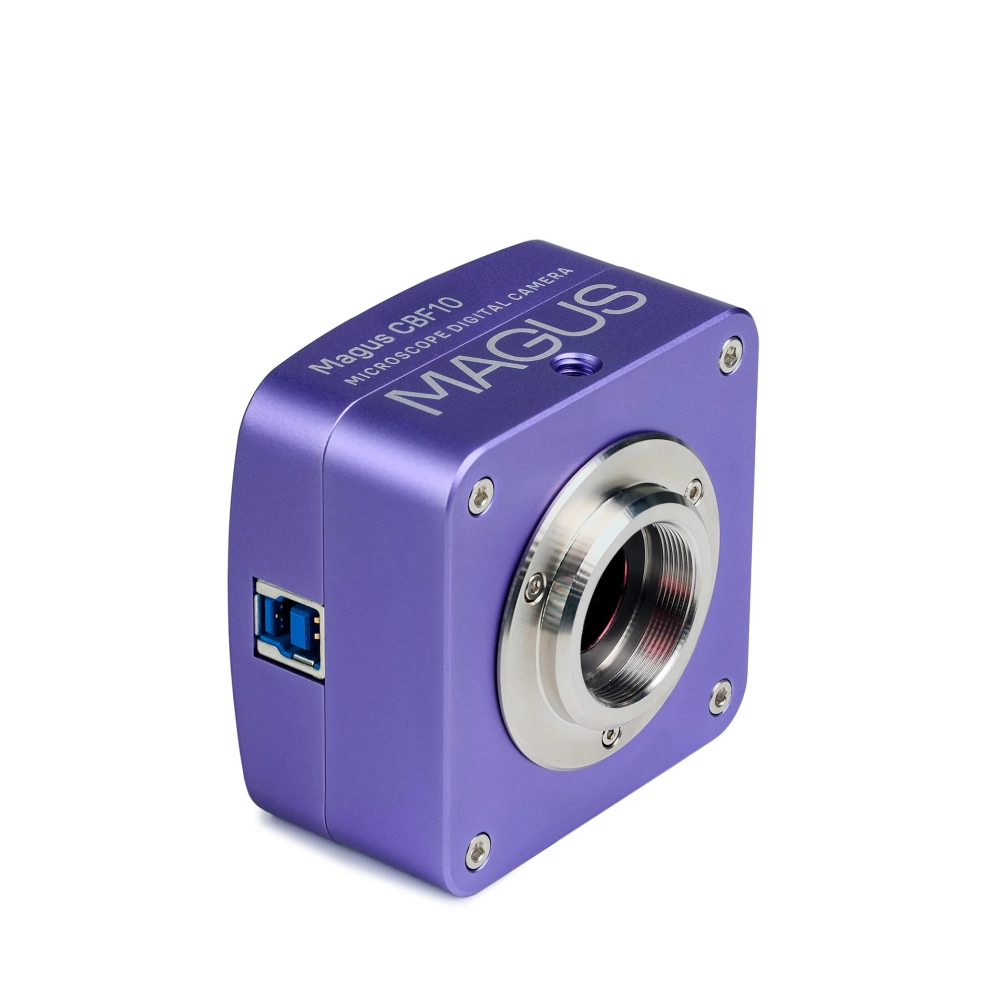

Digital camera
The wallet -friendly Magus CBF10 camera can be used in the entire magnification range of the microscope lens (between 0.67x and 4.5x).
The sensor size is 1/2.3 ". Therefore, the digital microscope has a 0.5x adapter to magnify the field of view on the screen.
The 18 MP sensor provides a 4912x3684 resolution, realistic image. At this resolution, 13.1 frames/second is the framed speed, which is sufficient to fine -tune the microscope.
With 2456x1842 and 1228x922, the speed increases to 34.3 frames/seconds and 54.4 frames. The transitions between the frames become more gradual and the camera also captures the smaller movements of the object.
USB 3.0 provides data transfer 10 times faster than USB 2.0.

Microscope head
The triple lens head can be turned around 360 ° and can be secured in any desired position. The digital camera can be fitted with a C-branch adapter in the triple tube.
The path of light does not change. The division rate is fixed: 80% go to the lens and 20% on the triple tube. The user can monitor the image at the same time in the lens and on the screen.
The basic configuration contains the 10x/22 mm eye lens, which can be adjusted to diopter and eye distance to work with glasses.

Zoomable
With the lens, you can change the enlargement up to 6.7 times with a 105 mm work distance without focus loss. The microscope creates a straight, vertical (non -inverse) three -dimensional image. With additional lenses, you can change the magnification range, field of vision and operational distance of the microscope.

Focusing mechanism
The coarse focus-adjusting buttons can be found on both sides of the stand. The tension of the coarse focus can also be adjusted.

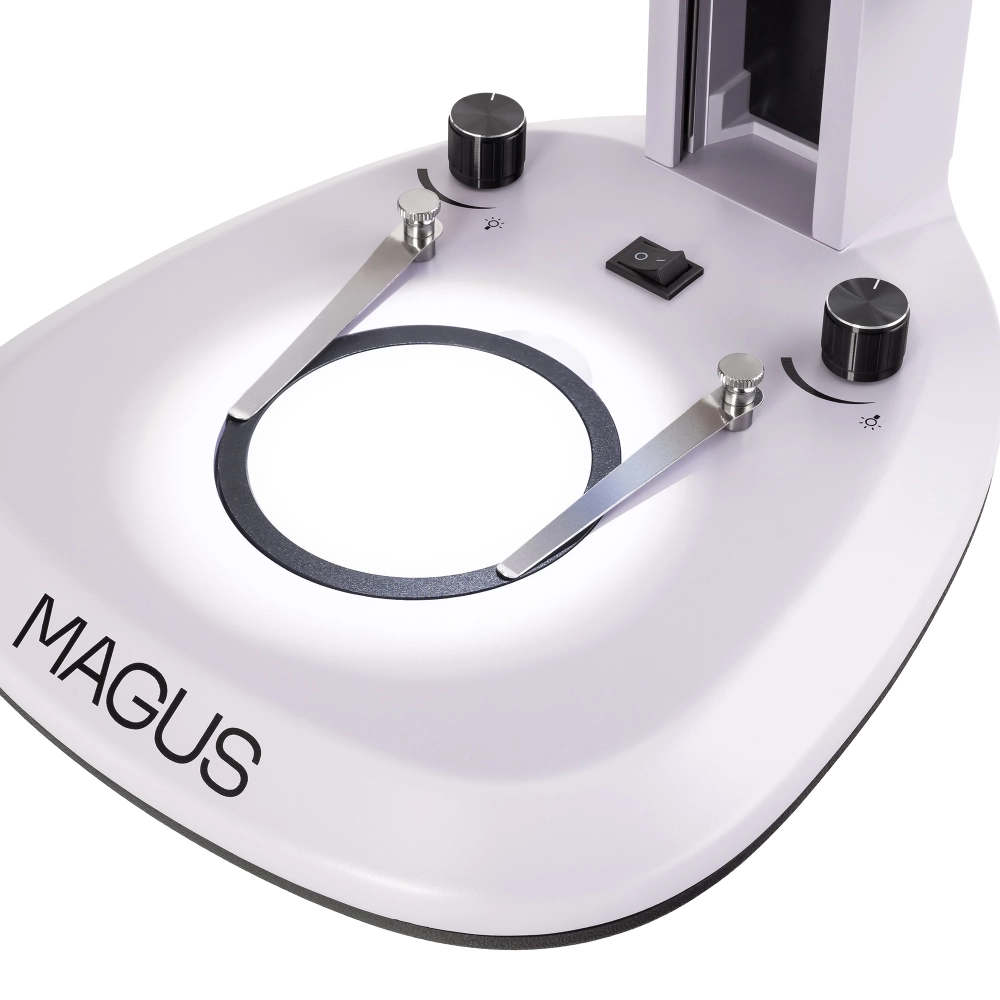

Table table
Depending on the sample, you can choose a matte bottle or a black and white disc. The matte glass sheet provides steady illumination and optimum head scatter when observing transparent and translucent objects. Objects that are not translucent with a black and white disk can be examined before a contrasting background: For light objects, the black side and my dark object have to choose the white side.

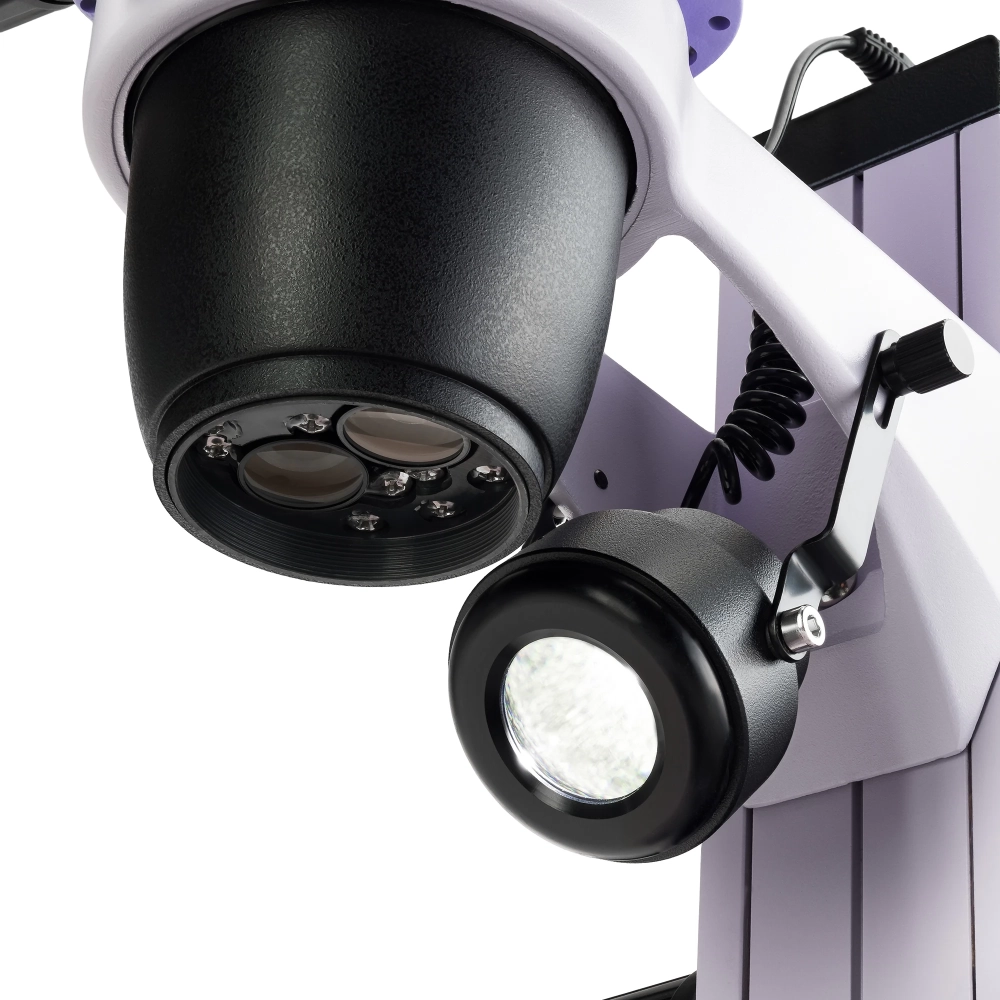

Light sources
The microscope has a 3 W, permeable LED light and 3 W, reflected, oblique LED illumination. LED life is 50,000 hours.

- The zoom lens can change the magnification infinitely without focus loss: 6.7: 1 zoom ratio
- rotated 360 ° to install a digital camera with a vertical tube with a vertical tube
- Advantages of Greenough Optical Design: High Depth, High Resolution, 3D Spatial Effect, Compact Design and Affordable Price
- Between 3 W) and reflected (3 W) LED lamps with long life
- a wide range of optional accessories compatible

Camera features
- Aptina CMOS sensing, 18 MP camera can be used for light-sighted observations
- 4912x3684 pixels at resolution 13.1 frames/sec is sufficient to set the focus
- 2456x1842 and 1228x922 for pixels resolution for 34.3 and 54.4 frames/sec for classroom shows
- USB 3.0 Connector surface for quick data transfer without jumping or delay
- Software is suitable for capturing, editing, external display, and length and angle measurement

The contents of the package
- Magus CBF10 Digital Camera (Digital Camera, USB Cable, Storage and Software Storage, Usage Guide and Warranty Lay
- Basic, built -in, permeable light, built -in power, and stand, focusing mechanism
- Microscope head lenses and lenses
- 10x/22 mm eye lens with eye distance and diopter adjustment (2 pieces)
- an adapter of 0.5x C
- Black and white plate
- Matt glass plate
- a reflected light, skewed lighting body
- the power cord of the microscope
- dust guard
- User's Guide and Warranty
