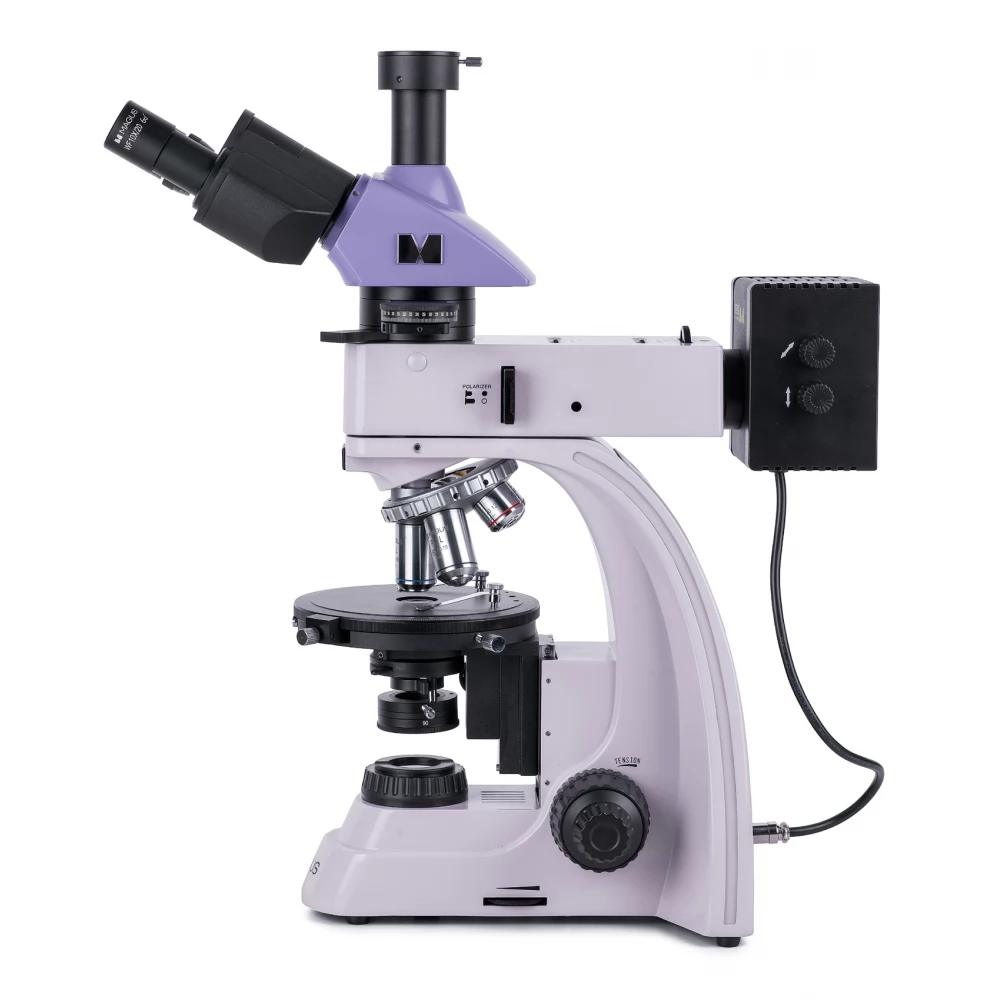

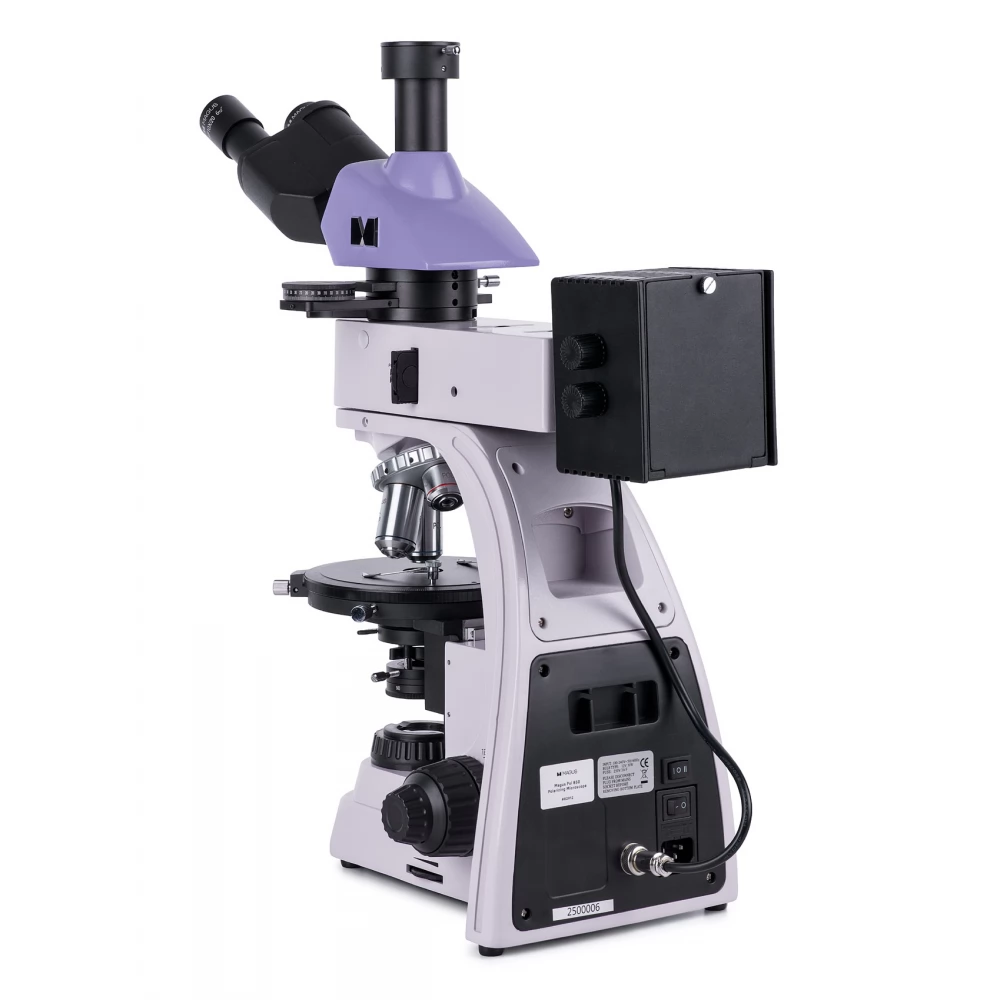

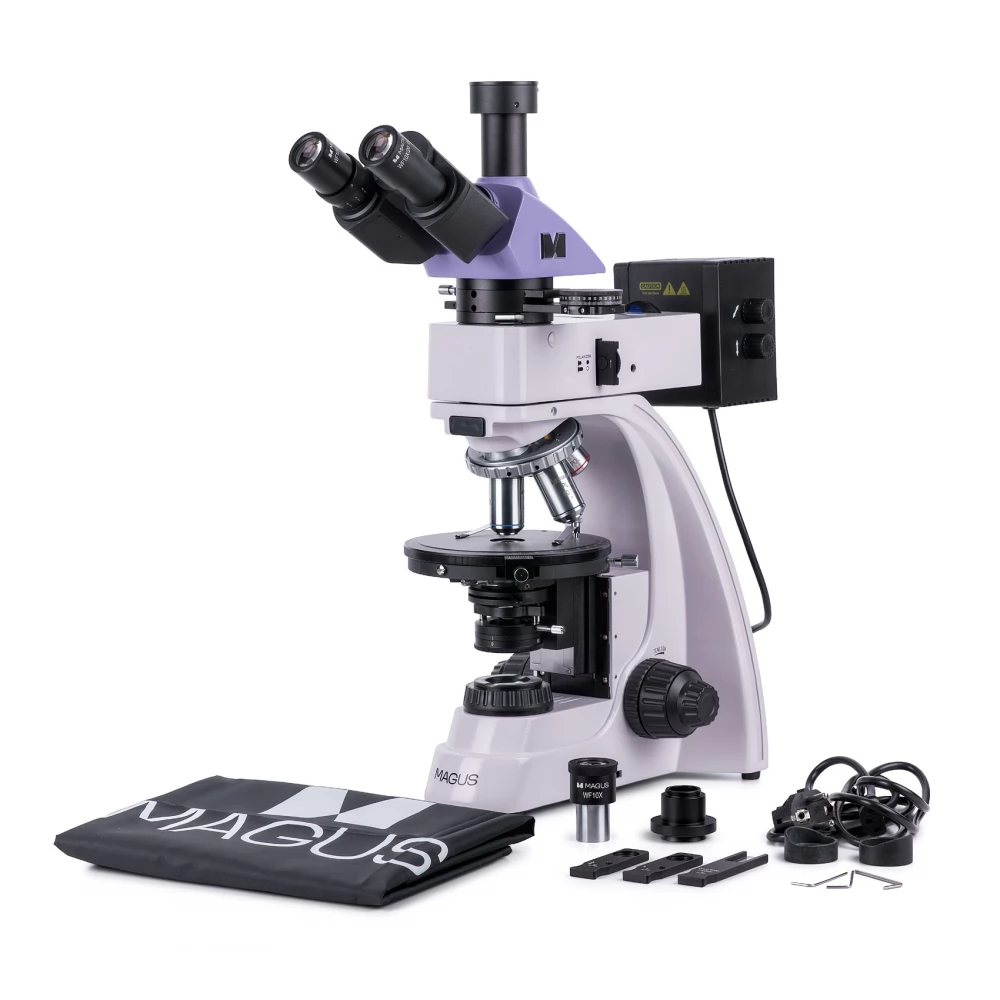

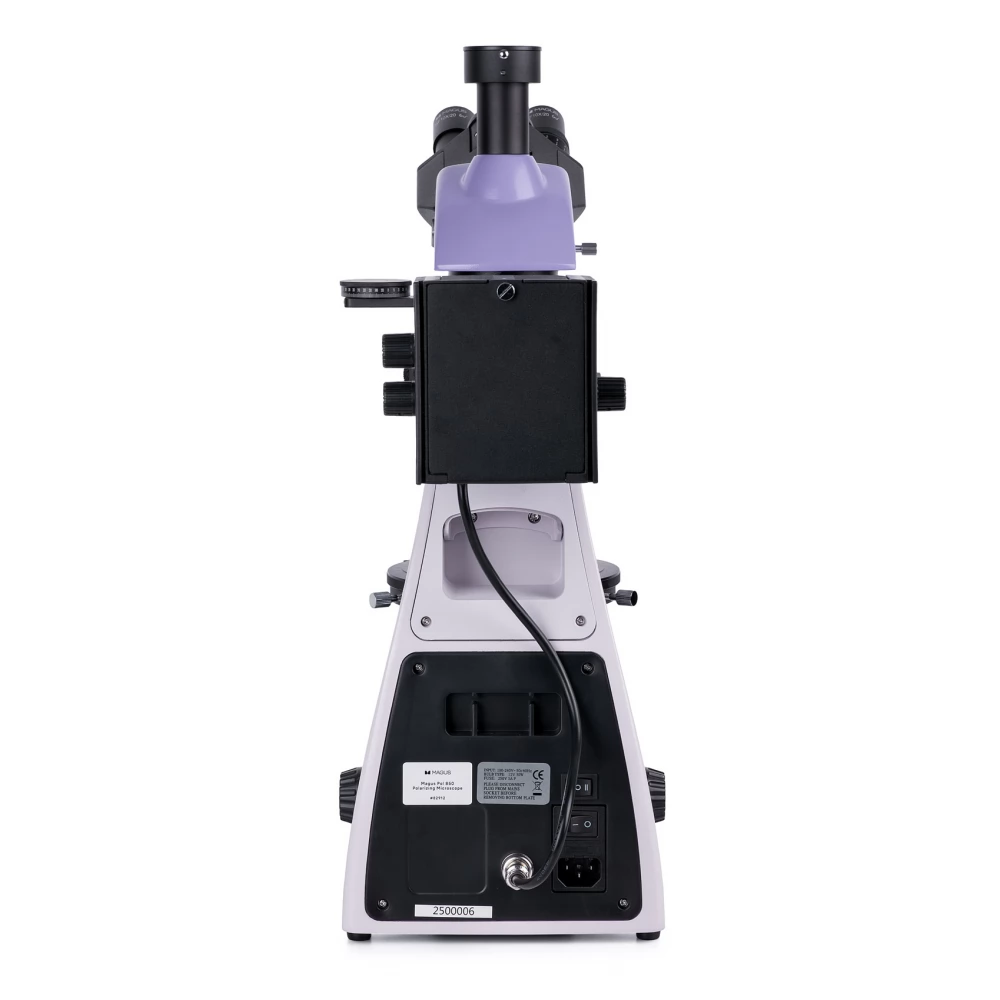

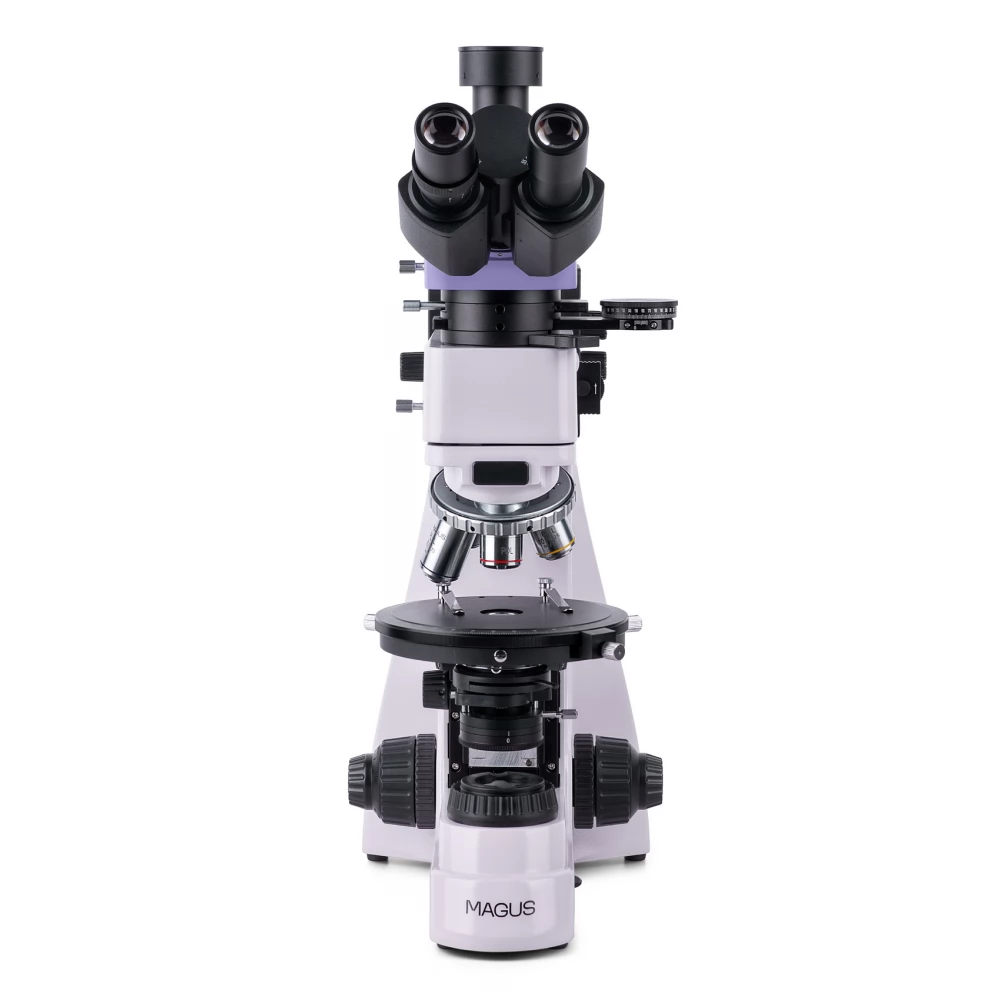

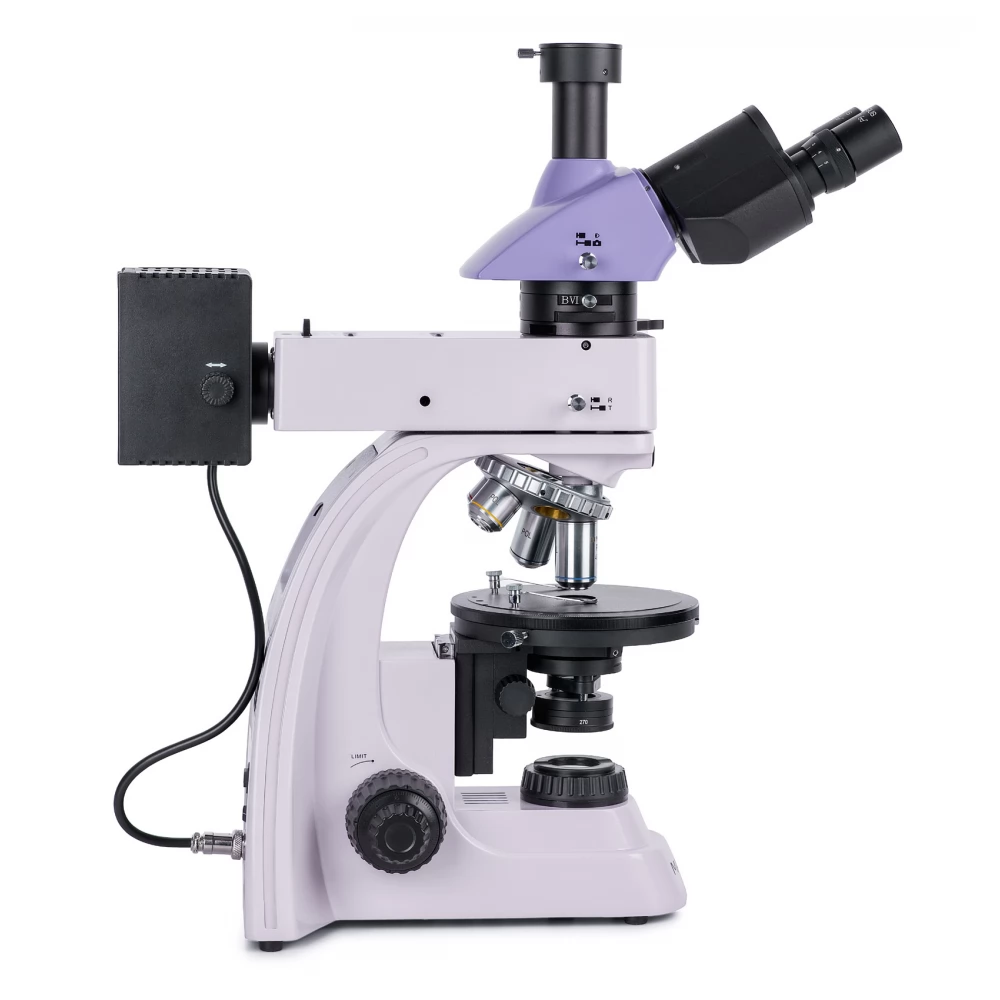

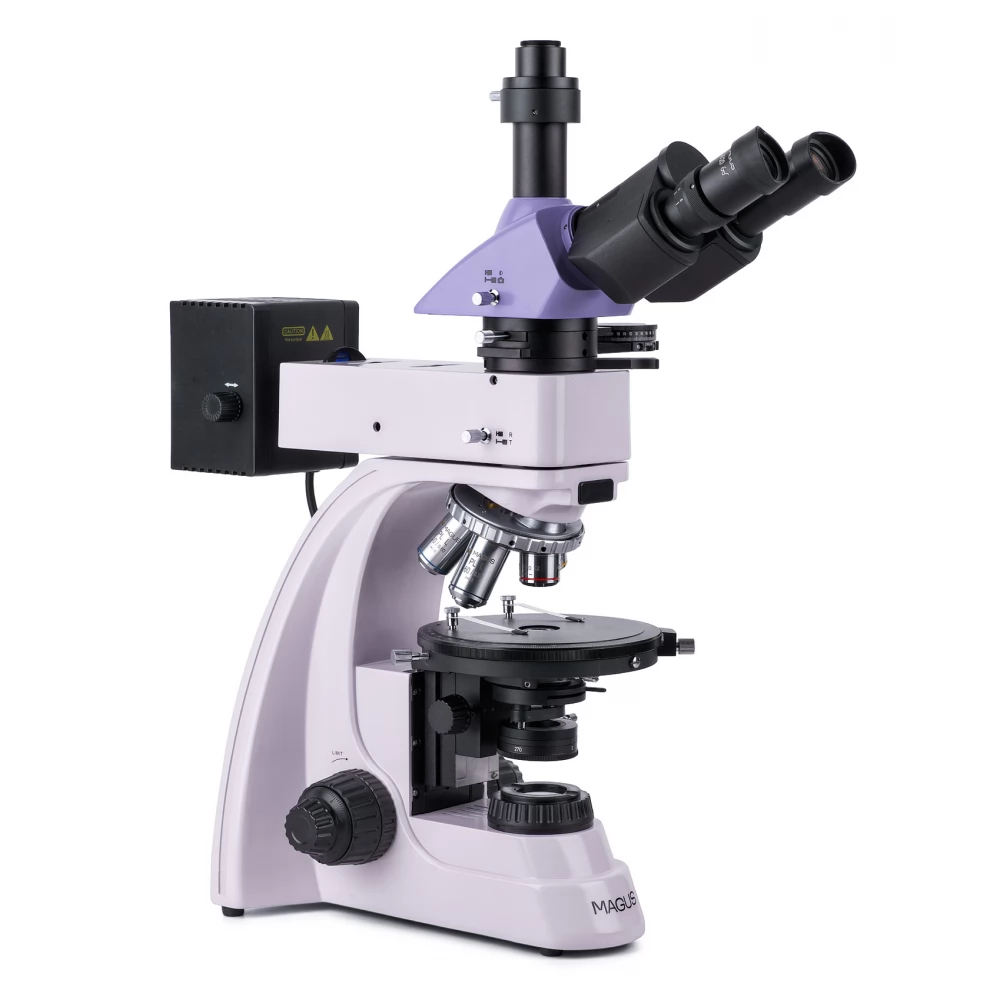

The MAGUS Pol 850 polarizing microscope was designed so that it can be used both in transmitted and reflected light. Available test methods: polarization and bright field. Anisotropic biological, geological and polymer objects can be examined with the microscope, as well as polished, opaque sections up to a maximum thickness of 15 mm, with one piece of polished side. The microscope can be perfectly used in a variety of professional tasks, for example in the fields of medicine, forensics, mineralogy, crystallography or petrography.

Digital camera
MAGUS CHD40 is a digital HDMI camera with three video interfaces and automatic switching function between 4K and Full HD depending on the monitor resolution.

The camera's 8-megapixel sensor, connected via HDMI or USB 3.0, captures realistic 4K resolution (3840x2160 px) images. When connected via Wi-Fi, Full HD (1920x1080 px) image quality is available. The camera can be connected directly to a TV, monitor or projector with an HDMI interface. In this mode, the camera works independently without a computer. The HDMI connector provides a high and stable transfer rate when transferring from the camera to an external screen. You can connect the camera to a computer via Wi-Fi or USB 3.0. Video is recorded at 30 frames per second (fps).
The camera combines high FPS and high bandwidth HDMI. Thus, the videos have bright colors, there are no freezes or gaps between the frames. At maximum resolution, the image is well detailed, moving objects are visible without error, and the movement of objects is displayed without delay.

Monitor
The MAGUS MCD40 monitor is intended for use with the visualization system of the MAGUS microscope. The monitor is connected to a camera mounted on the microscope to display real-time images. MAGUS supports 4K HDMI cameras. The diagonal of the screen is 13.3 inches. The IPS matrix provides bright images with large viewing angles. If you look at the display from an angle, the color reproduction is not distorted. You can place the display on a folding stand, table or shelf, or attach it directly to the camera or microscope stand.

Optical elements
The optics of the microscope are corrected to infinity, free of internal tension. The image formed by the lenses is authentic, free of disturbing reflections, sharp contrast and detailed. The lenses are housed in a turret with grooves centered on the optical axis. It has a total of five such grooves. An additional lens can be mounted on it to extend the magnification range of the microscope. The lenses are designed for working with samples without a cover plate.

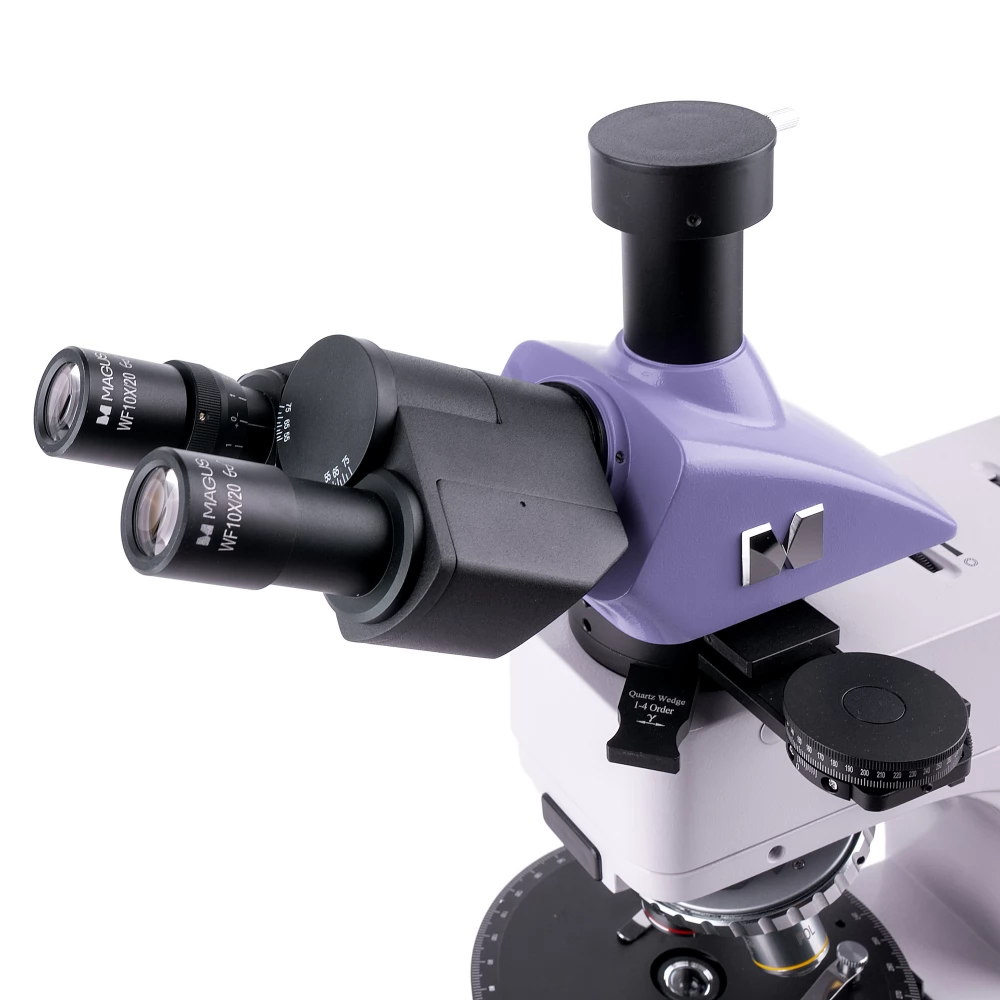

A digital camera can be mounted on the tube of the three-lens head part. The light beam is split 100:0 or 0:100, so all the light flows either to the camera or to the eyepiece tube. There is a diopter adjustment ring on the left eyepiece tube: due to the different vision between the two eyes, this ring can be rotated, so it can give the clearest possible image of the given sample.

Illumination
30 W halogen bulbs are used for both transmitted and reflected light. Their brightness is sufficient for you to get a clearly visible image of each object, and due to their light rays belonging to the "warm" light spectrum, you can work with the equipment comfortably even in the long term. Köhler illumination provides higher resolution, removes artifacts and edge darkening from the field of view. With the light filters, you can precisely adjust the color reproduction when working in reflected light.

Polarization is available for both transmitted and reflected light. An analyzer is located in the optical path to start observing in polarized light. Then the relative position of the analyzer and the polarizer is changed by their rotation, which also changes the polarization angle. Compensators increase the contrast of the objects, which are inserted into the special grooves of the central assembly. The same accessory includes a Bertrand lens that can be used for conoscopic examinations.

Stage and focusing mechanism
The microscope has a rotatable stage: rotating the stage changes the way the sample reflects light in polarized light. There is a scale on the stage, on which the rotation angle can be determined, with an accuracy of 0.1°. To achieve the brightest and sharpest image, the stage can be centered in relation to the optical axis of the microscope.

The coarse and fine focus adjustment knobs are located at the bottom of the stand, allowing the user to place their hands in a comfortable position on the table. The coarse tension can also be adjusted, and there is also a coarse focus adjustment latch on the device. Fine focusing allows you to move the pattern smoothly.

The main characteristics of the microscope
- Finished in transmitted and reflected polarized and natural light
