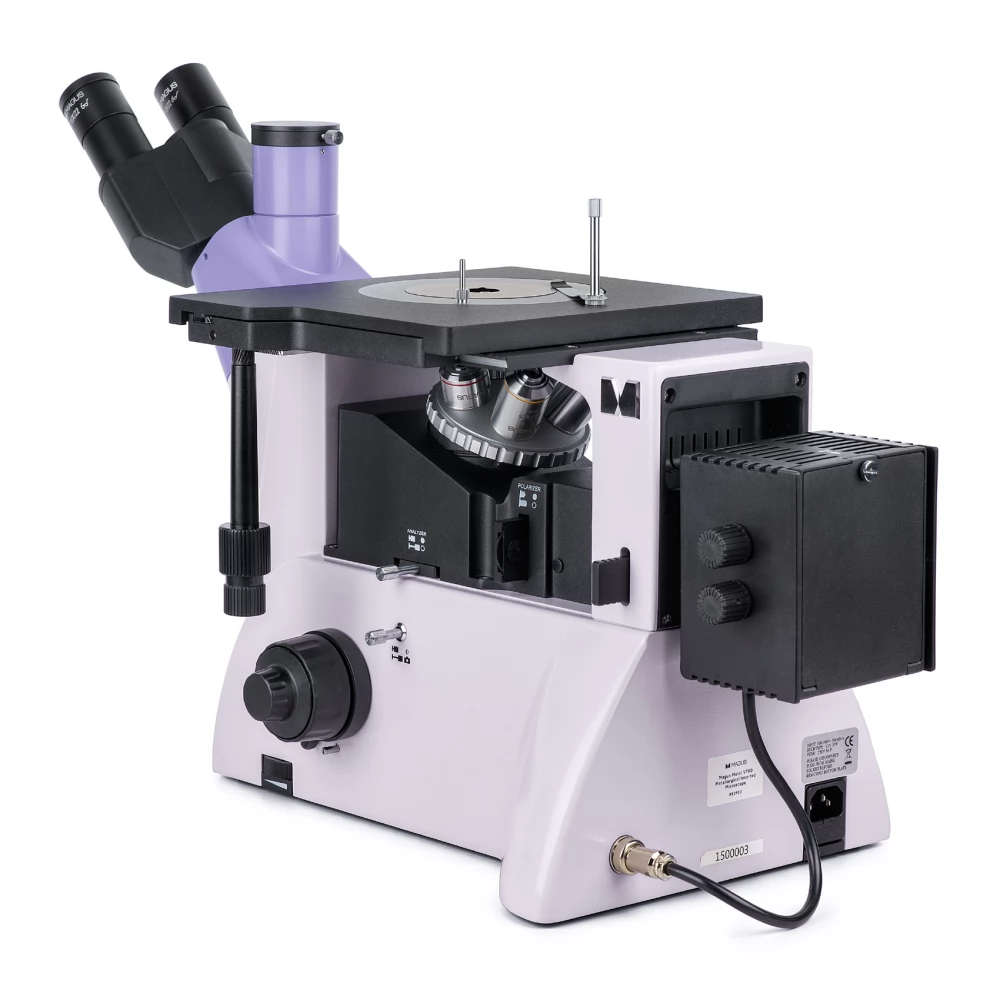

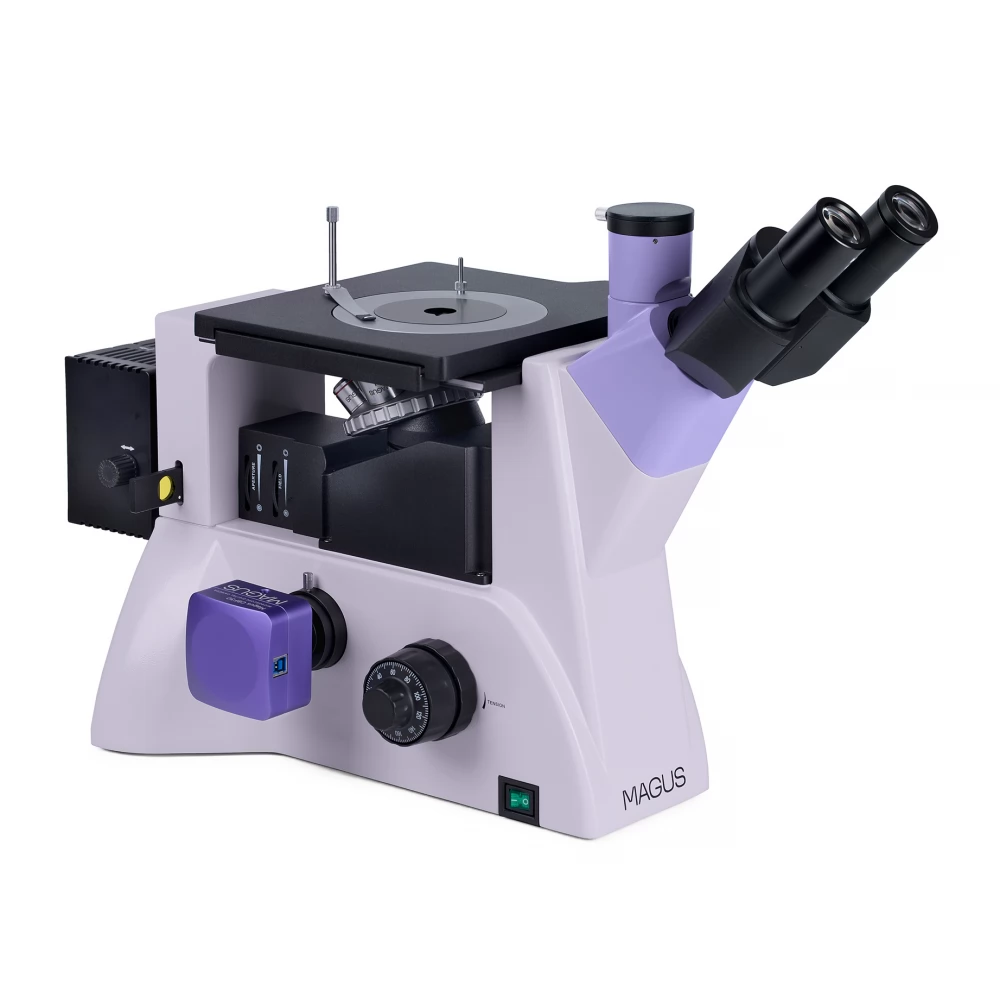

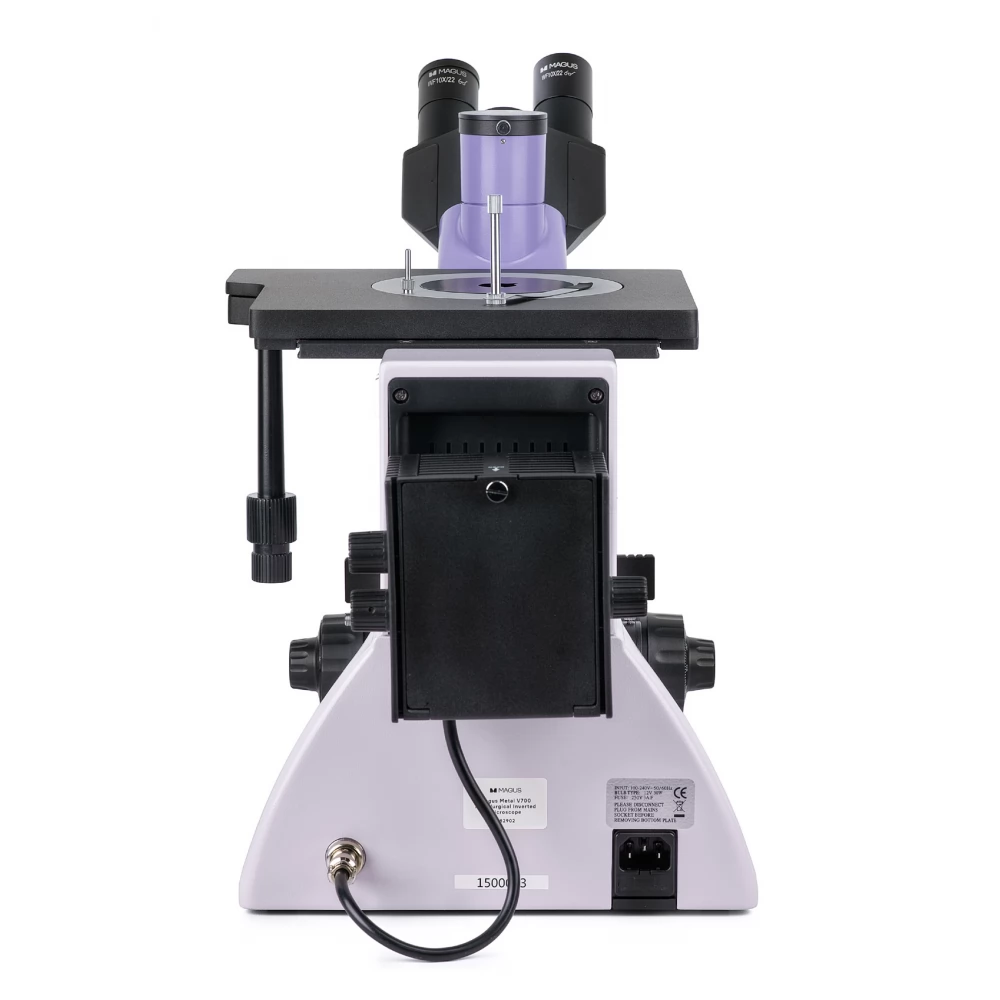

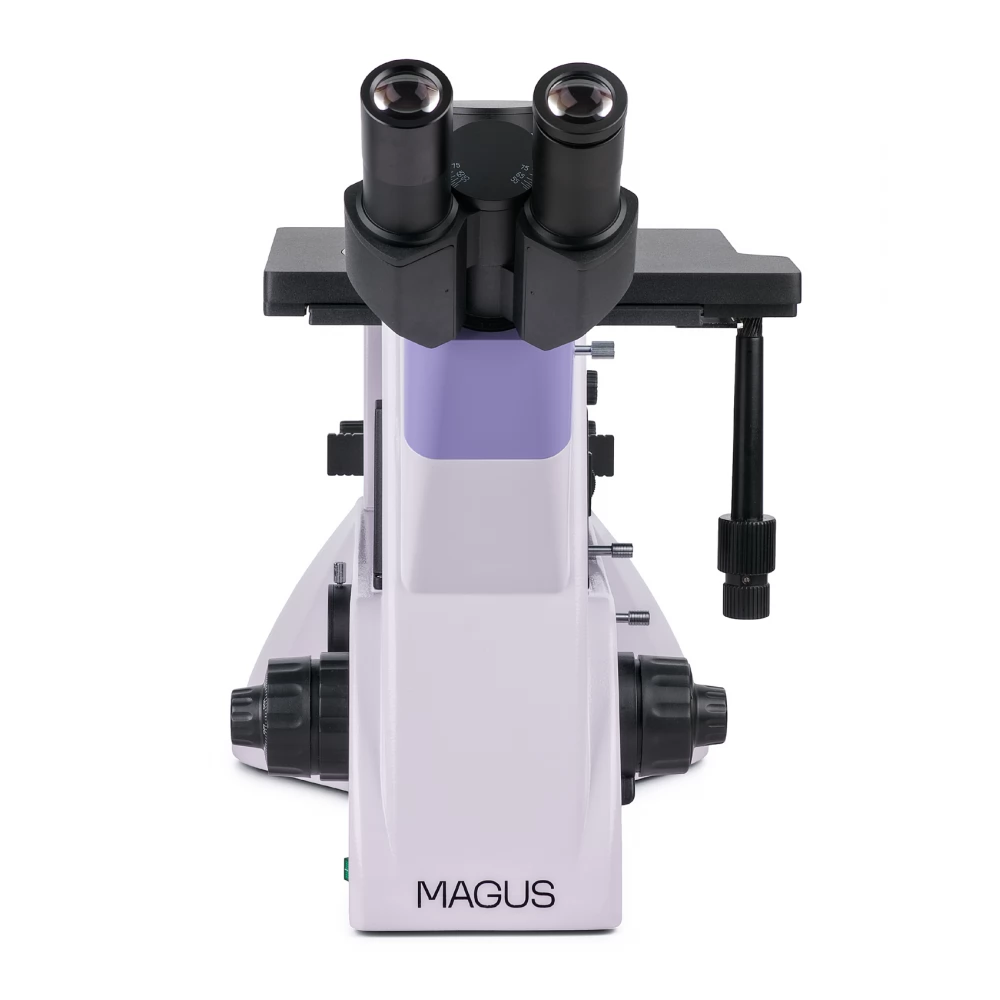

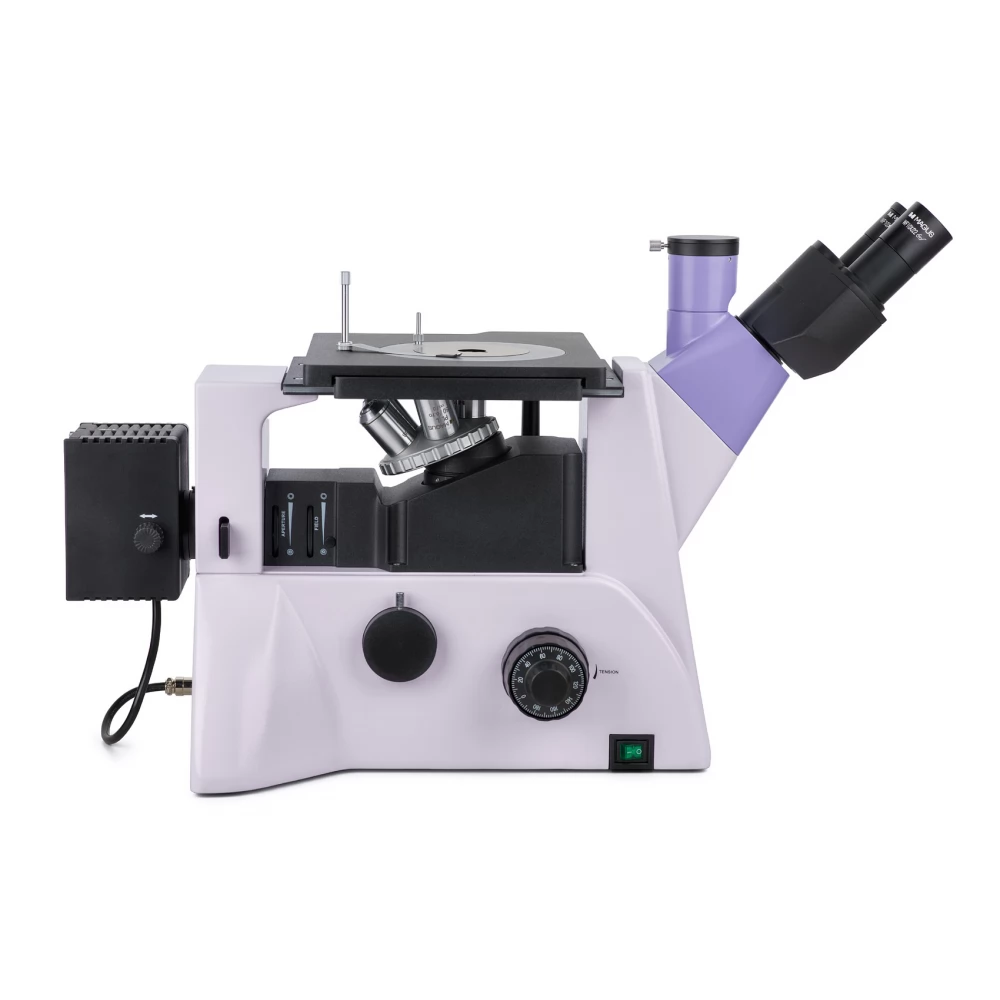

The Magus Metal V700 Metallographic Reverse Microscope is suitable for examining the micro -structure of metals, alloys and semiconductors in reflected light. Up to 2 kg of pattern can be placed on the table (only the lower half of the sample must be plane). The rest of the sample does not need to be prepared, it can be of any shape. The microscope is designed for monitoring with a light vision and polarized light, has a side camera connector and a triple tube, and is suitable for a wide range of laboratory and manufacturing applications.

Digital camera

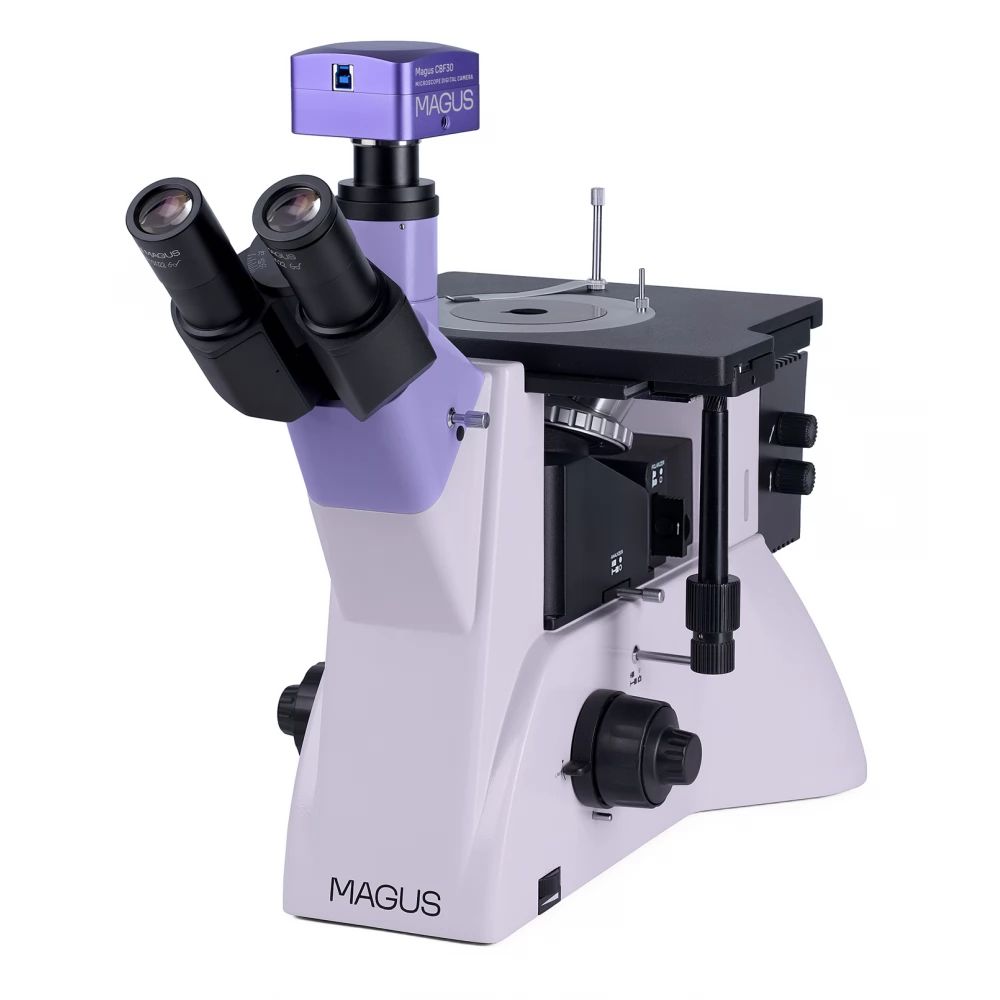

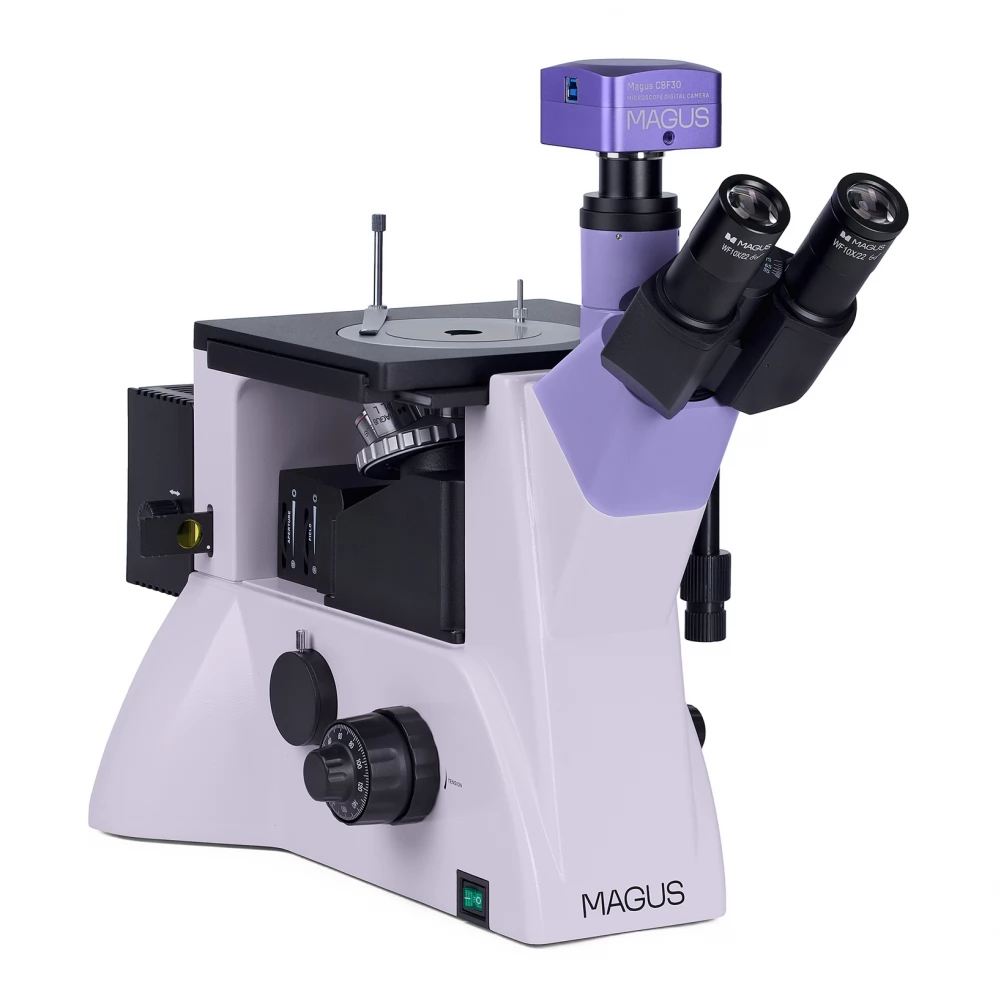

With the Magus CBF30 digital camera, you can take photos and videos via a microscope, edit the resulting files, organize shows, and (after proper calibration) make linear and angular measurements on objects.
The appliance can be used on microscopes with a light -minded method with 4x, 10x, 20x and 40x lenses.

The 6.3 megapixel sensor allows you to take sharp, detailed photos and videos with a resolution of up to 3072x2048 PX. If necessary, resolution can be reduced to 1536x1024 PX. However, this does not affect the frame speed, which remains 59 fps, which ensures smooth frame transitions without stalling and delay.

The Sony Exmor backlight color CMOS sensor also allows the camera to be used in low light conditions. The picture remains read and remains bright. It is provided by using the purest, distorted image, 0.5x to 0.75x adapter.

Optical elements
The microscope is equipped with a specially designed three -lens head - the position of the lenses is adjustable; 180 ° rotation is possible. The digital camera on the microscope frame is placed on the side camera connector and the monitor is placed in the triple tube of the triple head. Radiation resolution on the frame-100: 0/0: 100, on the three-pointed head 50:50 and 100: 0.

The rotating objects of 5 lenses are accommodated below the sample tested (each part of the basic configuration). Each lens with an infinite plane acromatic long work spacing. Another lens can be fitted instead of each lens. In the basic configuration, the magnification of the microscope is basically between 50x and 1000x.

Illumination
The reflective lighting has an adjustable brightness of 30 W halogen bulb. The lamphouse gets electricity from the alternating power supply. Light enough, all attached lenses are made for observations with a light vision or polarized light microscopic technique. It is possible to adjust Köhler lighting and the light source can be centralized along three axes. Color filters can be used to modify color rendering for microscopic photography. There are polarization devices - an analyzer and a polarizer - all of which can be removed.

Object table and focusing mechanism
Round table plate with a hole of 10 mm, 20 mm and 30 mm, and the sample can be secured with a sample holder. The object table is large enough (242x200 mm) and can be moved along two axes with the fixed pattern. The sharpness of the image can be adjusted with the coarse and fine focus buttons. The firmness of the rough focus button is adjustable and has a fastener button.

Accessories
Further accessories allow you to make the most of the Magus Metal V700 microscope. Eye lenses, long -term plank acromatic lenses, calibration slides and digital cameras are available.

- examination of large and heavy patterns with a light -vision and polarized light microscopic technique; only one side of the sample should be prepared
- a large table table with a rotating table table containing 10 mm, 20 mm and 30 mm.
- The triple lens head can be rotated at 180 ° when assembly
-Digital camera and monitor can be mounted in two ways: for a three-pointed head section with a beam resolution of 50:50 and 100: 0 or the microscope frame by 100: 0 or 0: 100
- Reflected light observations, light source 30 W halogen bulb with adjustable brightness
- setting Köhler lighting, removable analyzer and polarizer and centralizable light source
- A large selection of accessories available to expand the microscope's performance

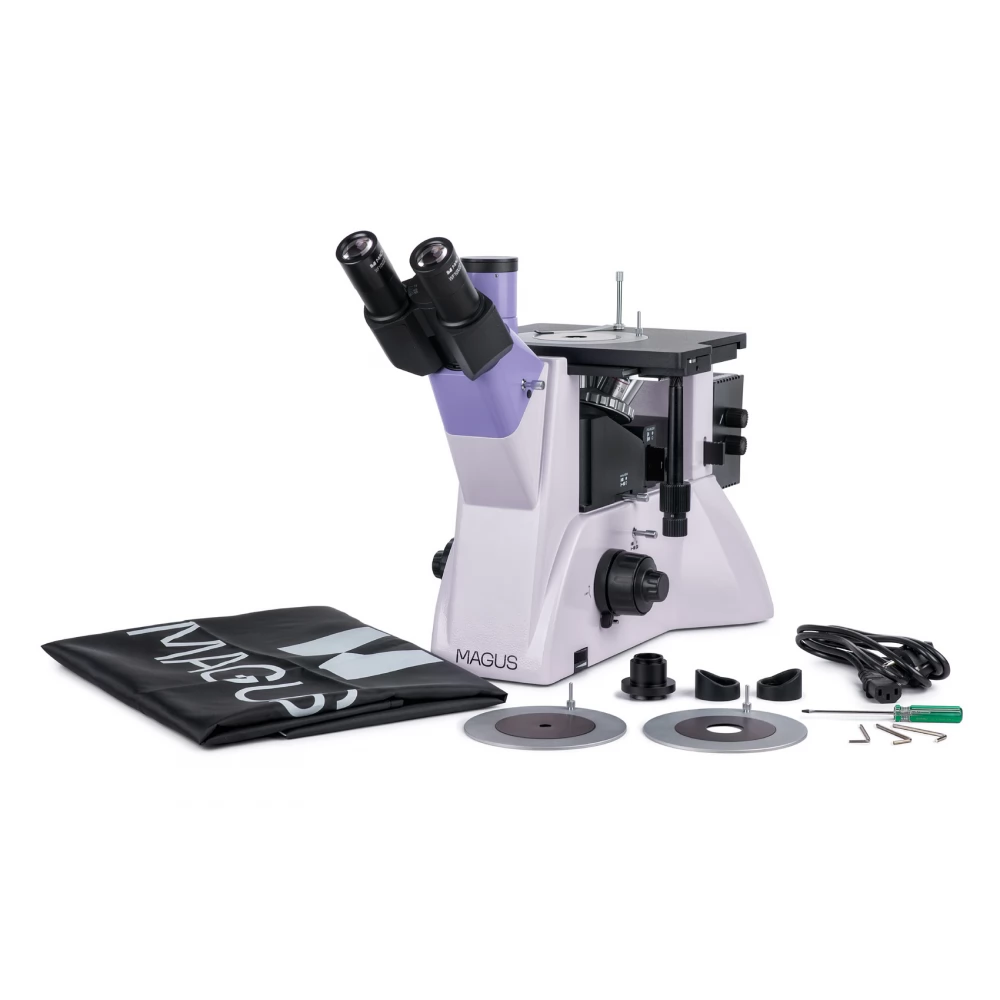

The content of the set
- Magus CBF30 digital camera (digital camera, USB cable, installation CD drivers and software, user manual and warranty ticket)
- soles with current input, focusing mechanism, object table and rotating object lens company
- Reflective lighting with lamp house
- Three -pointed head
- Infinitely plane acromatic lens: pl H 5x/0.12 SM 26.1 mm
- Infinitely plane acromatic lens: pl H 10х/0.25 sm 20.2 mm
- Infinitely plane acromatic lens: eg h 20х/0.40 sms 8.80 mm
- Infinitely plane acromatic lens: pl H 50х/0.70 smell 3.68 mm
- Infinitely plane acromatic lens: eg H 100x/0.85 (dry) SMS 0.40 mm
- 10x/22 mm lens with long eye spacing
