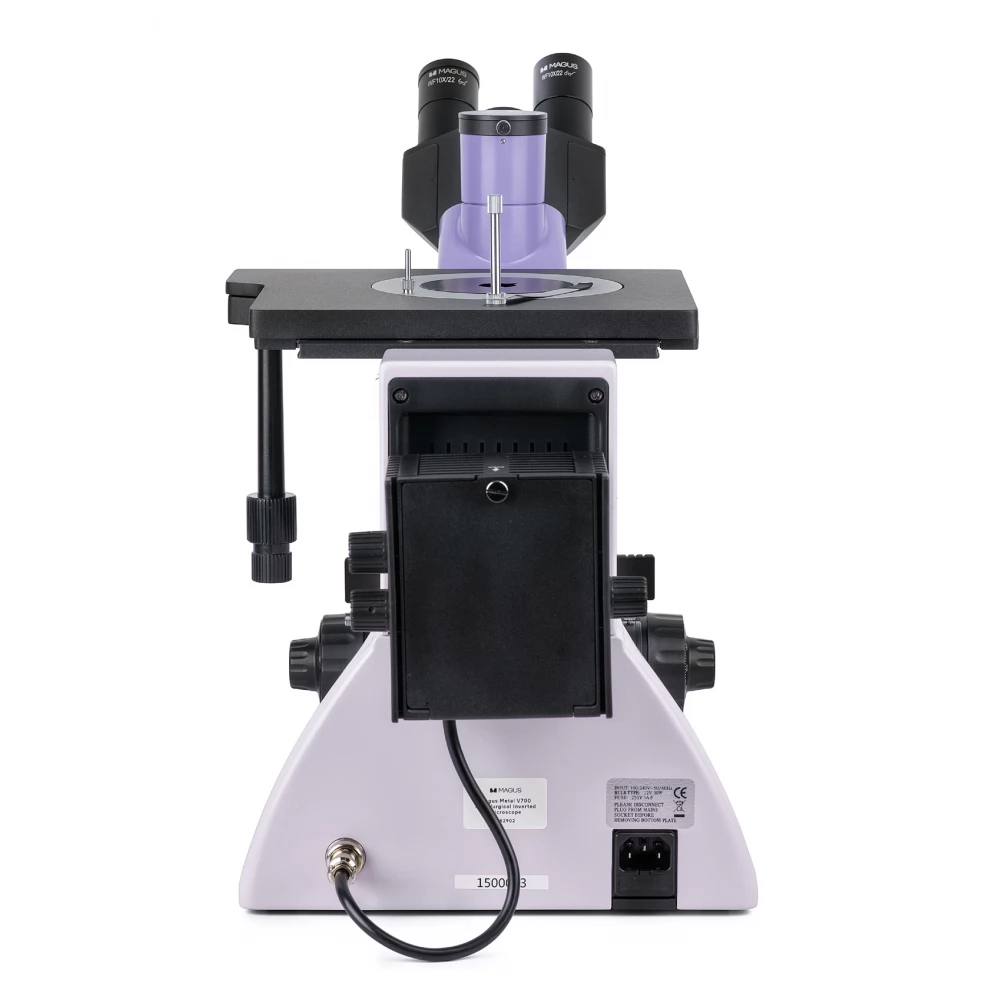

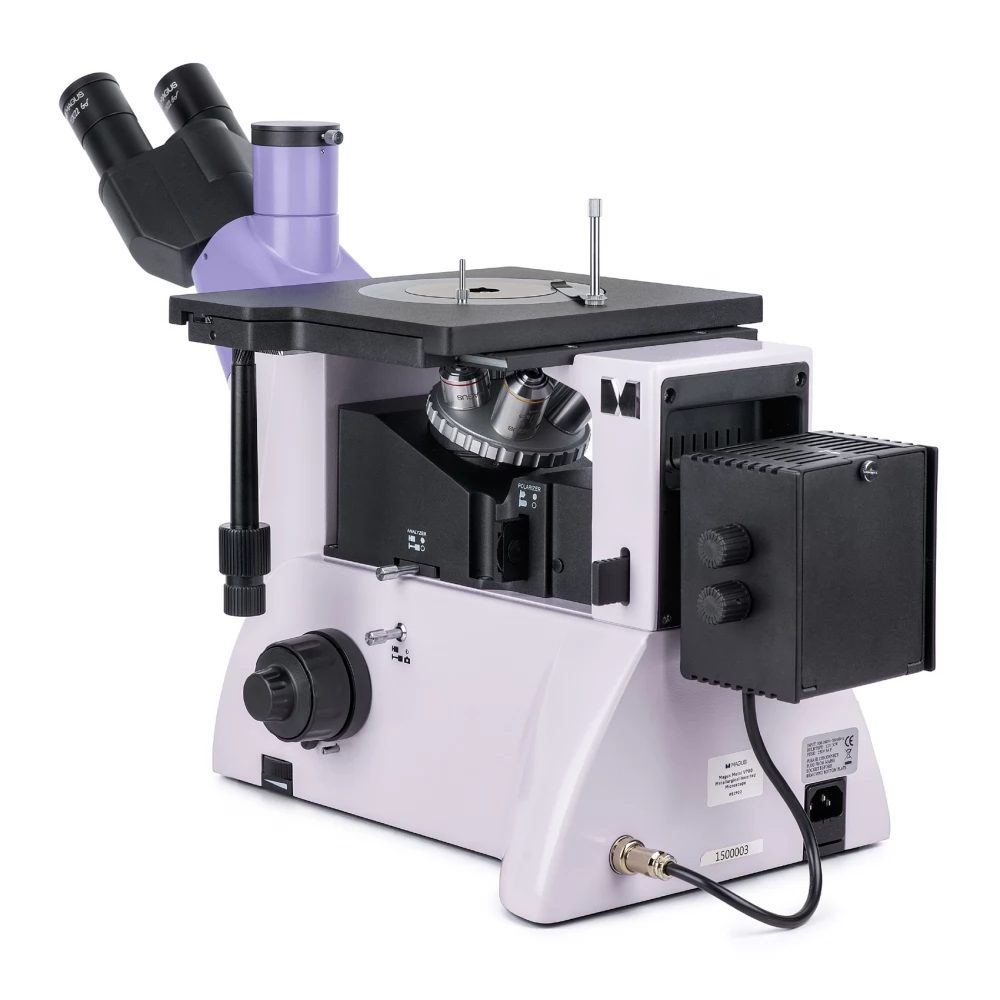

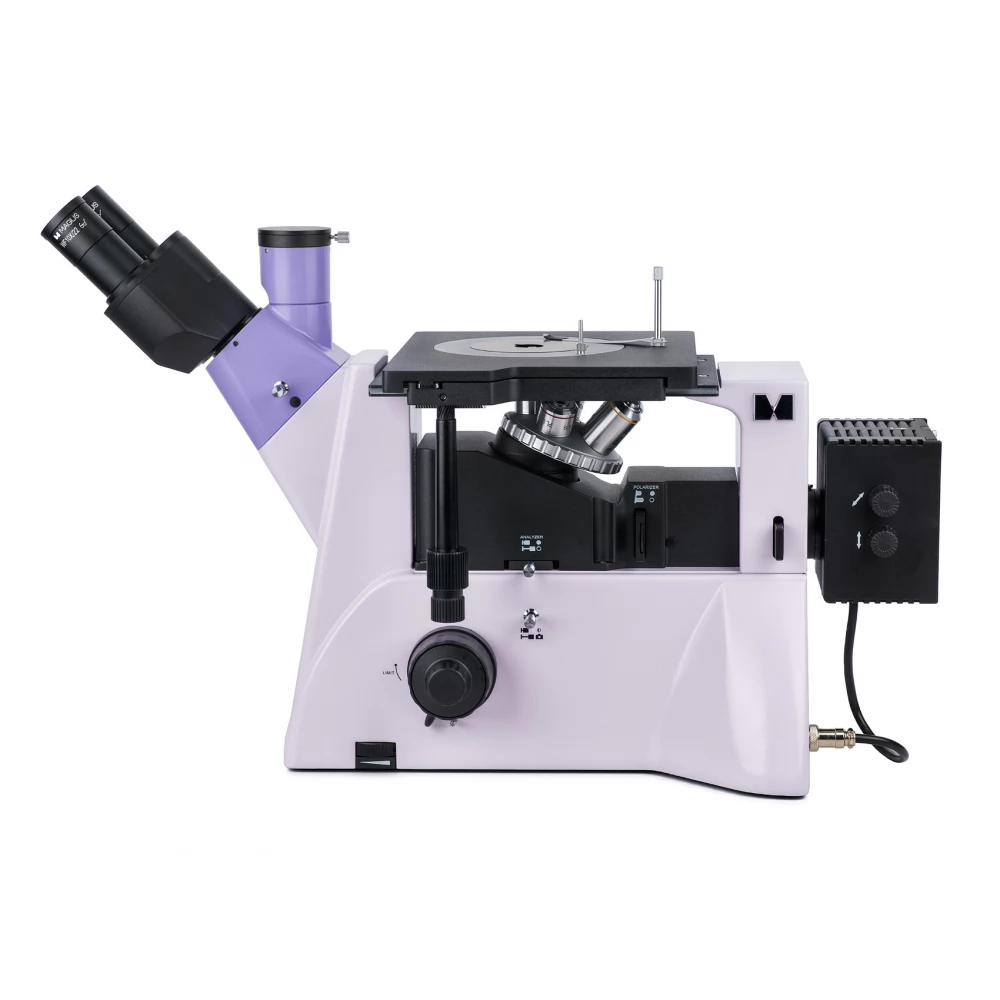

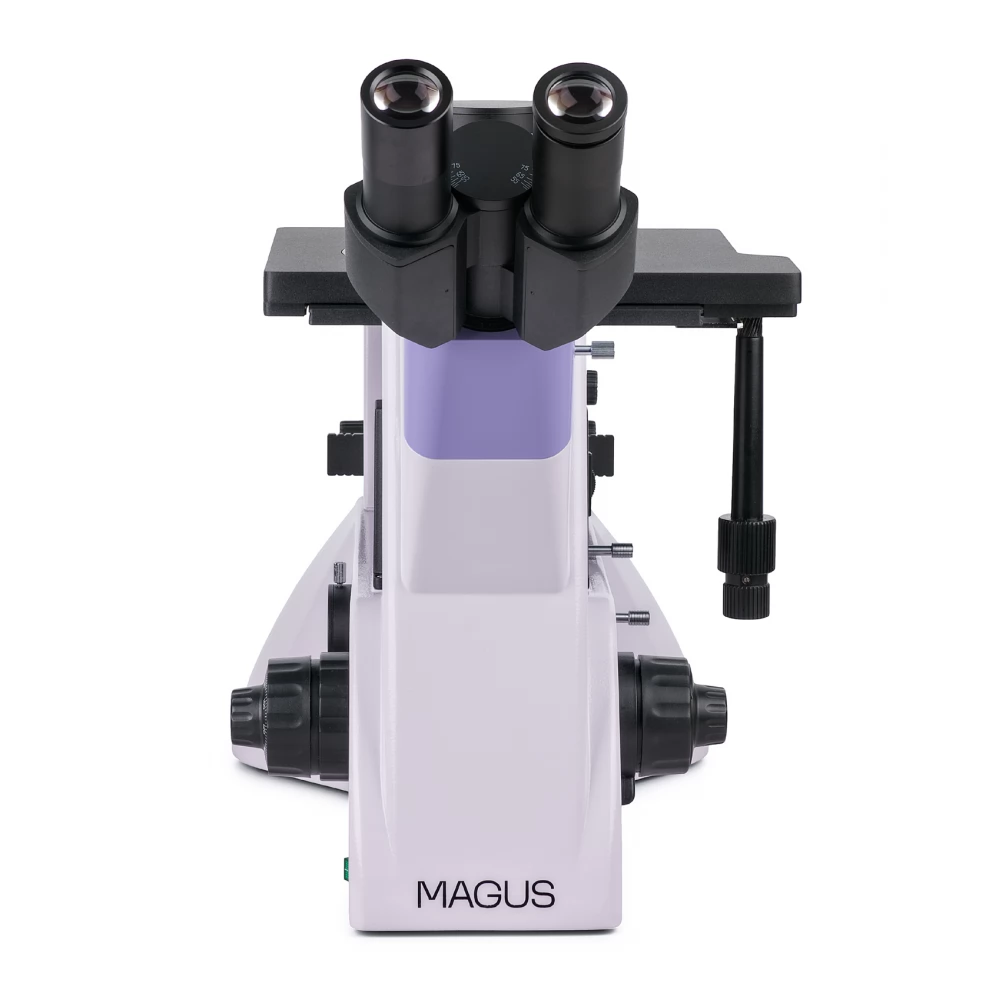

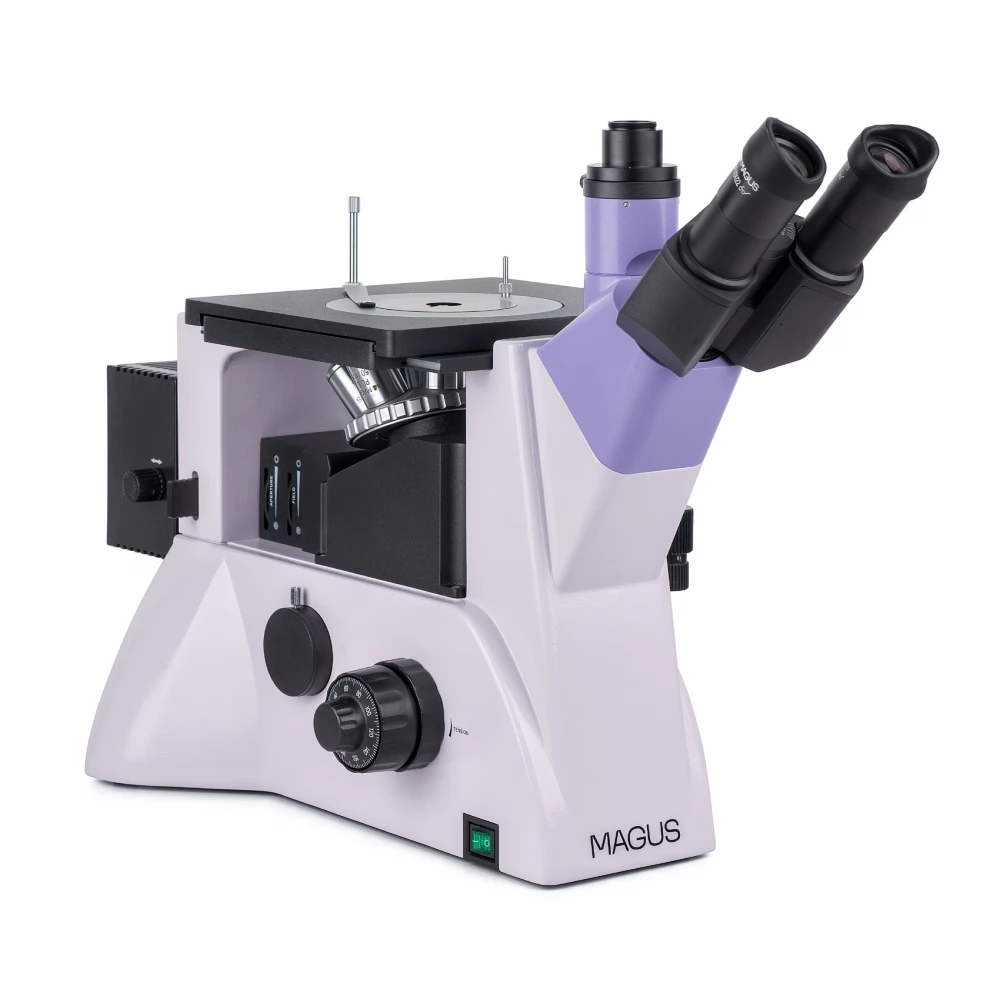

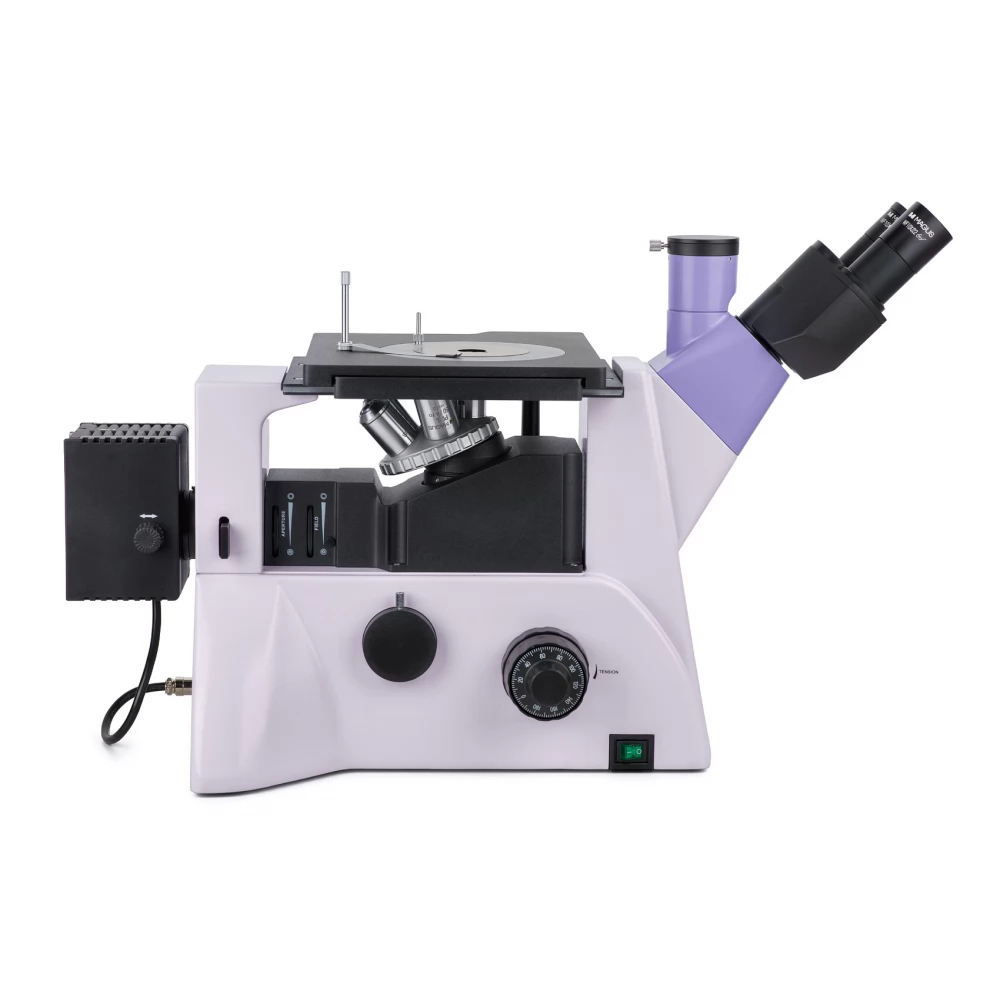

The MAGUS Metal V700 metallographic inverted microscope is suitable for examining the microstructure of metals, alloys and semiconductors in reflected light. A sample of up to 2 kg can be placed on the stage (only the bottom half of the sample must be flat). The rest of the sample does not need to be prepared, it can be of any shape. The microscope is designed for brightfield and polarized light observation, has a side camera connector and a trifocal tube, and is suitable for a wide range of laboratory and manufacturing applications.

Digital camera
The 2 MP sensor of the MAGUS CHD20 digital camera captures realistic Full HD images with a resolution of 1920x1080 pixels. Due to its high light sensitivity, the camera is suitable for working with fluorescent lighting. The primary color mosaic filters R, G, B can be used to achieve a low dark current level and obtain a clear image.
The camera can be connected directly to a TV, monitor or projector via an HDMI connector. In this mode, the camera works independently without a computer. The HDMI connector provides a high and stable transfer rate when transferring from the camera to an external screen. Furthermore, the camera can be connected to a computer via the USB 2.0 port.
Video is recorded at 60 frames per second (fps) or 50 frames per second depending on the output connector.
Thanks to the camera's high FPS (FPS = frames per second) and high-bandwidth HDMI technology, videos are displayed vividly and there are no freezes or stutters between frames. At maximum resolution, the image is well detailed, moving objects are visible without error, and the movement of objects is displayed without delay.

Monitor
MAGUS MCD monitors combined with MAGUS CHD cameras provide a complete imaging system for MAGUS microscopes.
The camera is connected via the HDMI interface. The monitor displays a real-time image. Its IPS LCD display provides a wide viewing angle, high brightness and good contrast. The image is not distorted, even if we look at the screen from a wide angle. The screen size is 13.3''.
The monitor can be installed on a horizontal surface using a foldable stand, or can be attached directly to the camera or tripod.

Optical elements

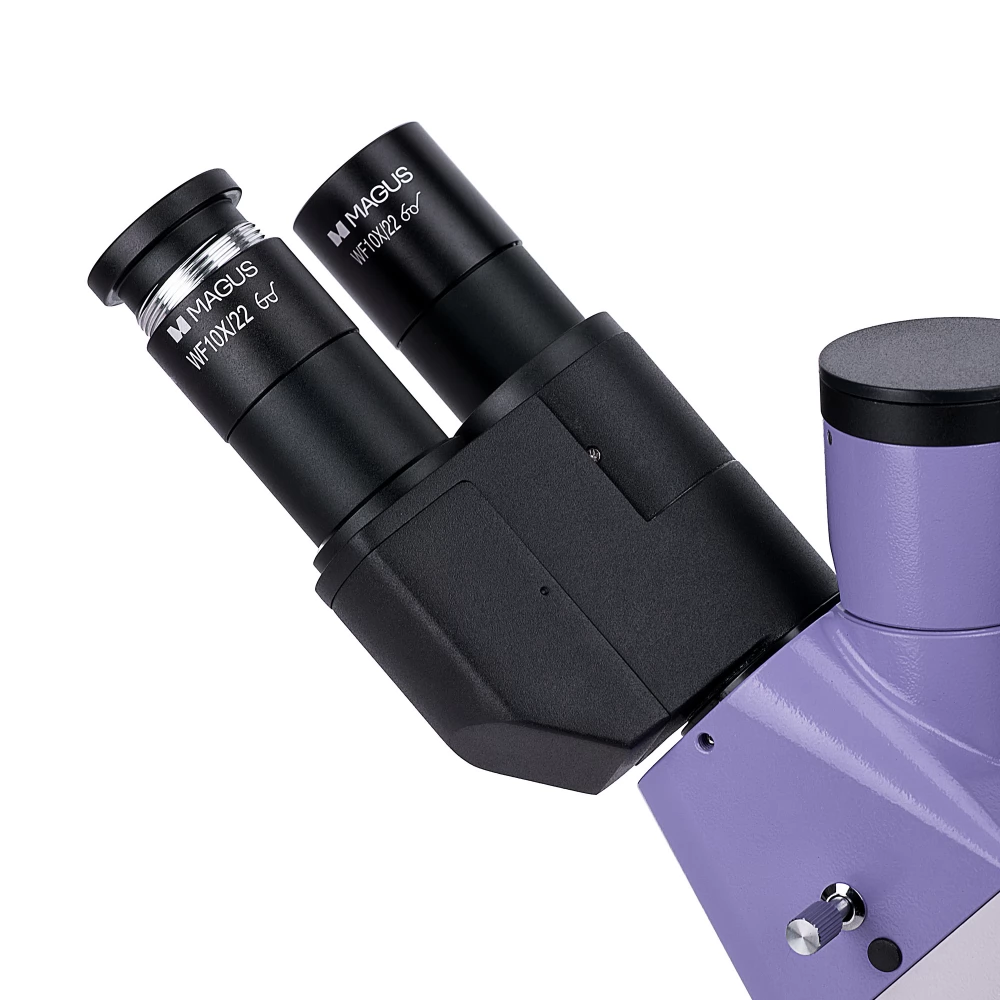

The microscope is equipped with a specially designed three-eyepiece head - the position of the eyepieces can be adjusted; 180° rotation is possible. The digital camera is attached to the side camera connector on the microscope frame, and the monitor is attached to the three-eye tube of the three-eye lens head. Beam resolution on the frame – 100:0/0:100, on the three-lens head part 50:50 and 100:0.

The rotatable objective lens holder, suitable for 5 objectives, is located under the tested sample (each part of the basic configuration). All lenses are infinity plane achromatic with long working distances. Each lens can be replaced by another lens. In the basic configuration, the magnification of the microscope is basically between 50x and 1000x.

Illumination
The reflective lighting has an adjustable brightness 30 W halogen bulb. The lamp housing is powered by an alternating current power supply. Sufficiently bright for observations with bright field or polarized light microscopy techniques with all supplied objectives. It is possible to adjust Köhler lighting, and the light source can be centered along three axes. Color filters can be used to modify color reproduction in microscopic photography. There are polarization devices - an analyzer and a polarizer - each of which can be removed.

Stage and focusing mechanism
Round stage plate with 10 mm, 20 mm and 30 mm holes inserted into the stage, and the sample can be fixed with a sample holder. The stage is quite large (242x200 mm), and can be moved along two axes with the fixed sample. The sharpness of the image can be adjusted with the coarse and fine focus buttons. The coarse focus knob is adjustable in tension and has a locking knob.

Accessories

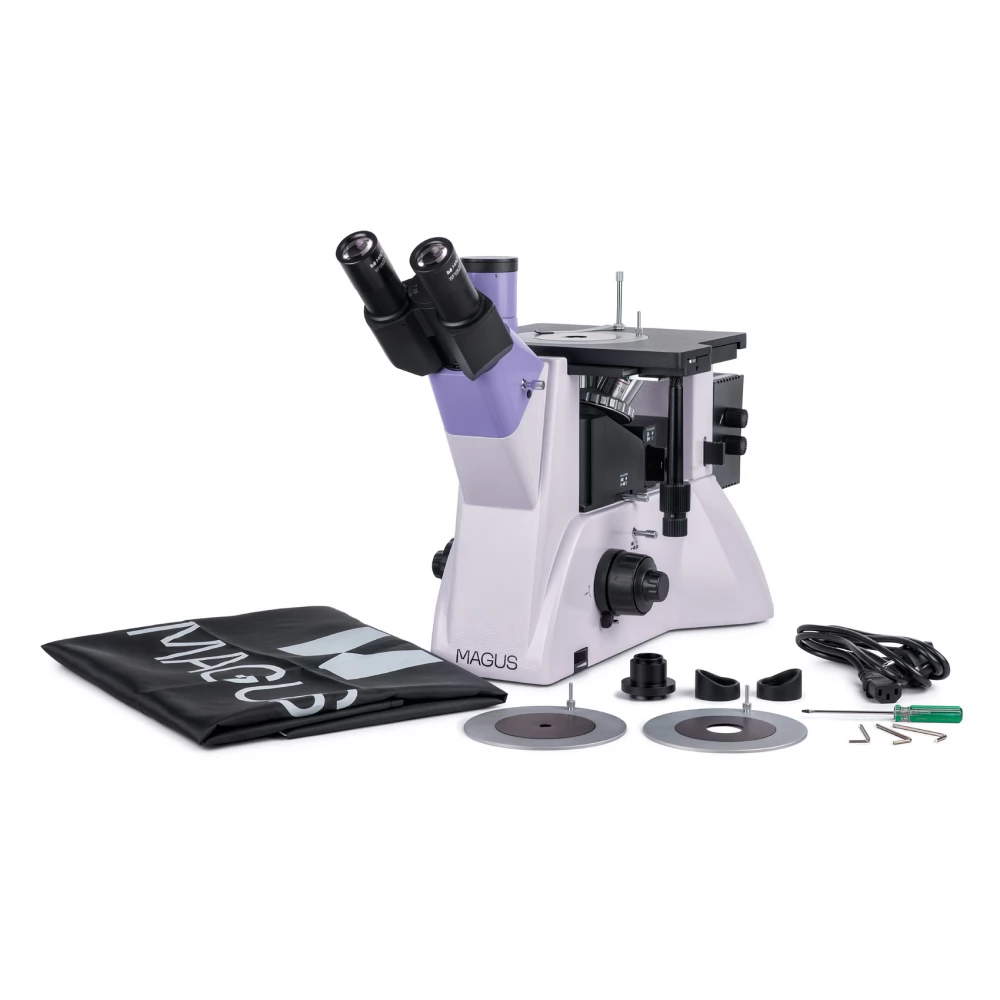

Additional accessories allow you to get the most out of the MAGUS Metal V700 microscope. Eyepieces, long working distance plan achromatic objectives, calibration slides and digital cameras are available.

- Examining large and heavy samples using brightfield and polarized light microscopy techniques; only one side of the sample needs to be prepared
- Large stage, rotating stage with 10 mm, 20 mm and 30 mm hole size plate
- The three-lens head part can be rotated 180° during assembly
- The digital camera and monitor can be mounted in two ways: on the three-lens head part with a beam resolution of 50:50 and 100:0 or on the microscope frame with a beam resolution of 100:0 or 0:100
- Reflected light observations, light source 30 W halogen bulb with adjustable brightness
- Köhler lighting setup, detachable analyzer and polarizer and centerable light source
- In order to expand the performance of the microscope in a large selection
