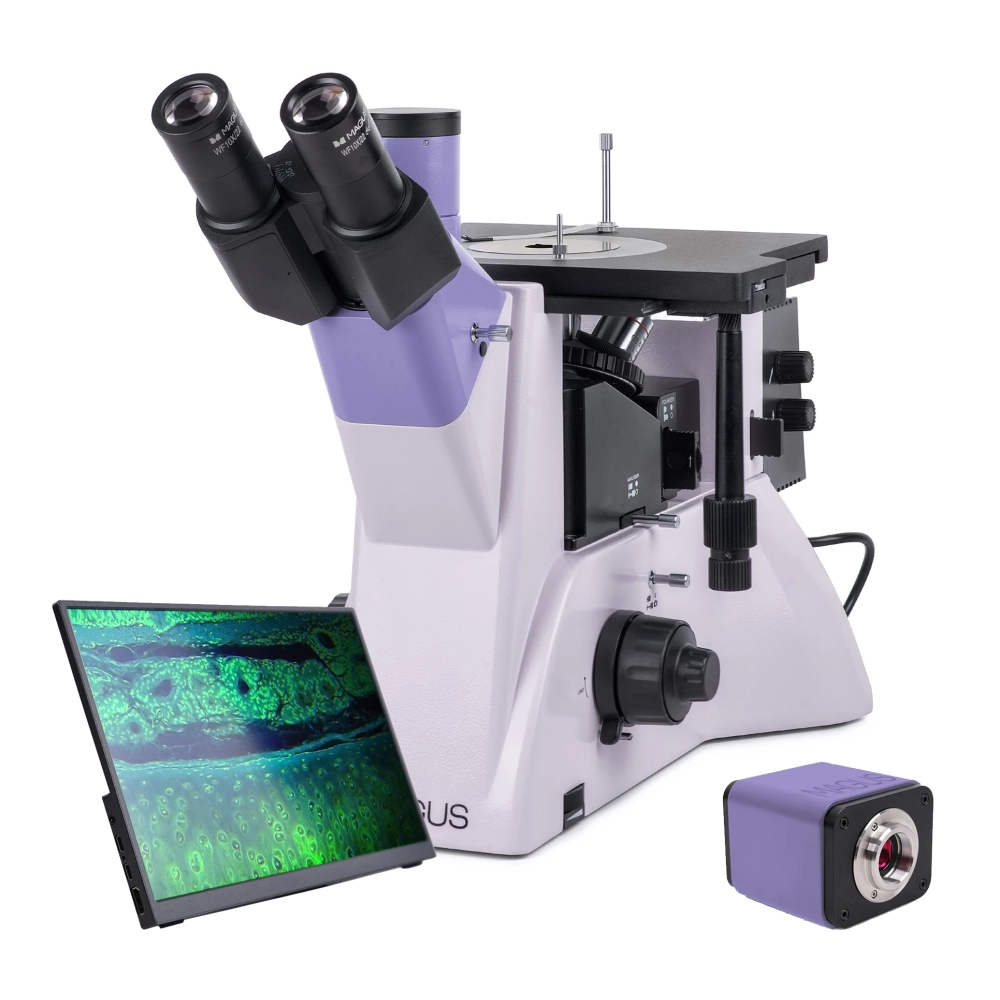

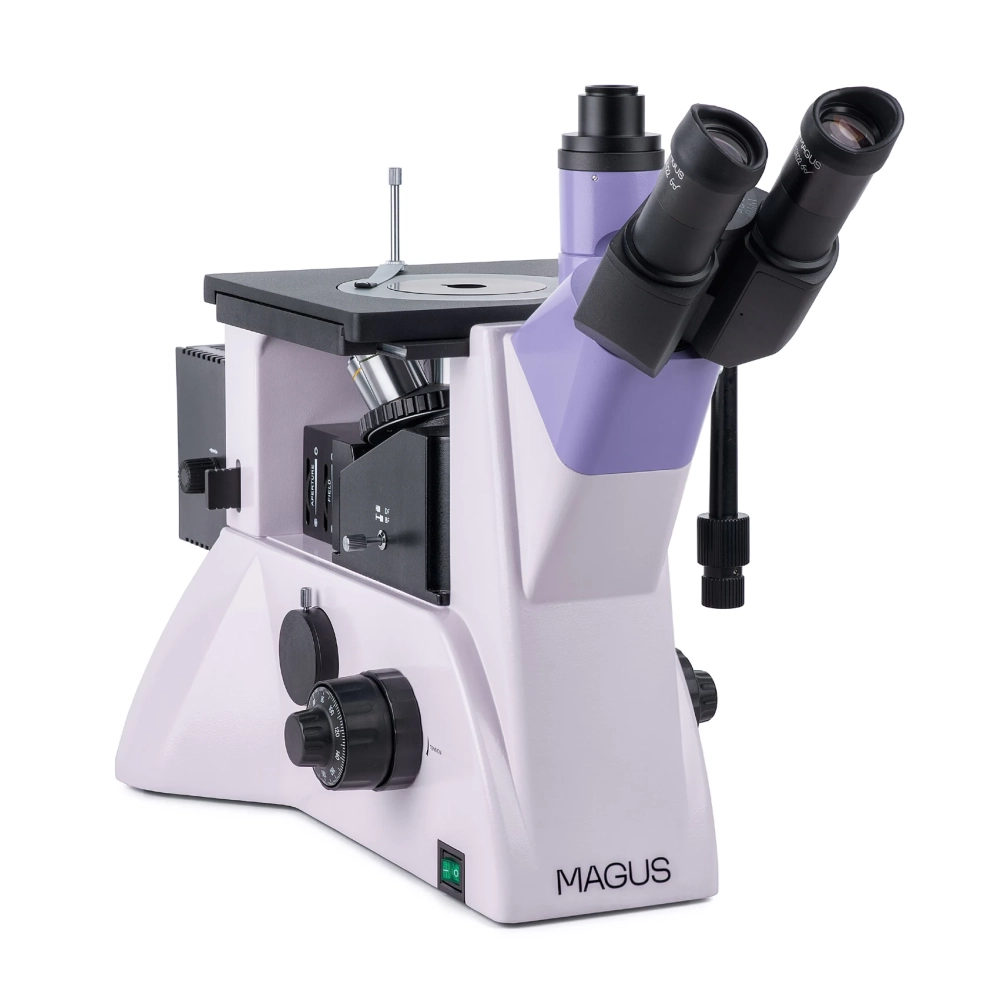

The MAGUS Metal VD700 BD LCD is an inverted metallographic digital microscope - the rotatable objective lens holder sits below the specimen and uses reflected light for observations. Available microscopy techniques: brightfield, darkfield and polarized light. The microscope is designed for examining metals, alloys, semiconductors and other large non-transparent samples weighing up to 2 kg. It is widely used in industrial facilities, factories and quality control laboratories, as well as universities and research centers.

Digital camera

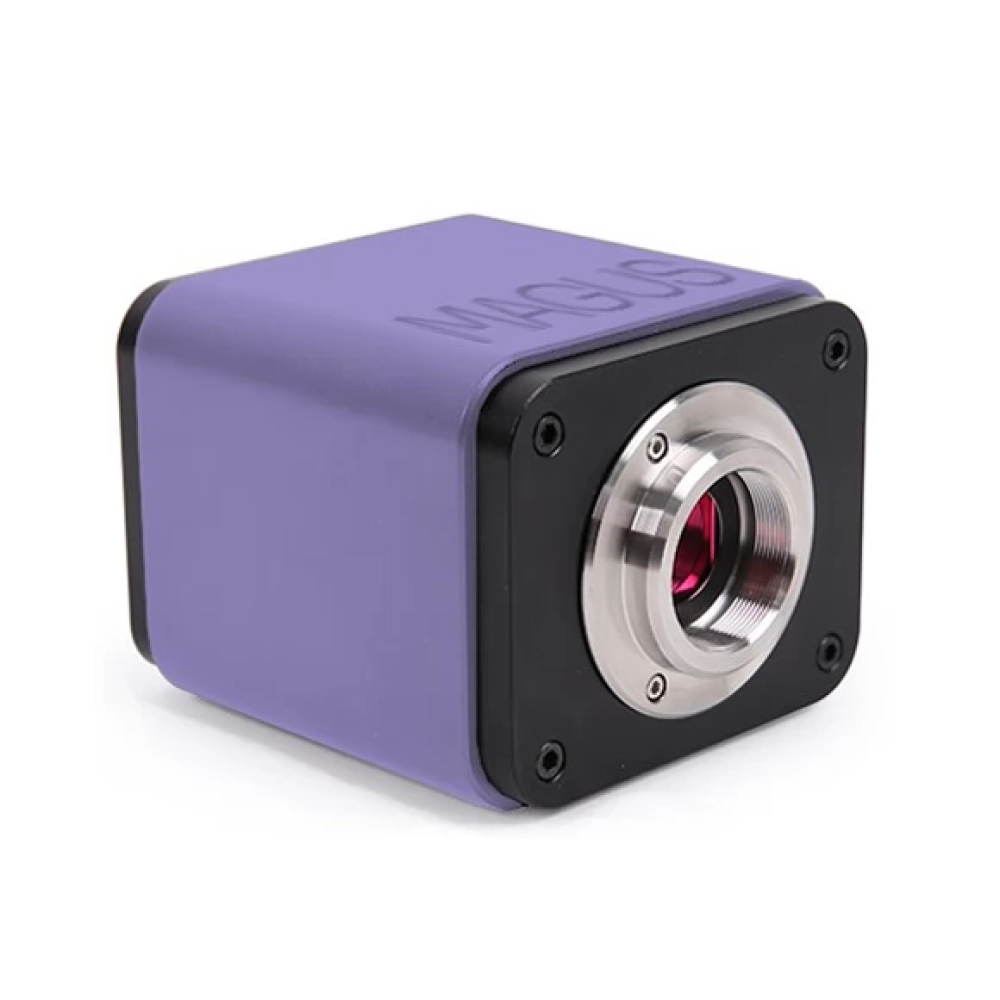

MAGUS CHD40 is a digital HDMI camera with three video interfaces and automatic switching function between 4K and Full HD depending on the monitor resolution.
The camera's 8-megapixel sensor, connected via HDMI or USB 3.0, captures realistic 4K resolution (3840x2160 px) images. When connected via Wi-Fi, Full HD (1920x1080 px) image quality is available. The camera can be connected directly to a TV, monitor or projector with an HDMI interface. In this mode, the camera works independently without a computer. The HDMI connector provides a high and stable transfer rate when transferring from the camera to an external screen. You can connect the camera to a computer via Wi-Fi or USB 3.0. Video is recorded at 30 frames per second (fps).
The camera combines high FPS and high bandwidth HDMI. Thus, the videos have bright colors, there are no freezes or gaps between the frames. At maximum resolution, the image is well detailed, moving objects are visible without error, and the movement of objects is displayed without delay.

Monitor

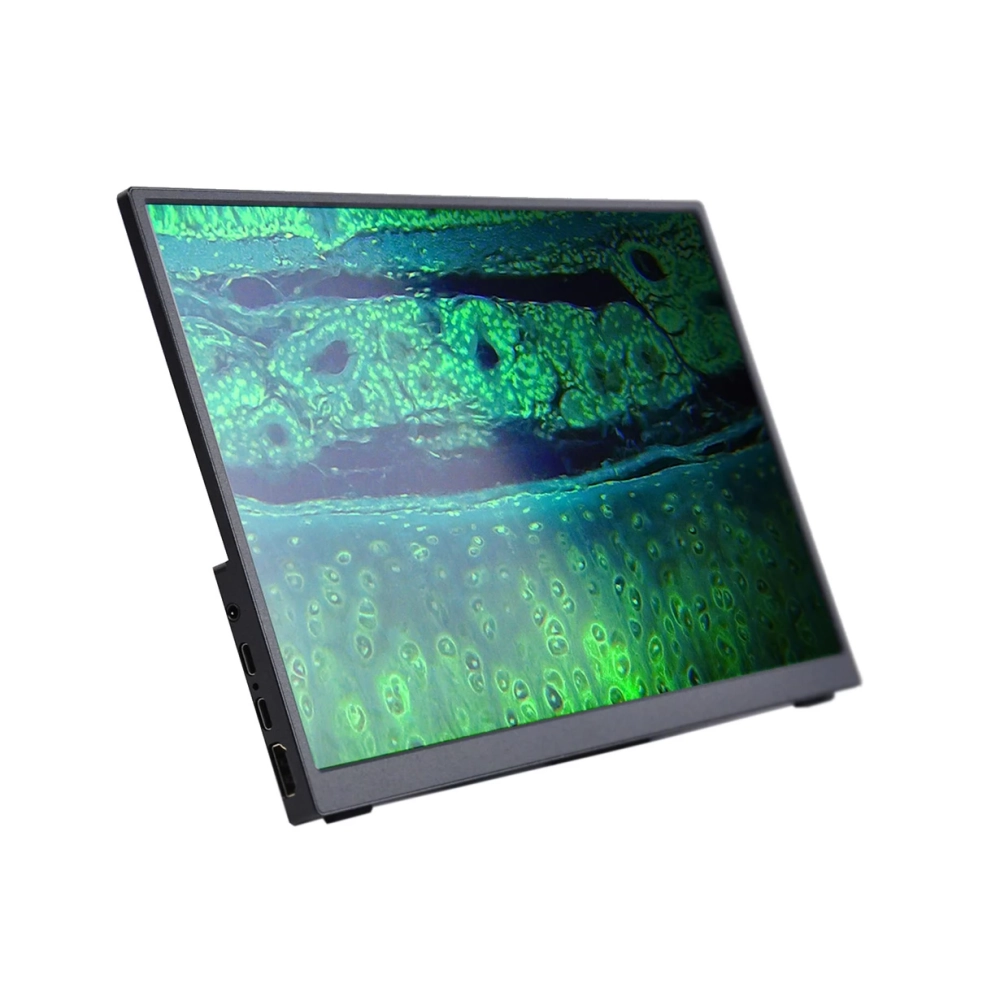

The MAGUS MCD40 monitor is intended for use with the visualization system of the MAGUS microscope. The monitor is connected to a camera mounted on the microscope to display real-time images. MAGUS supports 4K HDMI cameras. The diagonal of the screen is 13.3 inches. The IPS matrix provides bright images with large viewing angles. If you look at the display from an angle, the color reproduction is not distorted. You can place the display on a folding stand, table or shelf, or attach it directly to the camera or microscope stand.

Optical elements

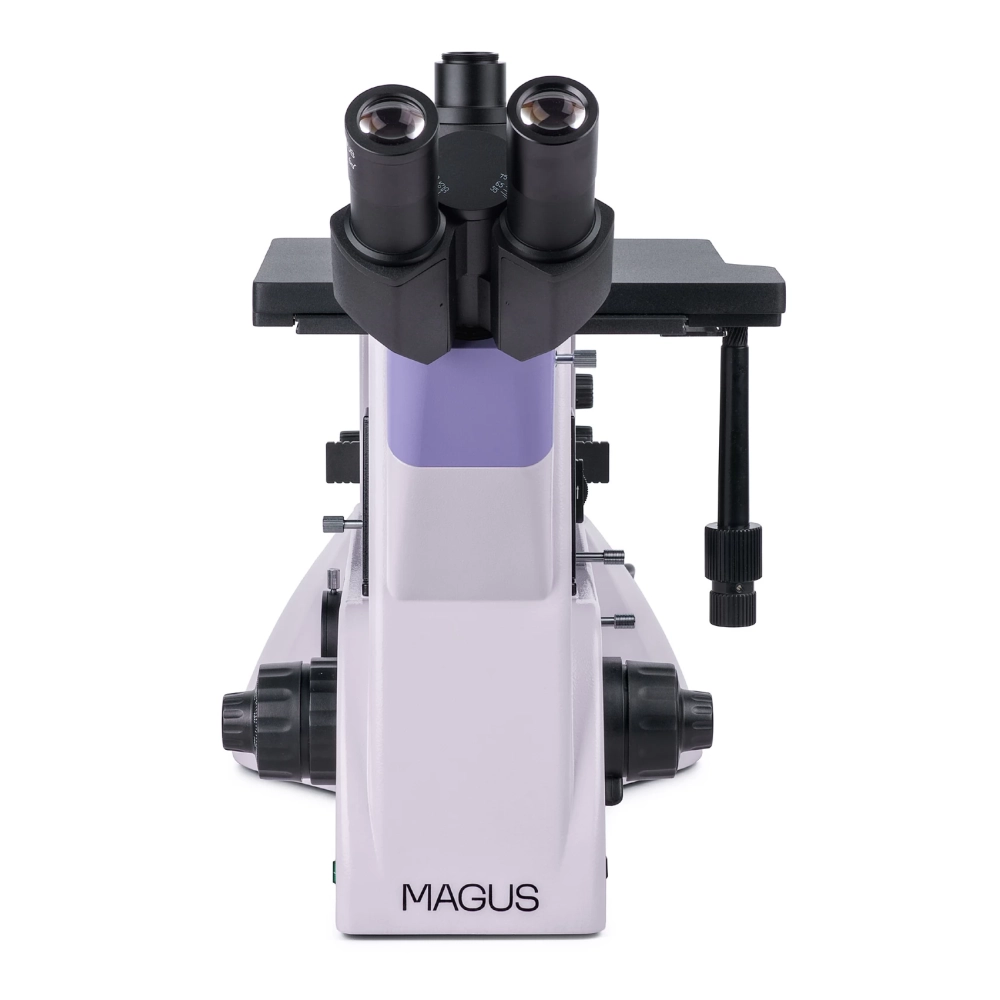

The microscope head can be mounted normally, but it can also be turned 180° according to the design. It is possible to install a digital camera and a monitor: The three-eye tube is located on the head part of the microscope, and the side camera connector is on the frame. Beam resolution is available in both cases: 50:50 and 100:0 ratio for the microscope head, and 100:0 and 0:100 ratio for the frame.

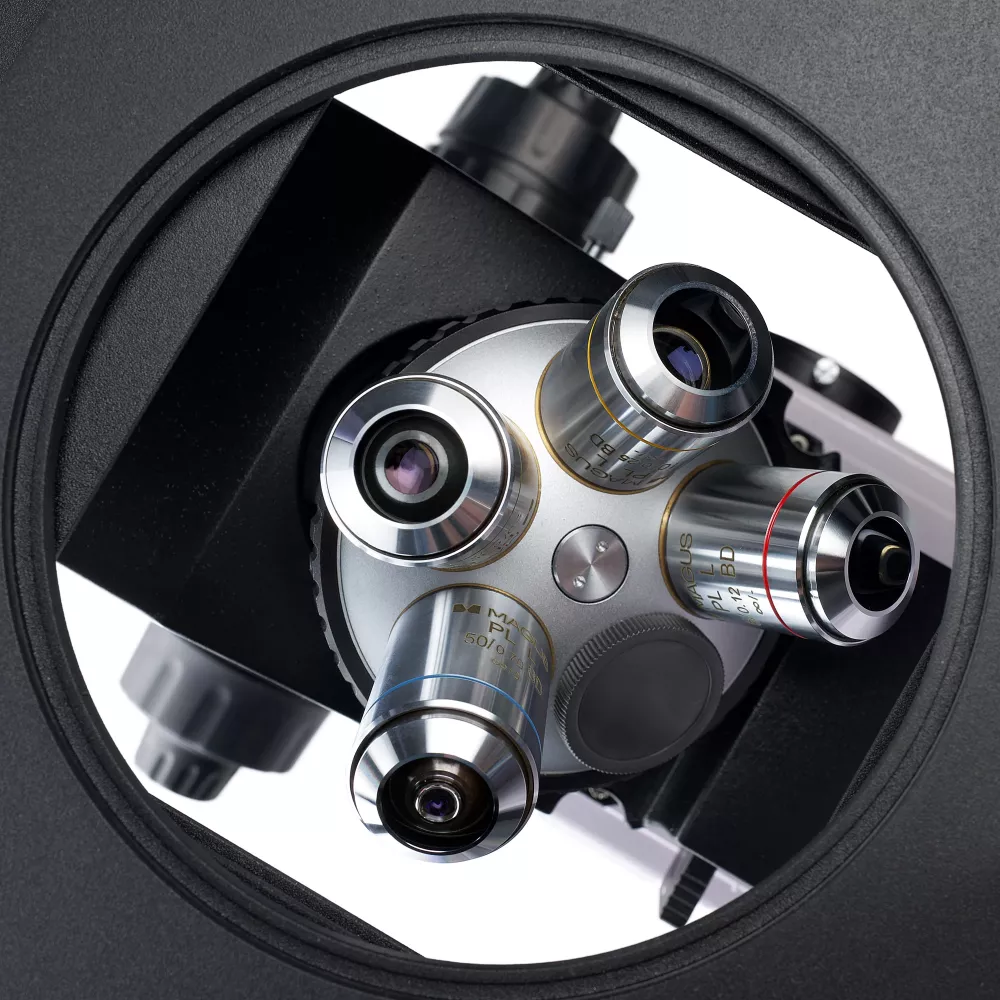

There is a 5-objective rotatable objective lens holder under the examined sample. There are 4 slots for mounting the included lenses, as well as another slot for mounting an additional lens. All the objectives of the microscope are labeled BD, i.e. they are specially designed for bright-field and dark-field microscopy and have a long working distance.

Illumination
Light source: 50 W halogen bulb. The warm light reduces eye strain and is ideal for long hours of work with the microscope. Thanks to the strong lighting, they provide a detailed, sharp image with any microscope technique and any objective. The light source can be centered along three axes, and the Köhler lighting can be adjusted with an aperture and light apertures on the object side. The reflected light illumination system includes a polarization device and a dark field device.

Stage and focusing mechanism

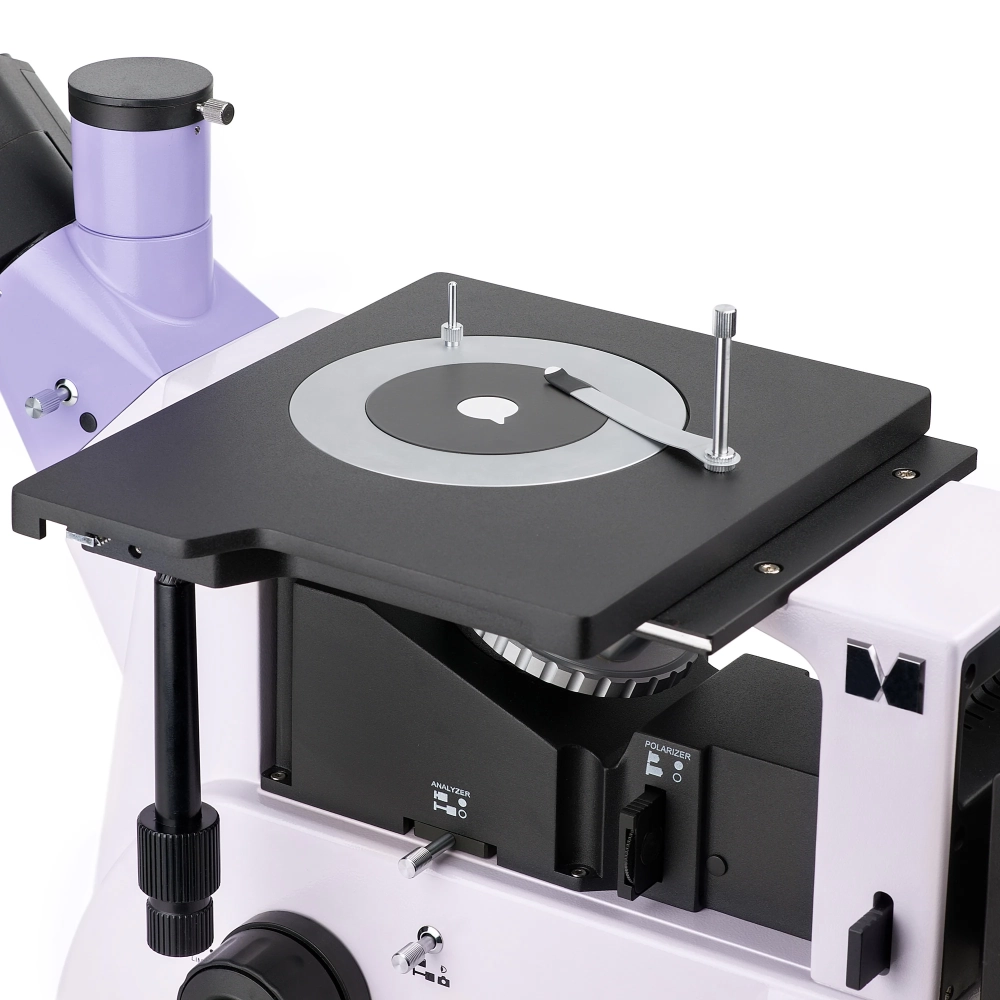

Display table A round rotating display table with a plate in the middle. Depending on the desired use, different plates can be used: They differ in the hole diameter, which is 10 mm, 20 mm or 30 mm. The sample placed on the stage can be fixed with a holder. The sample can be moved with the stage in two directions: X-axis or Y-axis. The focus can be adjusted by coarse (with the locking button and tension adjustment) and fine focusing. Coaxial coarse and fine focusing knobs are located on both sides so that you can place your hands on the table when using the microscope and do not have to hold them in the air.

Accessories
The capabilities of the MAGUS Metal V700 BD microscope can be increased by adding additional accessories. Such accessories may include eyepieces, long working distance dark and bright field objectives, digital cameras and calibration slides.

The main characteristics of the microscope
- Stage with 10 mm, 20 mm and 30 mm holes, rotating stage with plate; suitable for testing large, heavy samples
- Bright field, dark field and polarized light microscopy technique
- The possibility of turning the microscope head 180° during assembly
- Two options for attaching the monitor and the digital camera: triple lens tube and side camera connector; beam resolution: 100:0 and 0:100 ratio on the frame and 50:50 and 100:0 ratio on the three-lens head part
-
