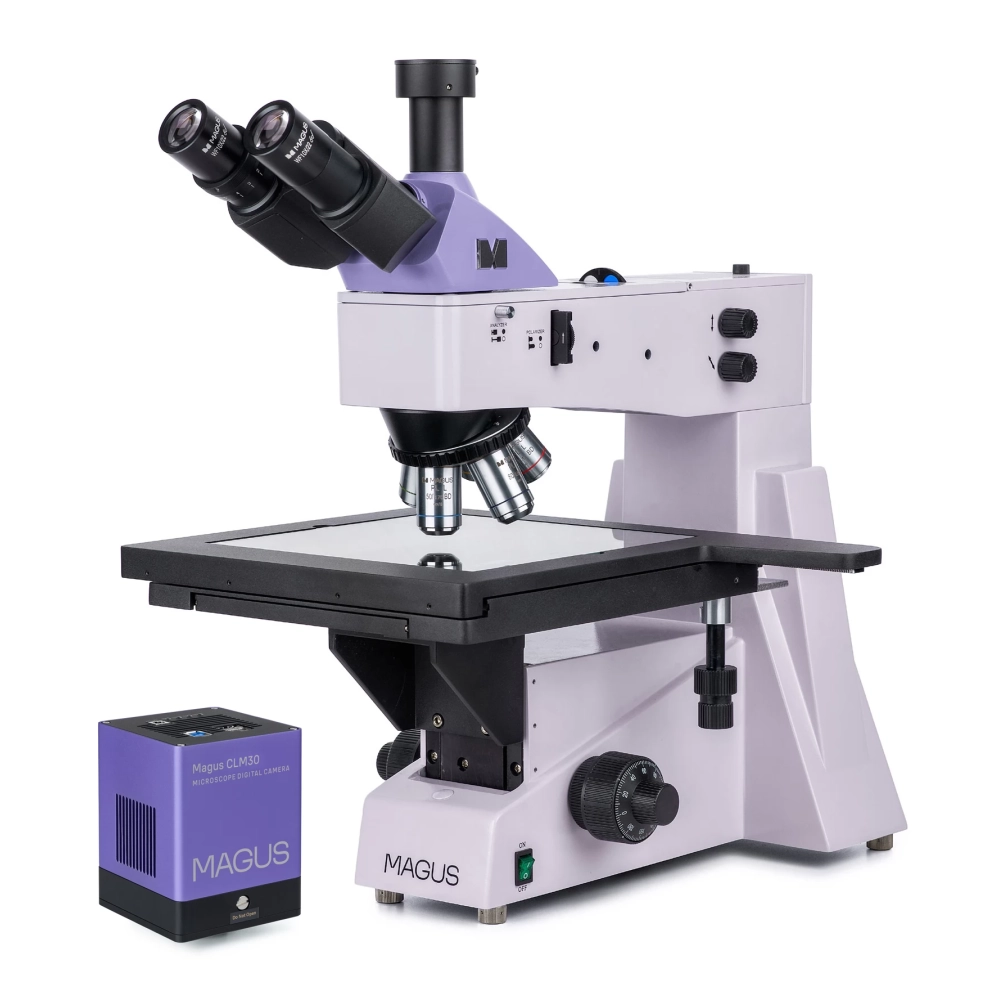

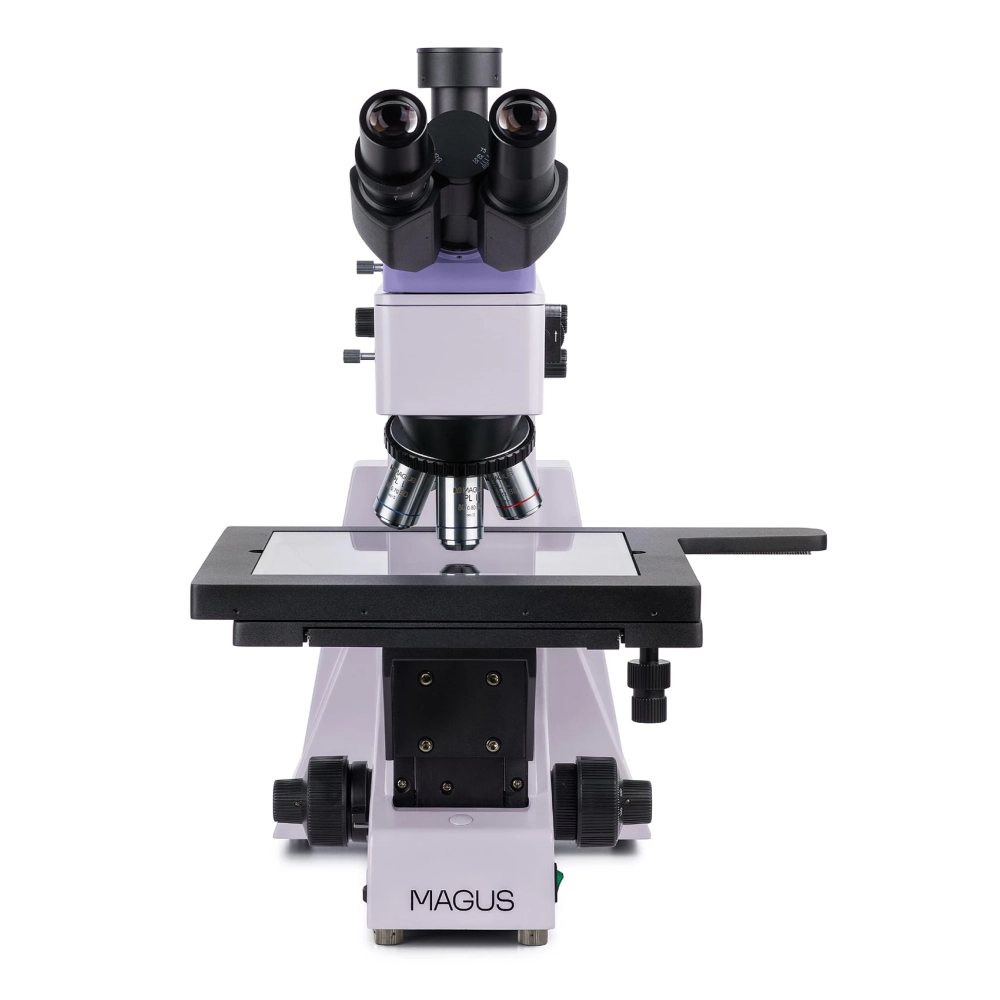

The MAGUS Metal D650 BD metallographic digital microscope is suitable for examining the surfaces of photomasks, integrated circuits, printed circuit boards, and other long and wide objects. Large samples can easily fit on its large stage, and the fine focusing scale of 0.7 µm enables very precise observations even at high magnification. Brightfield, darkfield and polarized light microscopy techniques. The microscope is also suitable for quality control laboratories, research centers and university departments.

Digital camera

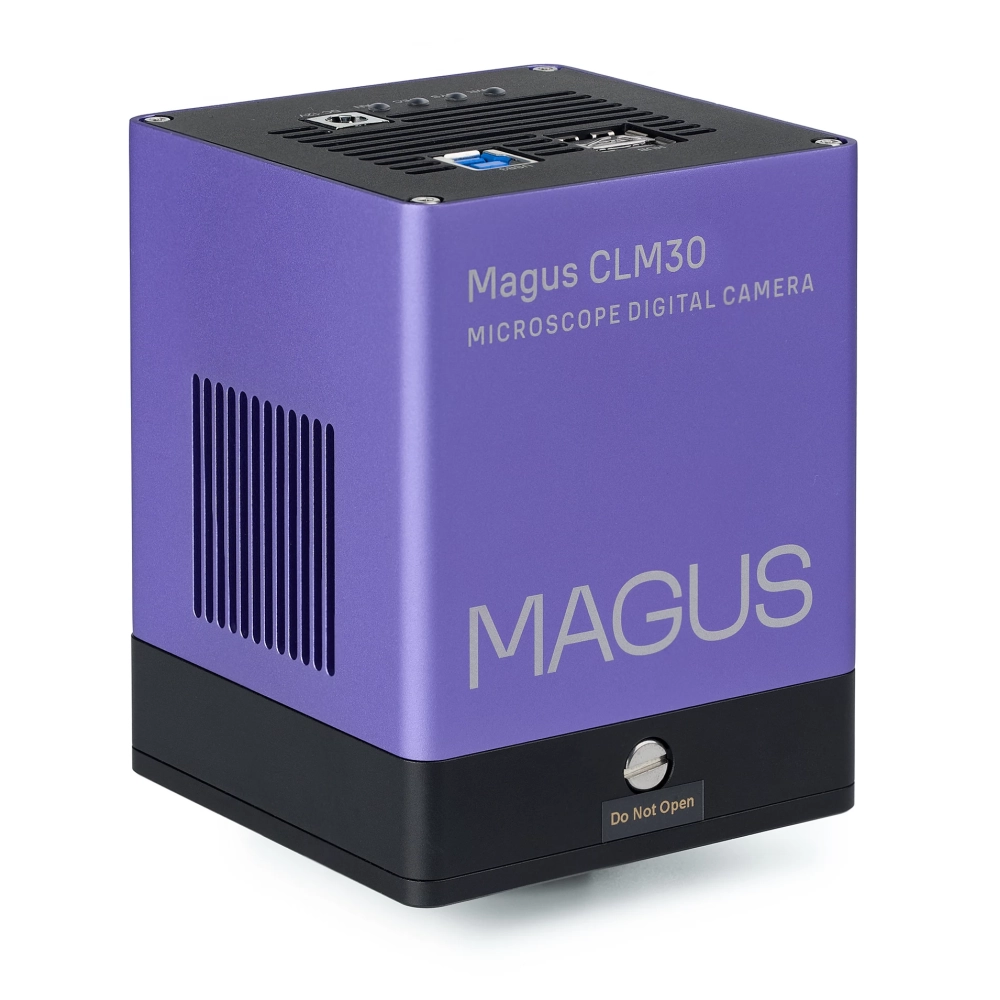

MAGUS CLM30 is a digital camera designed for fluorescent and dark field microscope techniques. The camera has an 8.3 MP sensor and produces realistic images with a resolution of 3840x2160 pixels. The camera should be used with 4x, 10x, 20x and 40x lenses. When working with low magnification lenses, the camera helps you see the finer details.
Depending on the resolution, the video is recorded at 45 frames/second (fps) or 70 frames/second: the transitions between frames are smooth and imperceptible. The movement of the sample can be tracked in real time without delay. Moving objects can be easily observed using the camera, which is also suitable for classroom presentations.
The camera has a USB 3.0 interface. The data transfer rate is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research and university education.

Optical elements

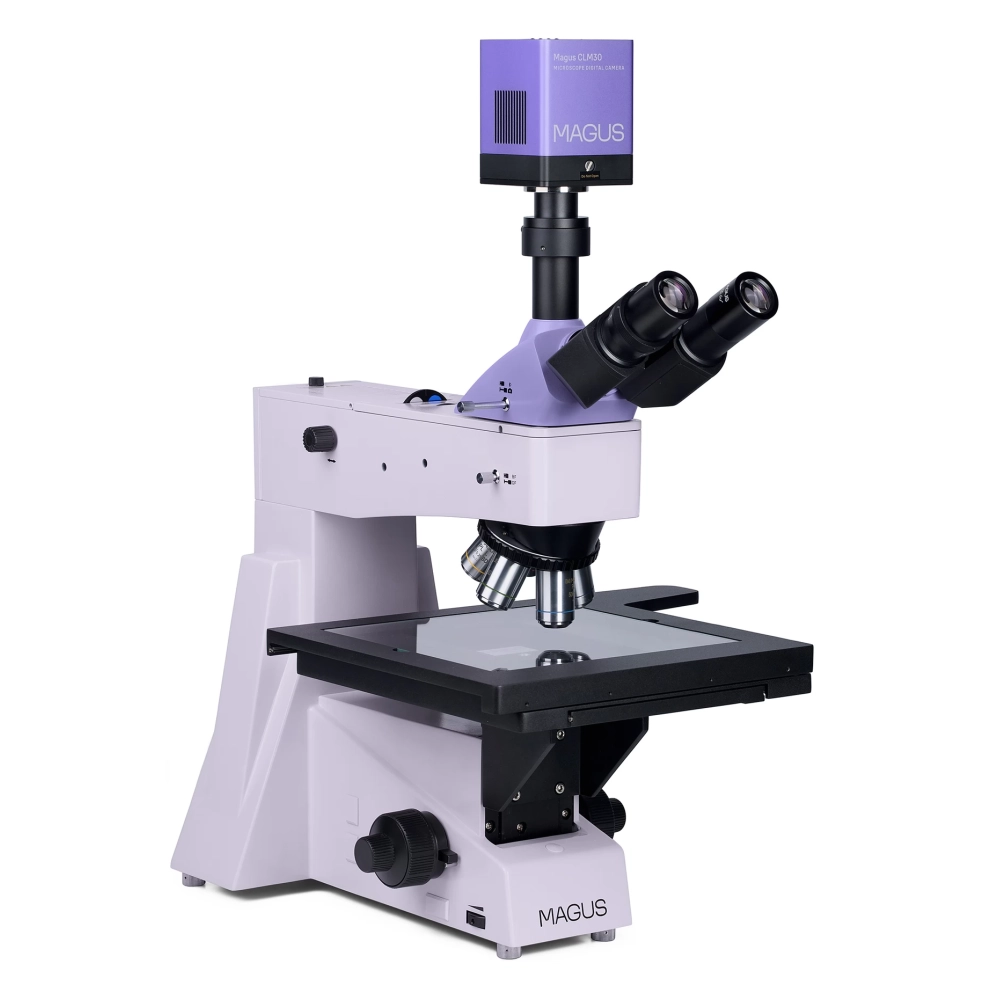

The triple-lens head part has a triple-lens tube suitable for mounting a digital camera. The light/camera selector can be used to direct the light beam to the camera, allowing you to take clear and detailed photos and videos, which can then be displayed on an external screen. The camera is not included in the basic configuration. The left eyepiece has a diopter ring for image adjustment.

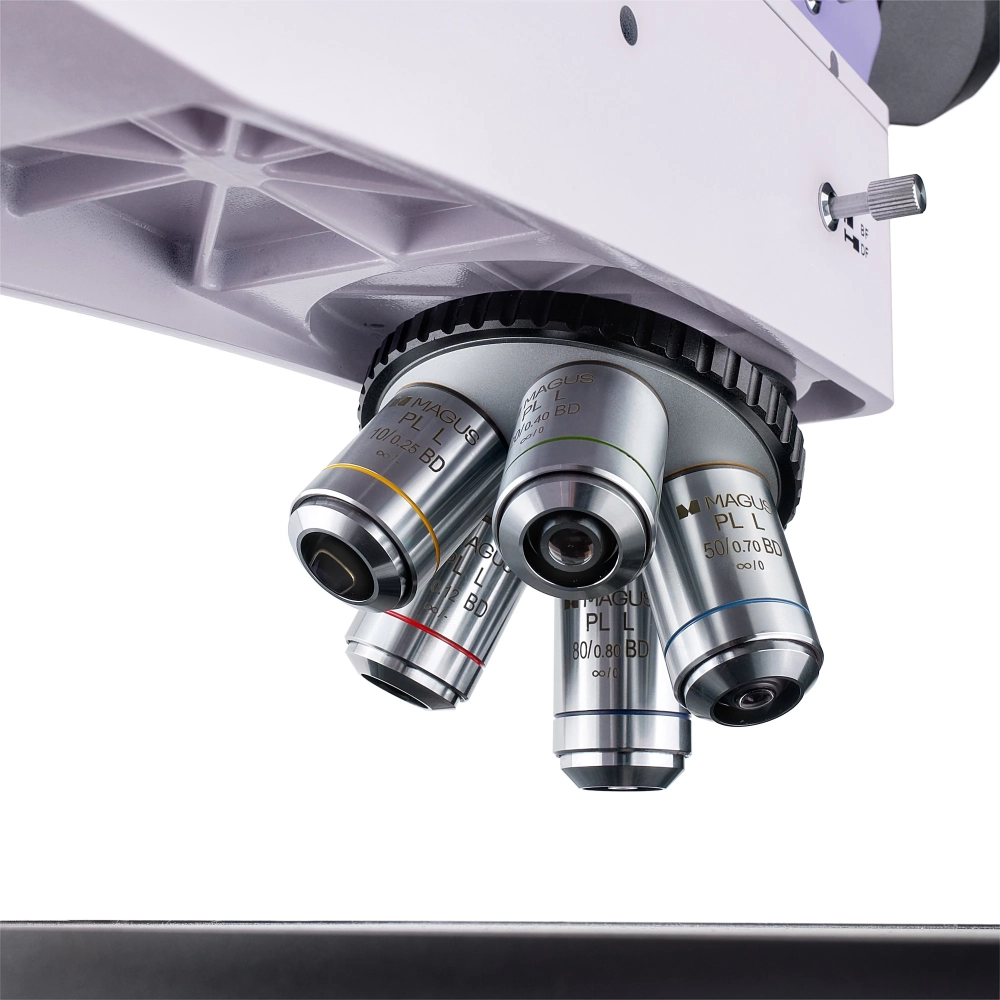

Plano-achromatic objectives marked with the BD symbol are specially designed for bright and dark field microscopy techniques. They objectively have a long working distance. Five are included with the product, which can be installed in each socket of the revolver head. Mounted lenses can be quickly swapped out for optional lenses as needed. Infinity-corrected optical elements with 50-800x magnification. The turret with the objectives is oriented towards the interior - the user can see the objective inserted into the optical path.

Illumination
The reflected light illumination system is designed to allow the most detailed observation possible with any objective and any microscopy technique. The light source is a 50 W halogen bulb, which provides bright, uniform and warm light. The Köhler lighting method allows you to adjust the lighting. The product also includes filters for color rendering, as well as a polarization tool (built-in analyzer and removable polarizer). The light source, the aperture and the diaphragms on the object side can be centered. The lighting system also includes a dark field device.

Stage and focusing mechanism

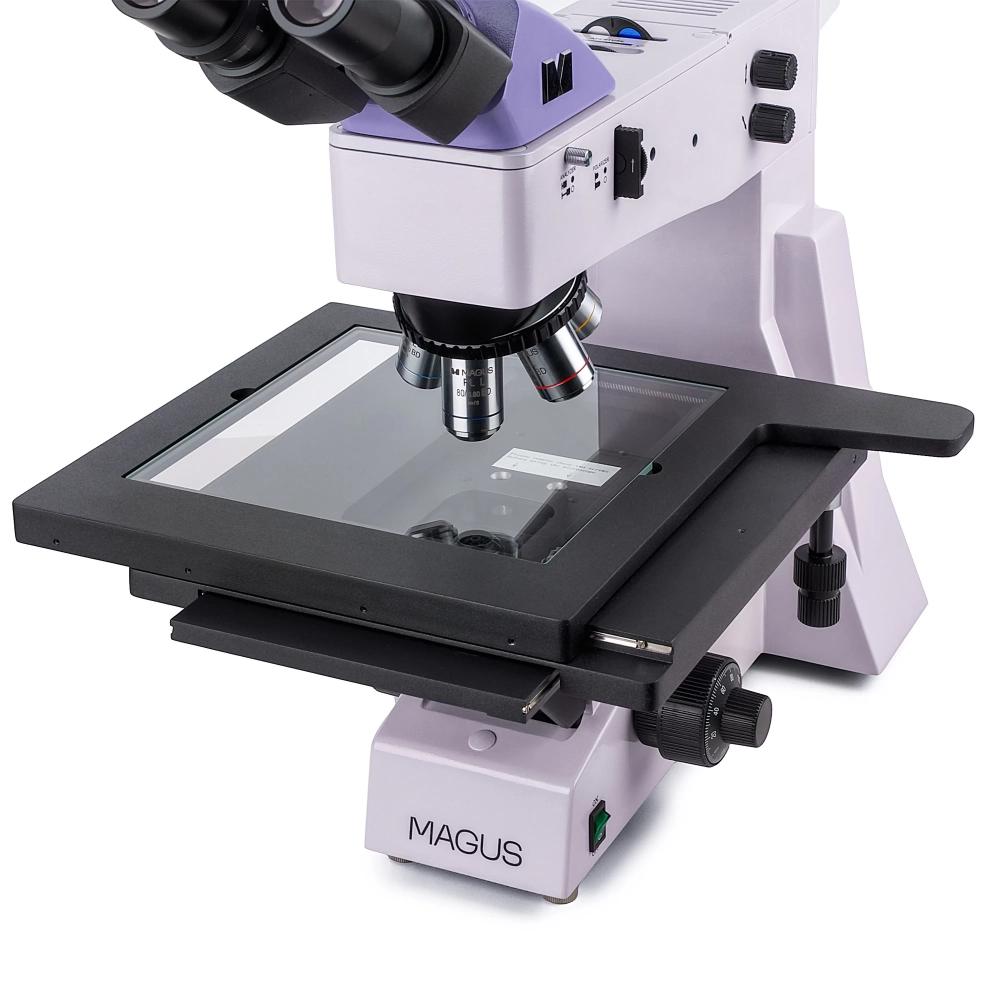

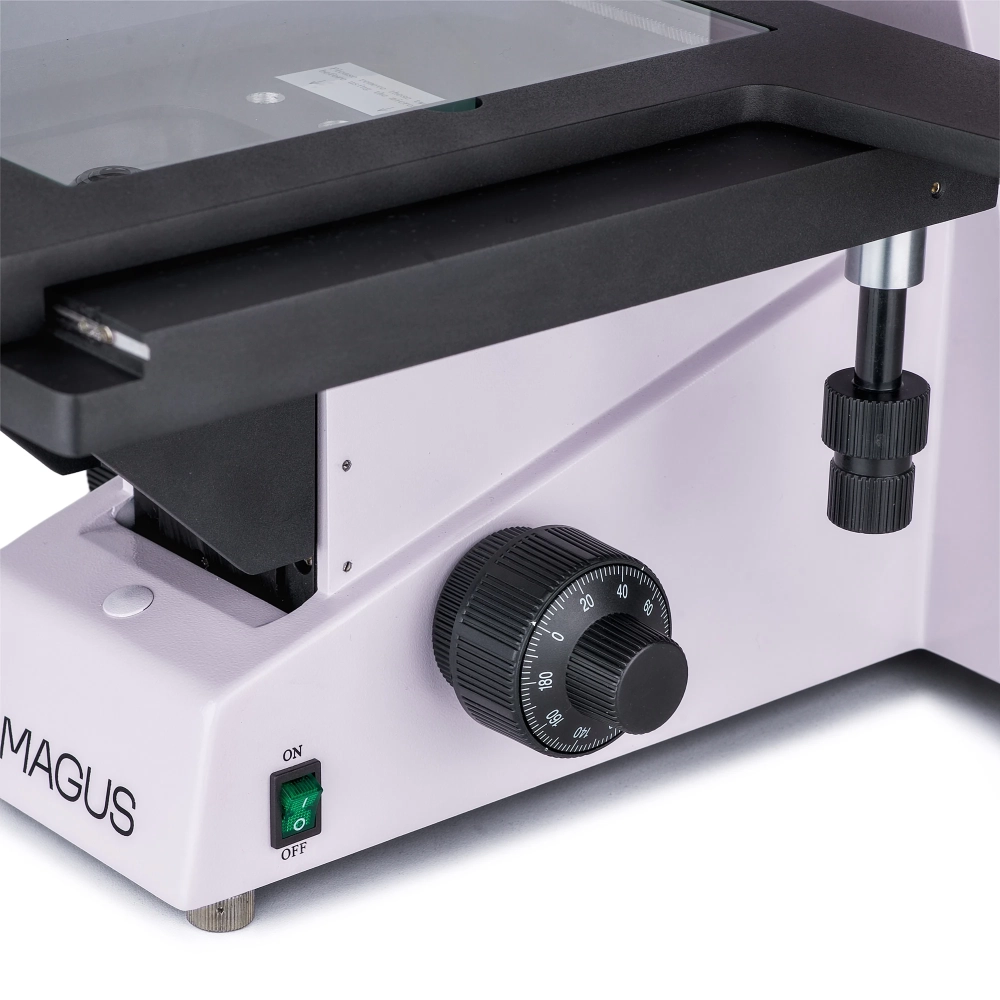

A special feature of the microscope is the large 280x270 mm stage, which can be moved along the X and Y axes in a range of 204 mm. Focusing can be controlled by turning the coarse and fine focus knobs. They work stably and smoothly, and thanks to the value of the fine focusing scale, the product works accurately even at high magnification. The coarse focus has a lock button and is adjustable in tension. The focusing buttons are located on the base of the microscope, so you can adopt a relaxed and comfortable posture. That way you can put your hand on the table, you don't have to hold it in the air.

Accessories
Additional accessories allow you to get the most out of the MAGUS Metal 650 BD microscope, including eyepieces, long working distance objectives for bright and dark field observations, calibration slides, and digital cameras.

The main characteristics of the microscope
- Precise focusing thanks to the fine focusing scale of 0.7 µm; coarse focus with lock button and tension adjustment
- Large stage for easy observation of long and wide objects, which can be moved in a wide range along two axes
- Flat-achromatic optical elements, three-lens head with 100:0 and 0:100 beam splitter, three-lens tube for camera installation
- The light source, objective side and aperture diaphragms can be centered, Köhler lighting adjustment, polarization device, set of color filters, dark field microscopy technique
- Lighting system 50 W halogen bulb with 220 V power supply and adjustable brightness
- Optional accessories

Main features of the camera
- For brightfield microscopes with 4x, 10x, 20x and 40x objectives
- 8.3 MP resolution: when observing with low-magnification lenses, the camera helps you see the finer details
