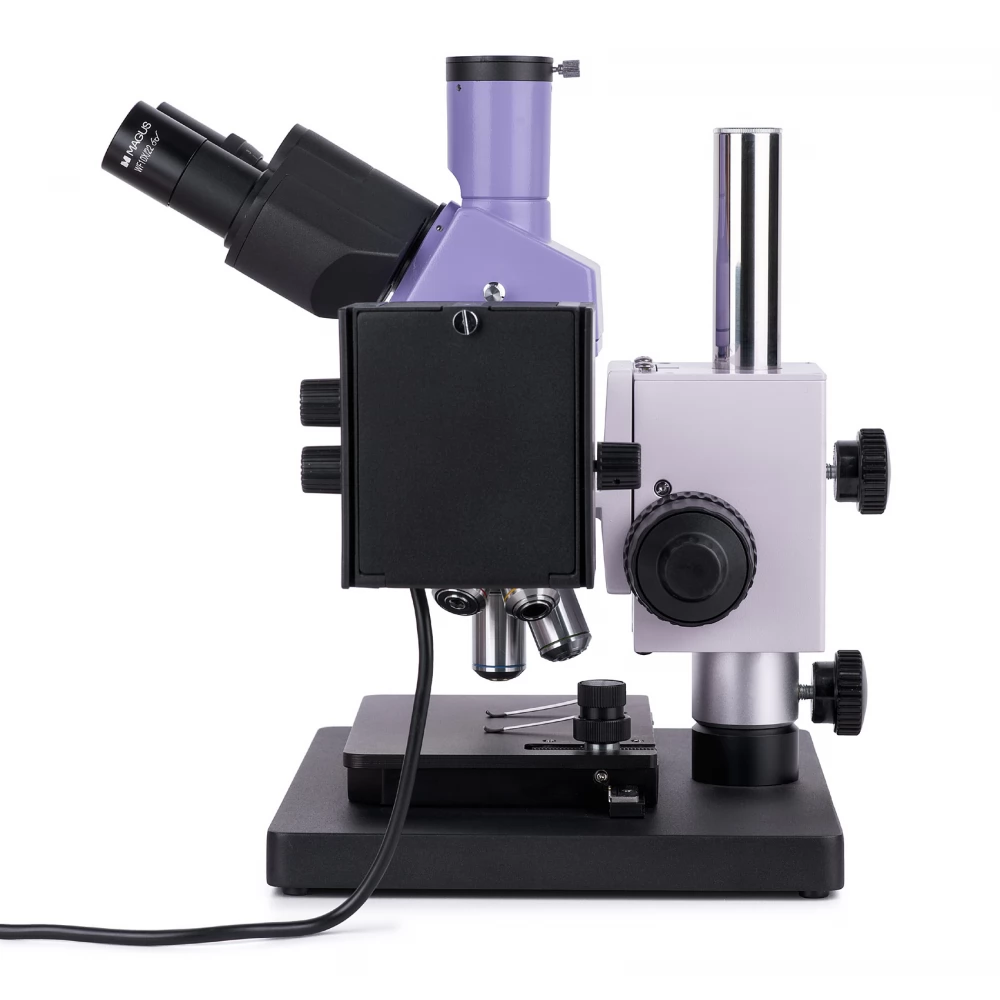

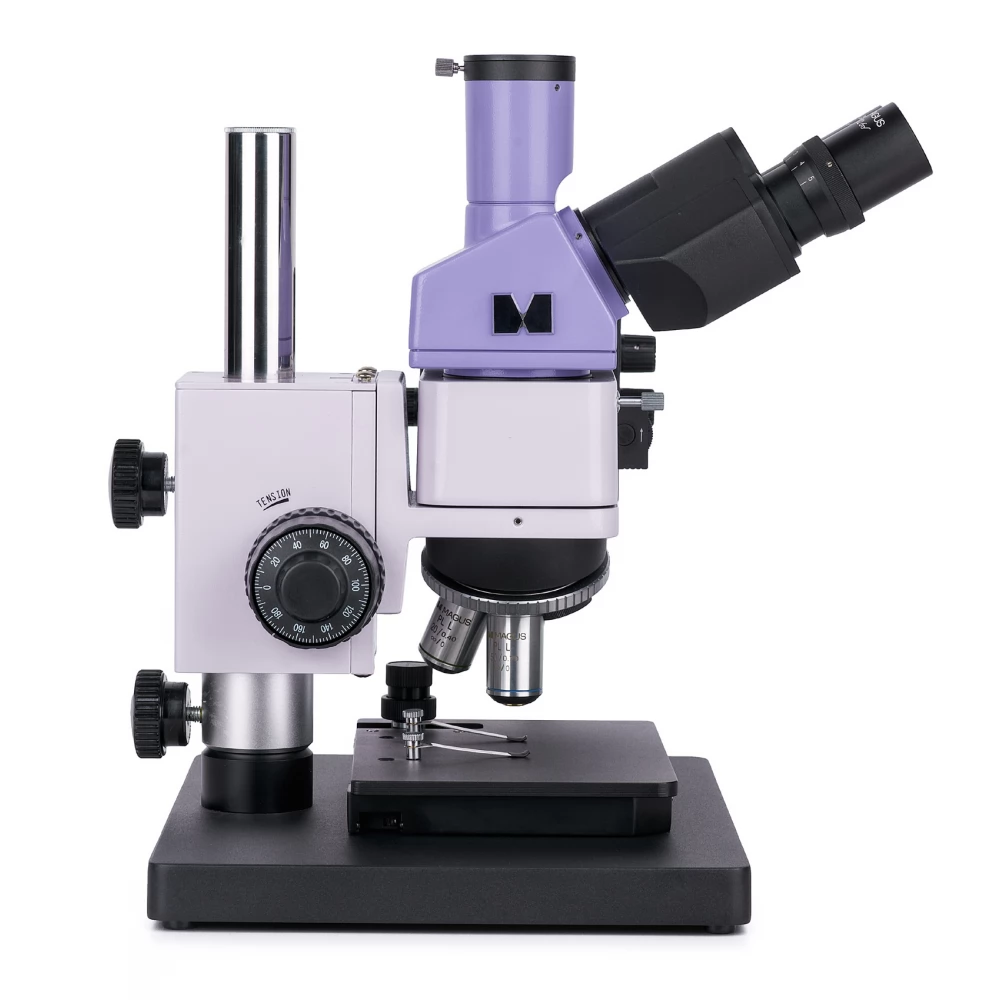

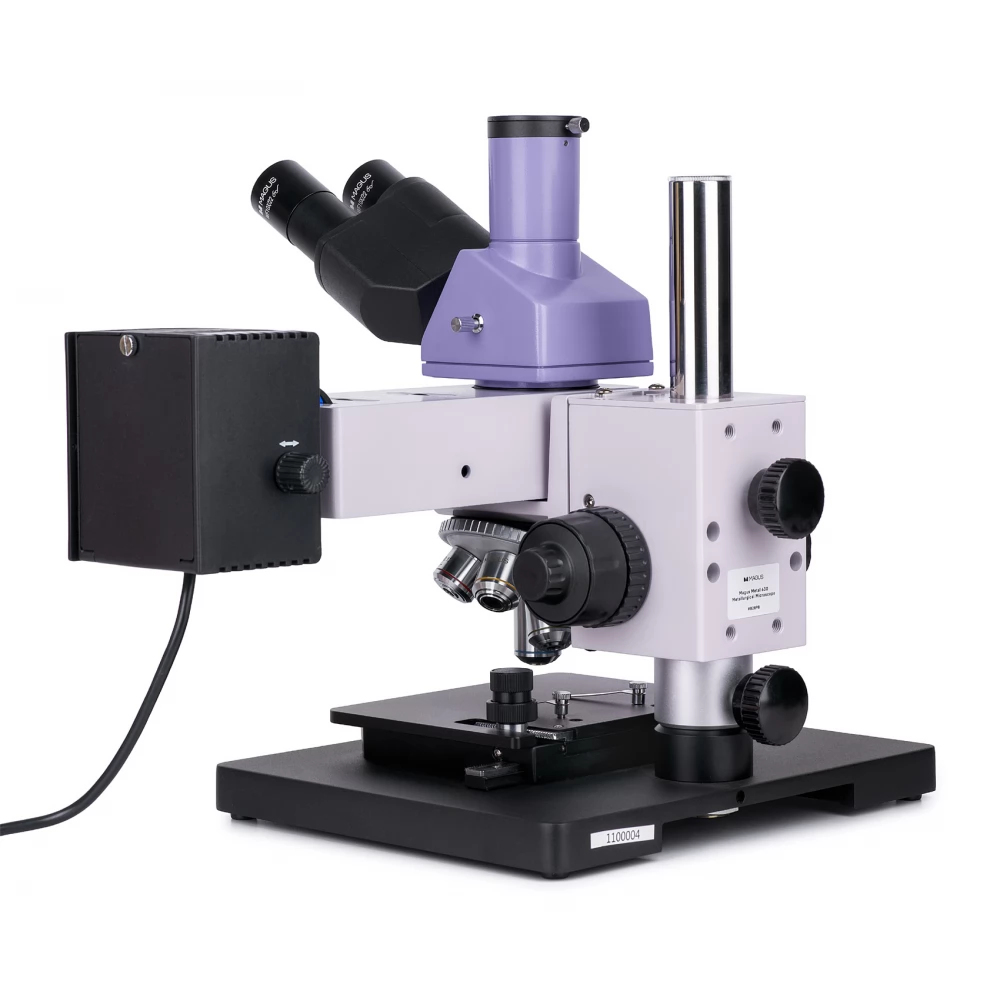

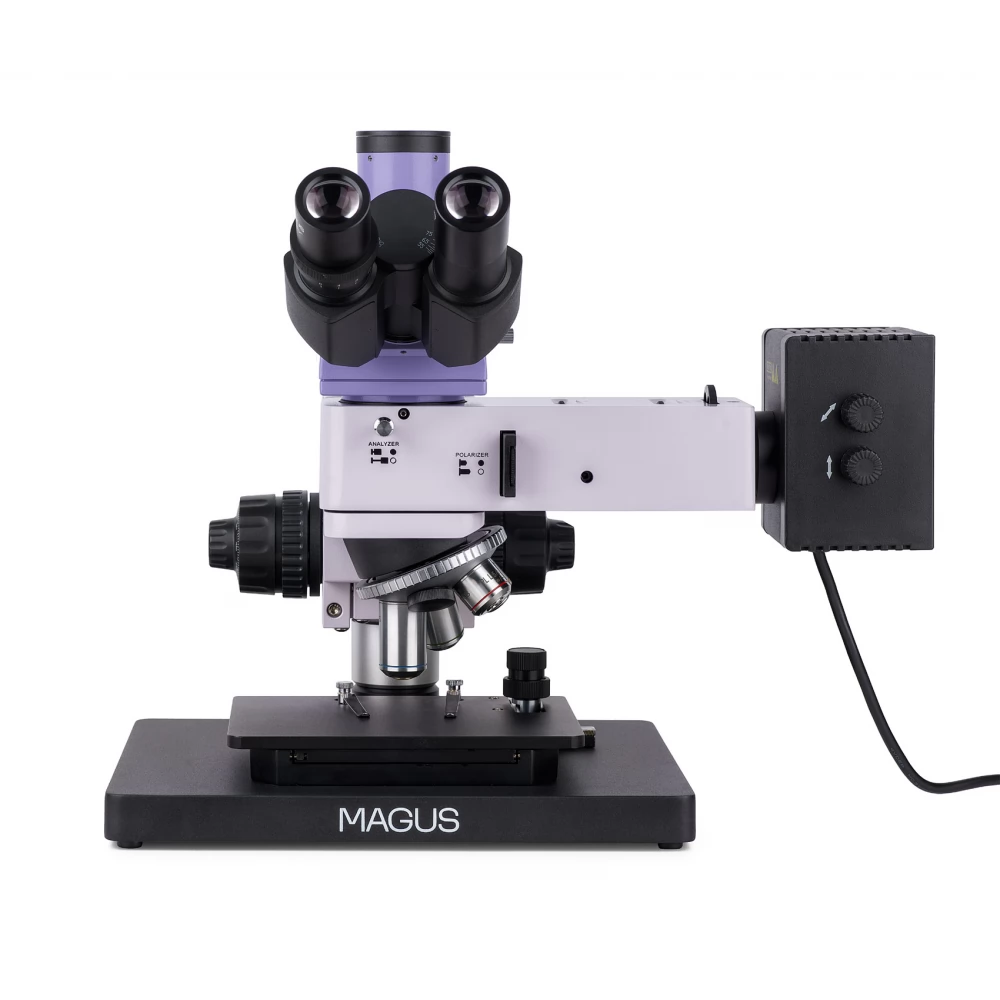

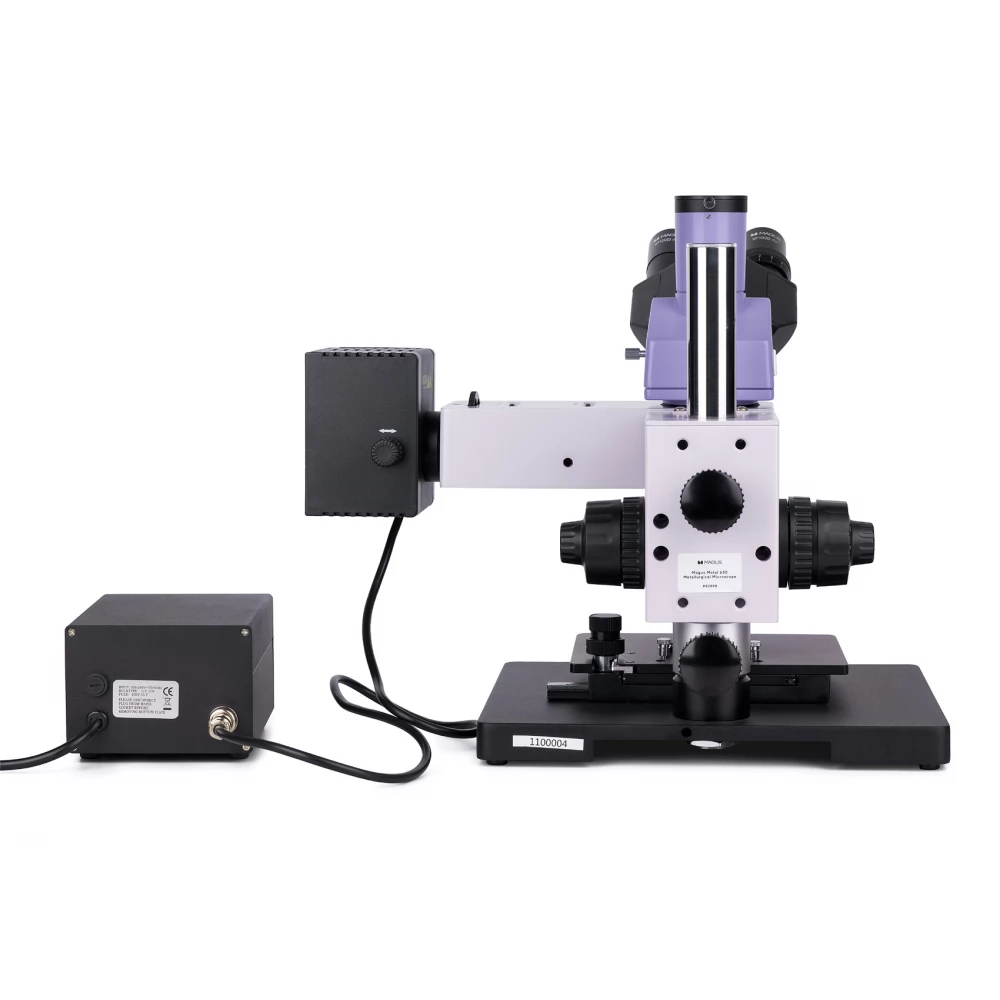

The Magus Metal 630 reflected metallographic microscope can be examined by the microstructure of non -transparent objects of any height and size. It can also be used for metals, alloys, semiconductors and paint coating. Available microscopy techniques: light -looking, polarized. One of the benefits of the microscope is the compact size, which provides an ideal solution for laboratories with limited work and storage. The Magus Metal 630 microscope is an excellent choice for companies in various industry sectors, research centers and university departments.

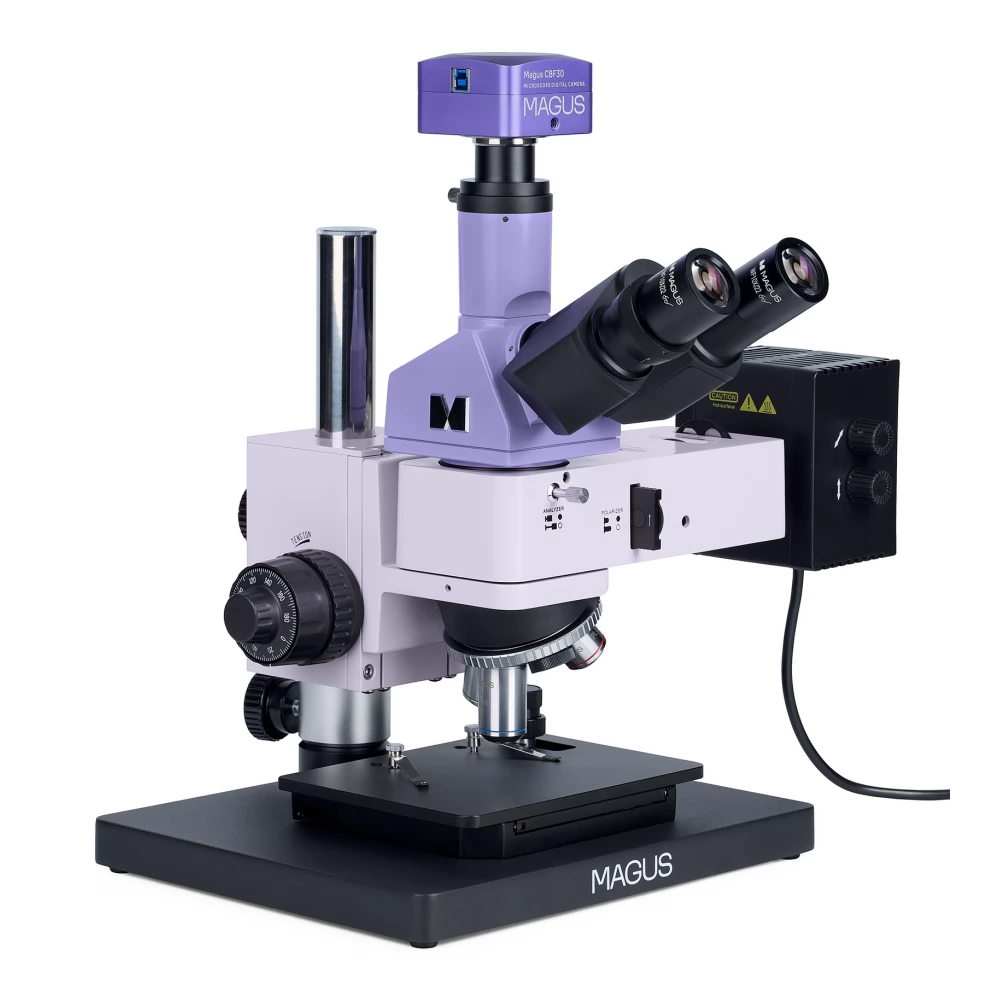

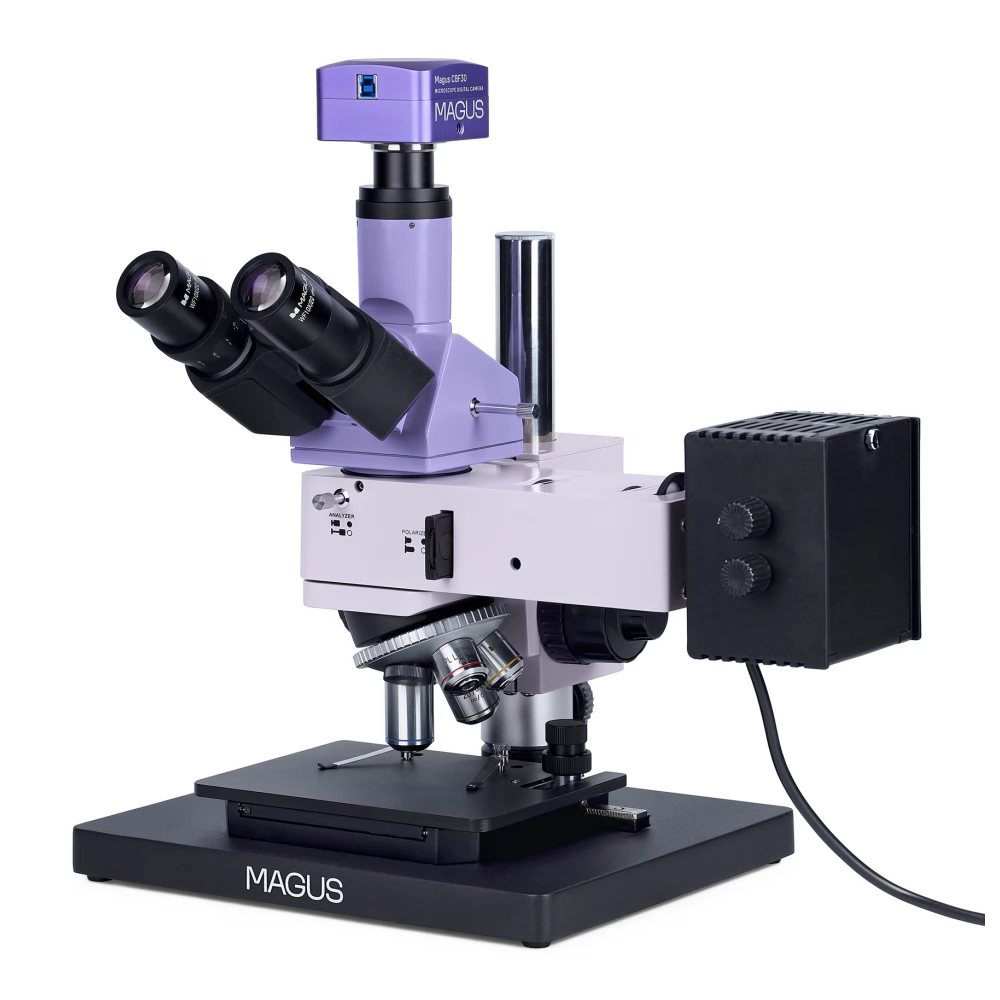

Digital camera
With the Magus CBF30 digital camera, you can take photos and videos via a microscope, edit the resulting files, organize shows, and (after proper calibration) make linear and angular measurements on objects.
The appliance can be used on microscopes with a light -minded method with 4x, 10x, 20x and 40x lenses.

The 6.3 megapixel sensor allows you to take sharp, detailed photos and videos with a resolution of up to 3072x2048 PX. If necessary, resolution can be reduced to 1536x1024 PX. However, this does not affect the frame speed, which remains 59 fps, which ensures smooth frame transitions without stalling and delay.

The Sony Exmor backlight color CMOS sensor also allows the camera to be used in low light conditions. The picture remains read and remains bright. It is provided by using the purest, distorted image, 0.5x to 0.75x adapter.

Optical elements
The microscope optics are adjusted to infinite. The three -pointed tube for fixing the camera is located vertically. The ray of light can also be directed to the lenses or the triple tube. The camera is not included in the basic configuration. The two-lens head has decided at 30 °, so this microscope can be conveniently used for hours. Dioptry correction in the left eye is also available to adjust the optical elements to the user.

There are 5 sockets in the revolver head. The kit has 4 flat acromatic lenses. When they are installed, there is still a place to install an optional lens. Long -term lenses are designed for a light -vision microscopy.

Illumination
The microscope uses only reflective lighting. The lighting system includes a polarization tool, a diaphragma and a slide on the object. Light source: 30 W halogen bulb. Lighting is comfortable to use, does not wear the eyes. The diaphragm and the light source can be centralized and a Köhler lighting configuration is available. The product also has color filters.

Object table and focusing mechanism
The custom -designed rack and the focusing mechanism offer two benefits: the compact size and the possibility of examining samples of any height. The microscope can be easily placed on any laboratory furniture that has a free space of 40 cm. A two -axle object table can be used to study small samples. Focus can be adjusted by rotating coaxial coaxial and fine control buttons on both sides of the rack. The mechanisms are accurate and operate without a hawk. Coarse firmness is also possible.

Accessories
The microscopy can also be expanded with optional accessories, including long -term lenses, eye lenses, digital camera and calibration slides.

- There is no restriction on the height and size of the sample
- Three-grain header with a three-grain tube for installation of digital camera (100: 0 and 0: 100 with beam allocation)
- Warm-light 30 W halogen bulb to work in reflected light with clear vision and polarization microscopy techniques
- Color filters, optional Köhler lighting setting, light source, and centralizing object and aperture diaphragms
- a compact rack to fix the microscope on small furniture
- There are many optional accessories

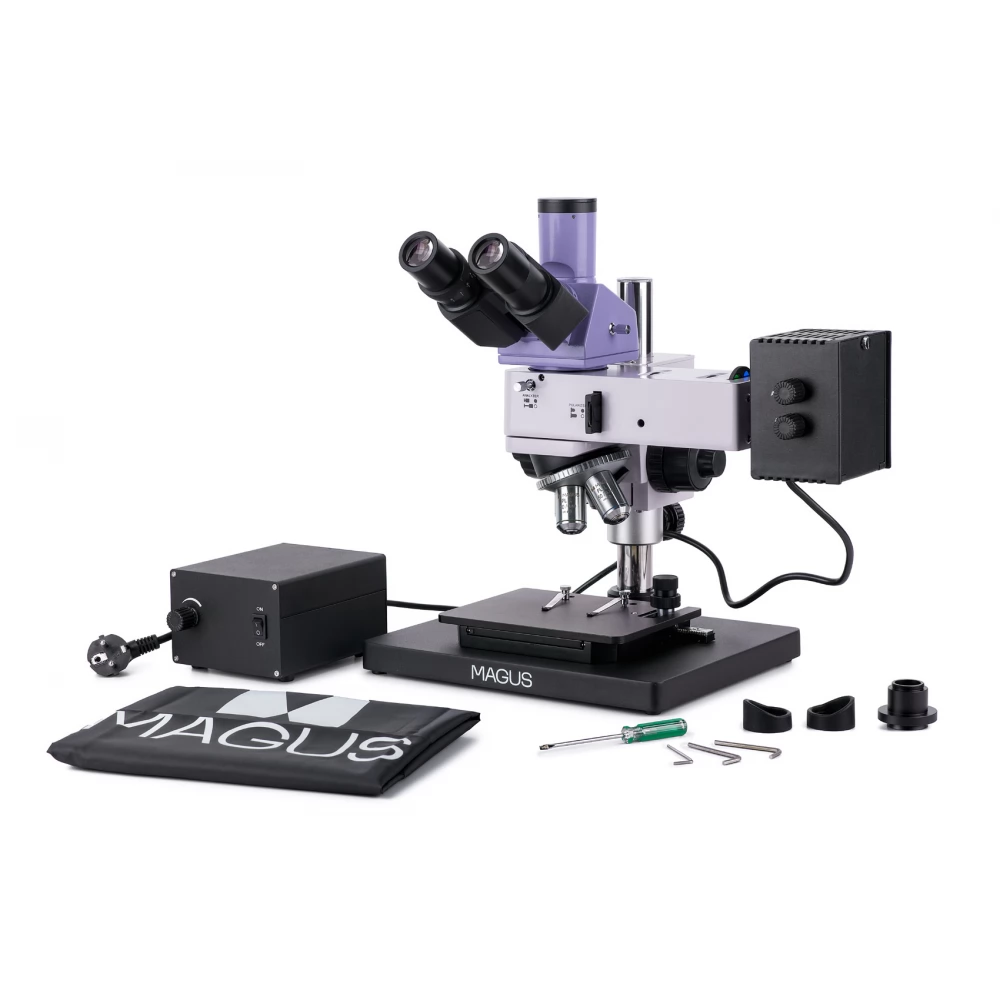

The content of the set
- Magus CBF30 digital camera (digital camera, USB cable, installation CD drivers and software, user manual and warranty ticket)
- Focusing mechanism, a stand with a table and a revolver
- Reflective lighting with lamp house
- Three -pointed head
- Infinitely plane acromatic lens: pl H 5x/0.12 SM 26.1 mm
- Infinitely plane acromatic lens: eg h 10x/0.25 sm 20.2 mm
- Infinite plane acromatic lens: pl H 20x/0.40 sms 8.80 mm
- Infinitely plane acromatic lens: pl H 50x/0.70 smell 3.68 mm
- 10x/22 mm eye lens with long eye spacing (2 pieces)
- C-connection adapter 1x
- Imbus key
-
- power cord
-
- dust guard
- user manual and warranty
