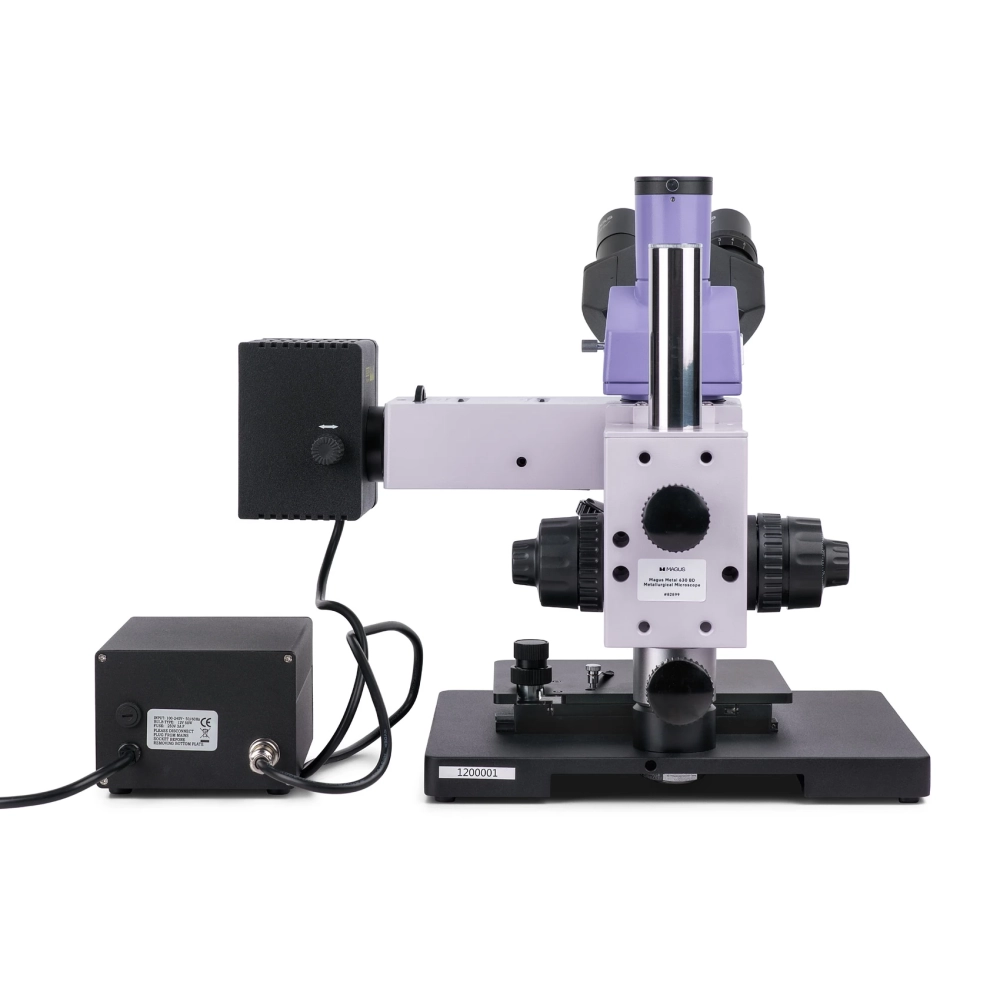

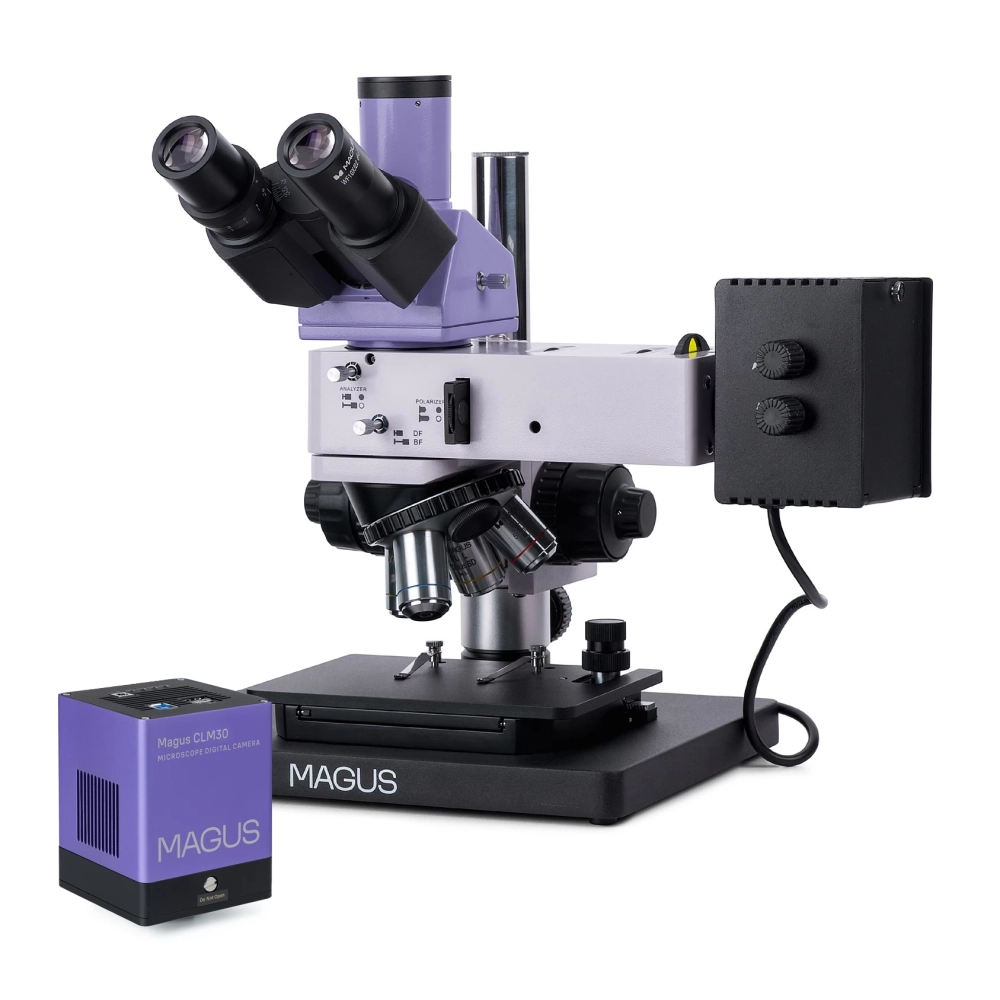

MAGUS Metal D630 BD metallographic digital microscope for brightfield, darkfield and polarization microscopy techniques. Strong halogen lighting provides quality images with any objective lens and any microscopy method. The microscope is designed for quality control and study of the microstructure of metals, semiconductors and non-transparent objects. With its help, research can be carried out in production facilities, research center laboratories, and university departments.

Digital camera

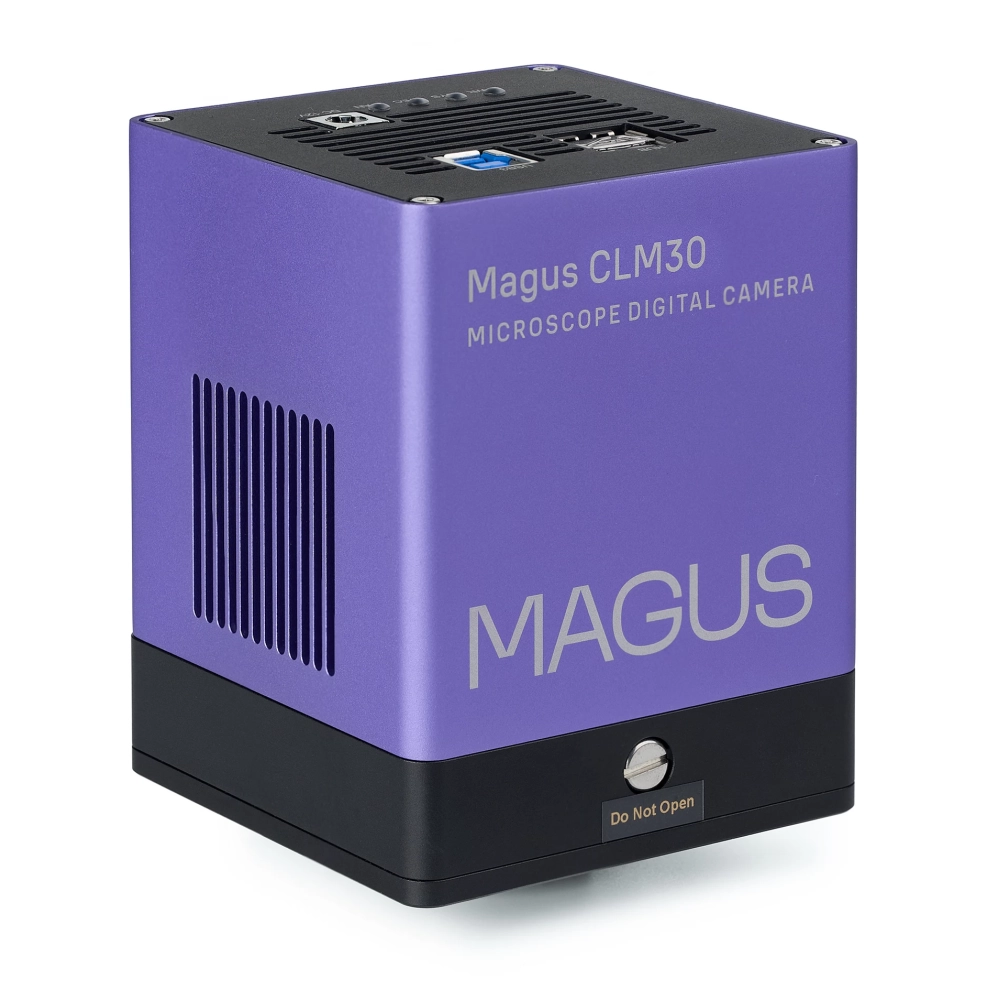

MAGUS CLM30 is a digital camera designed for fluorescent and dark field microscope techniques. The camera has an 8.3 MP sensor and produces realistic images with a resolution of 3840x2160 pixels. The camera should be used with 4x, 10x, 20x and 40x lenses. When working with low magnification lenses, the camera helps you see the finer details.
Depending on the resolution, the video is recorded at 45 frames/second (fps) or 70 frames/second: the transitions between frames are smooth and imperceptible. The movement of the sample can be tracked in real time without delay. Moving objects can be easily observed using the camera, which is also suitable for classroom presentations.
The camera has a USB 3.0 interface. The data transfer rate is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research and university education.

Optical elements

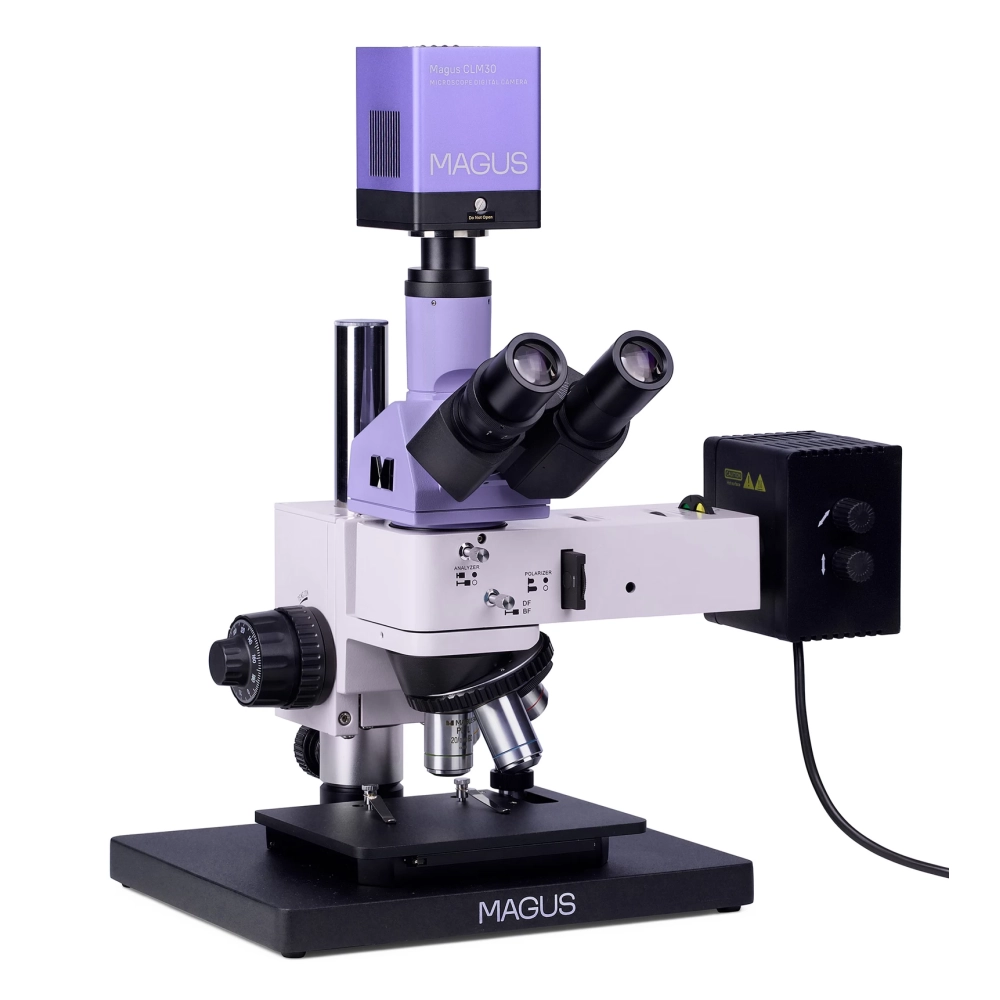

The triple-lens head part has a triple-lens tube into which the digital camera (not part of the product) can be attached. The light beam can be directed to the eyepieces or the three-eyepiece tube with an eyepiece/camera routing button. The three-eye lens head is tilted at 30° for comfortable observations. The diopter adjustment ring is located on the left tube.

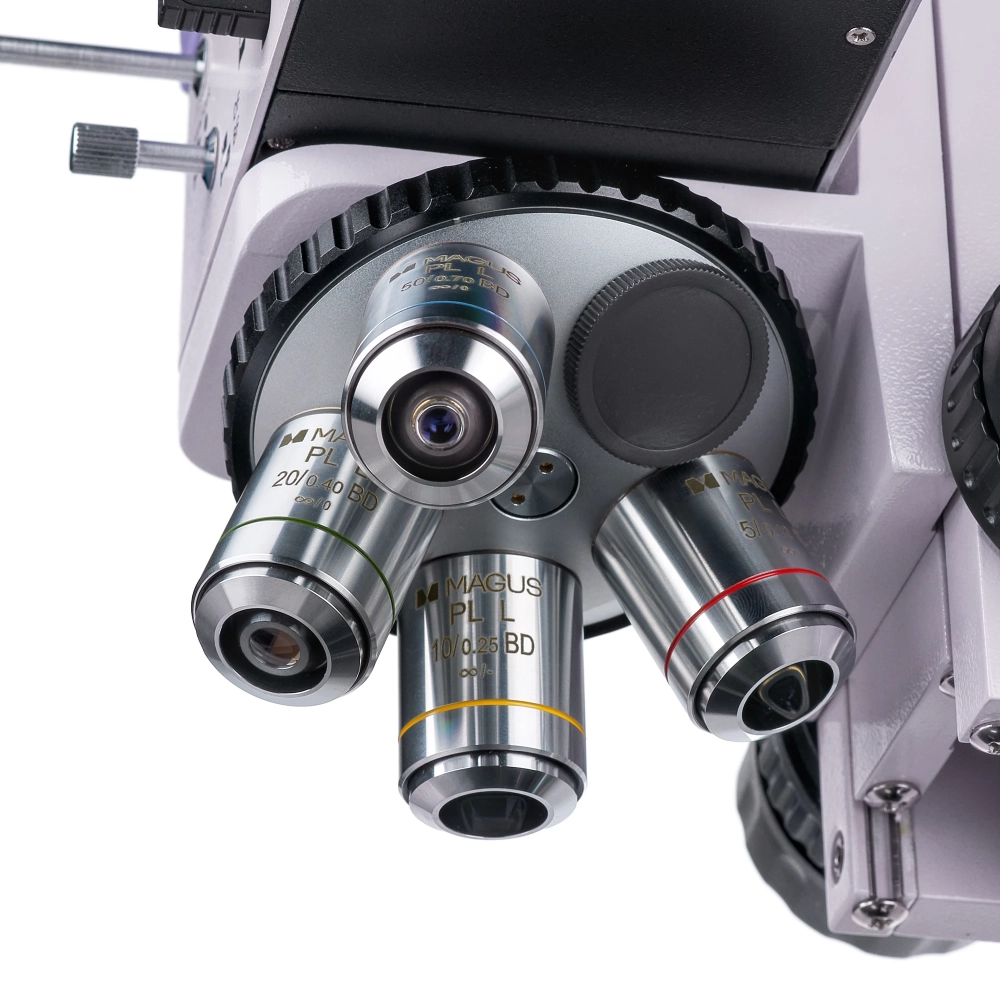

After you install the included lenses in the turret, there is still a space left to install an additional lens. All basic objectives are suitable for both plano-achromatic and long working distance - bright and dark field microscopy.

Illumination

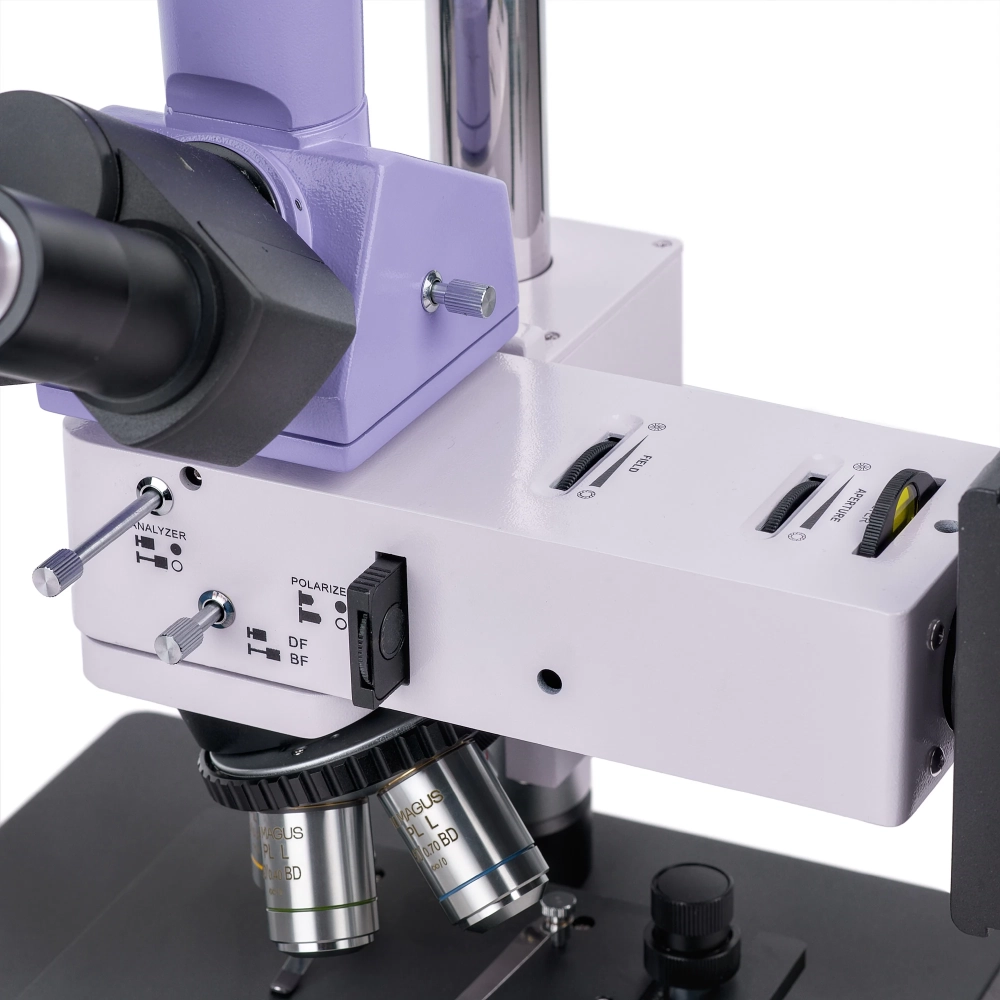

In order to be able to perform observations in the dark field, the microscope is equipped with a high-performance (50 W) halogen bulb. Furthermore, the reflected light illumination system includes the following: filter set, aperture and objective side diaphragms, dark field device, built-in analyzer, and a removable polarizer. The apertures and the light source can be centered. The Köhler lighting mode can be set.

Stage and focusing mechanism

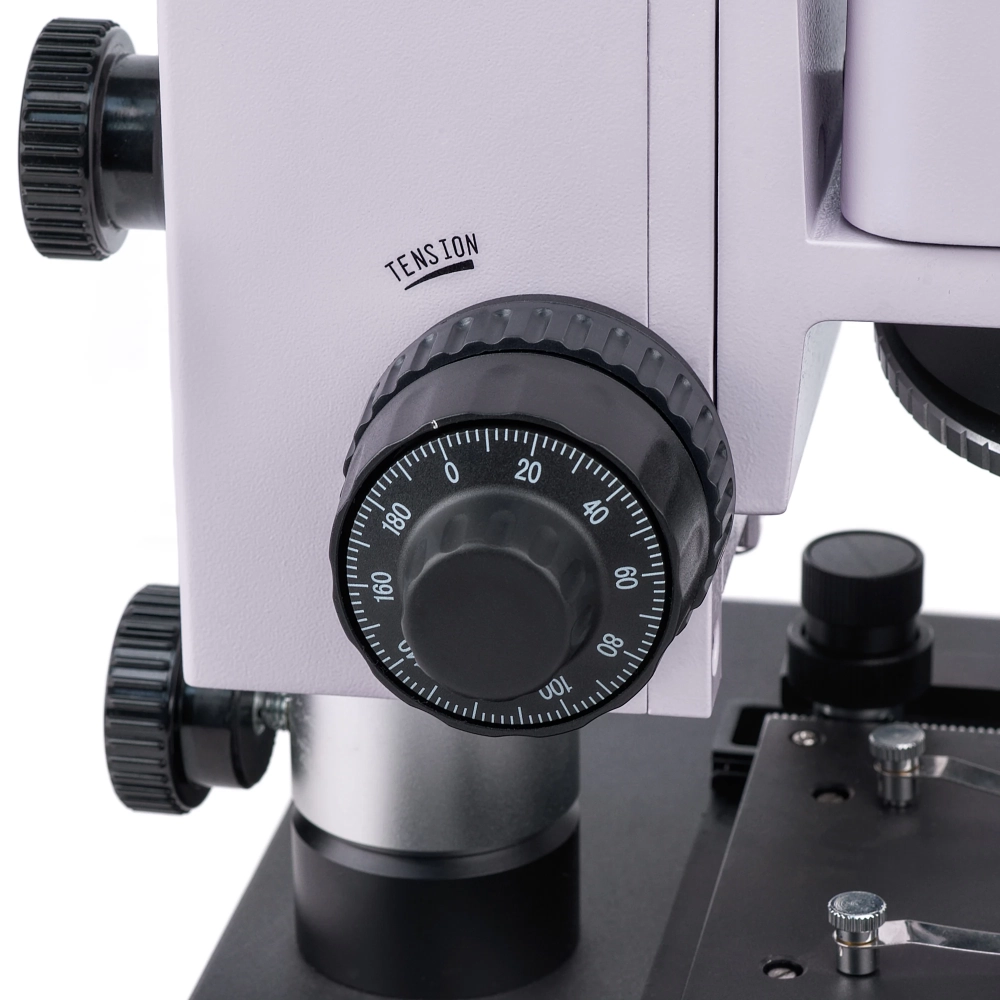

The microscope stand and focusing mechanism have an interesting design, and thanks to this they can be used for samples of any size and height. Another feature of the microscope is its small size, thanks to which it can be easily mounted on surfaces up to 40 cm high. Coaxial coarse and fine focus knobs are located on both sides of the microscope frame. Rough tension adjustment is also possible.

Accessories
Additional accessories can be ordered separately for the MAGUS Metal 630 BD microscope. These include compatible eyepieces, long working distance objectives for bright and dark field observations, calibration slides, and digital cameras.

- Suitable for studying non-transparent samples of any size and height
- Triple-lens head with triple-lens tube for attaching the digital camera and a 100/0 and 0/100 beam splitter
- Observations in reflected light using brightfield, darkfield and polarization microscopy techniques
- The halogen light source has an increased power of 50 W, so it is also suitable for observations in a dark field of view
- Objective and aperture diaphragms for Köhler lighting, set of colored light filters, centering option for both diaphragms and the light source
- A stand with a compact design so that the microscope can be fixed even in small spaces
- Wide range of optional accessories

Main features of the camera
- For brightfield microscopes with 4x, 10x, 20x and 40x objectives
- 8.3 MP resolution: when observing with low magnification lenses, the camera helps you see the finer details
- 45 frames/sec (fps) for 3840x2160 pixel resolution, and 70 frames/sec for 1920x1080 pixel resolution for observing moving samples, recording videos, and moving the product without stuttering or delay
- The Peltier element reduces the temperature of the sensor even during longer operation and eliminates thermal noise. Therefore, a long shutter speed can be used when taking pictures.
- The SONY Exmor color CMOS backlit sensor provides low noise and high light sensitivity even in low light conditions. You will get clearer, brighter and more saturated images.
- USB 3.0 interface for fast, smooth data transfer
- Software for recording, editing and displaying photos and videos on an external display,
