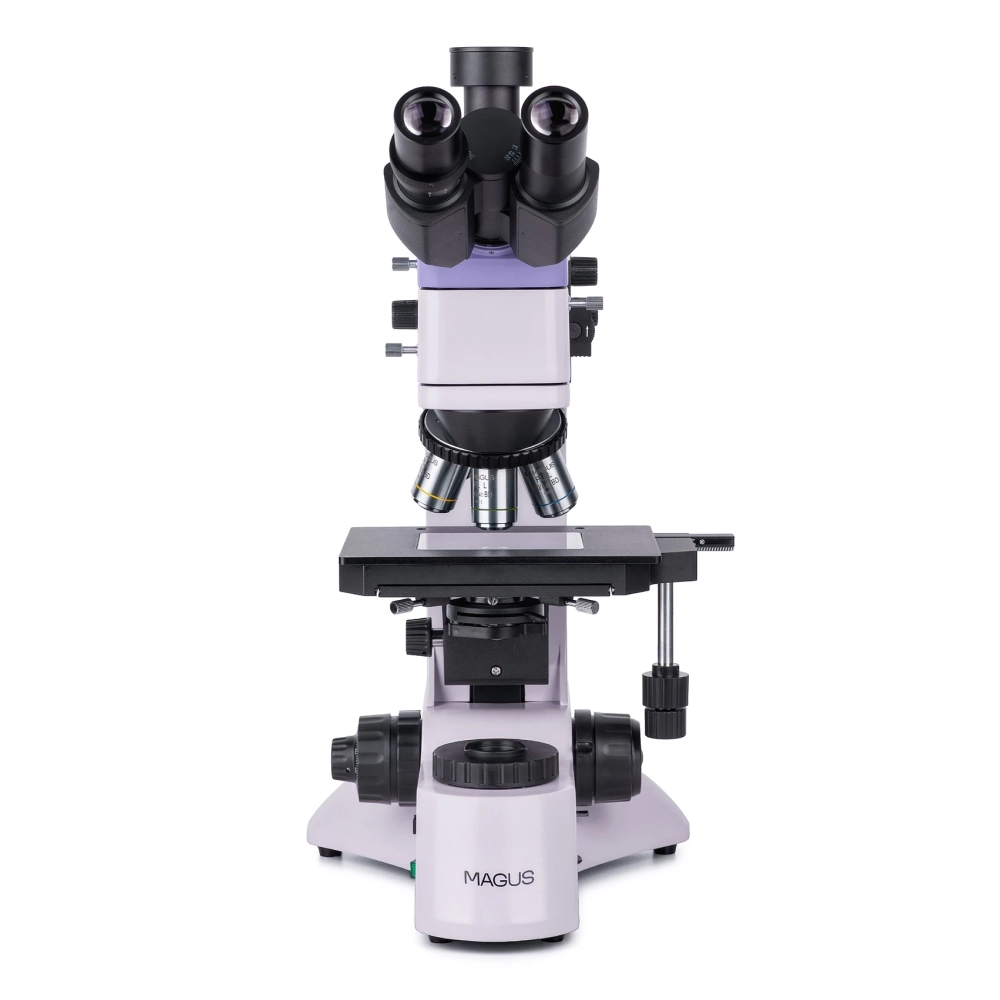

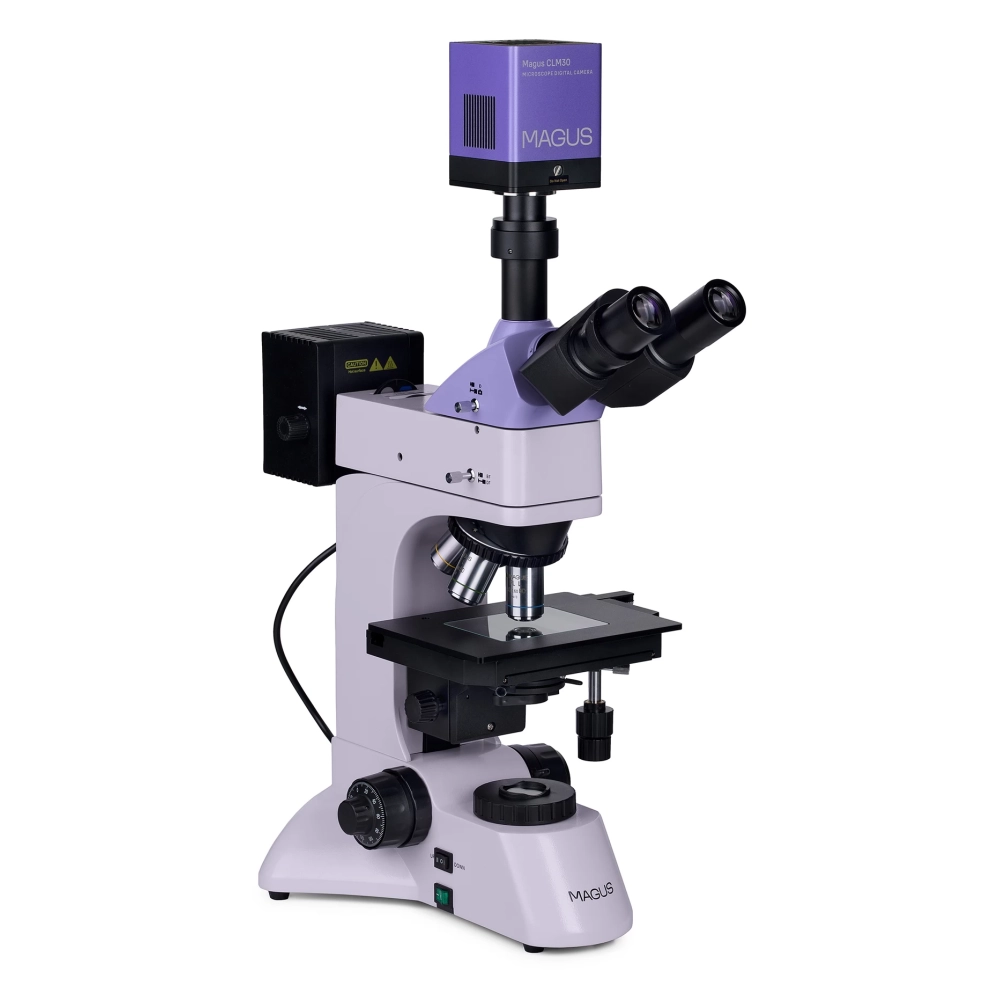

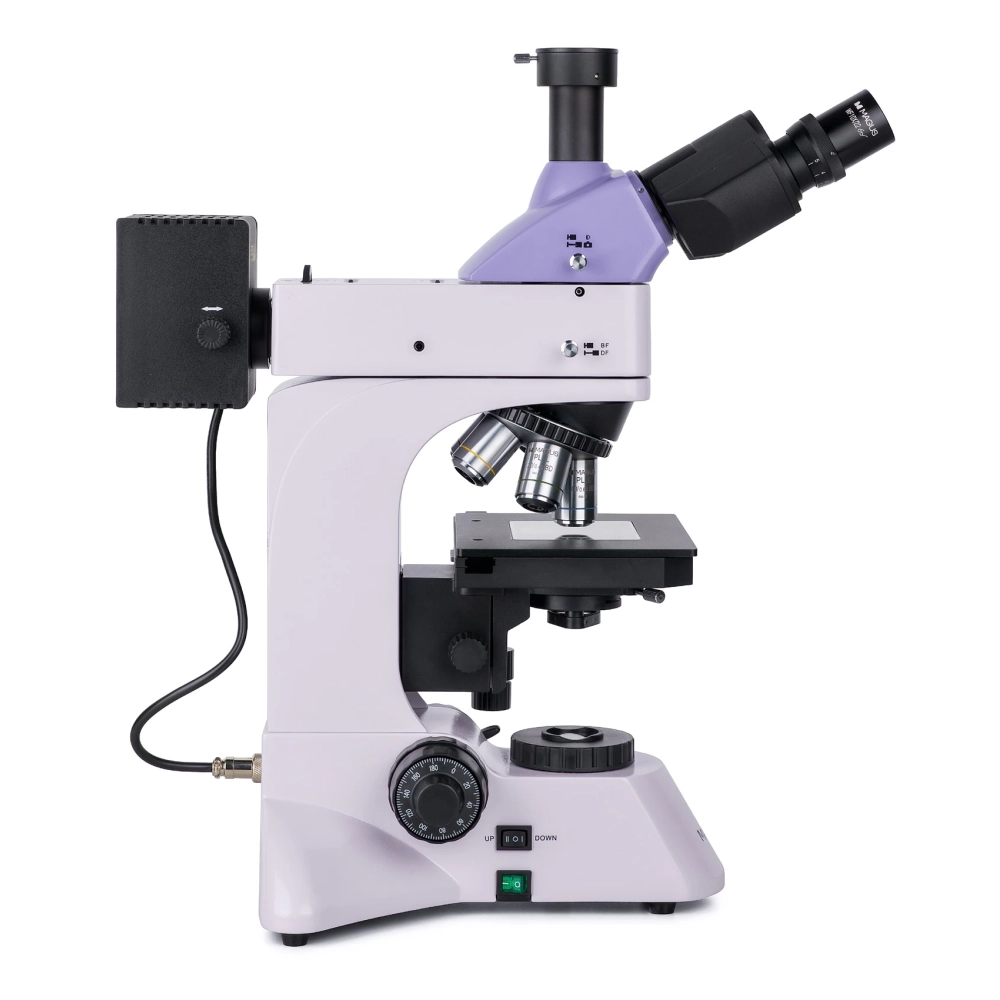

The MAGUS Metal D600 BD metallographic digital microscope is designed for the examination of objects in reflected light, using bright-field, dark-field and polarization microscopy techniques. This microscope is used to examine metal and semiconductor samples, as well as other flat and polished samples with high reflectivity. You can examine translucent samples such as thin films and particles stuck on filters in transmitted light. The microscope can be used in the metallurgical and engineering industries, in engineering and quality control laboratories, as well as in technical universities.

Digital camera

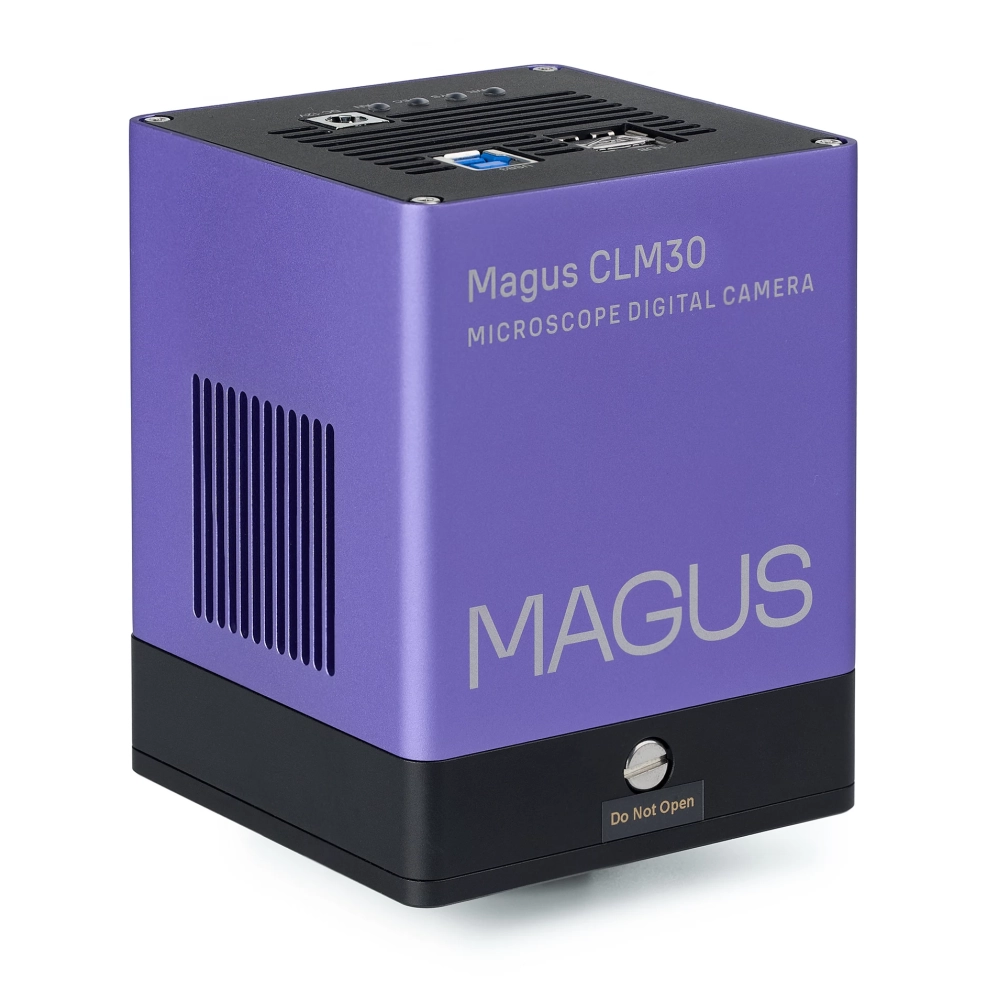

MAGUS CLM30 is a digital camera designed for fluorescent and dark field microscope techniques. The camera has an 8.3 MP sensor and produces realistic images with a resolution of 3840x2160 pixels. The camera should be used with 4x, 10x, 20x and 40x lenses. When working with low magnification lenses, the camera helps you see the finer details.
Depending on the resolution, the video is recorded at 45 frames/second (fps) or 70 frames/second: the transitions between frames are smooth and imperceptible. The movement of the sample can be tracked in real time without delay. Moving objects can be easily observed using the camera, which is also suitable for classroom presentations.
The camera has a USB 3.0 interface. The data transfer rate is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research and university education.

Optical elements
The three-eye lens head part has a three-eye lens tube suitable for mounting a digital camera. The beam splitter directs the light to the camera, two positions are available: 100:0 and 0:100. The light beam goes all the way into the eyepieces or the three-lens tube. The diopter adjustment ring is located on the left eyepiece.

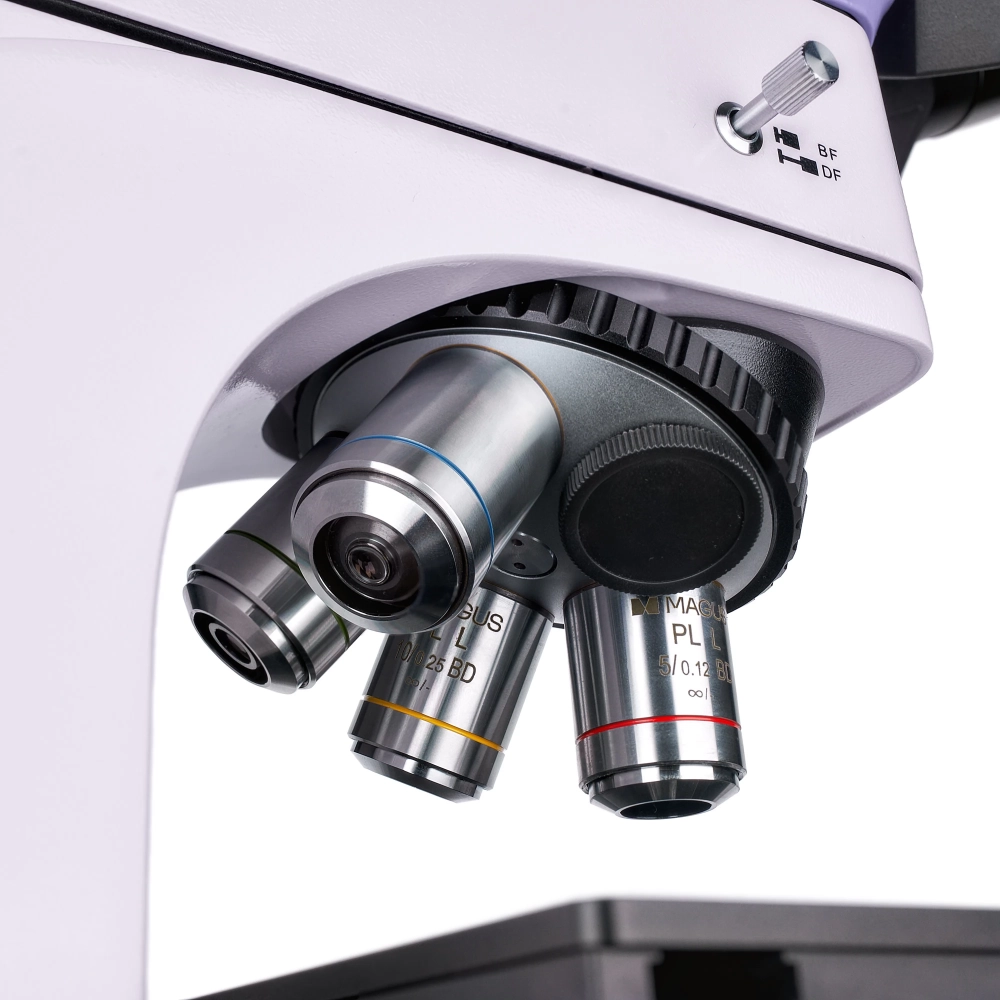

The magnification of the microscope in the basic configuration is 50-400x. Additional objectives and eyepieces increase the magnification range. The microscope uses planar achromatic objectives with a long working distance for bright-field and dark-field microscopy techniques. The turret has five holes for mounting lenses - four lenses supplied with the product and one optional. The turret with the objectives is oriented towards the interior - the user can see the objective inserted into the optical path.

Illumination
The lighting uses warm halogen lamps, which do not tire the eyes even when working for a long time. The power of the transmitted light is 30 W, and that of the reflected light is 50 W, which ensures comfortable work with dark-field microscopy.

The illumination system using reflected light includes the following: a dark-field device, a polarization device, a centerable field and aperture diaphragm for the Köhler illumination method, and color filters. The light source can also be centralized.

The transmitted-light illumination system includes: a condenser with a flip-down lens for low-magnification objectives, and an aperture and field diagonal for the Köhler method.

Stage and focusing mechanism

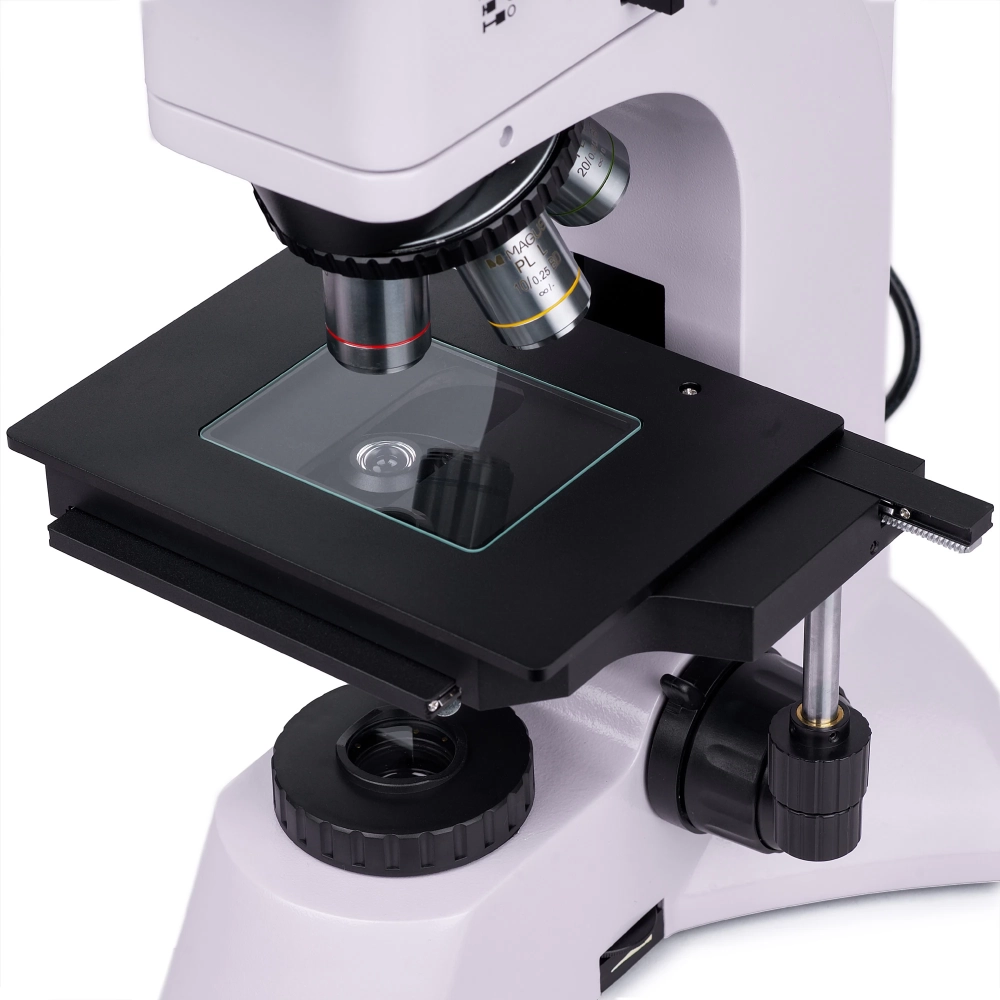

The sample moves together with the stage along two axes. The height of the examined sample must not exceed 20 mm. For working with transparent samples, the stage has a transparent glass plate.

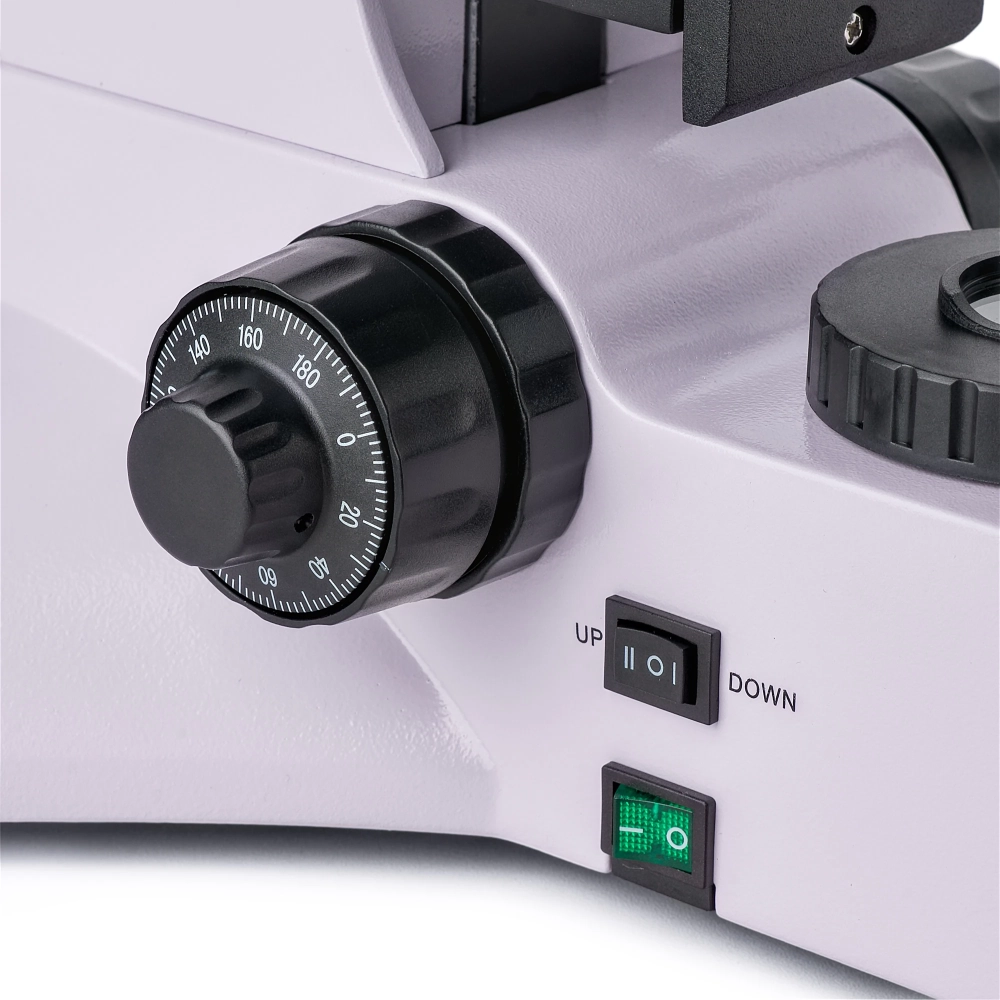

Focusing can be adjusted with the coaxial coarse and fine focusing knobs on both sides of the bottom of the microscope. This allows the observer to place their hand freely on the table instead of holding it in the air. The coarse focusing mechanism has a lock button on the right side of the device and a tension regulator on the left.

Accessories
The range of accessories compatible with the MAGUS Metal 600 BD microscope includes: long working distance objectives for brightfield and darkfield, eyepieces, calibration slides and digital cameras.

The main characteristics of the microscope
- Observation of 20 mm opaque, flat polished samples in reflected light using light microscopy, dark field and polarization microscopy techniques
- Observation of transparent objects in transmitted light
- For mounting a three-eye tube digital camera and a beam splitter that can be placed in two positions (100:0 and 0:100)
- Flat achromatic lenses with a long working distance; BD stands for both bright field and dark field
- 30 W halogen bulb with transmitted light, 50 W halogen bulb with reflected light ensures comfortable work with dark-field microscopy
- Köhler illumination (reflected light) with the option of centering the light source, field and aperture diaphragms; color filters
- Köhler illumination (transmitted light) with centralization and height-adjustable Abbe condenser, fold-down condenser lens for low-magnification objectives
- Wide range of fully compatible eyepieces and lenses

Main features of the camera
- For brightfield microscopes with 4x, 10x, 20x and 40x objectives
-
