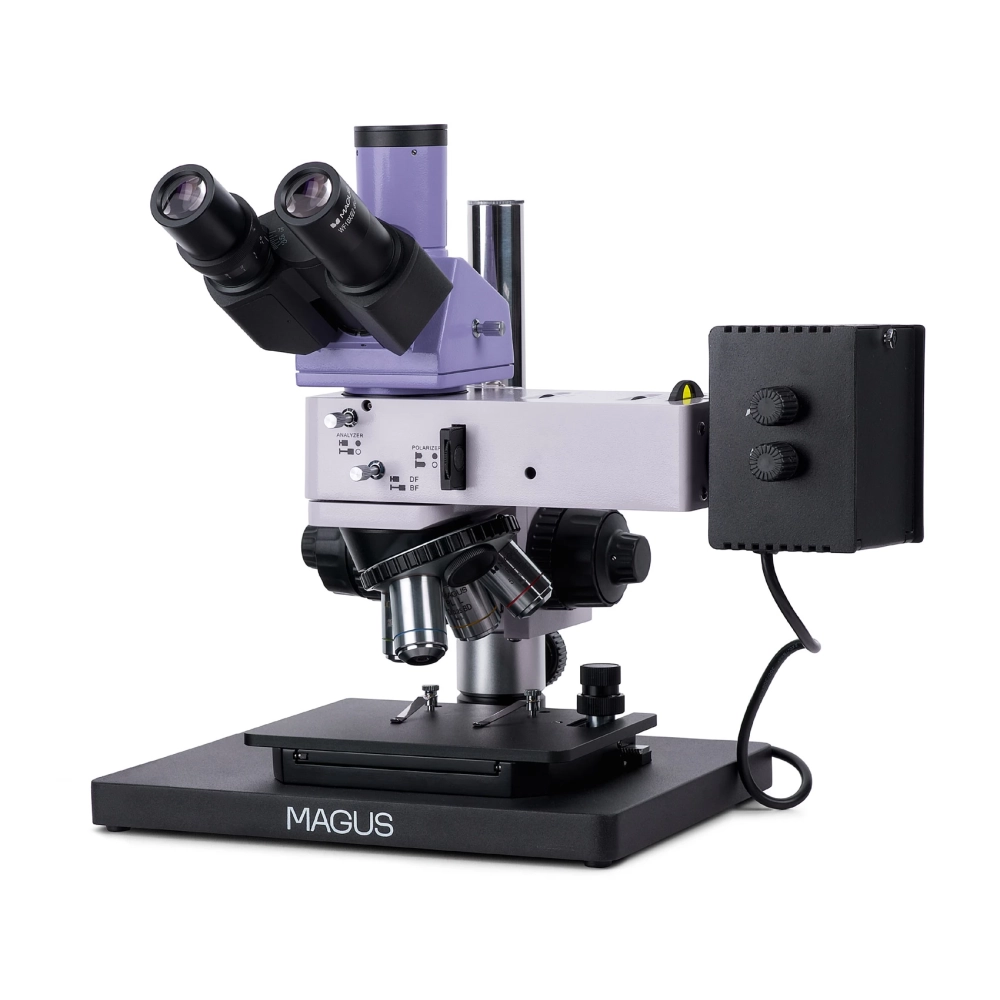

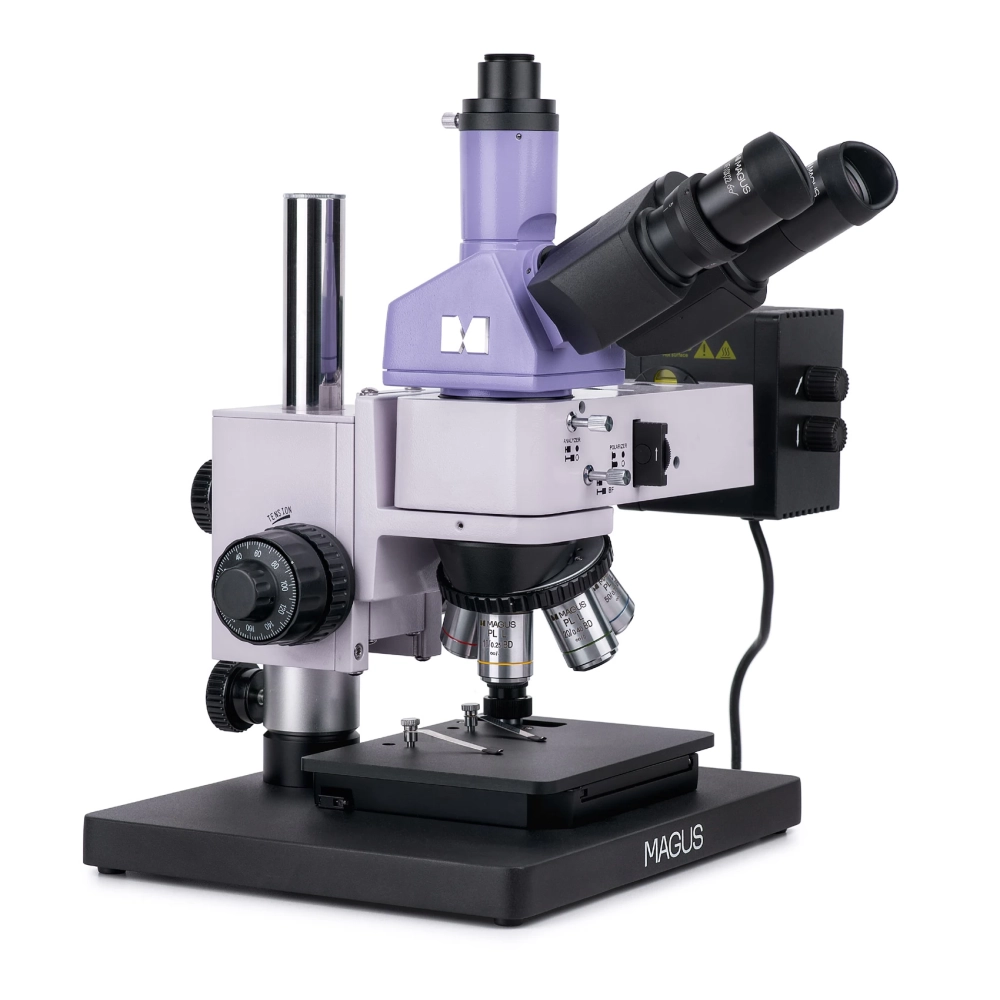

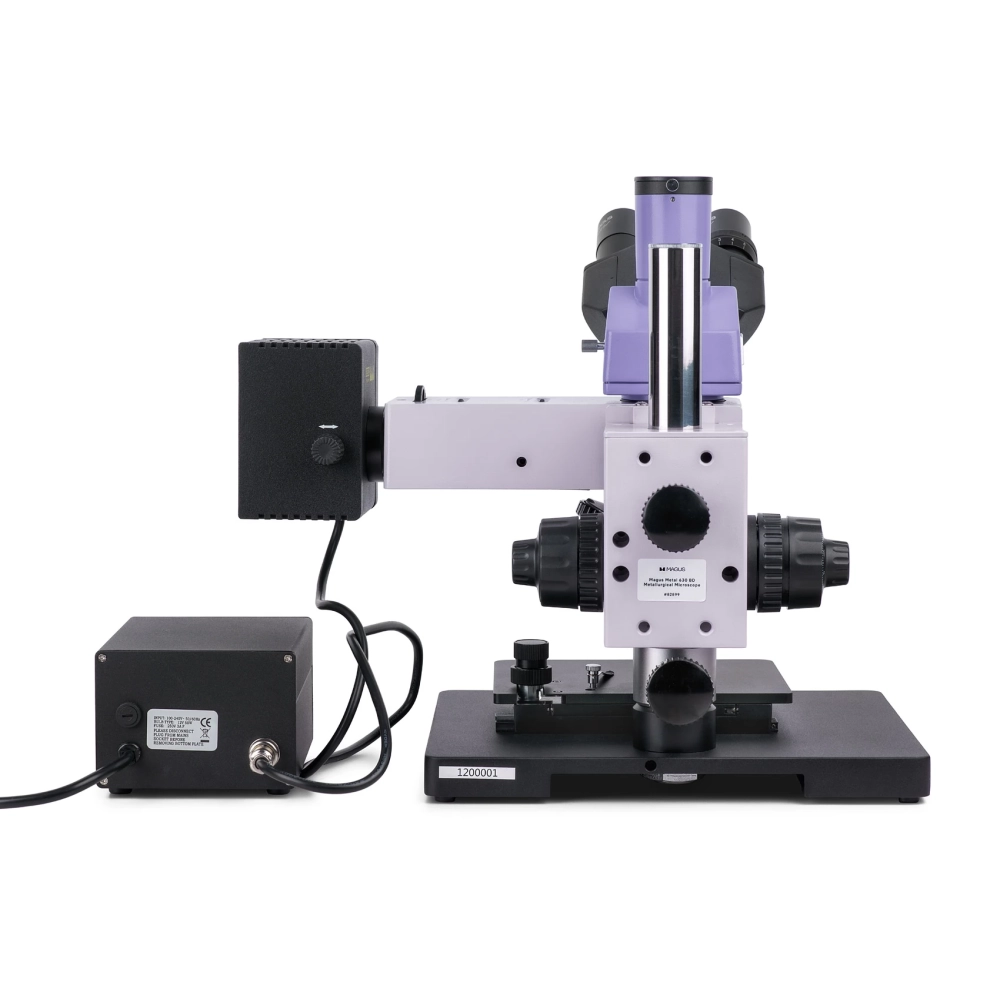

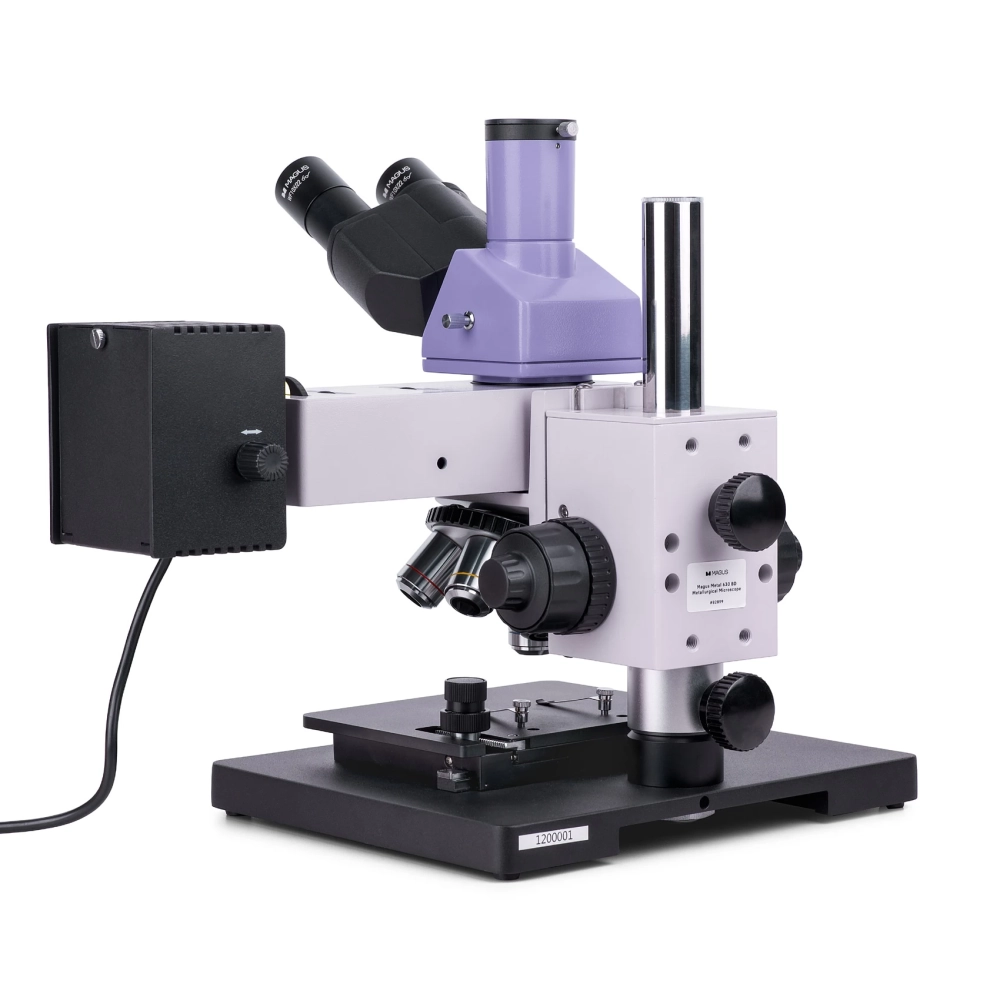

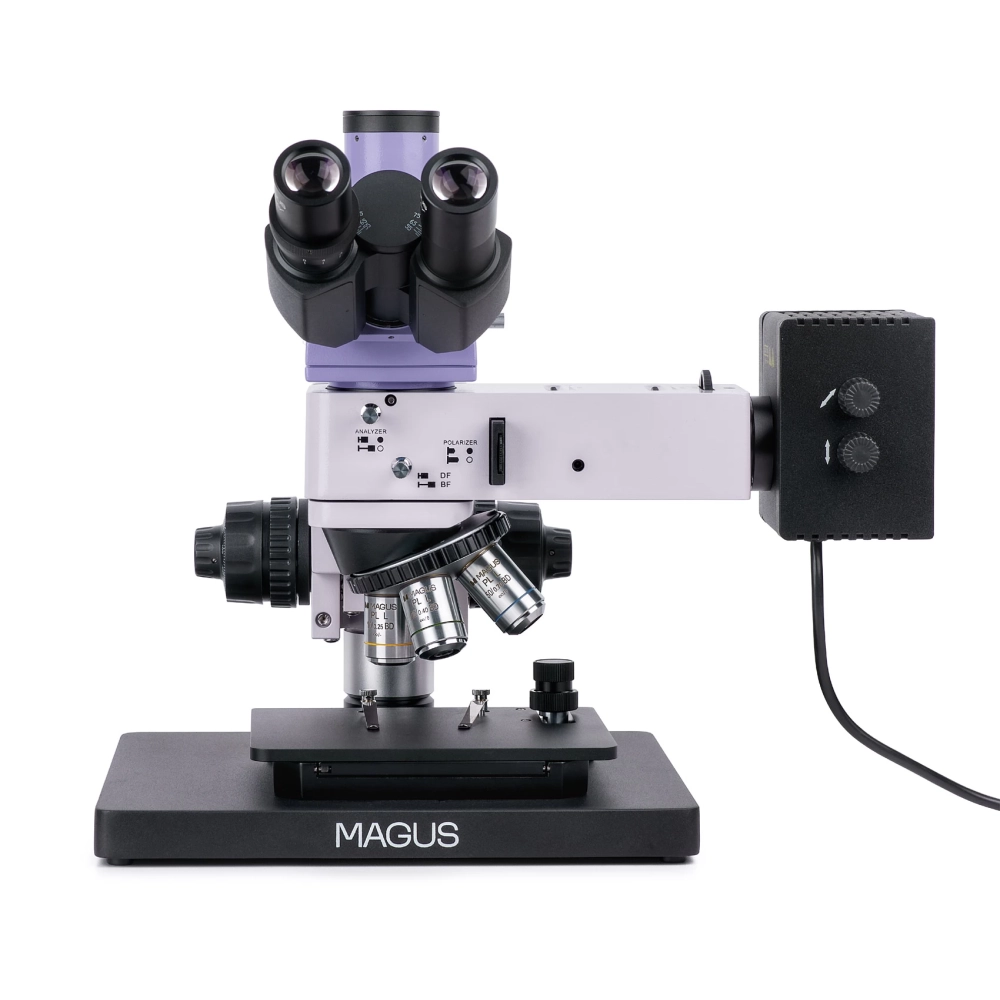

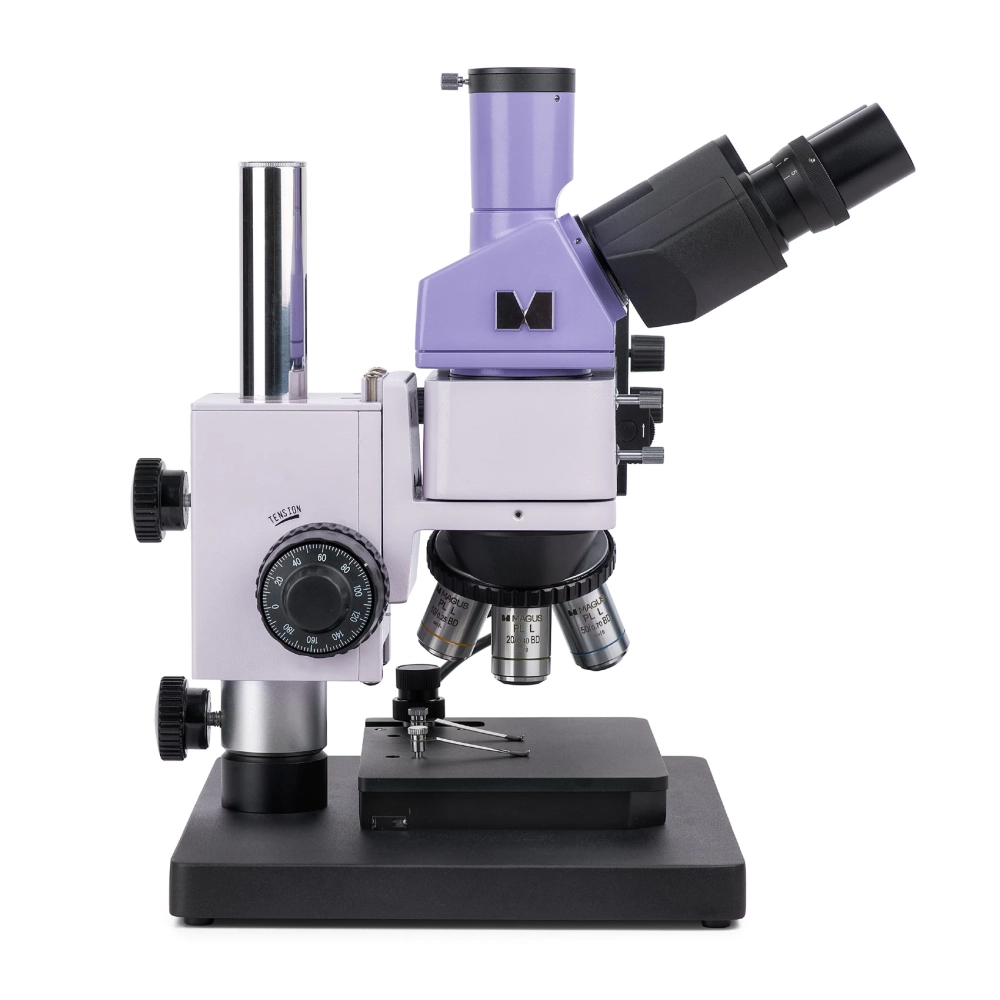

MAGUS Metal 630 BD metallográfiai microscope

MAGUS Metal 630 BD metallographic microscope for brightfield, darkfield and polarization microscopy techniques. Strong halogen lighting provides quality images with any objective lens and any microscopy method. The microscope is designed for quality control and study of the microstructure of metals, semiconductors and non-transparent objects. With its help, research can be carried out in production facilities, research center laboratories, and university departments.

Optical elements
The triple-lens head part has a triple-lens tube into which the digital camera (not part of the product) can be attached. The light beam can be directed to the eyepieces or the three-eyepiece tube with an eyepiece/camera routing button. The three-eye lens head is tilted at 30° for comfortable observations. The diopter adjustment ring is located on the left tube.

After you have installed the included lenses in the turret, there is still space left to install an additional lens. All basic objectives are suitable for both plano-achromatic and long working distance - bright and dark field microscopy.

Illumination
In order to be able to perform observations in the dark field, the microscope is equipped with a high-performance (50 W) halogen bulb. Furthermore, the reflected light illumination system includes the following: filter set, aperture and objective side diaphragms, dark field device, built-in analyzer, and a removable polarizer. The apertures and the light source can be centered. The Köhler lighting mode can be set.

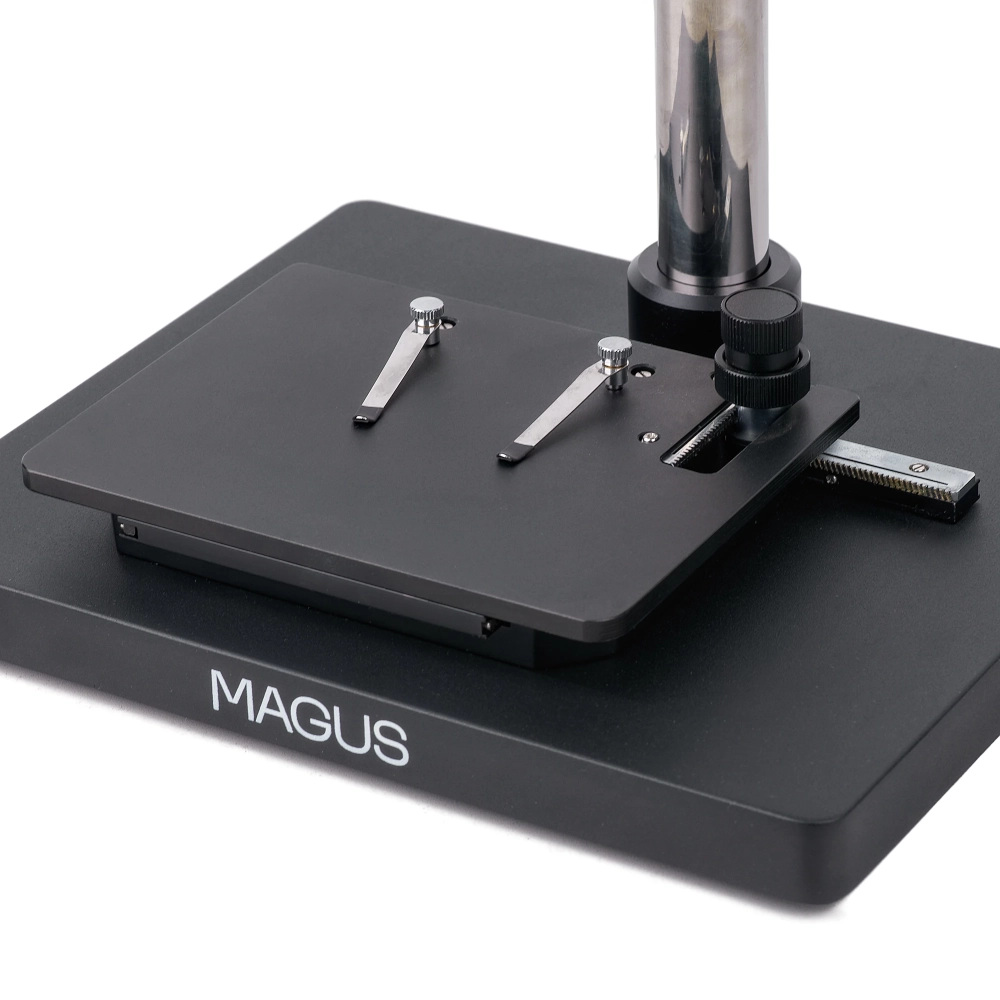

Stage and focusing mechanism
The microscope stand and focusing mechanism have an interesting design, and thanks to this they can be used for samples of any size and height. Another characteristic of the microscope is its small size, thanks to which it can be easily mounted on surfaces up to 40 cm high. Coaxial coarse and fine focus knobs are located on both sides of the microscope frame. Rough tension adjustment is also possible.

Accessories
Additional accessories can be ordered separately for the MAGUS Metal 630 BD microscope. These include compatible eyepieces, long working distance objectives for bright and dark field observations, calibration slides, and digital cameras.

- Suitable for studying non-transparent samples of any size and height
- Three eyepiece head with three eyepiece tubes for digital camera mounting and a 100/0 and 0/100 beam splitter
- Observations in reflected light using brightfield, darkfield and polarization microscope techniques
- The halogen light source has an increased power of 50 W, so it is also suitable for observations in a dark field of view
- Objective and aperture diaphragms for Köhler lighting, set of colored light filters, centering option for both diaphragms and the light source
- A stand with a compact design so that the microscope can be fixed even in small spaces
- Wide range of optional accessories

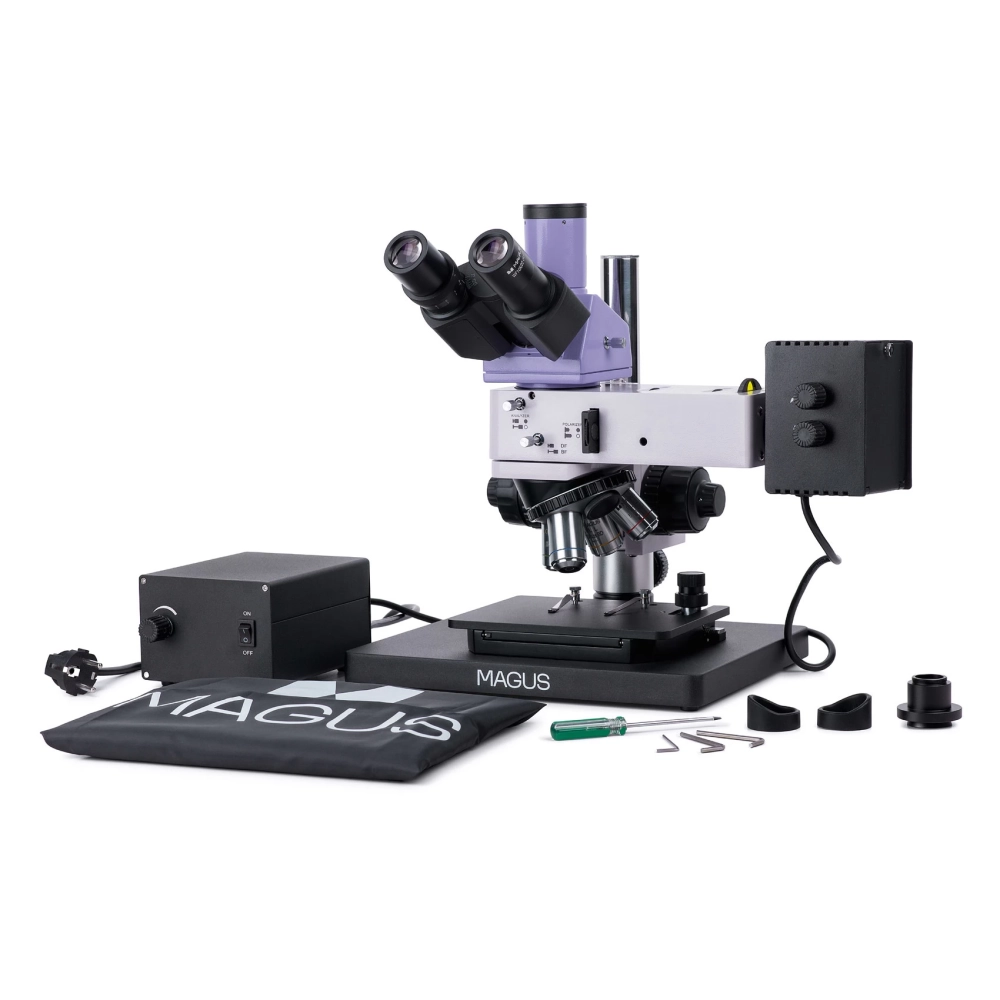

Contents of the set
- Focusing mechanism, stand with stage and turret
- Reflective lighting with lamp housing
- Three lens headpieces
- Infinity plane achromatic objective: PL H 5x/0.12 BD Wm 9.7 mm
- Infinity plane achromatic objective: PL H 10x/0.25 BD Wm 9.3 mm
- Infinity plane achromatic objective: PL H 20x/0.40 BD Wm 7.2 mm
- Infinity plane achromatic objective: PL H 50x/0.70 BD Wm 2.5 mm
- 10x/22 mm eyepiece with long eye distance (2 pcs.)
- C-connector adapter 1x
- Allen wrench
- Pedestal with power input
- Power cord
- Power cable for reflective lighting
- Dust cover
- User manual and warranty card
