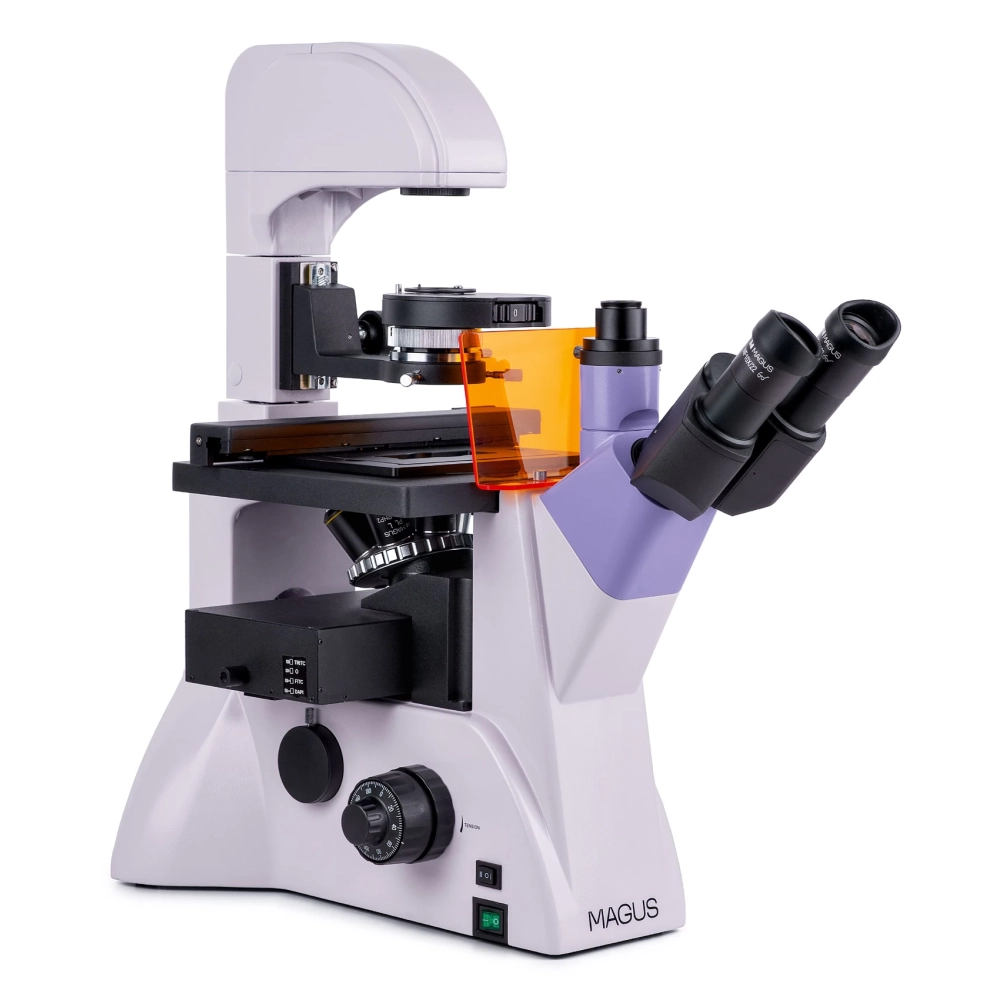

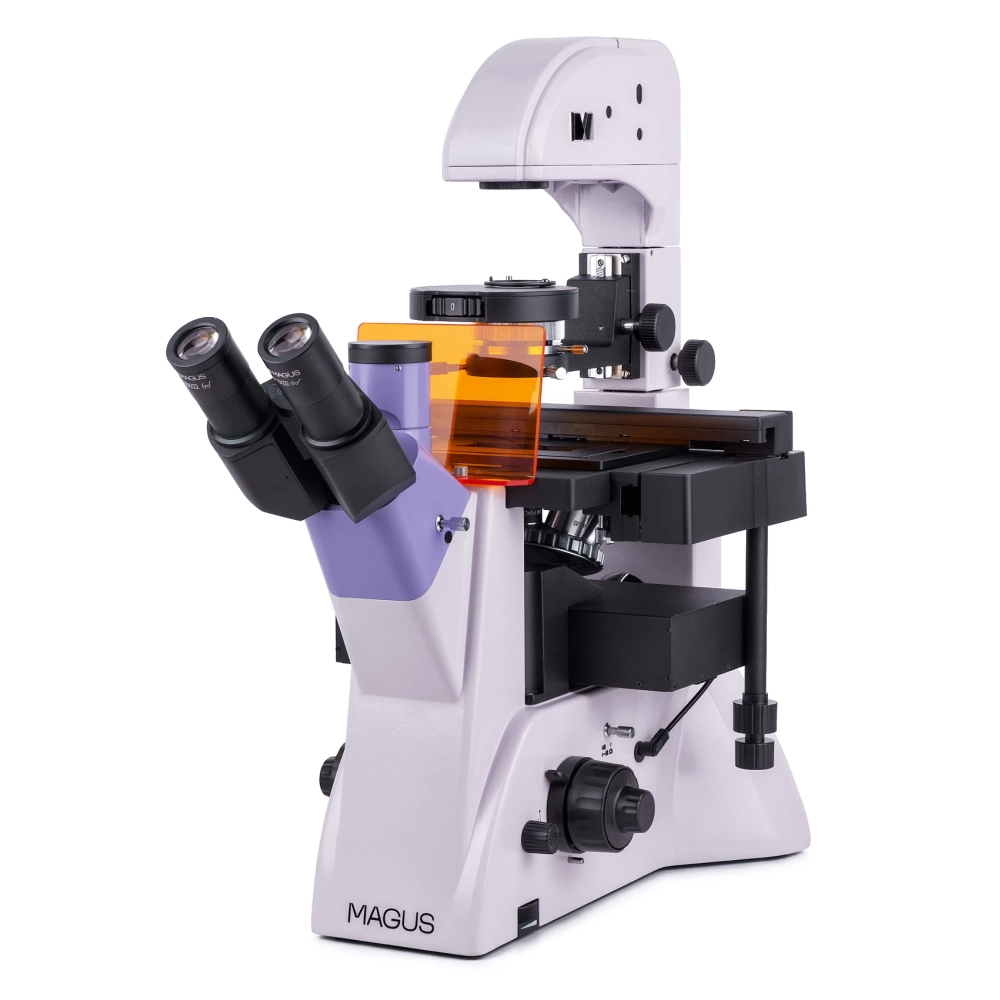

The MAGUS Lum V500L is an inverted microscope for reflected-light fluorescence microscopy and transmitted-light brightfield and phase-contrast microscopy. DAPI, FITC and TRITC fluorochrome filters are used for fluorescence microscopy. The inverted design allows for use in laboratory vessels such as Petri dishes, flasks, etc. observation of existing samples. The height of the laboratory vessels can be 55 mm or 165 mm for tilted stands. The optics are designed for laboratory vessels with a bottom thickness of 1.2 mm. The microscope is great for research and routine laboratory work, as well as for educational purposes.

Optical elements

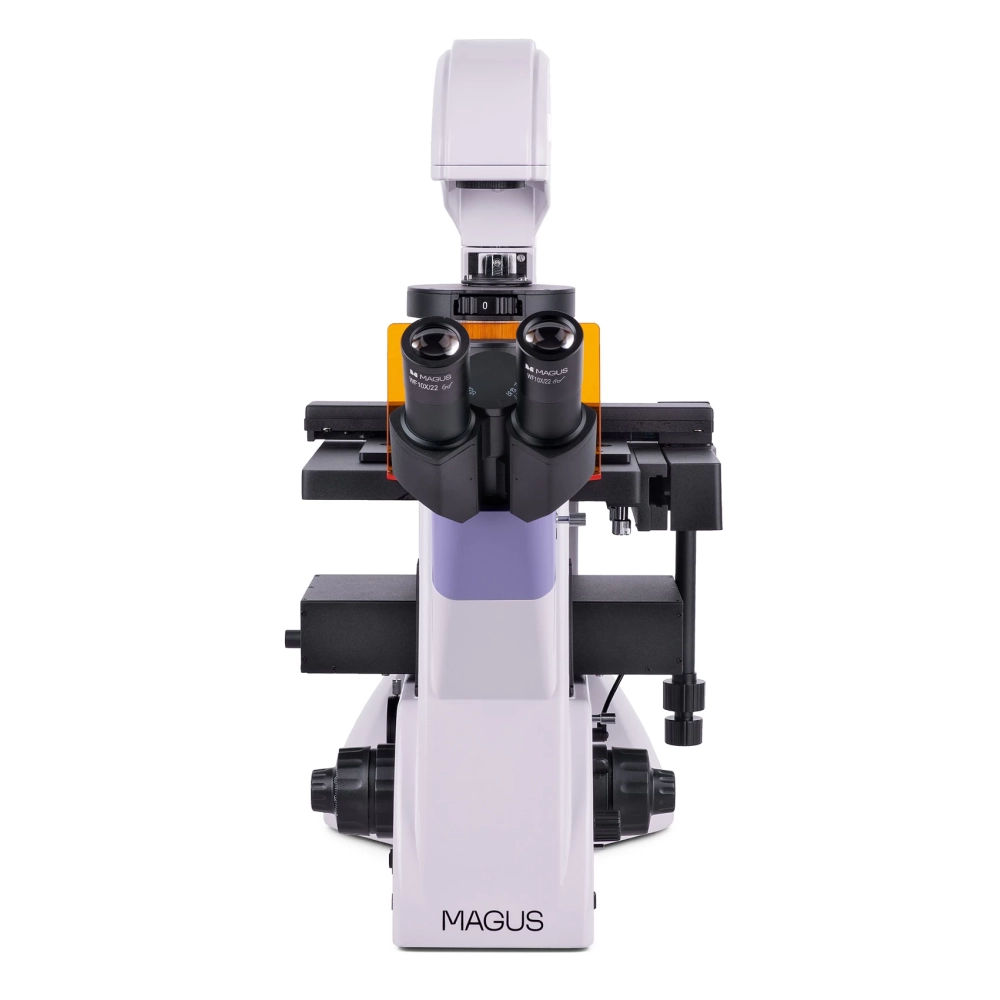

There are two options for mounting a digital camera and monitor: The triple lens tube is used to mount the monitor (not included), and the digital camera can be mounted on the side opening of the frame (not included). There is beam splitting: 100:0/0:100 ratio (on the frame) and 80:20 ratio (on the three-lens head part). Due to the 45° inclination angle of the eyepiece tube, observations can be made in complete comfort. When assembling the microscope, the user can rotate the eyepiece tubes 180°.

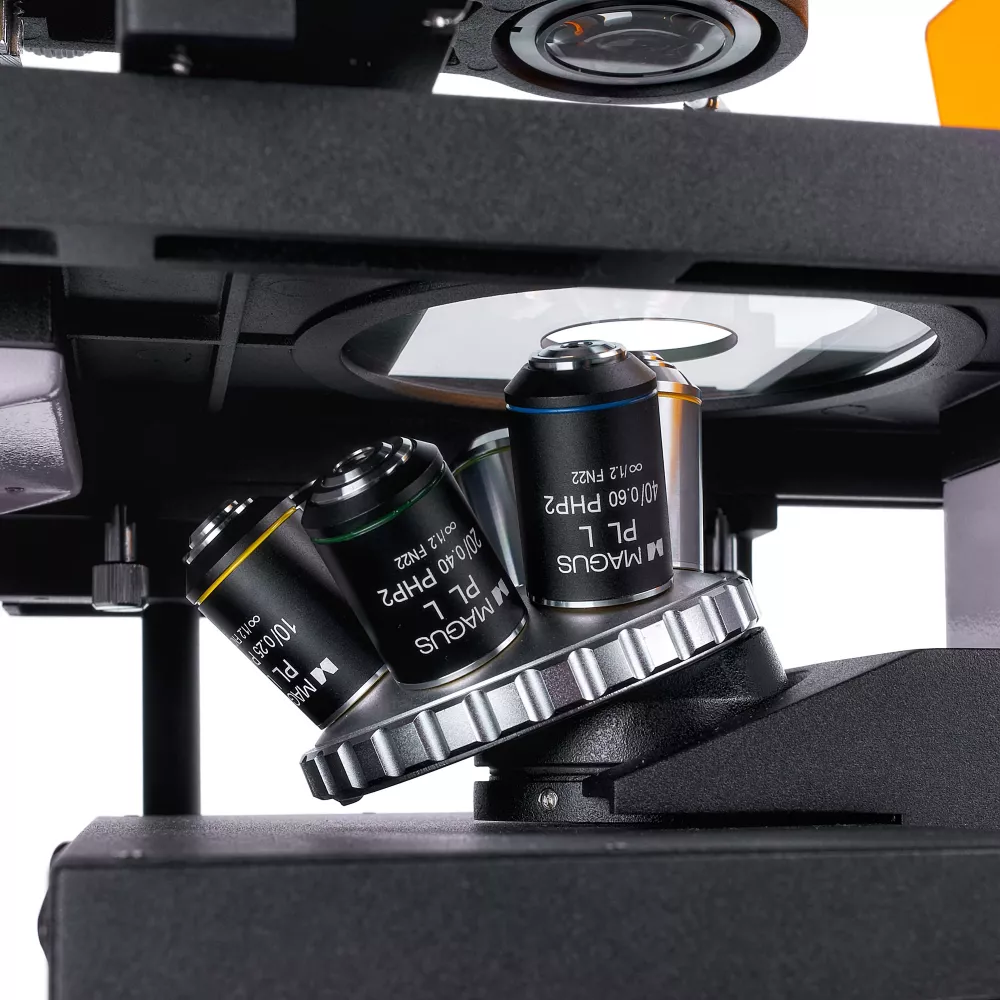

The set includes six planar achromatic objectives: three for brightfield and fluorescence microscopy, and three more for phase contrast microscopy. These are infinity corrected, long working distance lenses. The revolver head has six places to accommodate the objectives. The revolver head is attached to the stand under the specimen table.

Illumination
The fluorescent excitation source is a 5 W LED with a lifetime of 50,000 hours, non-replaceable. There are three excitation filters: DAPI, FITC, and TRITC fluorochrome filters. LED lighting is more energy efficient and easier to maintain than mercury lighting, so it is recommended for use in universities. LED lighting provides uniform colors. The LEDs turn on and off quickly and do not overheat even during long periods of operation.

The source of the transmitted light is also a 5 W LED. Bright enough for bright field and phase contrast microscopy techniques with all objectives.

Both reflected and transmitted illumination can be adjusted according to the Köhler method. This allows the maximum resolution of each objective lens to be achieved and provides a clear, sharp image without artifacts and darkening of the edges.

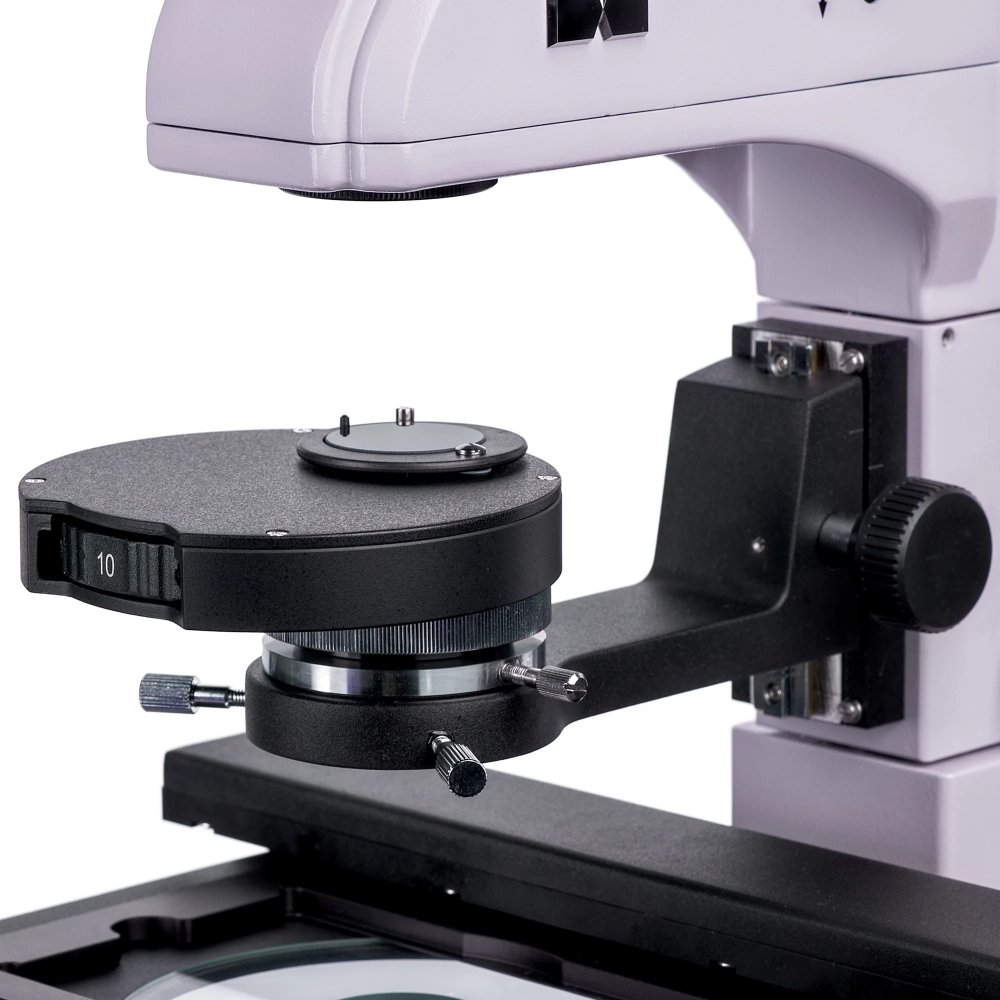

The microscope has a phase-contrast condenser: Three apertures can be used for 10x, 20x and 40x magnification phase objectives, and the fourth aperture for bright-field microscopy. The phase rings can be centered. You can switch between microscopic techniques by turning the dial.

Stage and focusing mechanism

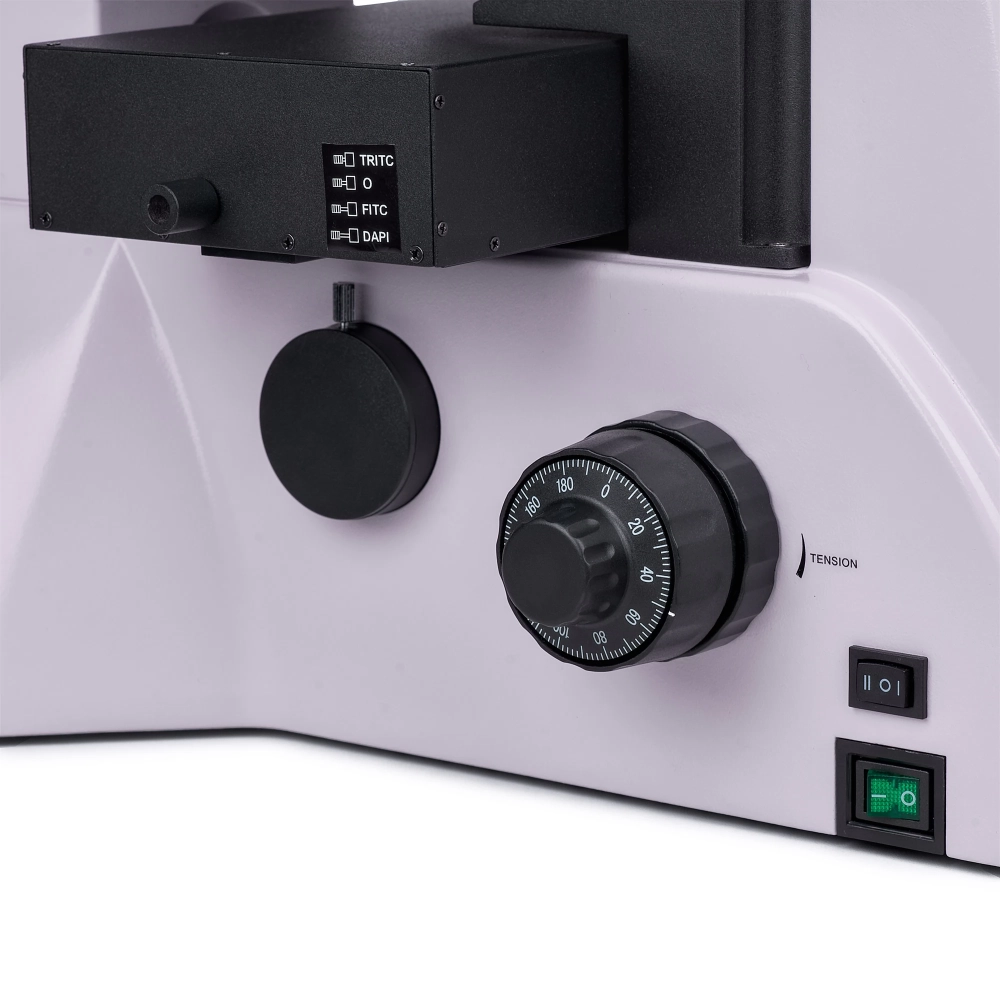

The fixed stage has a mechanical attachment for moving laboratory vessels and three cup holders of different sizes. The laboratory vessel can be moved in two mutually perpendicular directions in the horizontal plane. The microscope has both a coarse and fine focusing mechanism. The coarse focusing mechanism has a lock button and is adjustable in tension. With the ergonomically designed buttons, the user can work in a comfortable position.

Accessories
The microscope can also be equipped with additional eyepieces, calibration slides or a digital camera from the MAGUS accessory range.

- For observing samples in inverted construction 1.2 mm bottom thickness laboratory vessels, for samples up to 55 mm high, up to 165 mm high with the stand tilted up
- Microscopic techniques: fluorescent (reflected light), bright field and phase contrast (transmitted light)
- Köhler lighting arrangement for reflected and transmitted light; as a light source, long-lasting, non-replaceable 5 W LEDs
- There are three excitation filters: DAPI, FITC and TRITC fluorochrome filters.
- Phase-contrast condenser for fast, convenient switching between microscopy techniques
- Three-eye lens head part; two options for attaching a digital camera and monitor: 100:0/ 0:100 beam splitting (on the frame), 80:20 ratio splitting (on the head)

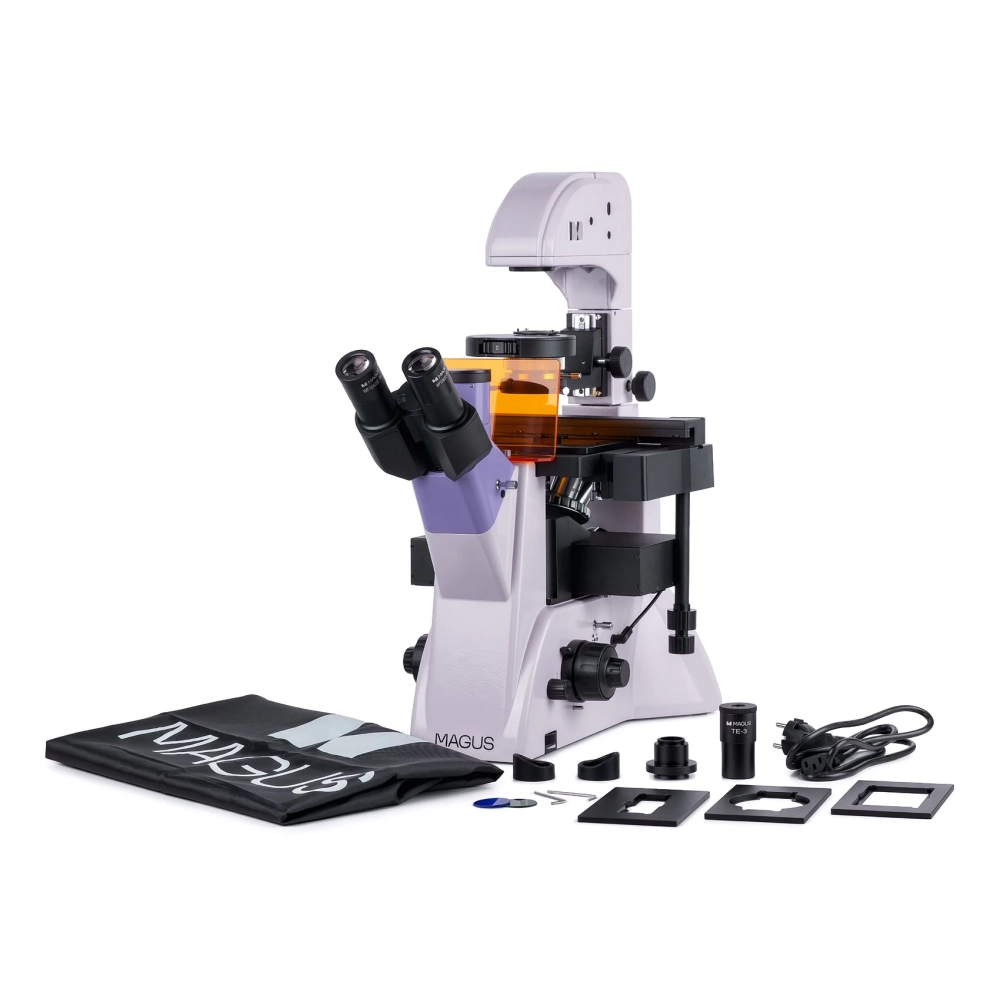

Contents of the set
- Base with power input, reflective lighting, transmitted light source, condenser, focusing mechanism, stage and turret head
- Head piece with three eye lenses
- Infinity plane achromatic lens: PLL 10x/0.25 phase WM 4.3 mm
- Infinity plane achromatic objective: PLL 20х/0.40 SzM 8.0 mm
- Infinity plane achromatic lens: PLL 40х/0.60 SzM 3.5 mm
- Infinity plane achromatic objective: PLL 10x/0.25 PHP2 SzM 4.3 mm
- Infinity plane achromatic objective: PLL 20x/0.40 PHP2 SzM 8.0 mm
- Infinity plane achromatic objective: PLL 40x/0.60 PHP2 SzM 3.5 mm
- 10x/22 mm eyepiece with long eye distance (2 pcs.)
- UV shield
- C-socket adapter 1x
- Allen key
- Power cord
- Dust cover
- User manual and warranty card
