MAGUS Epi-FL04 LED epi-fluorescence accessory fluorescent filter cubes FITC/ TRITC/DAPI

Florurescent technique can be used with EPI-Fouurescent accessory. The fluorescent technique uses that some materials emit light with a light wavelength. Some samples show their own fluorescence, while others should be treated with fluorochromes.

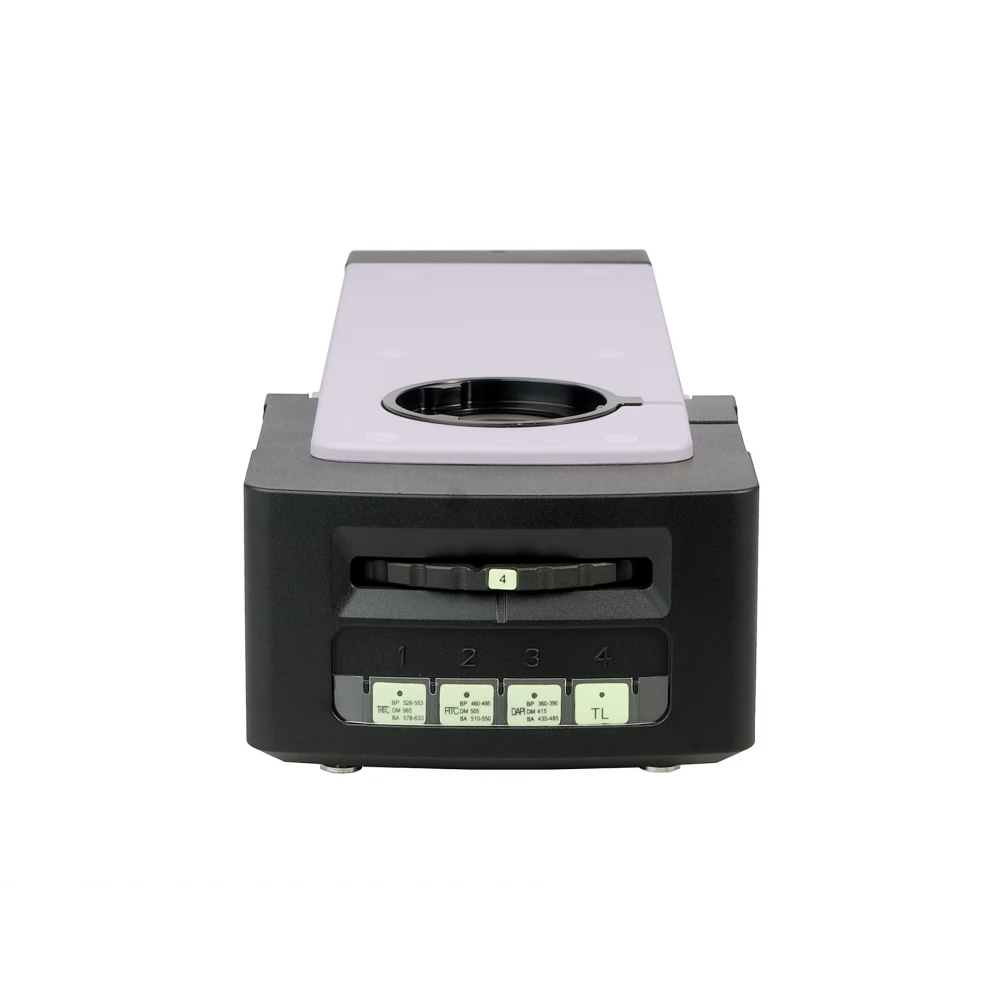

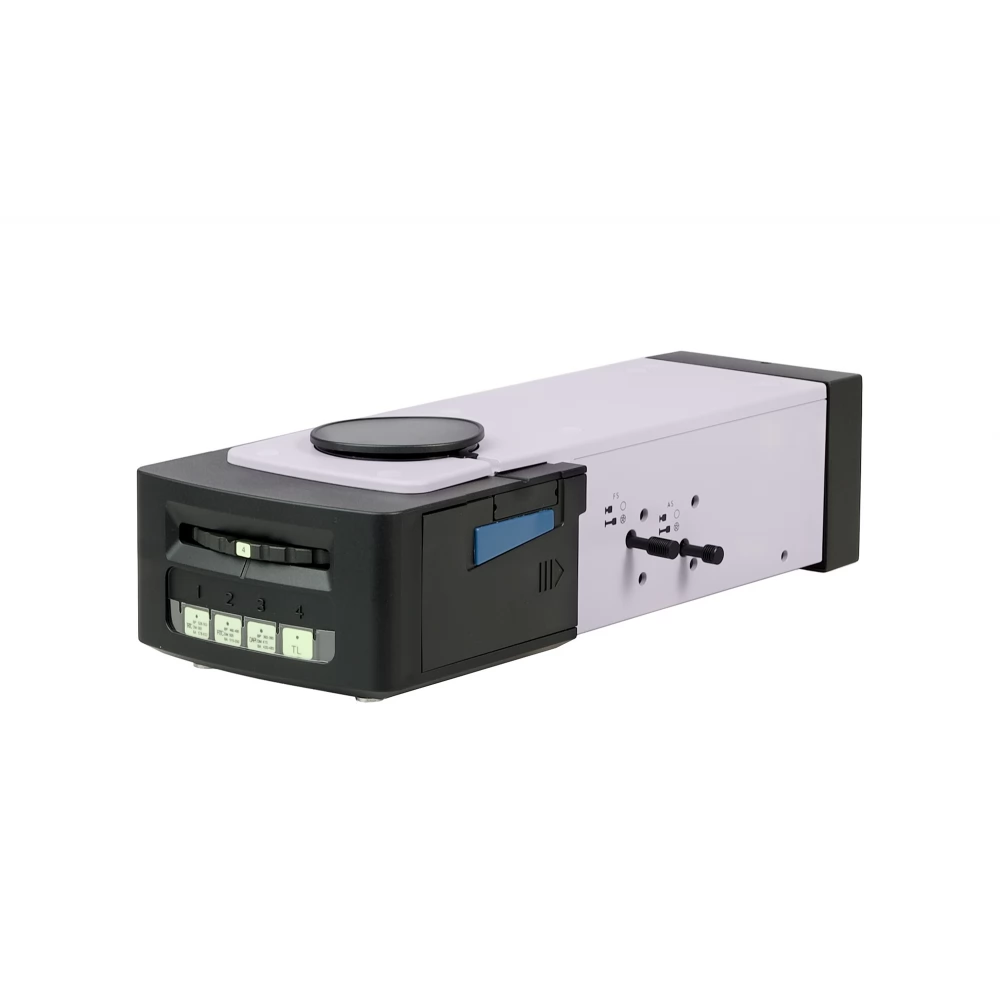

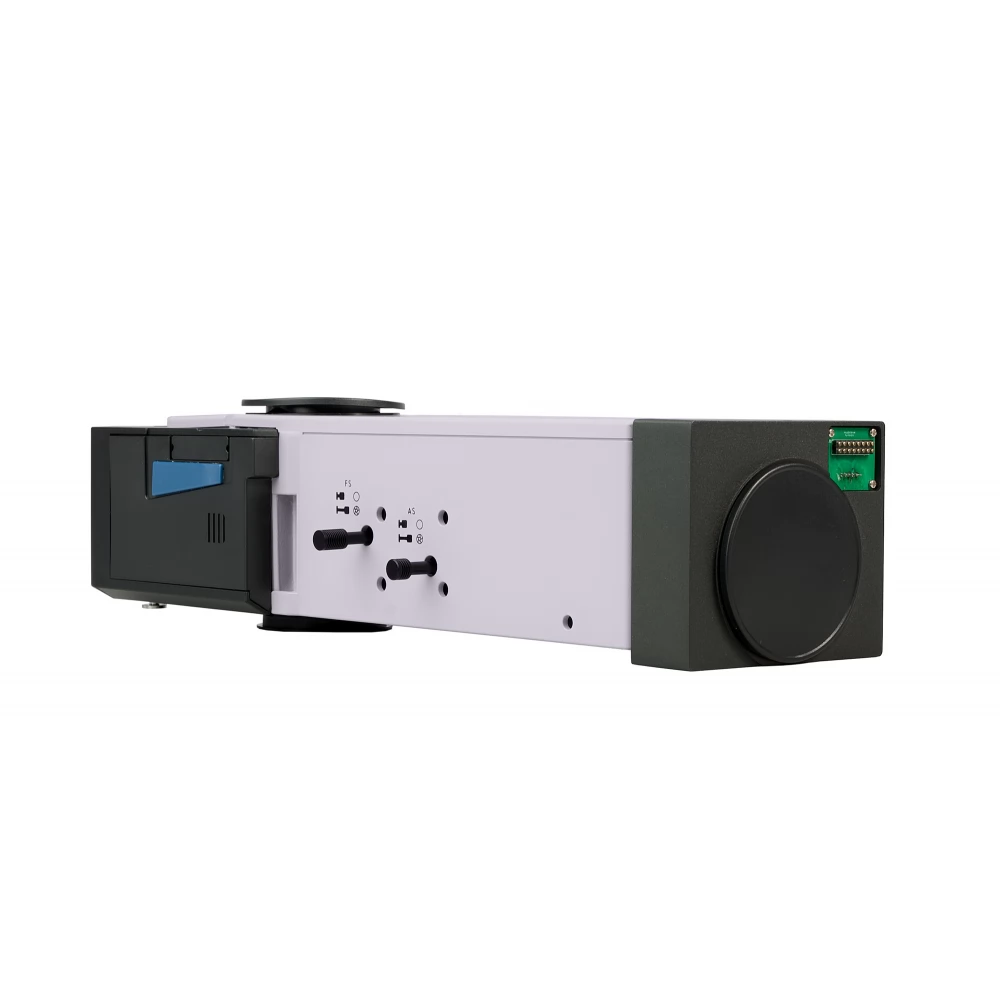

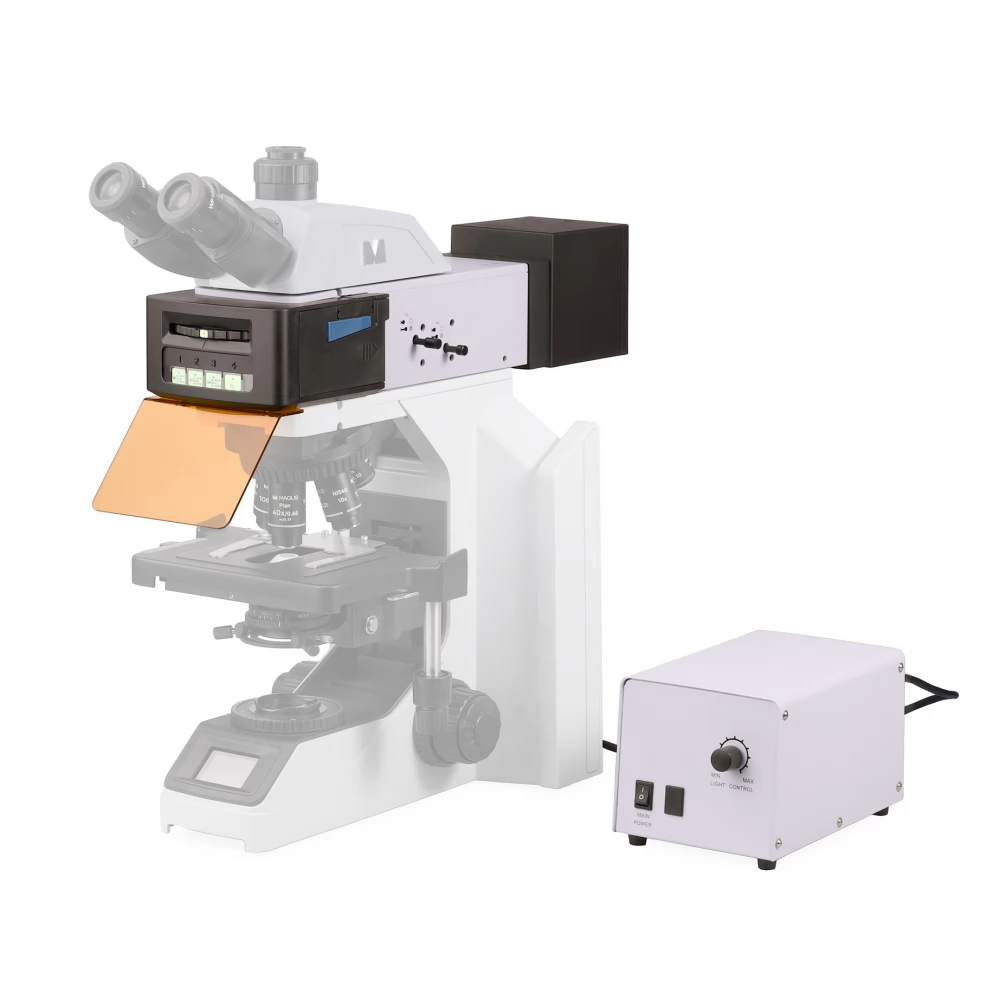

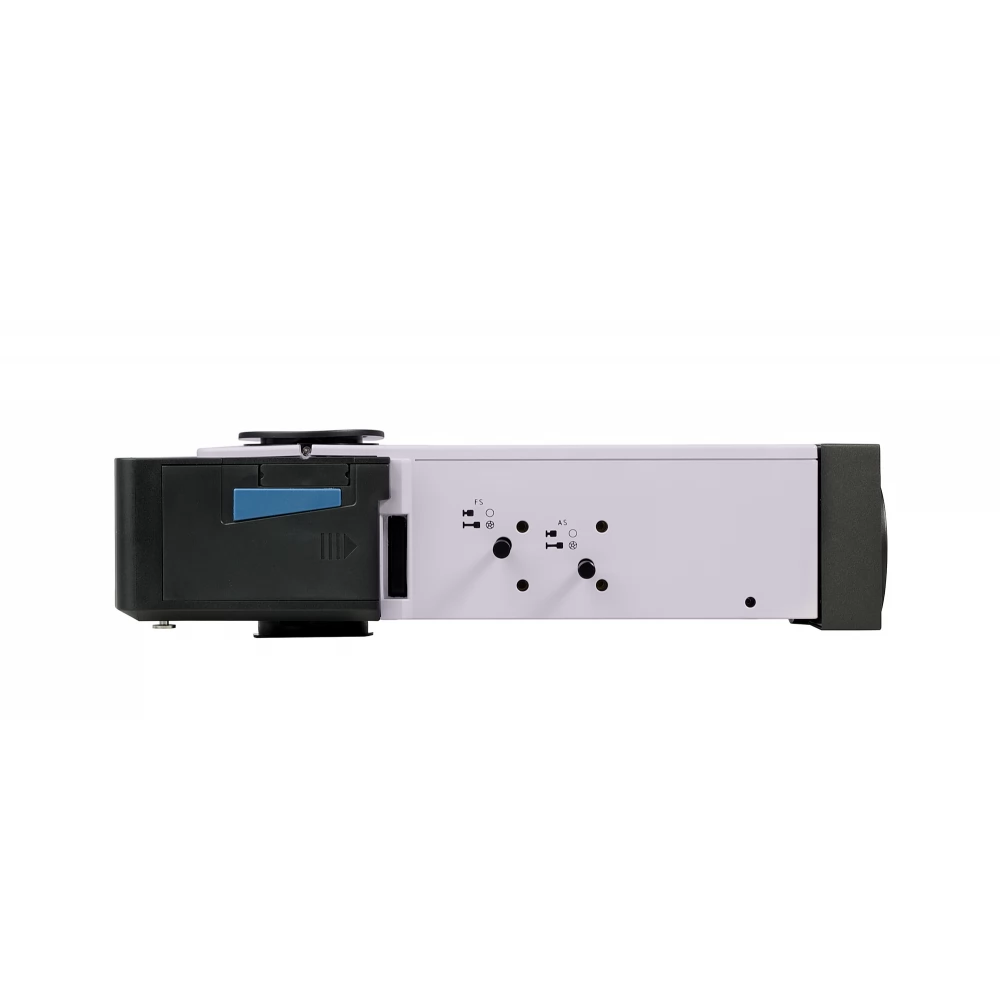

The accessory is mounted on a light path between the microscope head and the stand. The accessory has a 4 -position rotary line with three narrow -band fluorescence filters for dapi, FITC and Tritc fluorochromes. The desired filter can be brought into the way of light by turning the ring. One of the positions of the magazine corresponds to the clear vision observation.

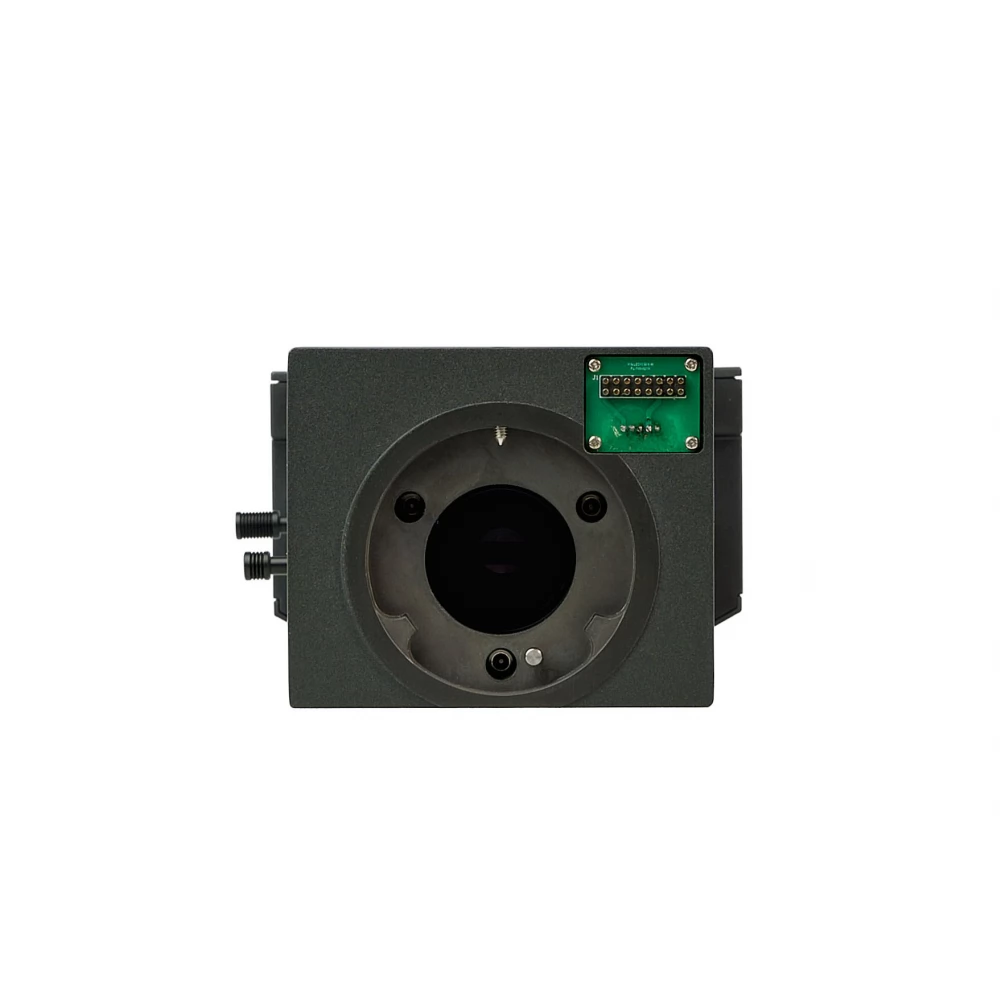

The excitation light sources are LEDs. The LEDs immediately reach the user's brightness, do not heat for prolonged use and turn off quickly if necessary. This makes it easy to switch back and forth between the light-visible technique and the fluorescent technique. LED life is 50,000 hours. In higher education, it is recommended to choose the LED-based fluorescent as it has low maintenance and is the safest.

For fluorescent techniques, the Magus Epi-Fl04 LED is used with the Magus Planf S-APO fluorescent lens set. The Plan semicromatic fluorescent lens increases the resolution of the microscope and reduces color and spherical errors. The image in the eye lens and on the digital camera is cleaner, more contrast and stronger light than the usual plan with an acromatic lens. A large numeric aperture of fluorescent lenses increases the resolution of the microscope while reducing depth of field. Therefore, we recommend the use of normal lenses with greater depths for glossy observations from the microscope set.

Compatibility
- Magus Bio 270T Biological Microscope

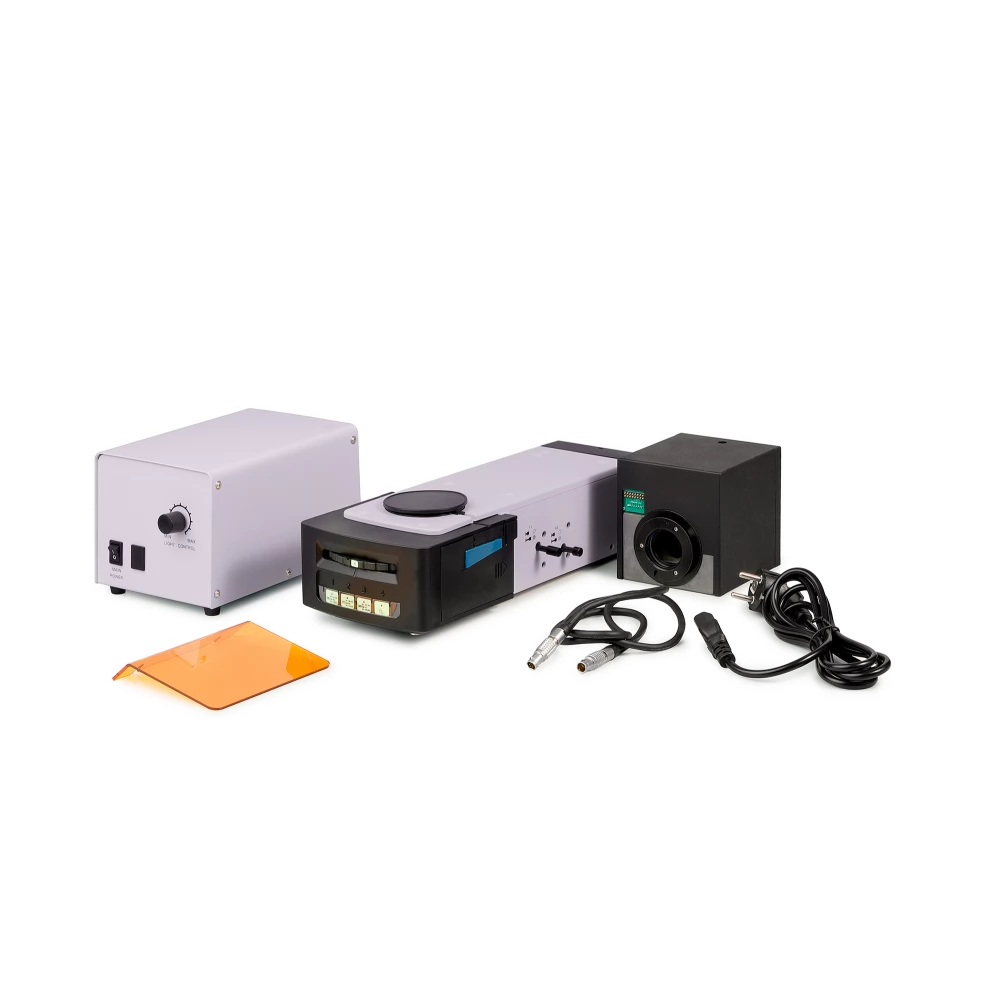

Package
- Epi-fouorescent accessory
- FITC/TRITC/DAPI Fluorescent Filter Cubs
- UV-shield
