Research quality microscope.
Designed for the study of precipitated fluids, cell colonies, live cells, tissue cultures, and other stained and unstained specimens in laboratory glassware.
Thanks to its inverted design, it can also be used with Petri dishes, cell culture plates, vials, cylindrical bottles and flasks with a bottom thickness of 1.2 mm up to 75 mm. Thanks to its special lenses, the microscope enables working with such glassware.
By removing the condenser, you can observe cell cultures in Petri dishes or even 187 mm cylindrical flasks.
The samples are studied using the transmitted light (bright field of view and phase contrast) microscopic technique.
Installation of optional components allows the use of Hoffman modulation contrast and relief contrast.
The microscope is used for research in the fields of medicine, pharmacology, biology and virology. The most advanced configuration of the microscope is suitable for in vitro fertilization (IVF).

Microscope head

Binocular head part with optical elements corrected to infinity. The digital camera is installed in the side port on the microscope head. The division of the light beam is 100/0 or 0/100.

Revolver head

Coded turret for 5 lenses. An additional lens can be installed in the free aperture to achieve extra magnification.

Lenses

Long working distance, infinity plane achromatic objectives for dishes with a bottom thickness of 1.2 mm. The parfocal distance is 60 mm.
One lens is for the bright field method and three more lenses are for the phase contrast method.

Maintaining comfortable brightness when switching between magnifications

Lenses of different magnification transmit light at different intensities, so when changing lenses, you must always adjust the brightness. Also, the brightness suddenly increases when switching from a higher magnification lens to a lower magnification. The sudden increase in brightness causes eye fatigue. MAGUS Bio V360 has intelligent brightness control. The microscope remembers the brightness selected by the user for each objective and automatically adjusts to that brightness as the turret head is rotated. Intelligent control reduces the time required to adjust the brightness. MAGUS Bio V360 increases the user's comfort and saves time even if you have to frequently switch between magnification levels during work.

Focusing mechanism

The coarse and fine focus buttons are coaxial and positioned low. The researcher can place his hands on the table so that he can assume a comfortable position during observation.
The coarse focus lock button allows quick adjustment of the microscope after changing the test object. The knob is located on the left side of the microscope, on the same axis as the focusing mechanism.
The ring on the right adjusts the tightness of the coarse focus range of motion. The user can set a voltage that is comfortable for work.

Object table

The mechanical stage is fixed. A special mechanism was installed on the specimen table, which moves the laboratory glassware in two mutually perpendicular directions. Smooth and gentle movement of the object ensures accurate examination - no part of the sample escapes your attention.
The long stage control handle ensures the user's comfort while working: his hand can rest on the table without straining it.
The microscope set also includes a universal dish holder.

Condenser

A phase contrast slider is installed in the condenser. The phase contrast rings can be centered. Use the slider to save time when switching between microscopy techniques.
A relief contrast slider or a Hoffman modulation contrast slider can be installed in the condenser opening.

Illumination

The brightness of the 3 W LED is sufficient for bright field or phase contrast techniques with any type of lens. The color temperature does not change when the brightness is changed. The lifetime of the LED bulb is 50,000 hours.

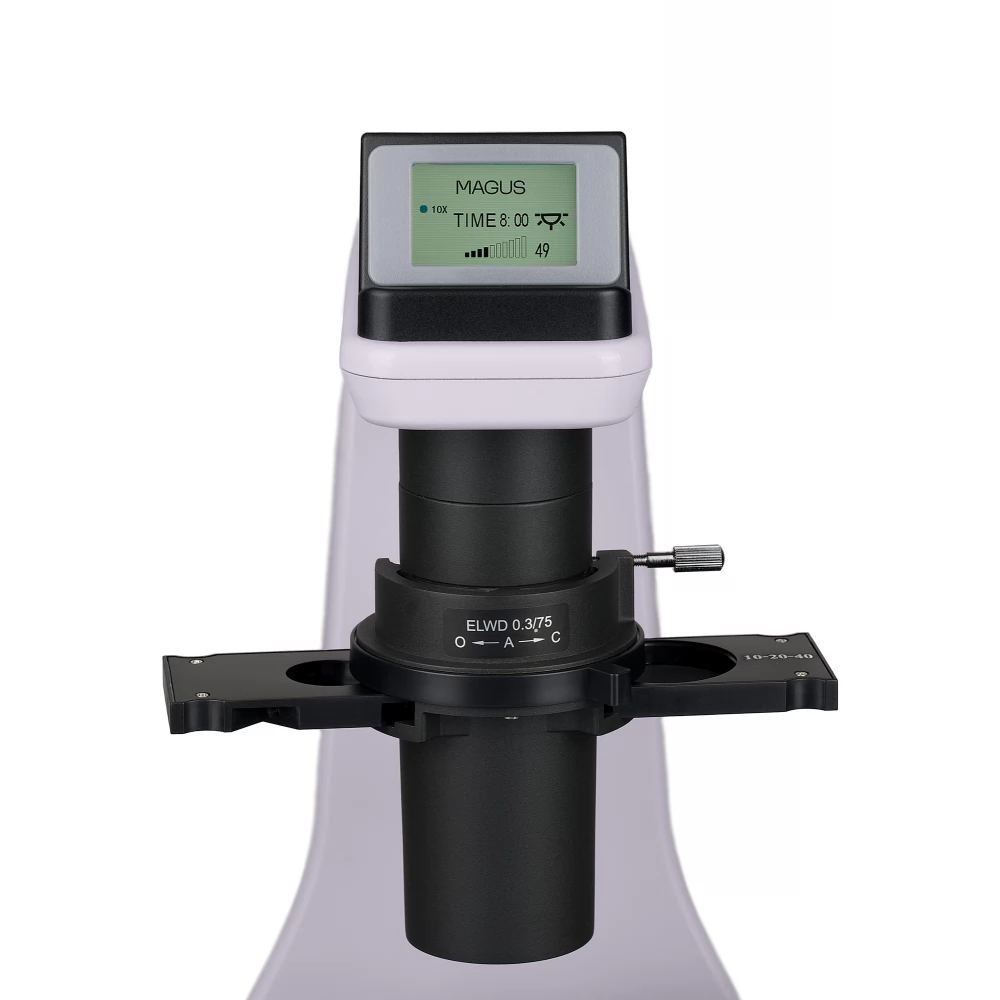

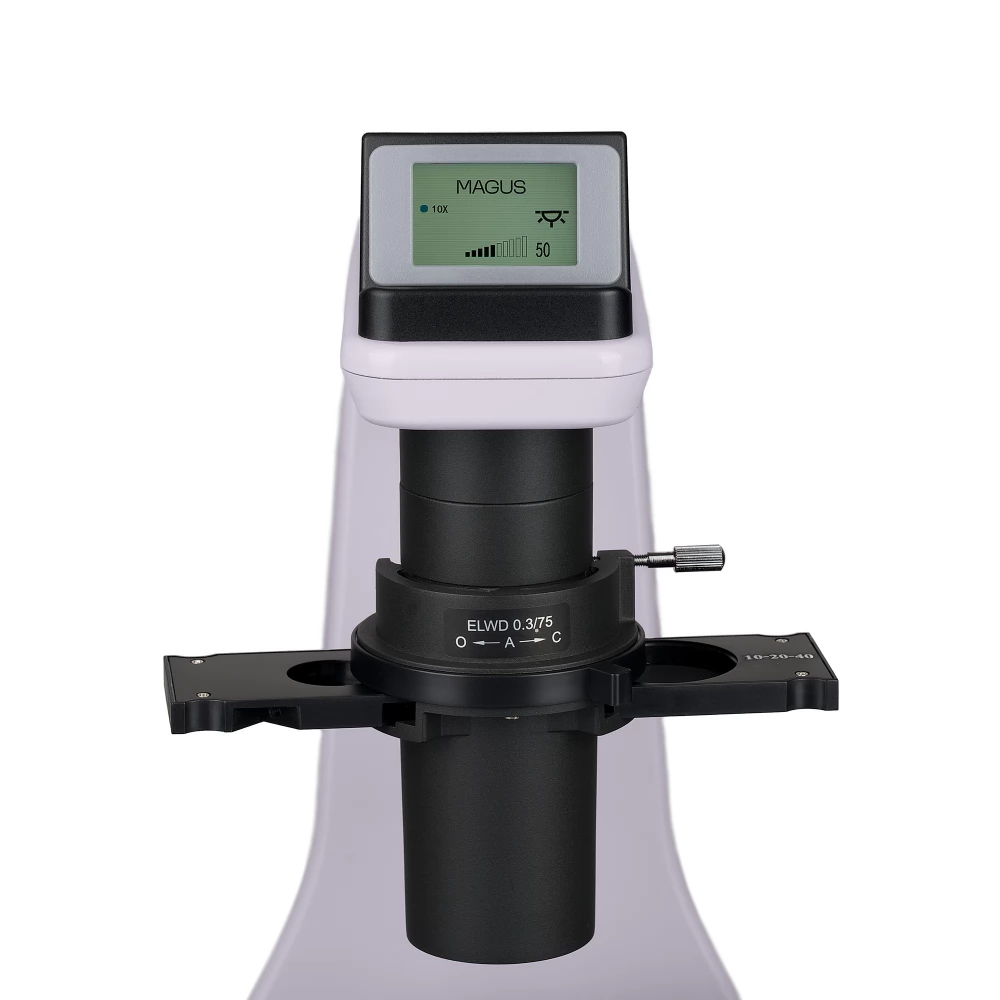

LCD status display

The LCD screen on the base of the microscope displays the magnification of the objective, the brightness of the light source and the operating mode ("sleep", "eco").
The screen and two buttons allow the microscope user to adjust the brightness, lock the brightness setting, and set the sleep mode and auto-off timer.

Ergonomic design

Physical discomfort causes fatigue and reduces productivity. The ergonomic design of the microscope plays an important role in everyday scientific research work.
MAGUS Bio V360 provides the user with comfortable work.
The head part of the microscope is positioned at an ergonomic angle, so that the back and neck do not get tired.
Thanks to the low, compact stage, the user can comfortably control the sample and work with laboratory glassware.
Due to the long handle of the driving mechanism
