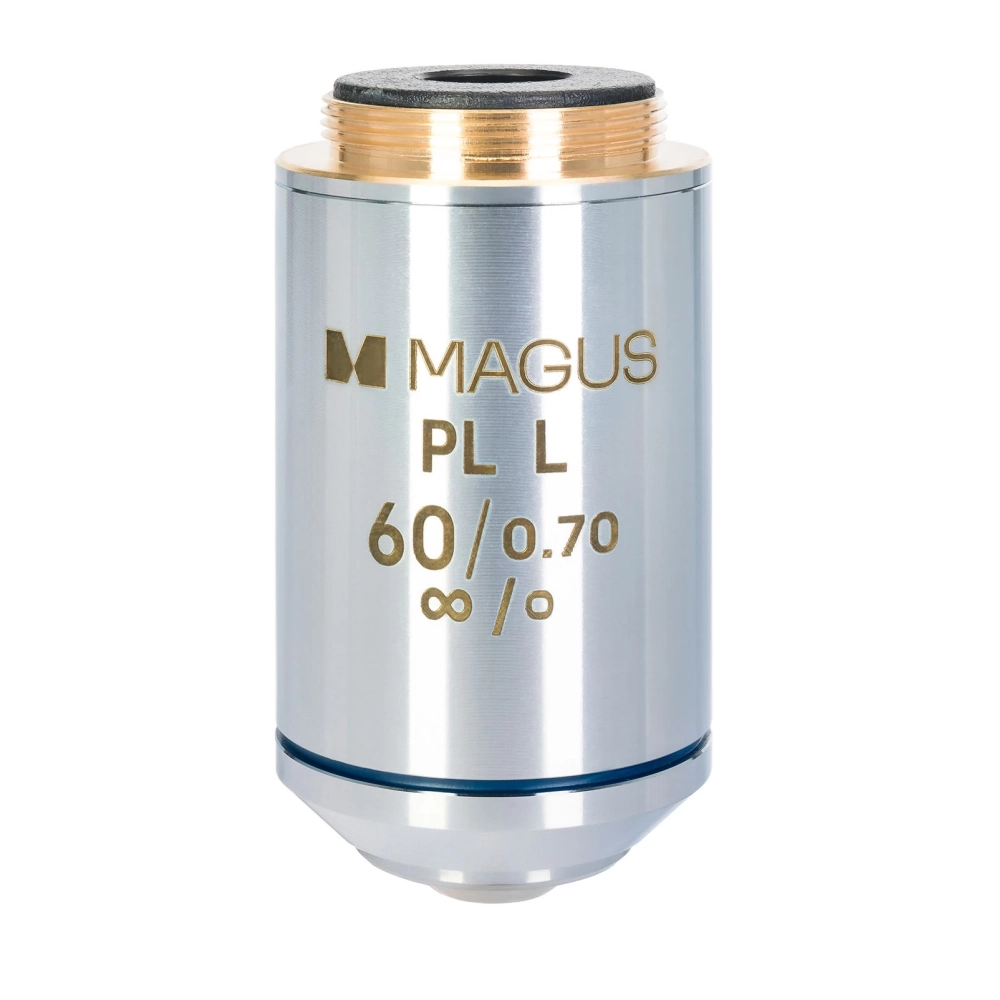

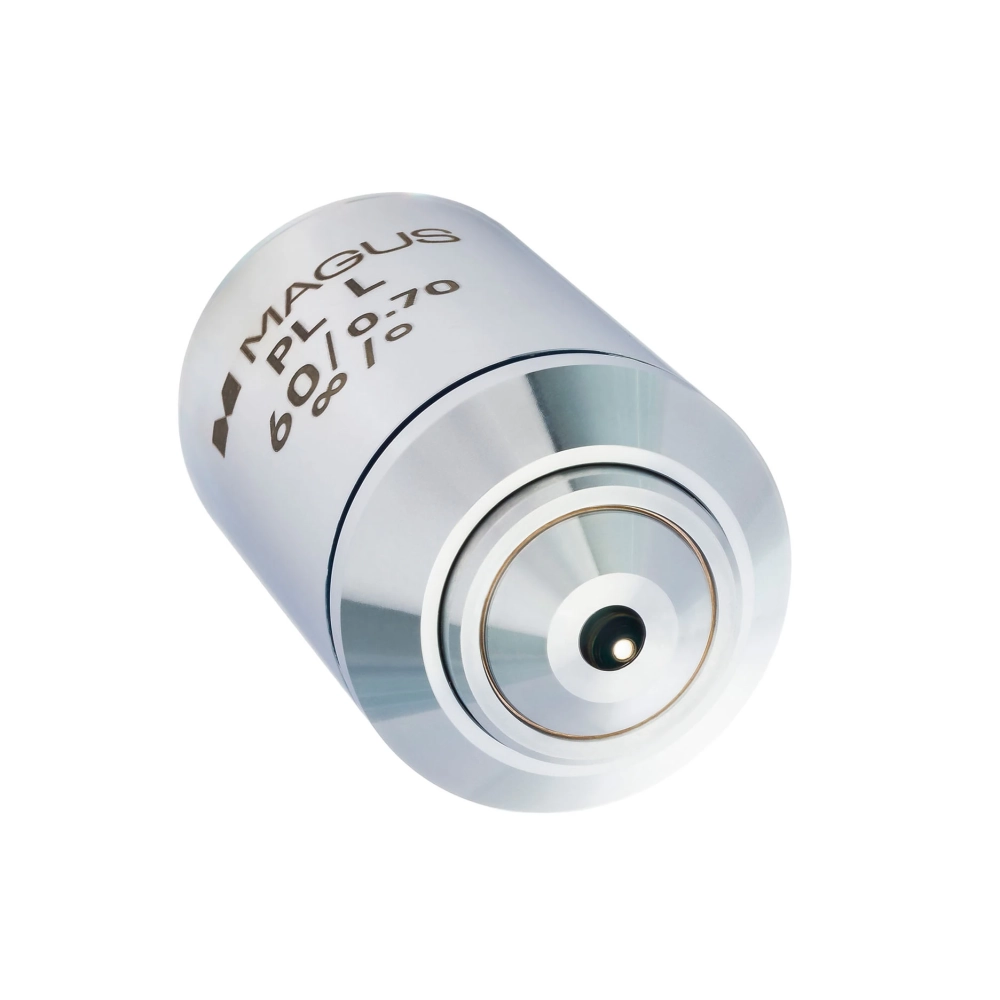

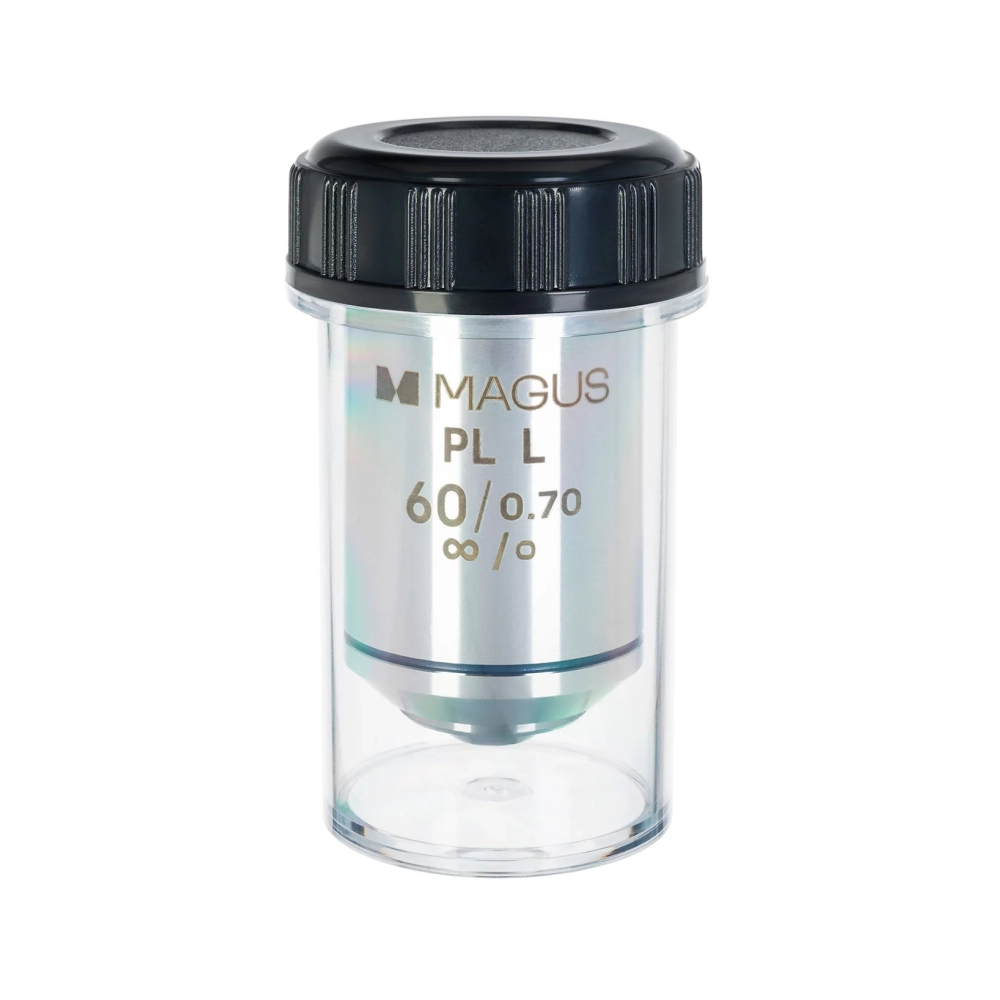

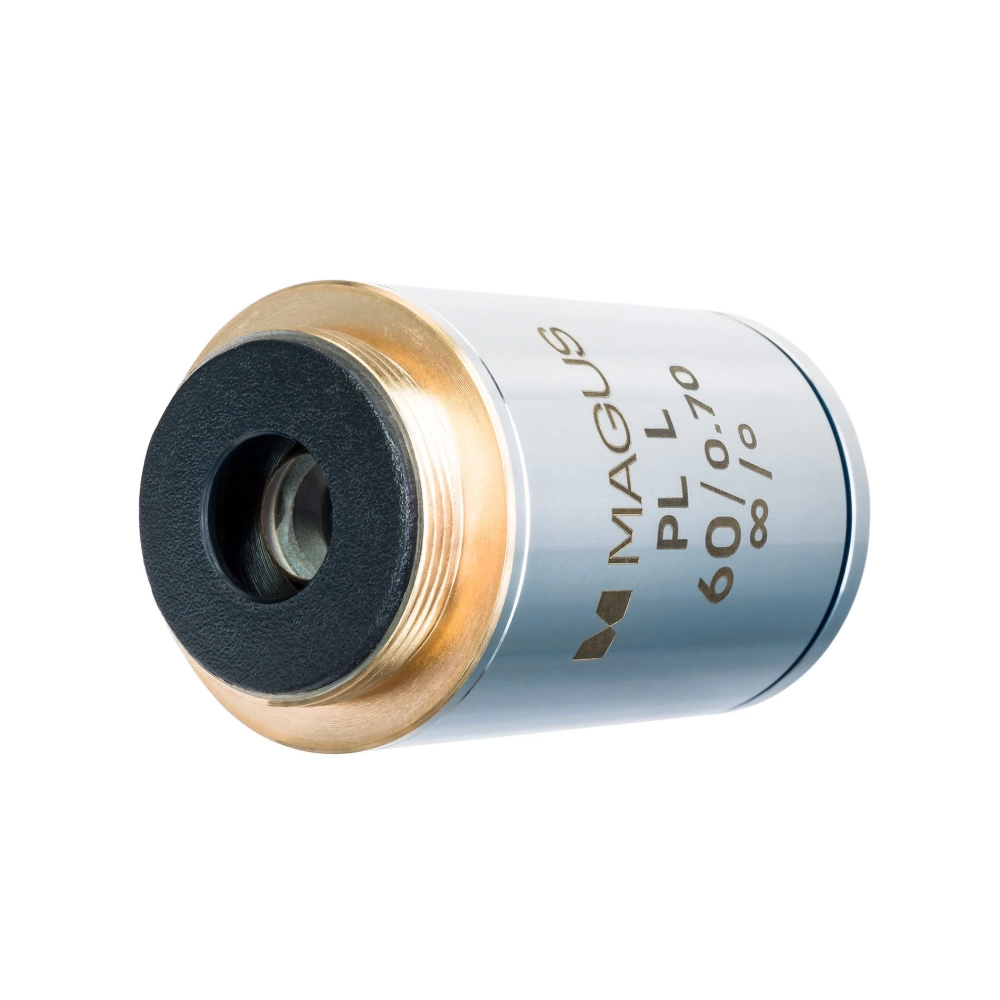

MAGUS 60PLL 60х/0.70 Plan H SzM 2.08 mm objective

Metallographic lens designed for research work with a long working distance. Suitable for working with convex patterns. The working distance of the objective is 2.08 mm. No cover glass is required for its use. The objective is designed for use with microscopes with an infinity-corrected optical system. The parfocality of the lens is 45 mm.

The 60x plano-achromatic objective corrects chromatic aberration for red and blue, and spherical aberration for green. The field of view is in focus both in the center and at the edges (90%). Thanks to this, the lens works well with wide-angle (22 mm) eyepieces. The highest image detail can be achieved with eyepieces with magnification between 5x and 15x. Combined with a 10x/22 mm eyepiece, you can get a field of view of 0.36 mm.

The maximum resolution of the objective is 0.39 µm. The useful microscopic magnification of the model is between 350x and 700x.

Specifications
- Lens material: optical glass
- Lens class according to aberration correction: plane-achromatic
- Tube length: corrected to infinity (∞)
- Contrast technique: clear field of view
- Degree of magnification, (multiplier): 60
- Aperture: 0.70
- Working distance, mm: 2.08
- Parfocal distance, mm: 45
- Cover glass thickness, mm: without cover glass
- Frame with spring structure: +
- Immersion: −
- Frame material: copper

Compatibility
- MAGUS Metal 600 metallographic microscope
- MAGUS Metal 630 metallographic microscope
- MAGUS Metal 650 metallographic microscope
- MAGUS Metal V700 metallographic inverted microscope
