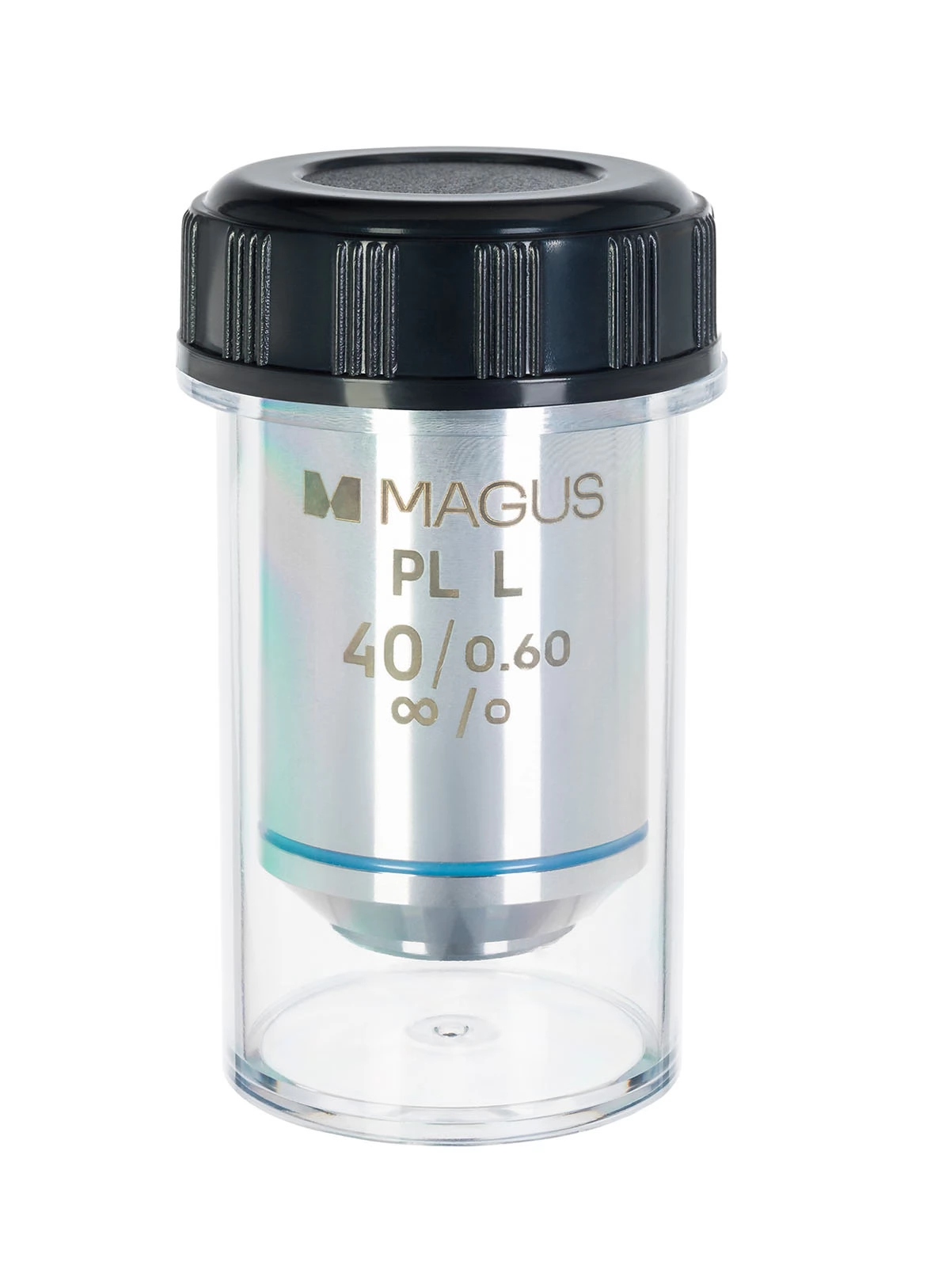

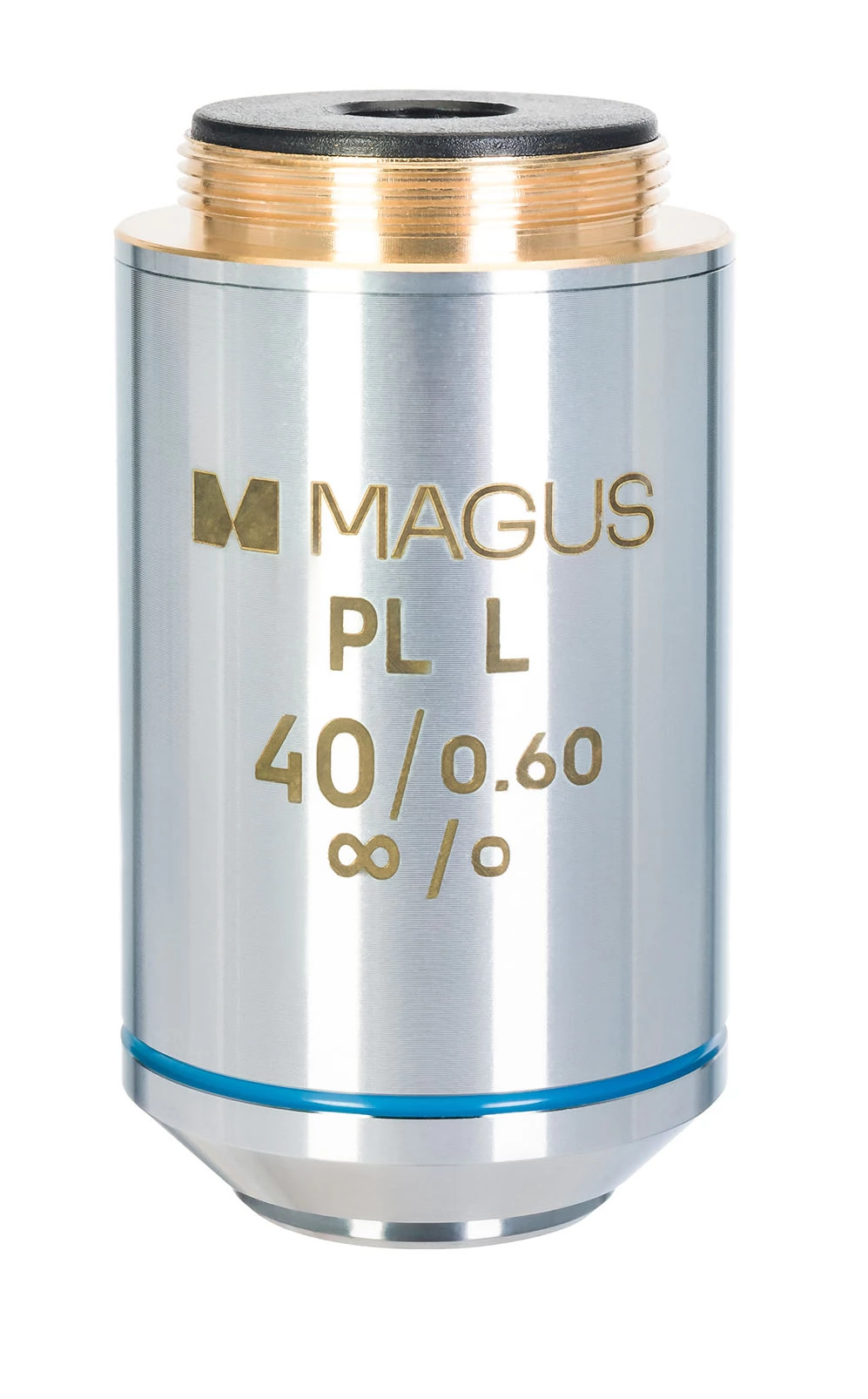

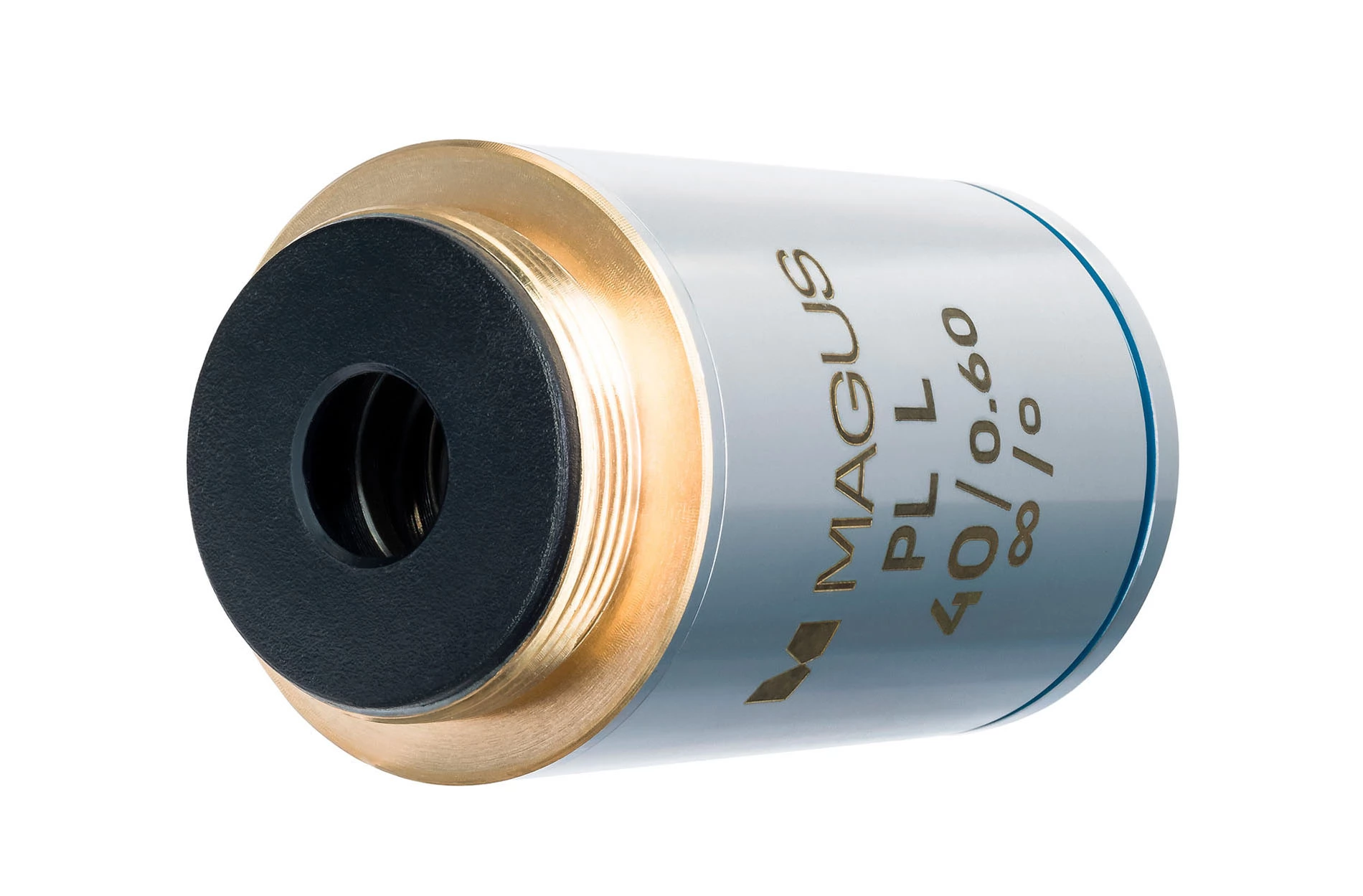

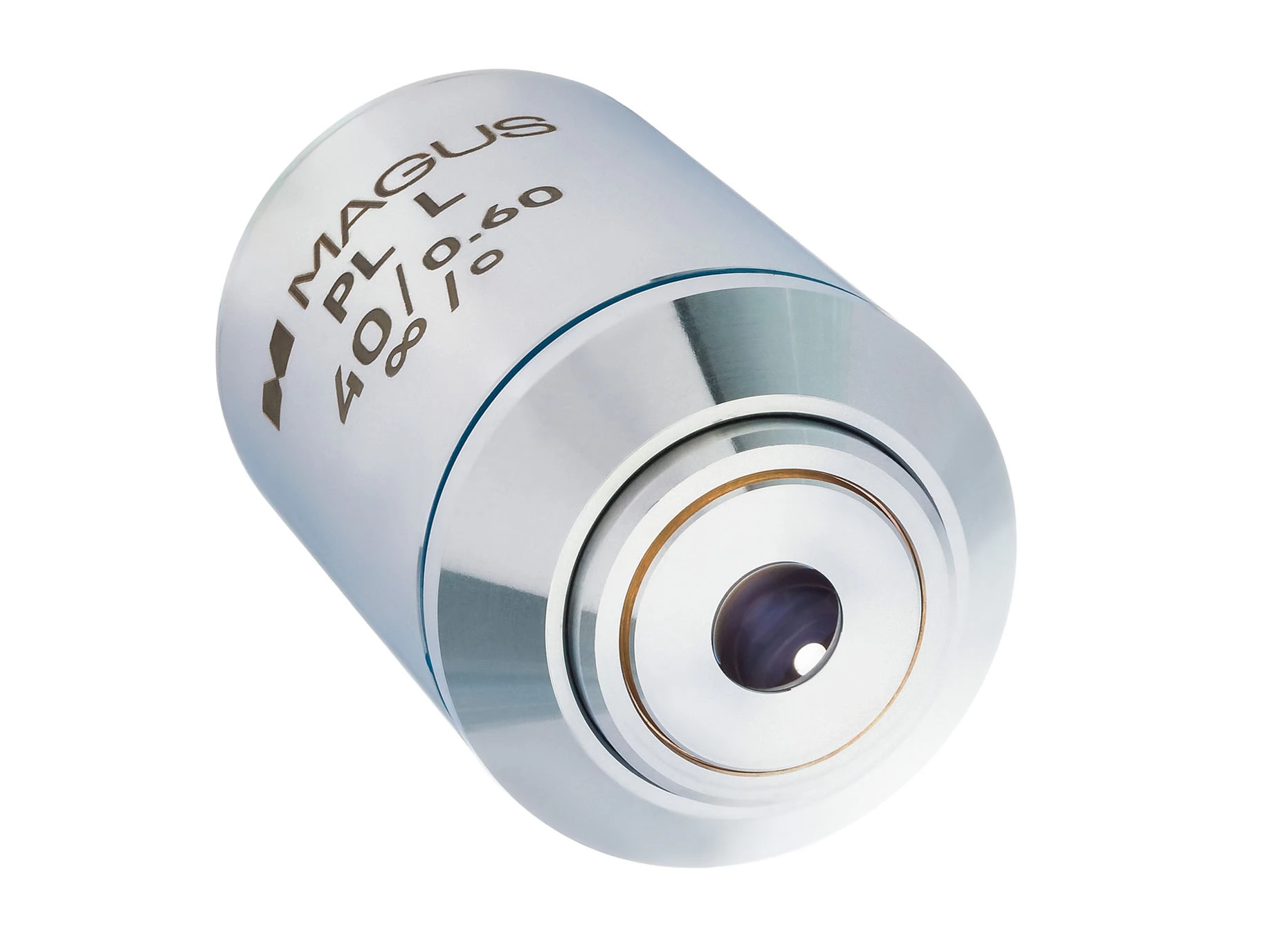

40x magnification, 0.46 µm maximum resolution objective. Designed for use with metallographic microscopes. It can be used to monitor objects with non-flat surfaces. In order not to damage the surface of the lens in such conditions, the lens has a long (3.98 mm) working distance. The lens is used without a cover glass.

The plane-achromatic lens eliminates chromatic distortion for blue and red, and spherical distortion for green. Thanks to the properties of plano-achromatic lenses (they correct the curvature of the field of view by 90%), it provides a wide and distortion-free field of view.

The lens is designed for infinity and has a parfocal length of 45 mm. It can be used well with wide (22 mm) eyepieces. The best image detail is achieved with 7x to 15x magnification eyepieces. Combined with a 10x/22 mm eyepiece, it provides a field of view of 0.55 mm. The useful microscope magnification with this objective will be 300-600x.

Specifications
- Lens material: optical glass
- Lens class according to aberration correction: plane-achromatic
- Tube length: corrected from infinity to infinity (∞)
- Contrast technique: clear field of view
- Degree of magnification, (multiplier): 40
- Aperture: 0.60
- Working distance, mm: 3.98
- Parfocal distance, mm: 45
- Cover glass thickness, mm: without cover glass
- Frame with spring structure: +
- Immersion: −
- Frame material: copper

Compatibility
- MAGUS Metal 600 metallographic microscope
- MAGUS Metal 630 metallographic microscope
- MAGUS Metal 650 metallographic microscope
- MAGUS Metal V700 metallographic inverted microscope
