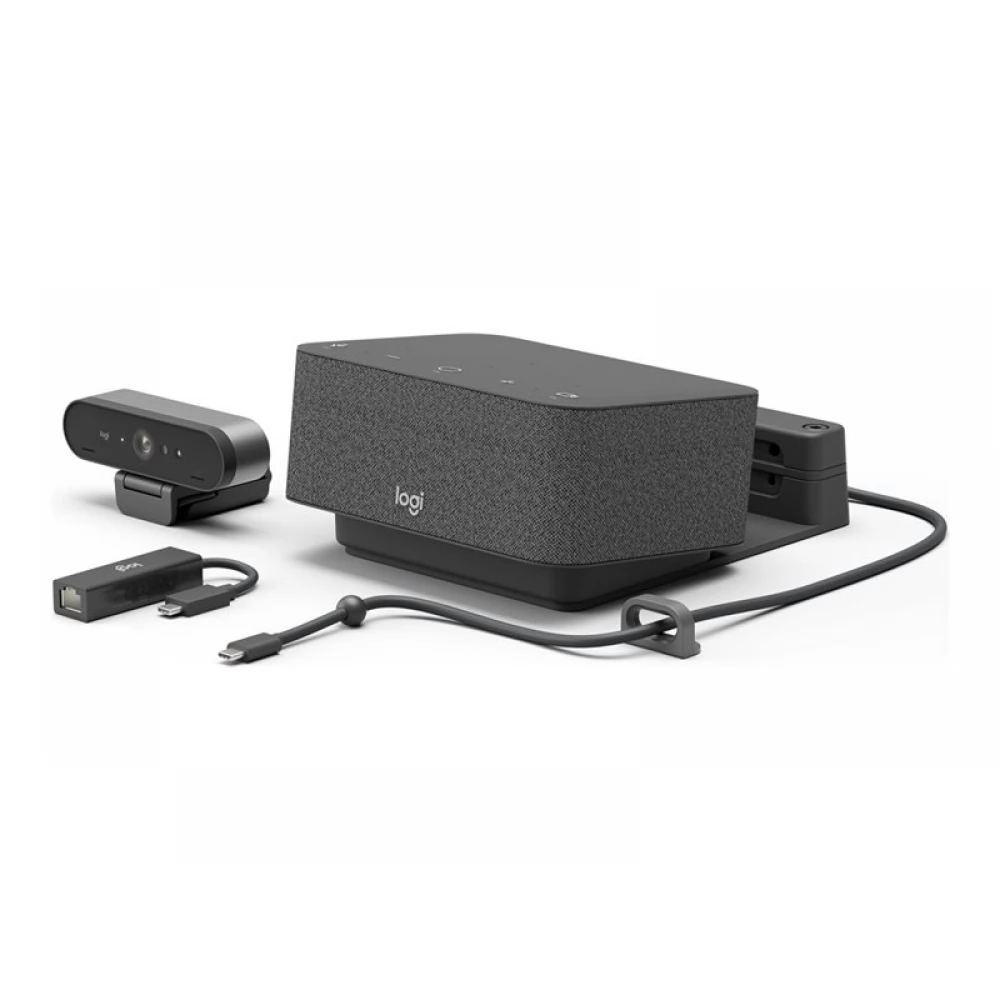

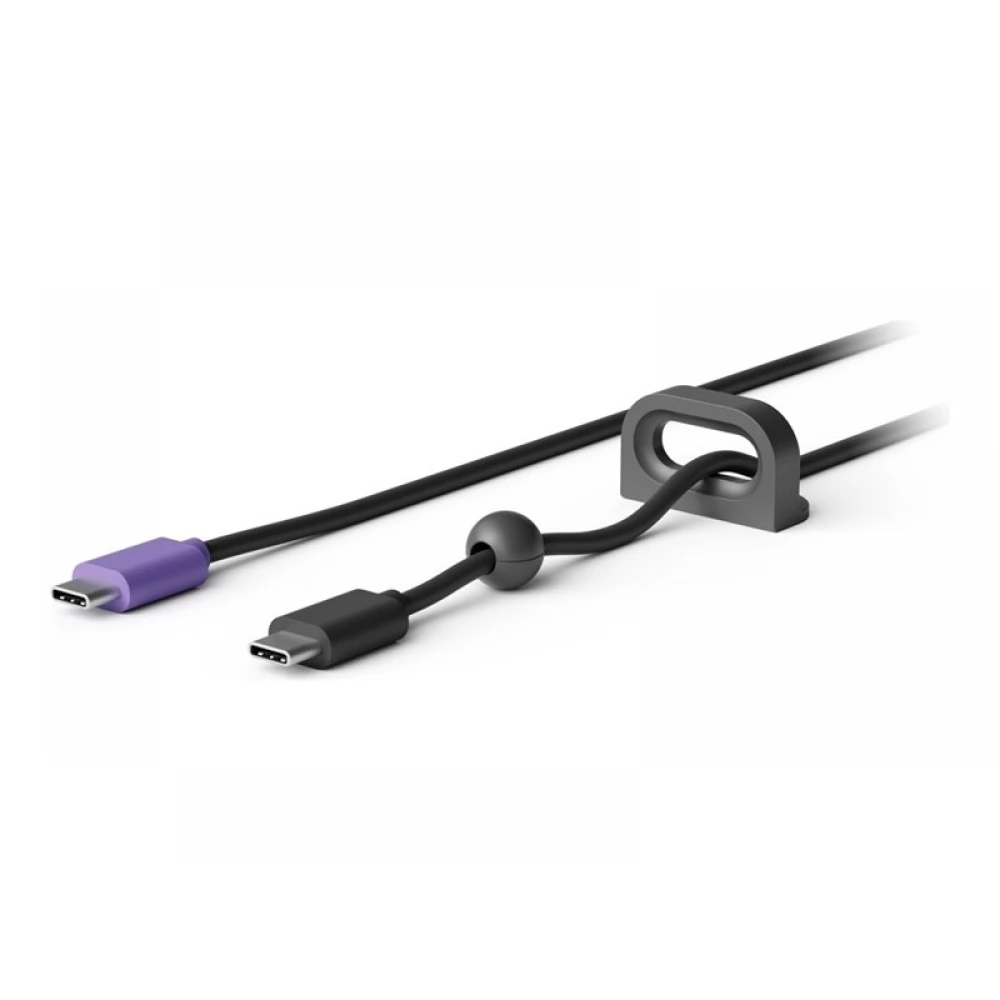

The Logi Dock retreat room set creates the possibility of video collaboration in single-person meeting rooms, retreat rooms or even phone booths. No driver installation required. Simply connect a USB-C cable to your laptop to start video meetings with excellent sound and image quality immediately. The Logi Dock can be used with laptops that support the DisplayPort Alt (direct display access) mode of the USB-C connector - and your laptop will also receive up to 100W of power.

The Logi Dock retreat room kit works seamlessly with popular phone apps on most platforms and operating systems. The products included in the kit are business-grade, including Microsoft Teams, Zoom, Google Meet, Google Voice, and the kit can be used with popular applications such as Cisco Webex, BlueJeans, and GoTo Meeting. It's super easy for employees to use, with less IT hassle.

Due to its elegant design, the Logi Dock fits into any modern workspace, be it a retreat room, your own office or an employee's home desk. Logi Dock improves productivity for hybrid workers by simplifying office setup and reducing desk clutter.

Specifications

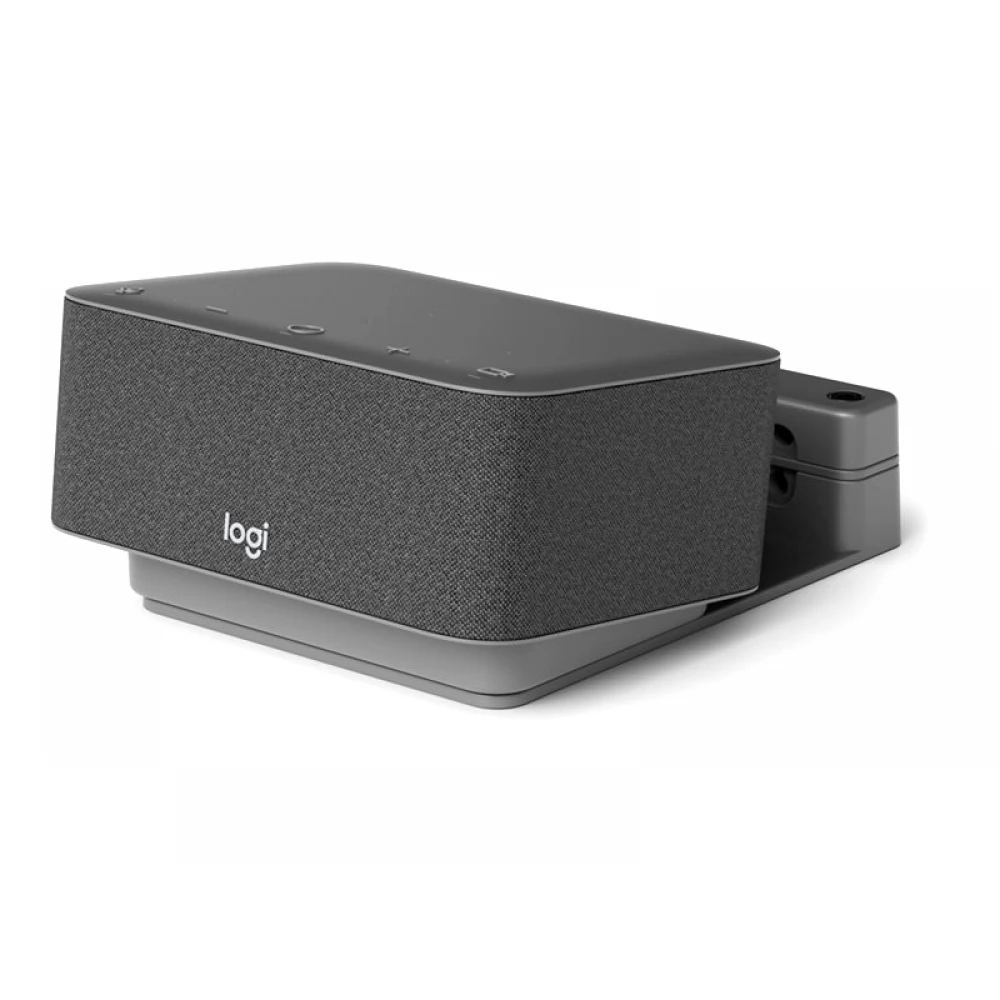

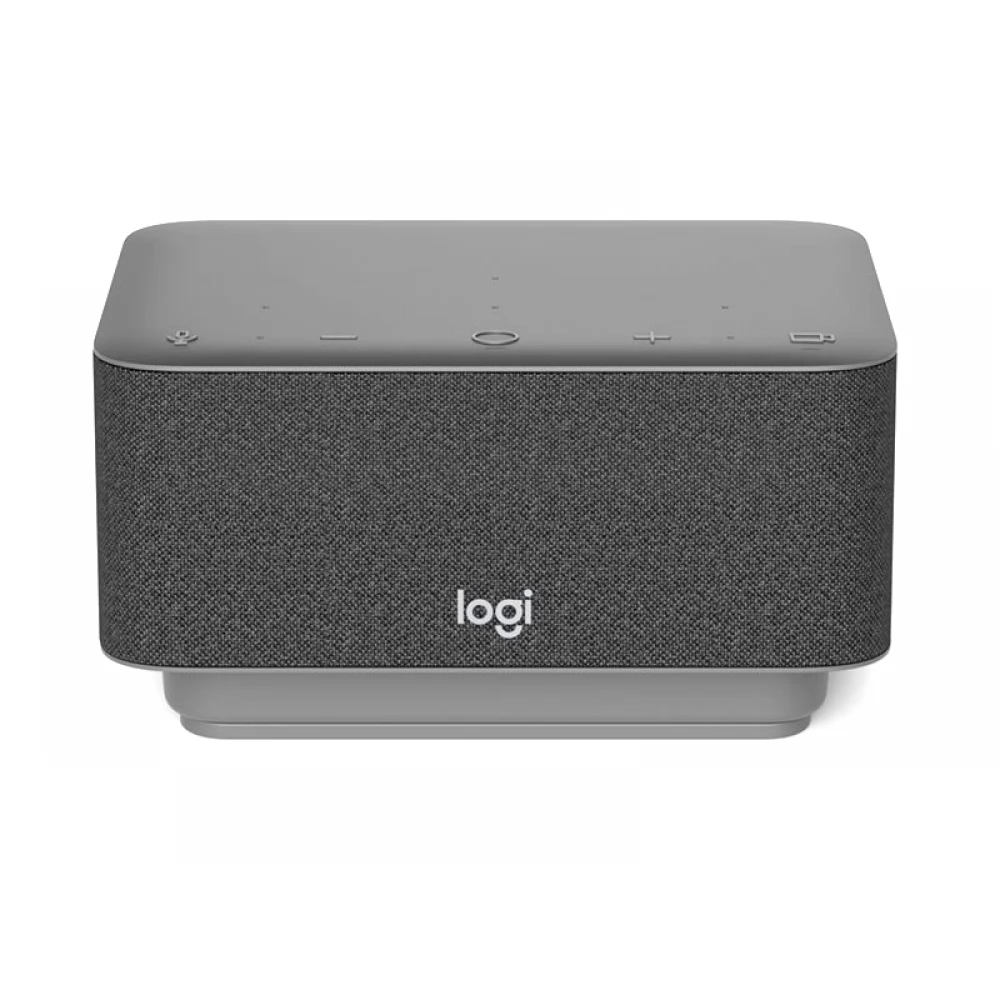

LOGIC DOCK

Speaker

- Frequency response: 60 Hz–20 kHz
- Speaker size: 55 mm

Microphones

- Beamforming microphone array consisting of six microphones
- Frequency response: 65 Hz–8 KHz

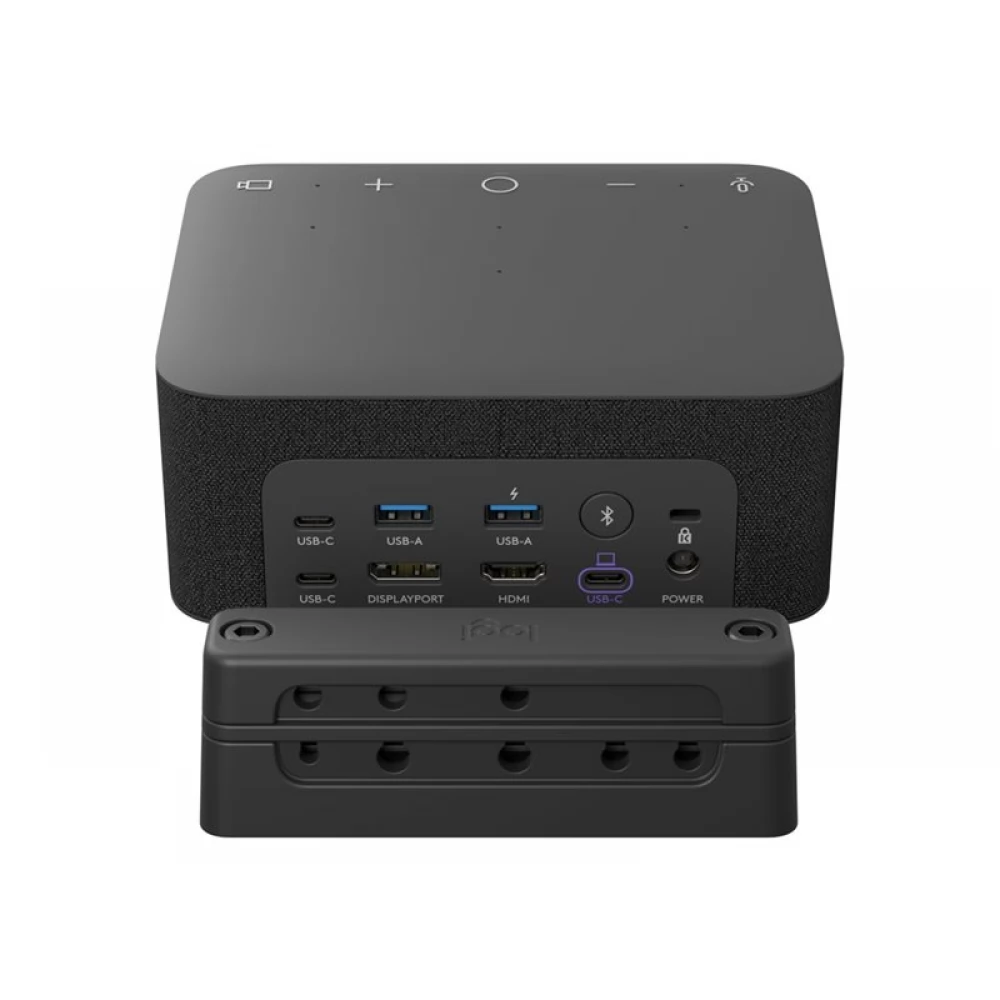

Monitor ports

- 1 x HDMI v. 2.0 (supports up to 4K resolution, i.e. 3840 x 2160 @60Hz HDR)
- 1 x DisplayPort 1.4 (supports up to 4K resolution, i.e. 3840 x 2160 @60Hz HDR)

2 x USB-A

- 1 x USB 3.1 Gen 1 (5 Gb/s) with 4.5 W charging
- 1 x USB 3.1 Gen 1 (5 Gb/s) with 7.5 W fast charging, port marked with a 6A illumination icon

3 x USB-C

- 2 x USB 3.1 Gen 1 (5 Gb/s) with 4.5 W charging
- 1 x USB 3.1 Gen 1 (5 Gb/s) with 7.5 W fast charging
- 1 x USB-C upstream

Other features

- 1 x Bluetooth Sync button
- 1 x mains power supply (230 W, 19.5 V)
- Security slot type: Kensington security lock slot

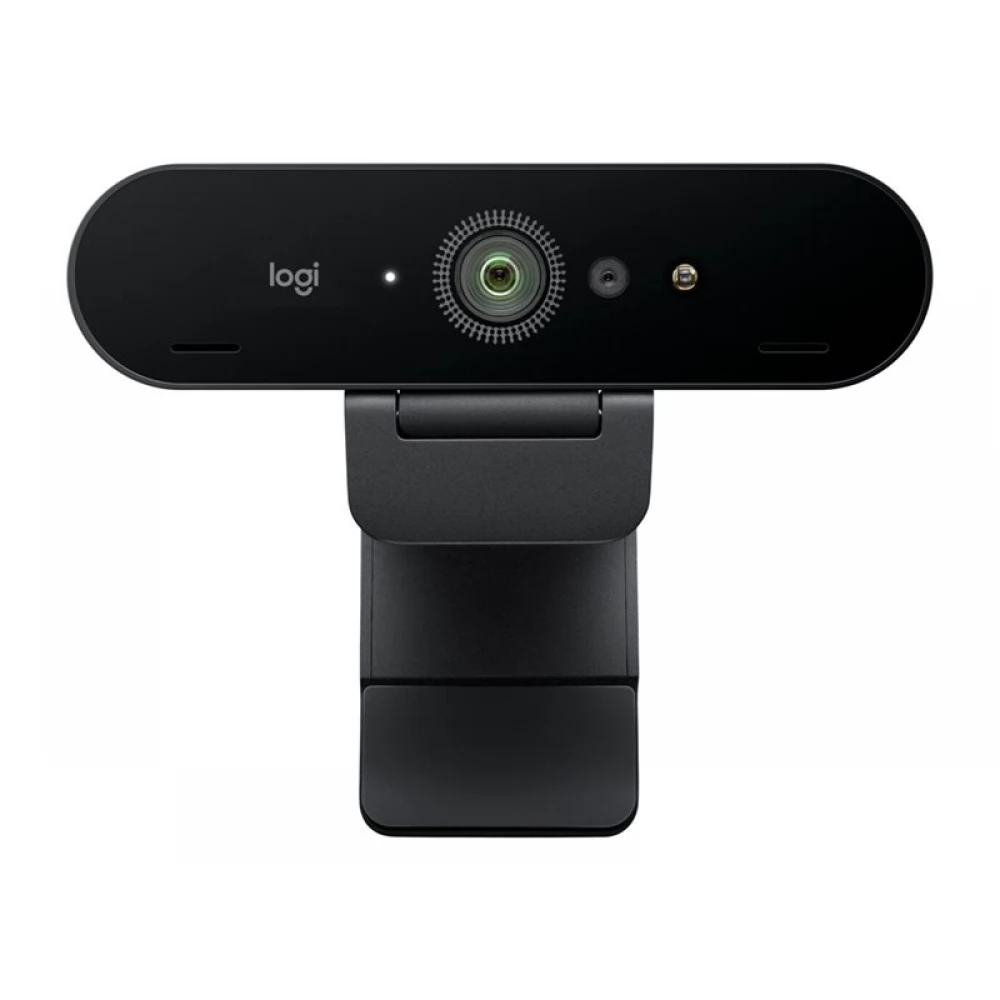

BRIO WEBCAM

- Resolutions: 4K Ultra HD 30 fps, 1080p 30 or 60 fps, 720p 30, 60 or 90 fps
- Zoom: 5x digital zoom in full HD resolution
- Viewing angle: Diagonal: 90°
- Viewing angle: Horizontal: 82.1°
- Viewing angle: Vertical: 52.2°

RightLight technology: RightLight 3 and HDR technology produce clear images in varying lighting conditions, from low light to strong sunlight.
Automatic focusing

The products included in the set are certified for Microsoft Teams, Zoom, Google Meet and Google Voice. It is compatible with the most common phone applications.
