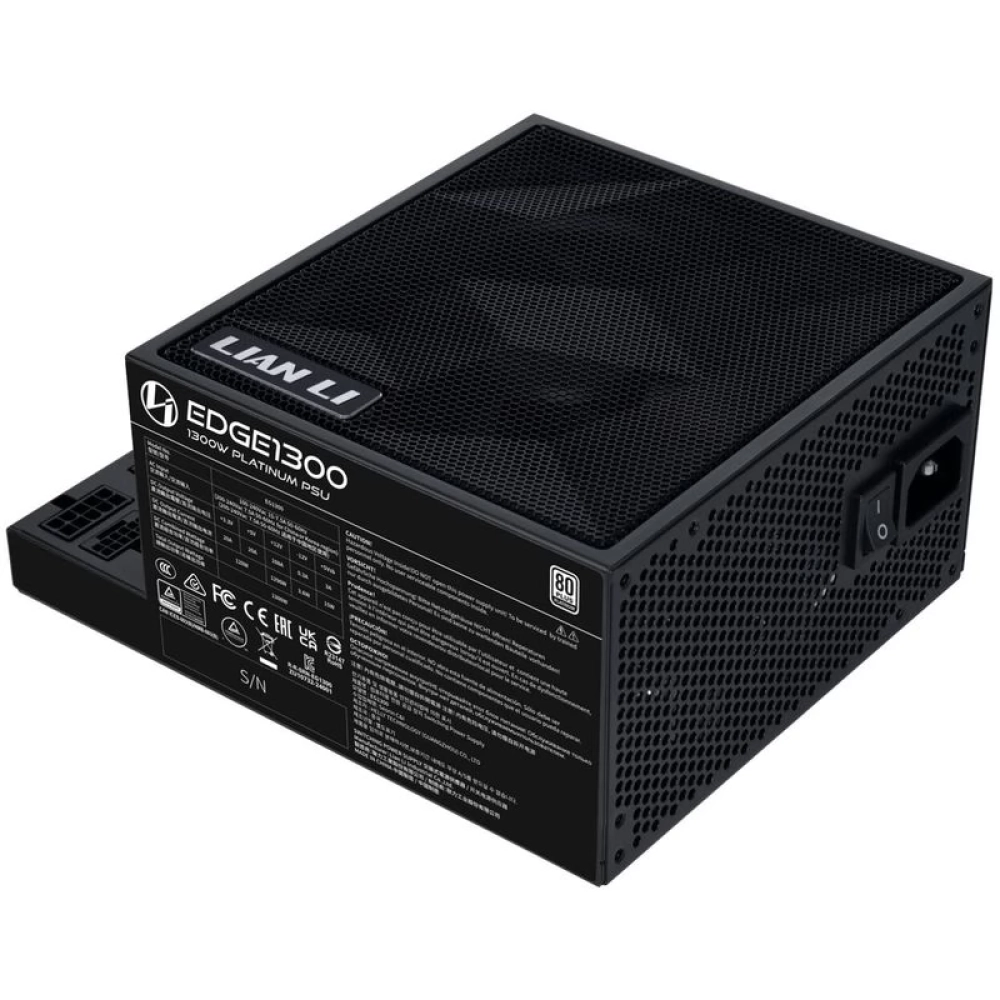

Revolutionary ATX 3.1 power supply: The Lian Li EDGE EG1300 for two-chamber cases
Lian Li EDGE power supplies set a new standard in power supply design, combining high performance with ease of use. The unique L-shaped design and integrated USB hub make these power supplies ideal for dual-chamber design cases such as the iconic Lian Li O11 series. EDGE power supplies, specially designed for such computer cases, are perfect for vertical installation in the second chamber. The design directs the connectors outwards, which facilitates cable routing and ensures a clean, tidy construction.

Two in one: Integrated USB hub for UNI fans, Strimer Plus cable and RGB controller

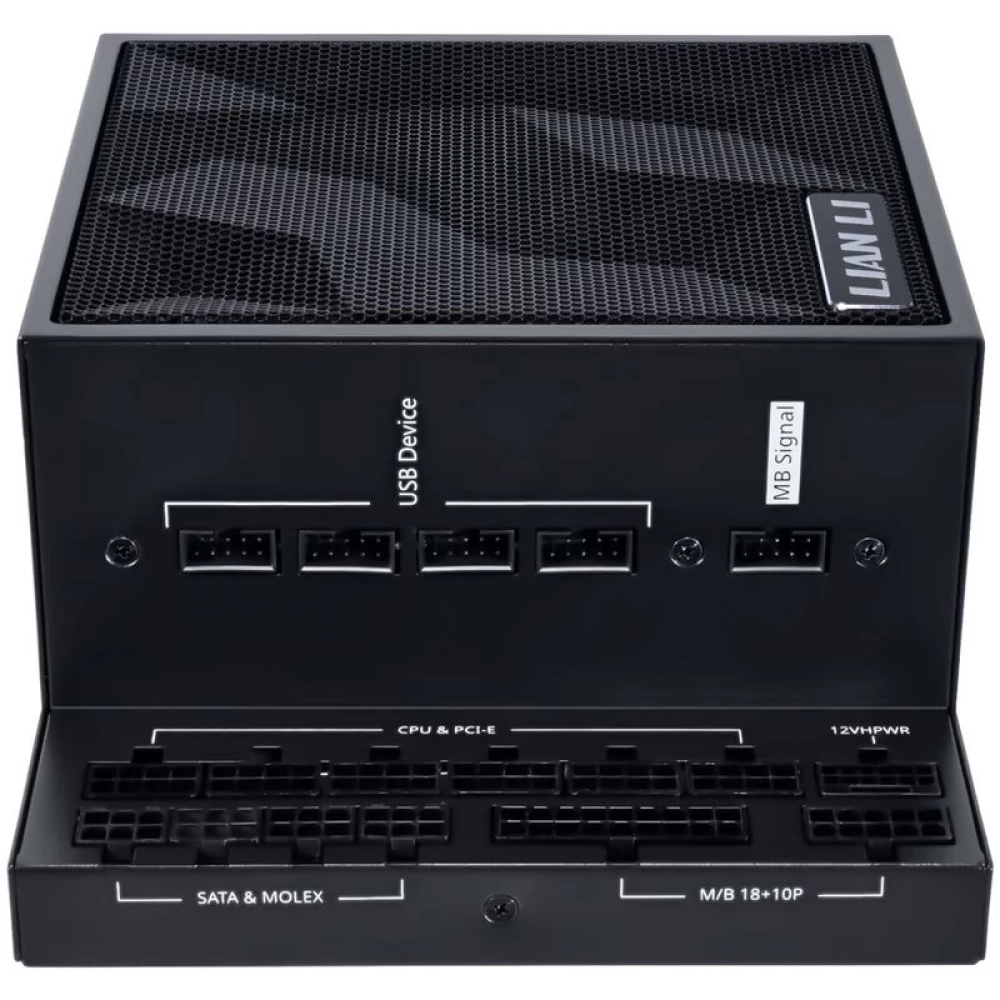

Lian Li EDGE power supplies integrate four 9-pin internal USB expansion ports directly into the power supply. This makes it much easier to connect additional USB devices such as UNI fans, Strimer Plus cables and RGB controllers. The hub enables the simultaneous operation of up to four devices. Connected accessories remain functional even when the computer is turned off - as long as the power supply is turned on. Each port provides a nominal current of 500 mA.
The USB hub can be connected in two ways: either via the motherboard's internal USB connector, or via the included USB-A cable to the rear IO panel.

ATX 3.0 and 3.1 compatible and platinum certified
The EDGE series fully complies with the ATX 3.0 / 3.1 standards and is therefore compatible with the latest components. Thanks to the 80 PLUS, Cybenetics and PPLP Platinum certifications, the EDGE series offers excellent energy efficiency, reducing power consumption and heat generation while providing reliable and stable performance.

Stable, two-color PCIe 5.1 connector for graphics cards
Lian Li has developed its own 12V 2x6 connectors based on the PCIe 5.1 standard. These provide a safer and more efficient power supply compared to the older 12VHPWR connectors.
The design includes soldered connectors for better current stability and gold alloy to prevent short circuits. The plugs also have a two-tone housing so you can see that the plug fits securely. Lower contact resistance is achieved with the increased material thickness of 0.25 mm. The terminals maintain a contact resistance of less than 1.5 m? after 50 mating cycles. Compared to the usual connections, which are 2 and 3 m? are between, this is a significant improvement. This noticeably improves the performance and long-term reliability of the connectors.

Industrial quality capacitors
Lian Li EDGE power supplies use high quality EPCOS capacitors from Germany. They are compact and extra robust, which means they are better protected against high temperatures and harsh environments.
Thanks to the LLC topology and active PFC (Power Factor Correction), the EDGE power supply works more efficiently, generates less heat, and provides a cleaner and more reliable power supply. For you, this means: less heat, longer life and more stable performance for your hardware!

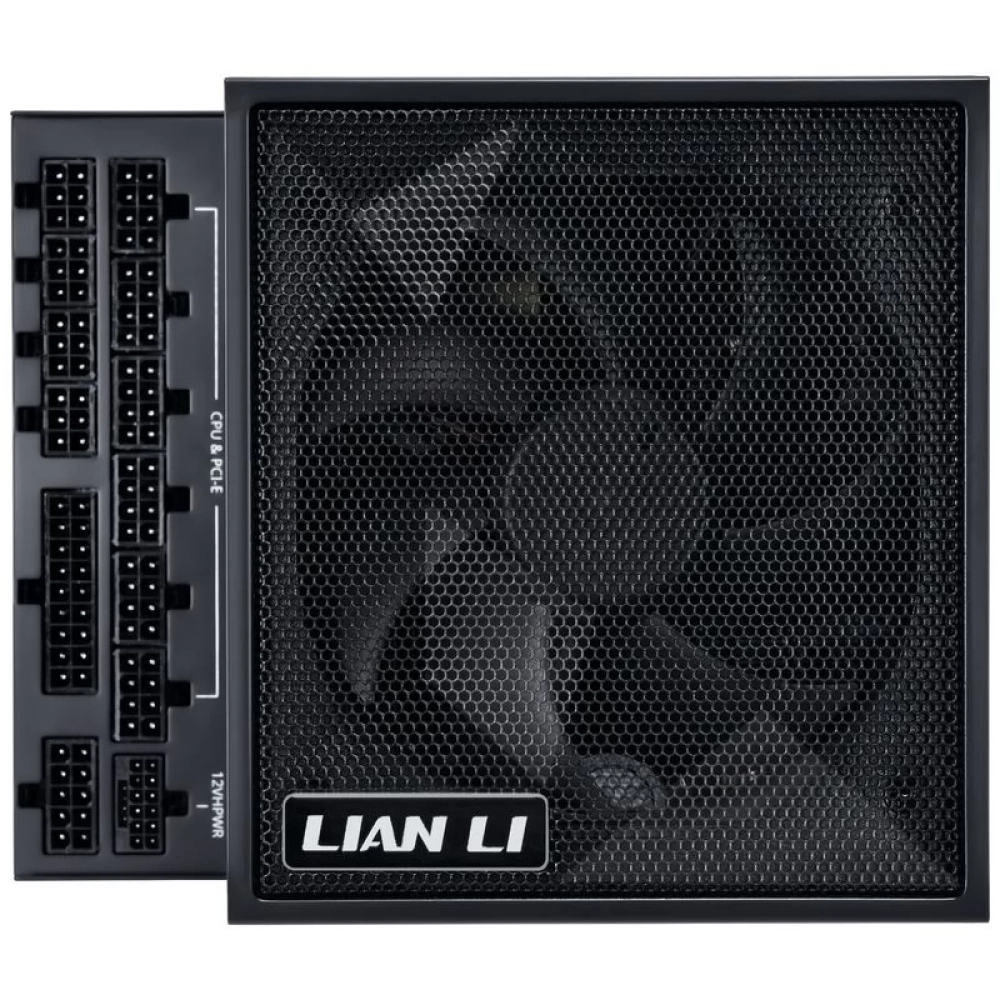

Cool and quiet thanks to the mesh panel and powerful 120 mm fan
The power supply's steel housing has a large mesh mesh panel on one side. This open design helps dissipate heat efficiently. As a result, the built-in 120mm fan operates at a low speed, ensuring quiet operation while still maintaining a cool operating temperature.

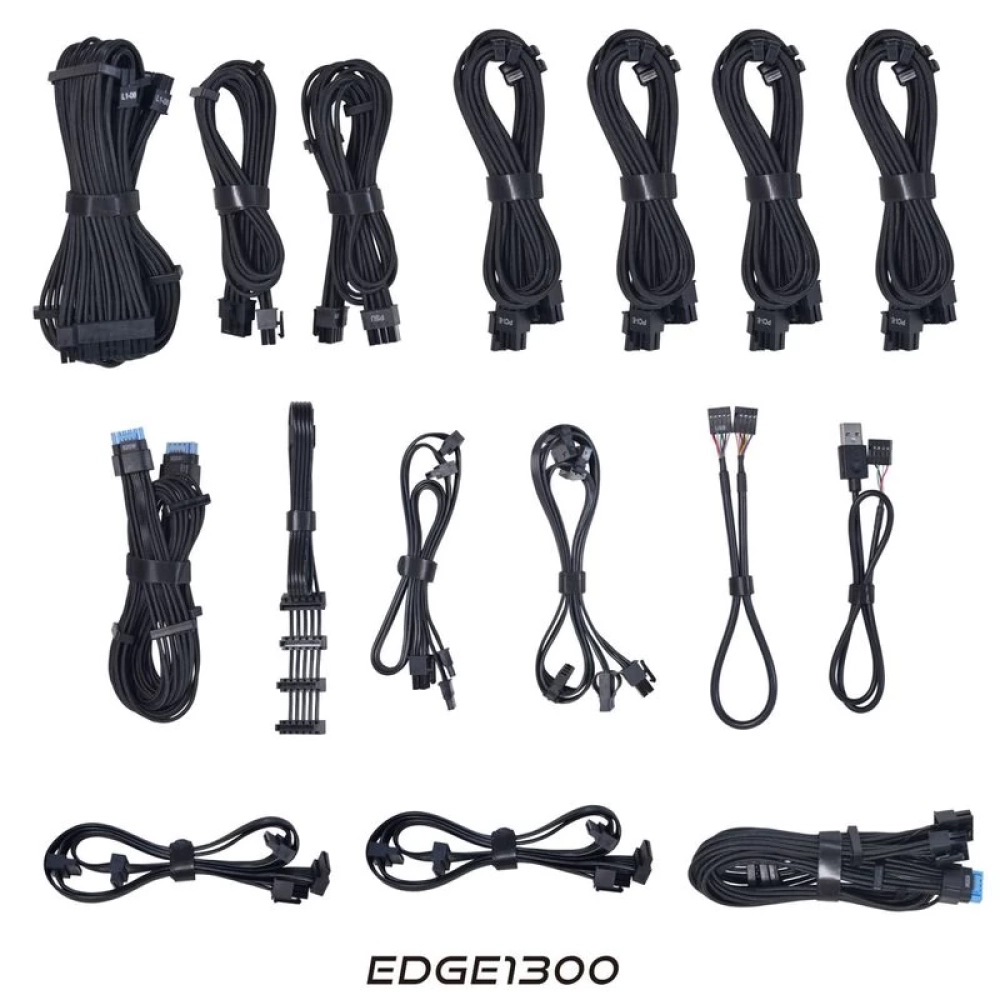

Braided cables for a nice look
The power supply is equipped with high-quality braided cables. Easily adjustable cable combs make cable management much easier, giving the two-chamber construction an aesthetic and tidy appearance. This not only improves appearance, but also facilitates maintenance and optimizes airflow for better cooling.
Braided SATA power cables offer flexible options for building a gamer PC. The Y-distributor cable enables flexible and orderly connection of drives and controllers. A second 300mm SATA cable with 15mm spacing between connectors allows for easy connection of multiple devices while ensuring clean and tidy cabling.

- The L-shaped design simplifies cable management in double-chamber cabinets
- Built-in USB hub with four connectors for additional USB devices
- Excellent efficiency with Platinum certification
- Steel cover with mesh panel and 120mm fan for quiet and cool operation
- Secure power supply thanks to the PCIe 5.1 standard for 12VHPWR graphics cards
- Protection circuits: OVP, UVP, SCP, OPP, OTP and OCP
- Fully modular cable management
