Pro:Centric® server with HTML5 content management, UI editor and server administration client

Pro:Centric® direct support

The stand-alone server supports LG's Pro:Centric® Direct HTML5 content management software. This software offers a comprehensive UI (user interface) editor, as well as customizable widgets and a variety of theme templates that enable a unique guest experience and express the hotel's brand identity and personality through LG in-room televisions.

Server Admin Client

A PCA or PCD Admin Client Graphical User Interface (GUI) is provided and can be accessed remotely over the Internet using a VPN service and a standard web browser to provide System Integrator administrative users with the full set of services needed to manage and support the Pro:Centric system. , including:

- System status, logs and server settings
- Configuration of channel lineup and electronic program magazine
- UI editor and customization tools
- Manage TV settings and software updates

Pro:Centric® server installation

Remote management of this server function is provided by a secure, built-in VPN client that connects to the central VPN server and supports remote configuration management and software updates.

SYSTEM SOFTWARE

- Software: Linux OS kernel 3.10, PCA (Java) and PCD (HTML) server applications

ELECTRONIC

- RF data output, 100/1000T Ethernet

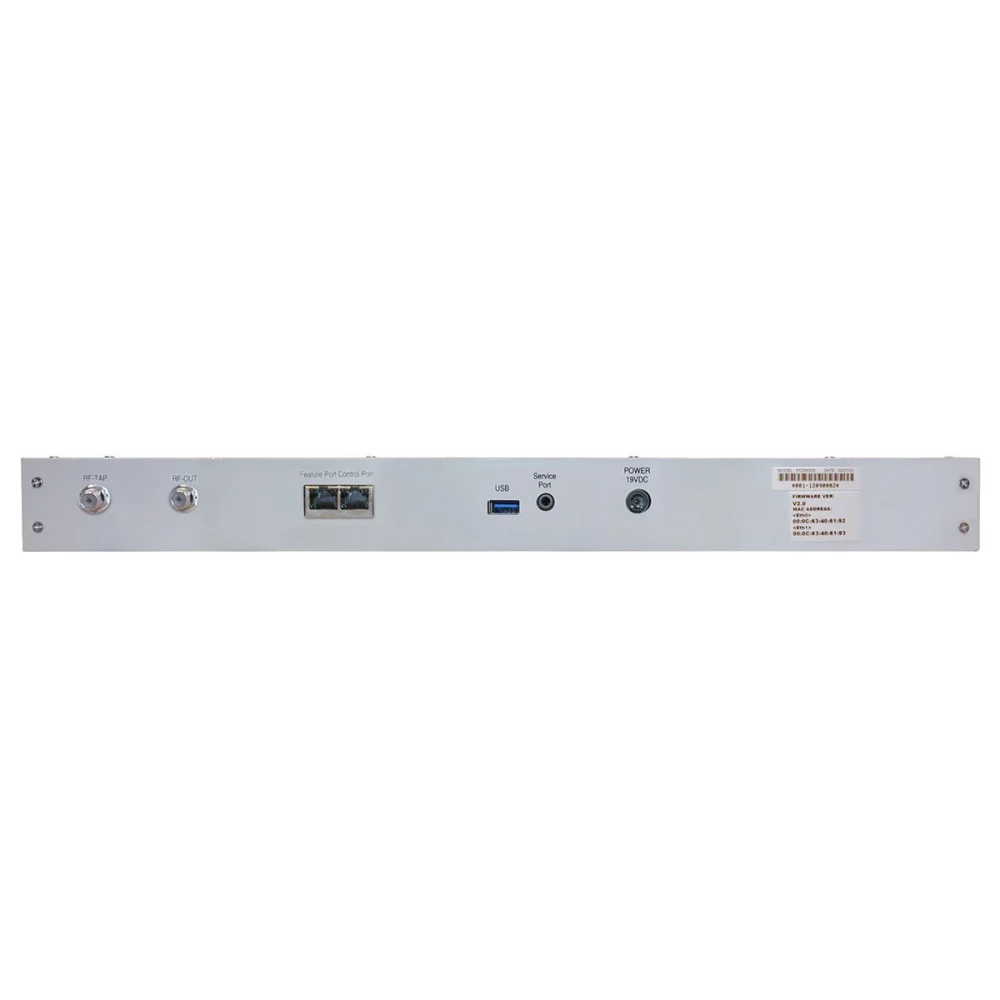

- Rear port: RF/RF Tap/TTL serial, Ethernet 2 ports
- DC input: +19V DC @ 2.2 Amp adapter
- RF output connectors: (2) 75 ohm, "F" type
- RF output: up to 8 channels (typically 48-64 MHz) (non-contiguous)
- RF output frequency range: 54MHz-865MHz
- Active output level: -1dBm (+47.75dBmV) Typical
- Test output level: -47.75dBm (+1dBmV) Typical
- Frequency accuracy: +/5 ppm
- Ethernet connector (control port): 10/100/1000 BaseT, RJ-45
- Ethernet connector (functional port): 100/1000 BaseT, Full Duplex RJ-45
- TTL-UART command line interface port: (5V TTL)
- CPU/memory/storage: 64-bit Intel i3-6100U (4 threads at 2.3 GHz), 16 GB memory, 128 GB SSD/expandable storage with M.2 NGFF or 2.5" SSD

MODULATION REQUIREMENTS

- Standard: ITU-T J.83 Annex B (QAM-B)
- Symbol rate: 64-QAM, 5.056941 MBaud/256-QAM, 5.360537 MBaud
- Interleaving: Fixed I=128, J=1
- Parameters: 64-QAM, 7/8 convolution code, 1/32 guard interval ratio, 2K FFT, 13 segments
- Sampling speed: 8.126984 Ms/s

ENVIRONMENTAL OPERATING CONDITIONS

- Temperature: 32° to 104° Fahrenheit
- Humidity: 95% No condensation

ENVIRONMENTAL STORAGE CONDITIONS

- Storage temperature: -4° to 158° Fahrenheit (-20° to 70° Celsius)
- Humidity: 95% No condensation

SIZES

- Unit dimensions (W x H x D): 19.0” x 1.7” x 8.5”
- Unit weight (stand only): 5.65 Ibs.
