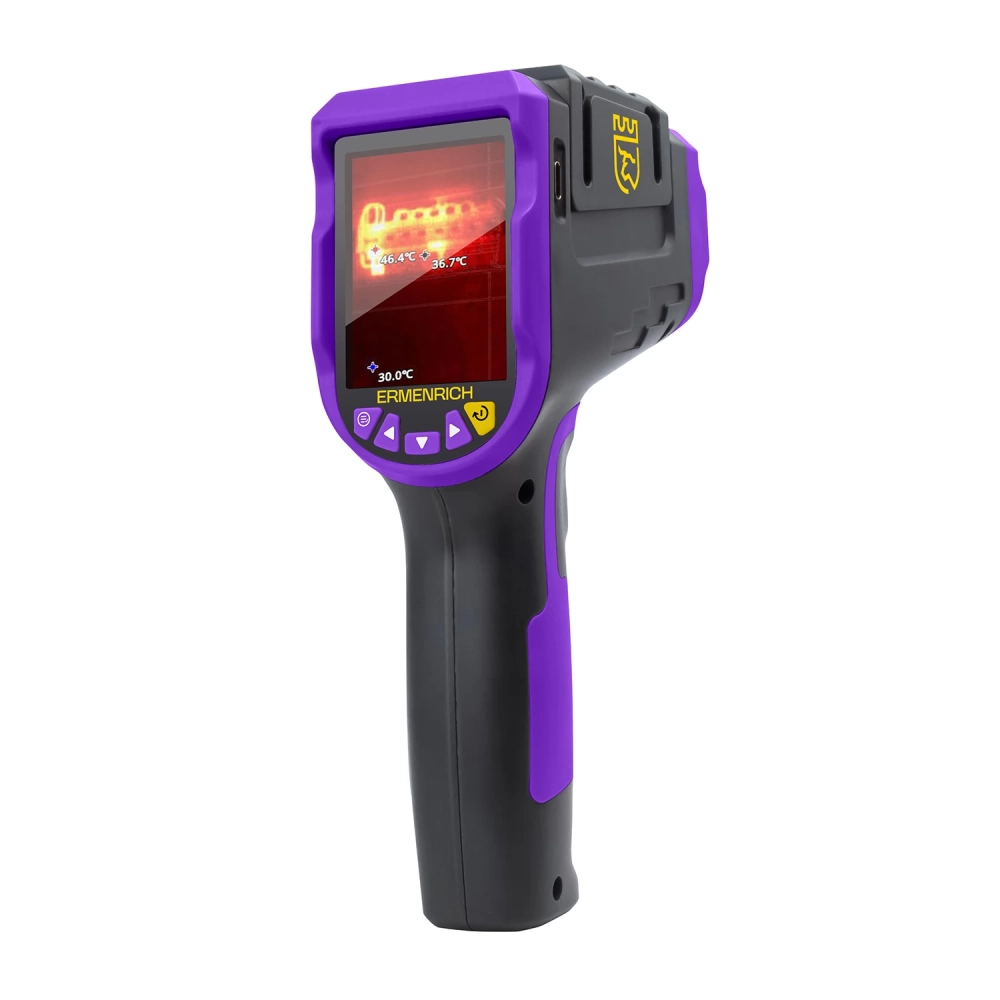

The Ermenrich Seek TV70 thermal camera helps in the inspection of electrical equipment and in the search for possible heat leaks on the facade and foundation of buildings, as well as in the supervision of the installation of heating systems. The thermal camera can measure in the range between −20 and +400 °C.

The thermal camera has a 120x90 pixel thermal imaging module and a 1 MP visible light camera. The following image display modes are available: visible light mode, infrared mode, edge fusion mode, dual light fusion mode, and picture-in-picture function. The color LCD screen displays the image in one of 8 color palettes.

The measurement process can be recorded on photos or video. The system saves the data on the built-in 8 GB memory card.

The frame has an ergonomic handle and six control buttons. It is powered by a 2600 mAh lithium battery. A single charge can be used continuously for 4 hours. The automatic switch-off function and the battery level indicator help you save energy. A Type-C USB cable must be used for charging.

- Construction industry thermal camera with 120x90 pixel sensor and 1 MP camera
- 8 color palettes, multiple display modes, picture-in-picture function
- 240x320 pixel LCD screen
- Record photos and videos in the 8 GB internal memory
- 2600 mAh lithium battery, USB cable for charging the battery
- Up to 4 hours of continuous operation, automatic shutdown

Contents of the set
- Thermal camera
- Type-C USB cable
- User manual and warranty card
