The Kolink Regulator 80 PLUS Gold power supply with 12VHPWR connector
With the Regulator series, Kolink presents high-performance power supplies with 80 PLUS Gold certification. High-quality components, advanced design and powerful 12V single rail voltage ensure stable power supply and precise voltage regulation. Following the ATX 3.0 standard, the Regulator 80 PLUS Gold 1200W 12VHPWR offers a PCIe 5.0 port for NVIDIA RTX 4000 series graphics cards. The fully modular cable management and quiet 120mm fan complete the whole package.

The Kolink Regulator 80 PLUS Gold power supply in detail with 1200 watts
With its advanced design and high-quality components, Kolink has created an efficient and powerful 80 PLUS Gold 1200W power supply. The manufacturer relies on the principle of LLC resonance conversion and DC-DC technology with independent voltage regulation, a combination that is beneficial in terms of both efficiency and accuracy, especially for asymmetrical loads. This means that the power supply unit of the regulator can be loaded with almost the full nominal power of the +12 volt branch if necessary. This can handle up to 100 amps and thus ensures a stable supply to all components. The high efficiency meets the requirements of 80 PLUS Gold and thus achieves an average efficiency of 92 percent in the European 230 volt network.

Well cooled and modern connections

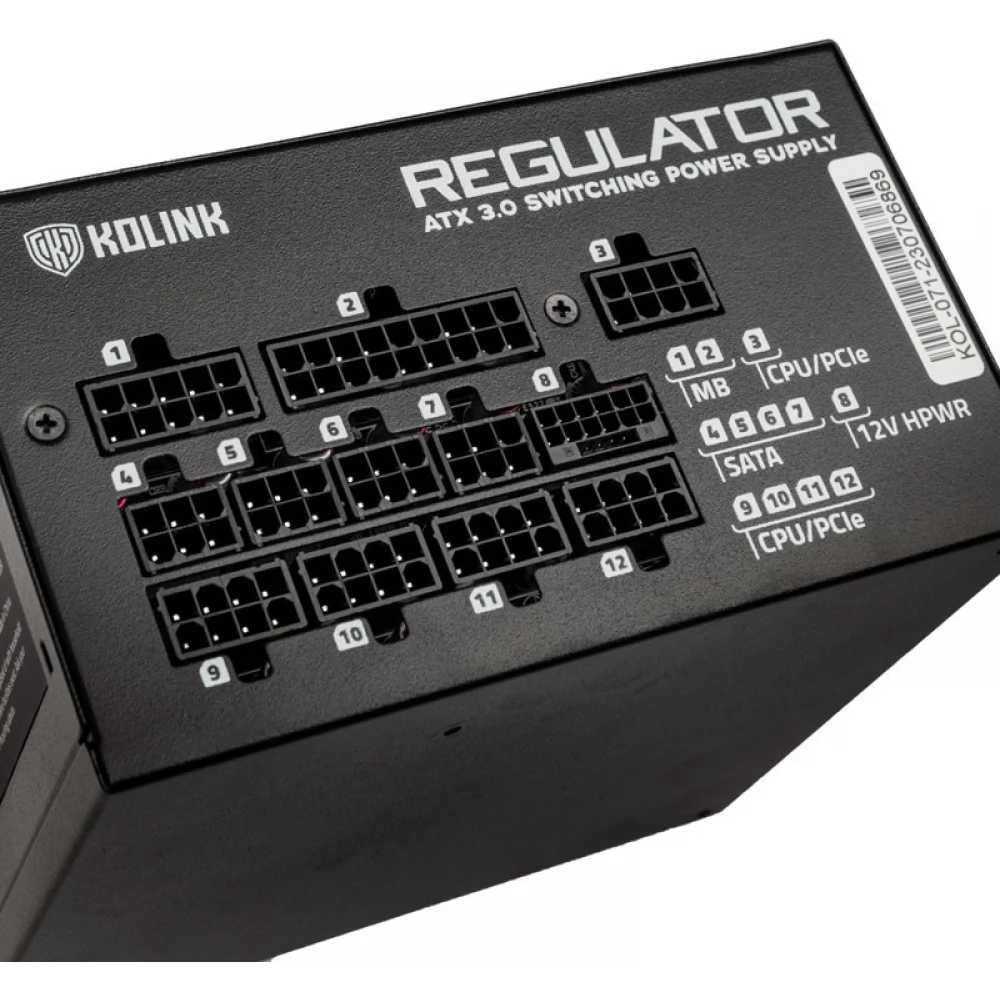

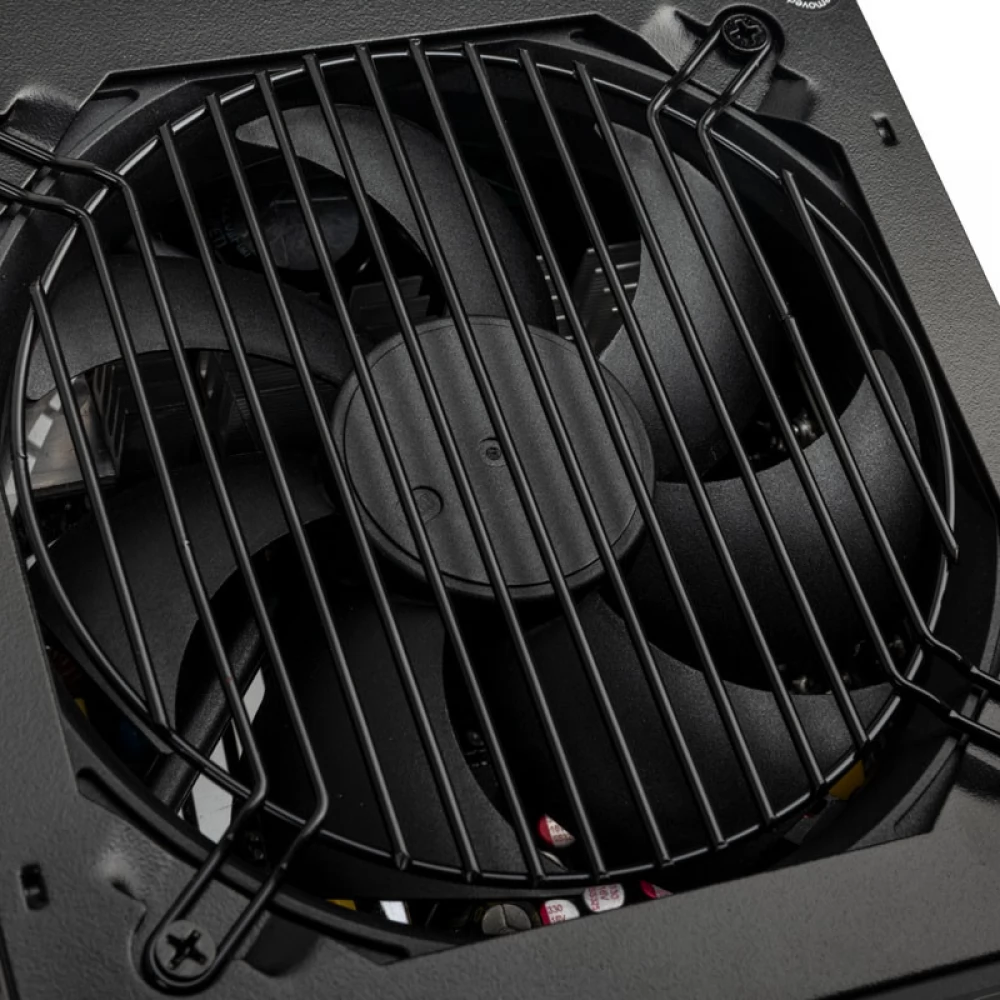

The airflow required for cooling is provided by a particularly slow-rotating, 120-millimeter, particularly durable, hydrodynamic sliding bearing fan, which can be switched to semi-passive mode with a switch. In addition to the good performance values, the Kolink Regulator 1200W is also not stingy with the connections: In addition to the 20 + 4-pin ATX and two 4 + 4-pin 12 V-ATX connectors, there is a 12 + 4-pin 12 VHPWR connector for up to 600 watts and four 6 + 2-pin PCIe connectors for powering graphics cards. The other components are equipped with six SATA and four Molex connectors.

- 1200 watt power supply max 100 Amp, Single rail construction
- High efficiency thanks to the 80 PLUS Gold certificate
- Quiet, 120 mm fan with switchable semi-passive mode

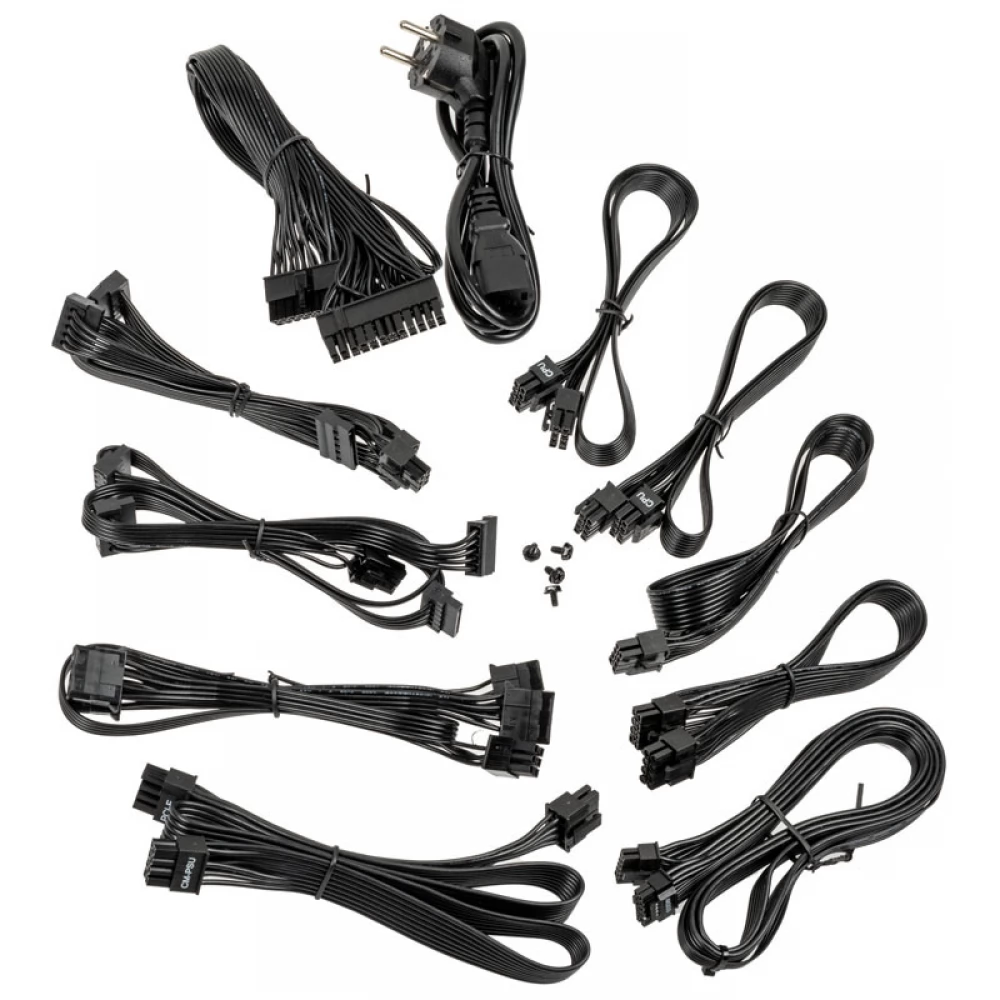

- Fully modular design with round cables
- One 12VHPWR 12+4-pin and two 6+2-pin PCIe connectors for graphics cards
- Two 4+4 pin CPUs, eight SATA and four Molex connectors
