JONSBO TB01 Benchtable E-ATX
Substitute products
Product description

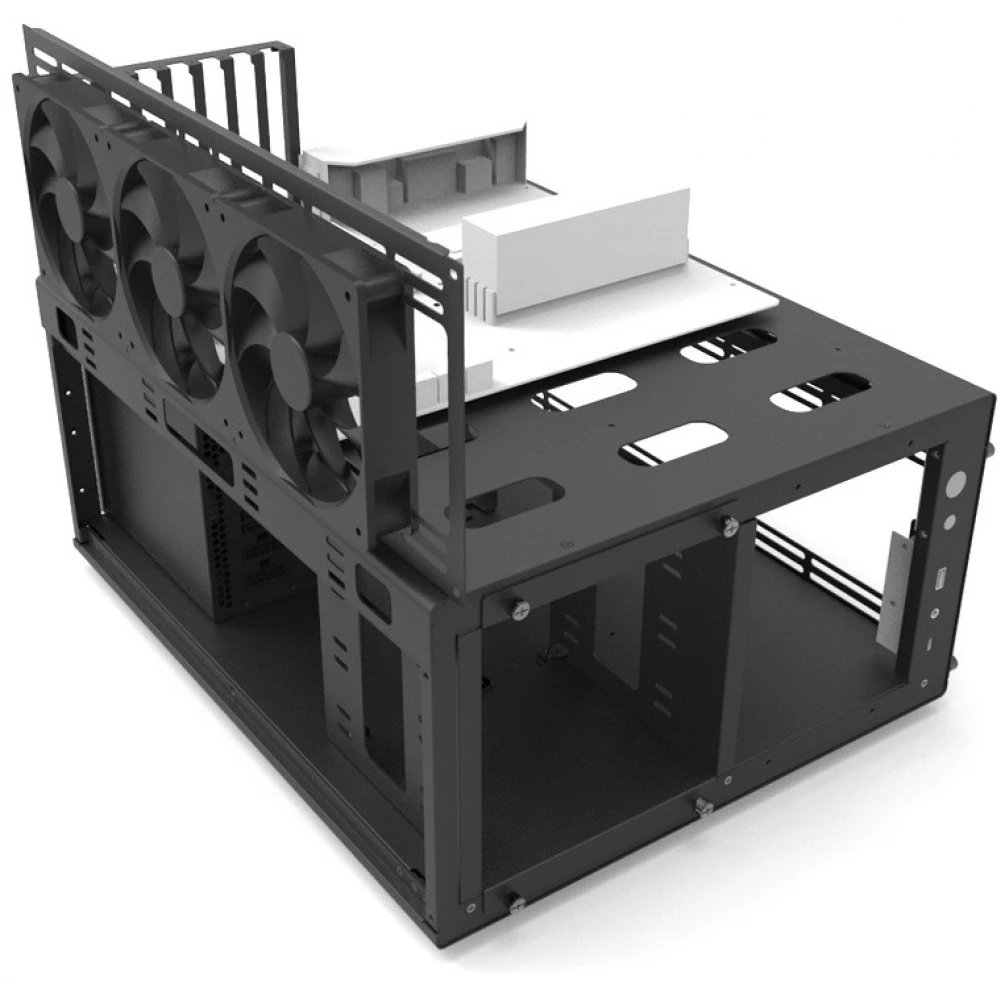

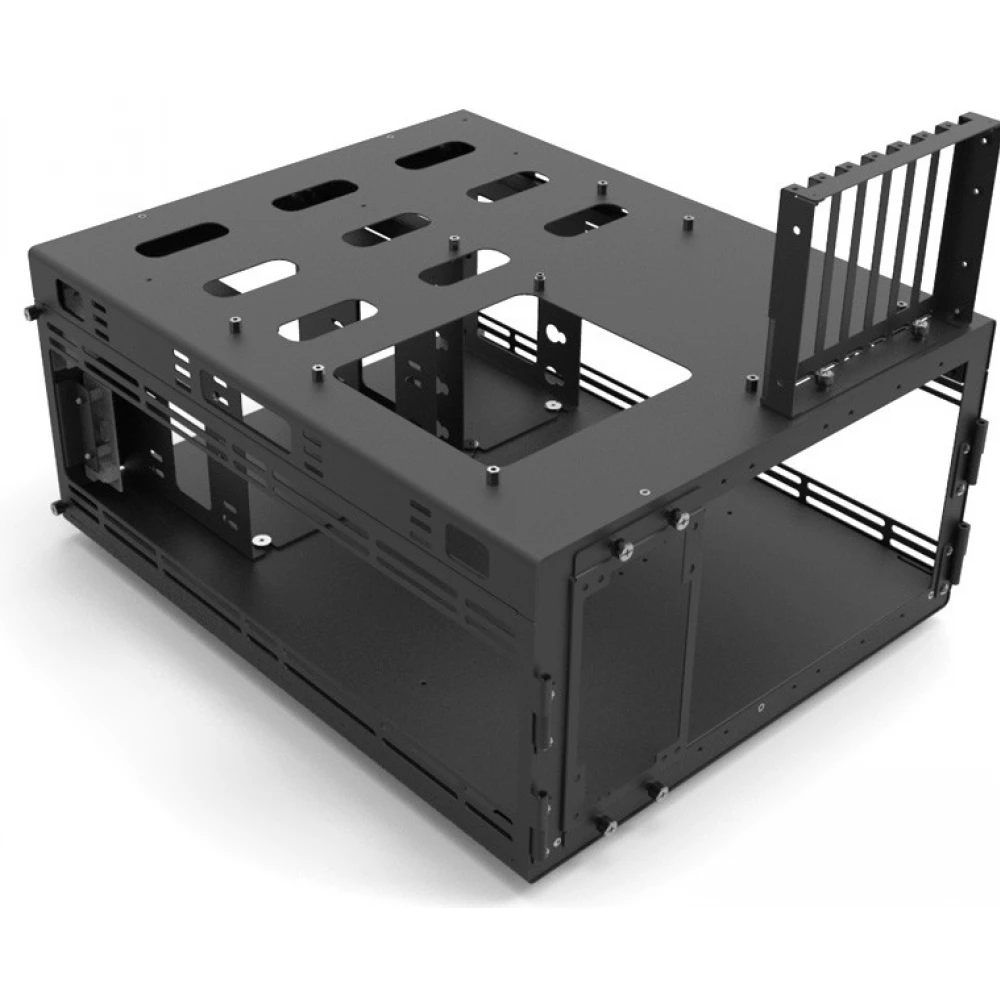

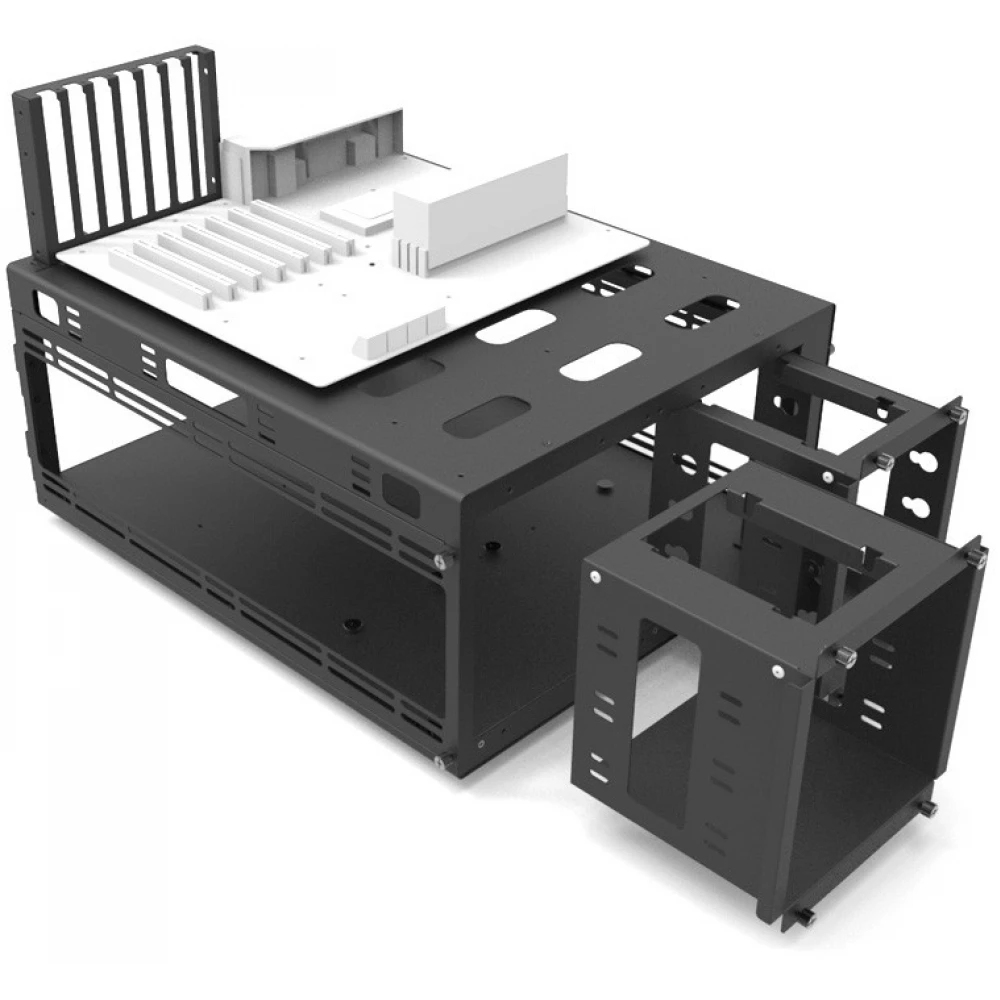

Jonsbo's newest, completely open house is called TB01 and is primarily aimed at the work desks of hardware testers/professional tuners as its future home. The test bench made of 0.8 and 1 mm thick steel with 7 expansion slots can carry Mini-ITX, microATX, ATX, CEB, and E-ATX format boards on its back and the two 2.5-inch and four 3.5-inch mounting frames in addition to the options provided, there is also space for three 5.25-inch devices.

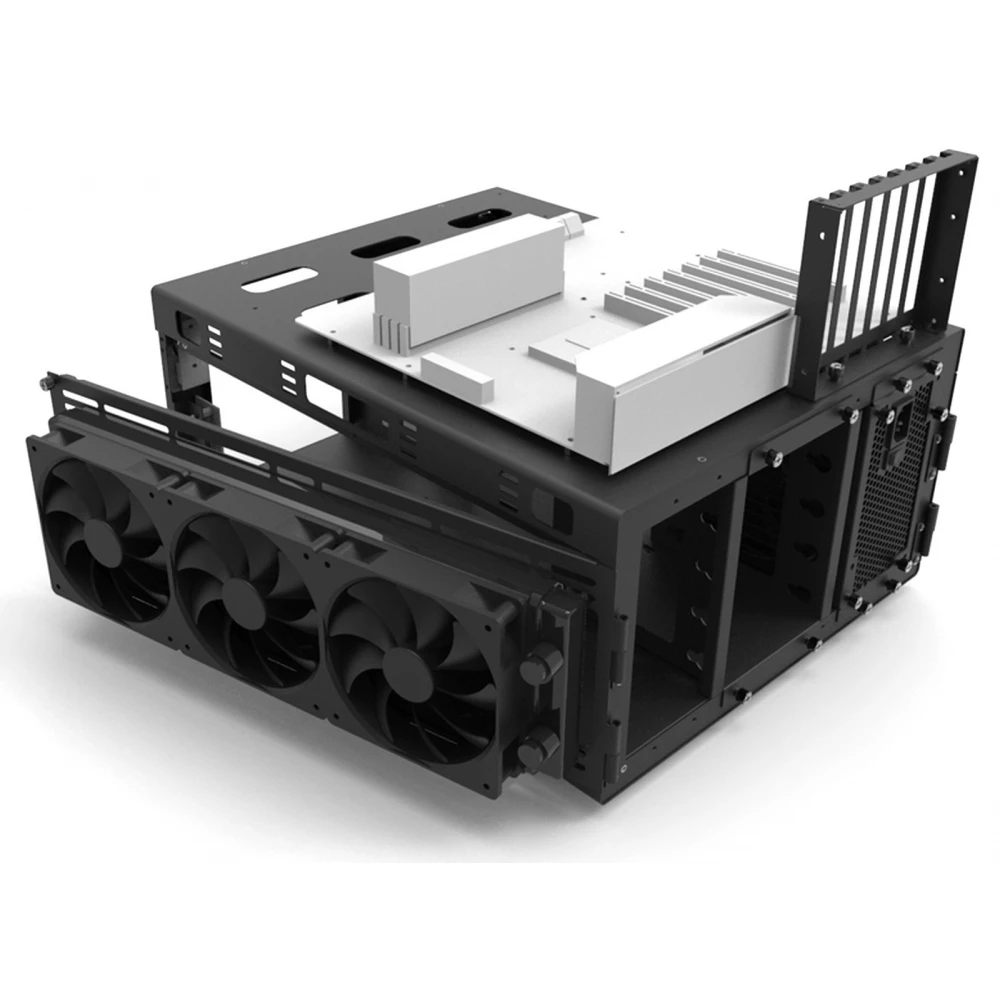

It is understandable that we are not bound by limits regarding the height of the processor cooler and the length of the video card (unless we take into account the dimensions of the room in which we are staying), and the power supply can come with the standard ATX as well as the SFX. The cooling of the components is supported by optional frames that can be screwed onto both sides or the edges of the motherboard tray and can accommodate three 120/140 mm fans; the total number of deployable agitators is six.
On the I/O corner of the 350 mm wide, 447 mm deep and 323 mm high bench, there is a USB 3.0 Type-A and a USB Type-C connector along with the 3.5 mm combo jack.
