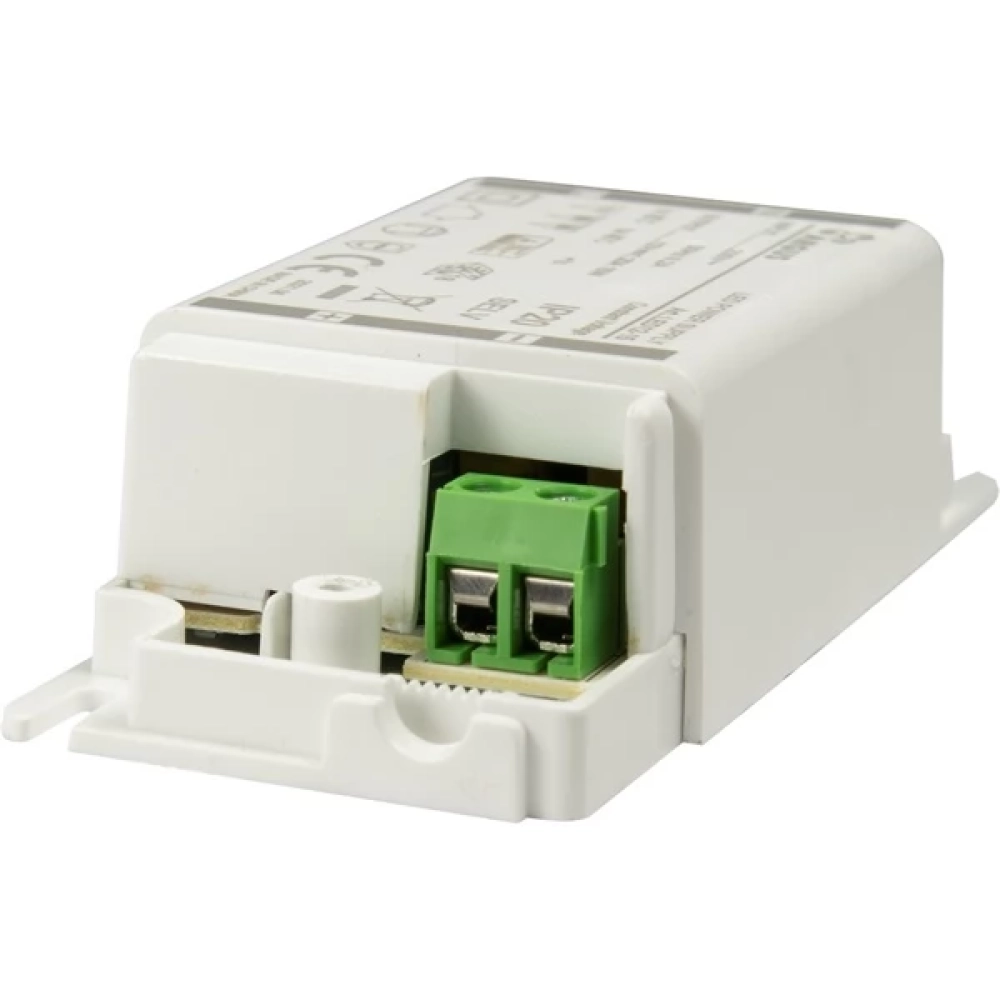

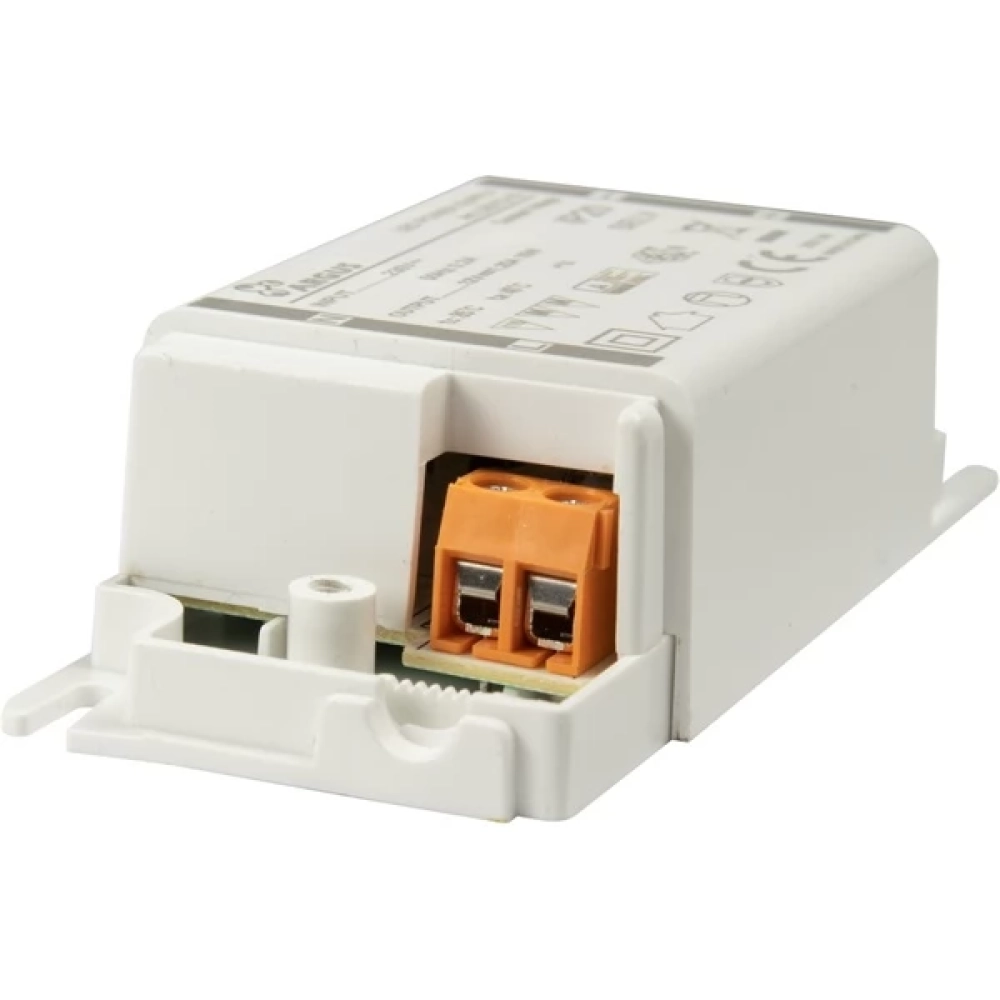

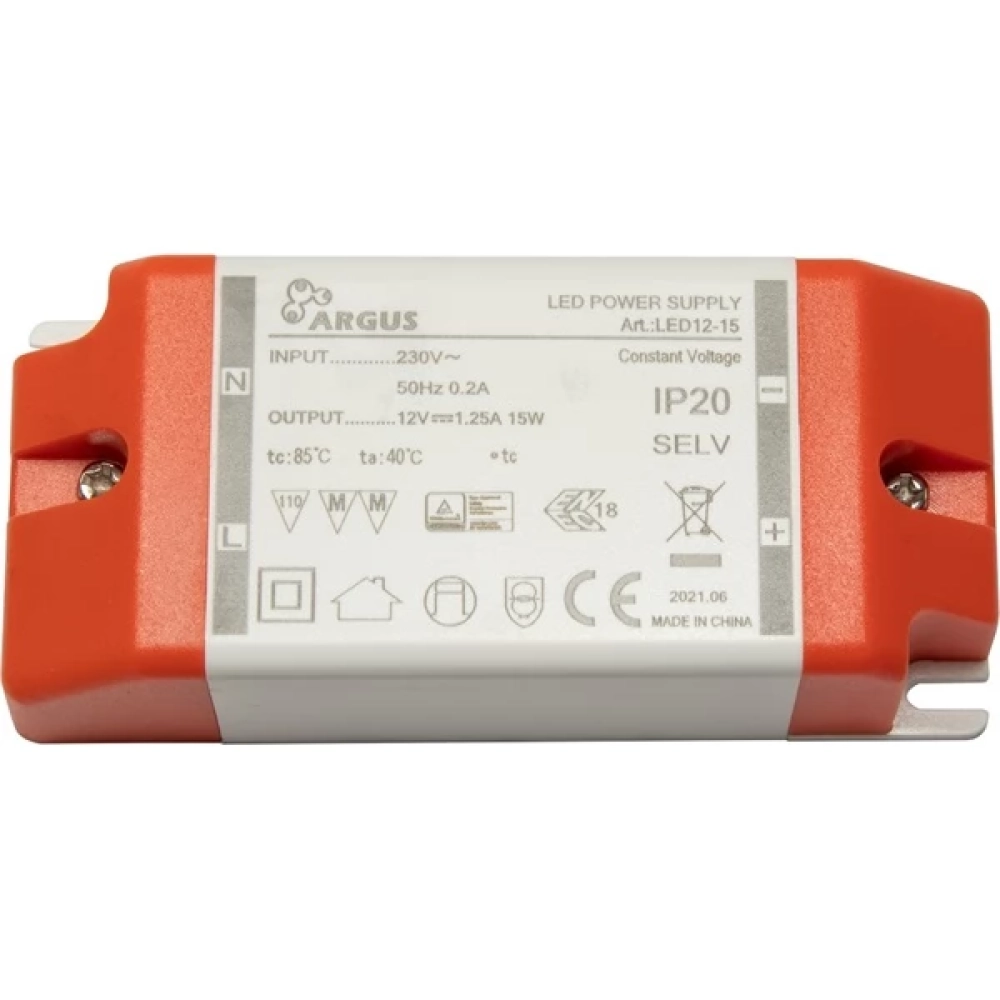

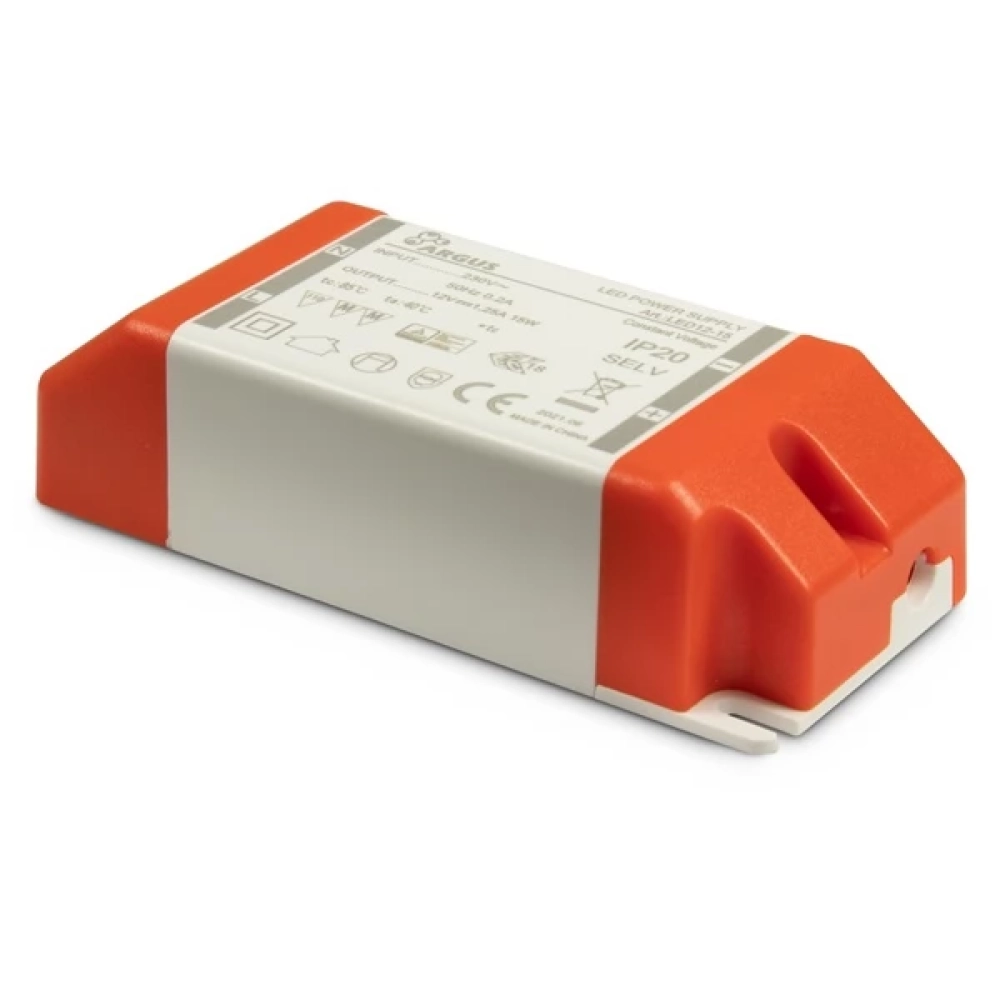

The LED12-15 is a 12V LED driver with a power of 15W and an output voltage of 1250mA. It is equipped with five protection circuits to protect the connected components, has an MTBF of 100,000 hours and is IP20 certified.

Description:

- Power: 15W
- Input voltage: 207-253V AC, 50/60Hz
- Output voltage: 12V
- Output current: 1250mA
- Input current: 0.2A max. 230V AC/50Hz at full load
- Power consumption without load: < 0.5W
- Protection: IP20
- Protection circuits: Short circuit protection, Overvoltage protection, Overheating protection, Zero voltage protection
- Overvoltage protection: ≤ Output voltage × 150%
- Overcurrent protection: 110-180%
- Operating temperature: -20°C-50°C
- Operating humidity: 5%-90%, non-condensing
- MTBF 100,000 hours under full load at 25°C
- Size (l/w/m): 24 x 40 x 90 mm
- Rail mountable: No
- Output voltage: 12 V
- Power: 15 W
- Protection: IP20
- Weight (gross): 70 g
