ICYDOCK MB873MP-B V2 ToughArmor 8x M.2 PCIe mounting frame 5.25 place

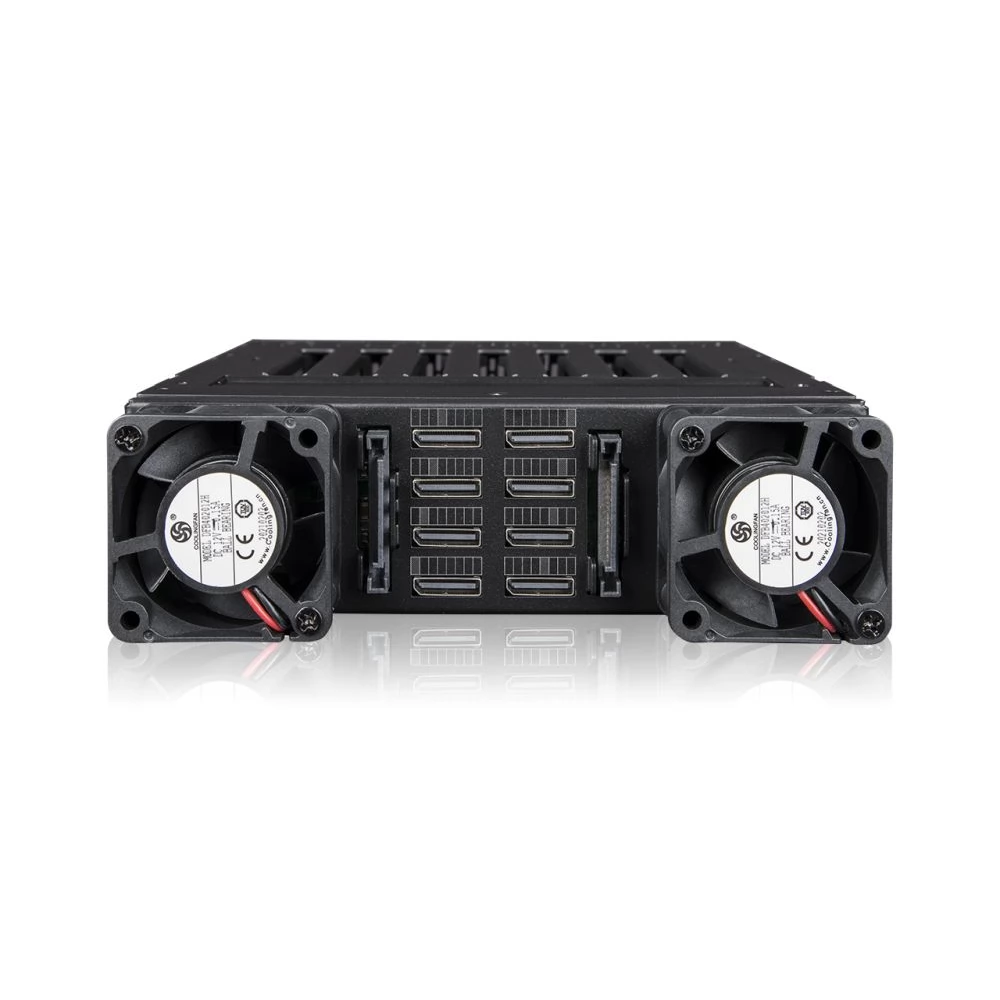

ToughArmor MB873MP-B V2 is a rugged, 8-bay removable M.2 PCIe 4.0 NVMe SSD enclosure specially designed for 5.25" optical drive bays. The OCuLink (SFF-8612) interface provides up to 64 Gb/s data transfer speeds, providing lightning-fast performance and compatibility with Tri-Mode control cards. The all-metal enclosure provides outstanding durability. while the removable, tool-free trays make it easy to replace SSDs.The dual 40mm fans on the back ensure efficient cooling, so the high-speed PCIe 4.0 SSDs always operate at an optimal temperature.

The updated version now has full Tri-Mode compatibility, so it can be used seamlessly with modern control cards from Broadcom, Areca and other manufacturers. The compact, yet high-density design is ideal for data-intensive systems, workstations or servers, where space-saving data storage is a primary consideration. Up to eight PCIe 4.0 NVMe M.2 drives can be used in a single 5.25" bay, maximizing storage capacity and system efficiency.

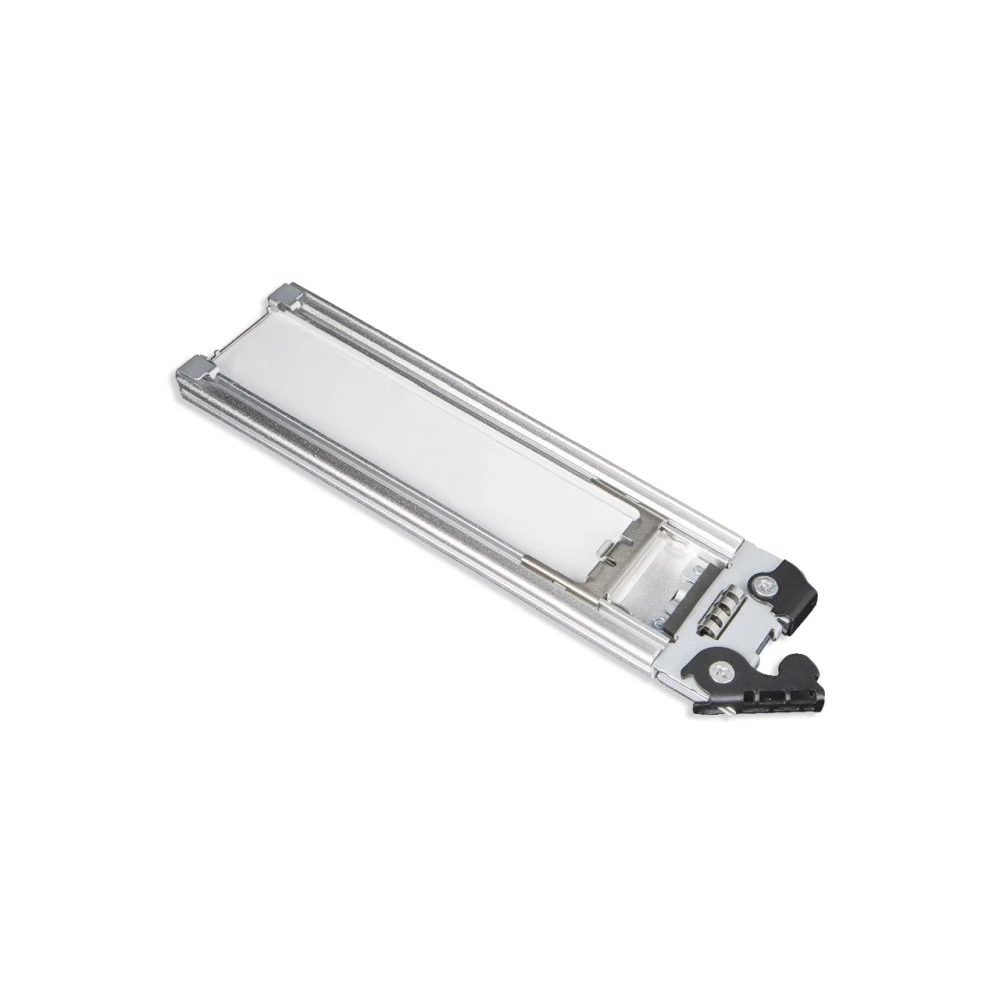

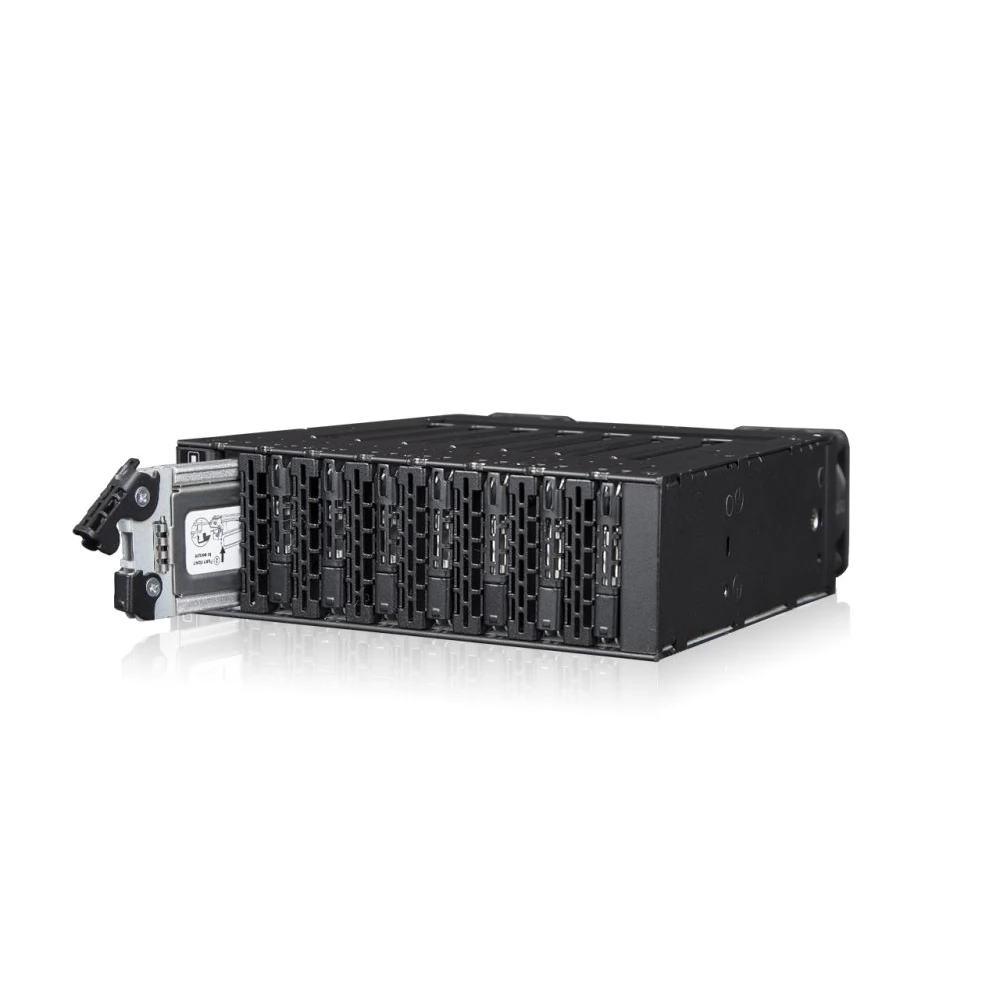

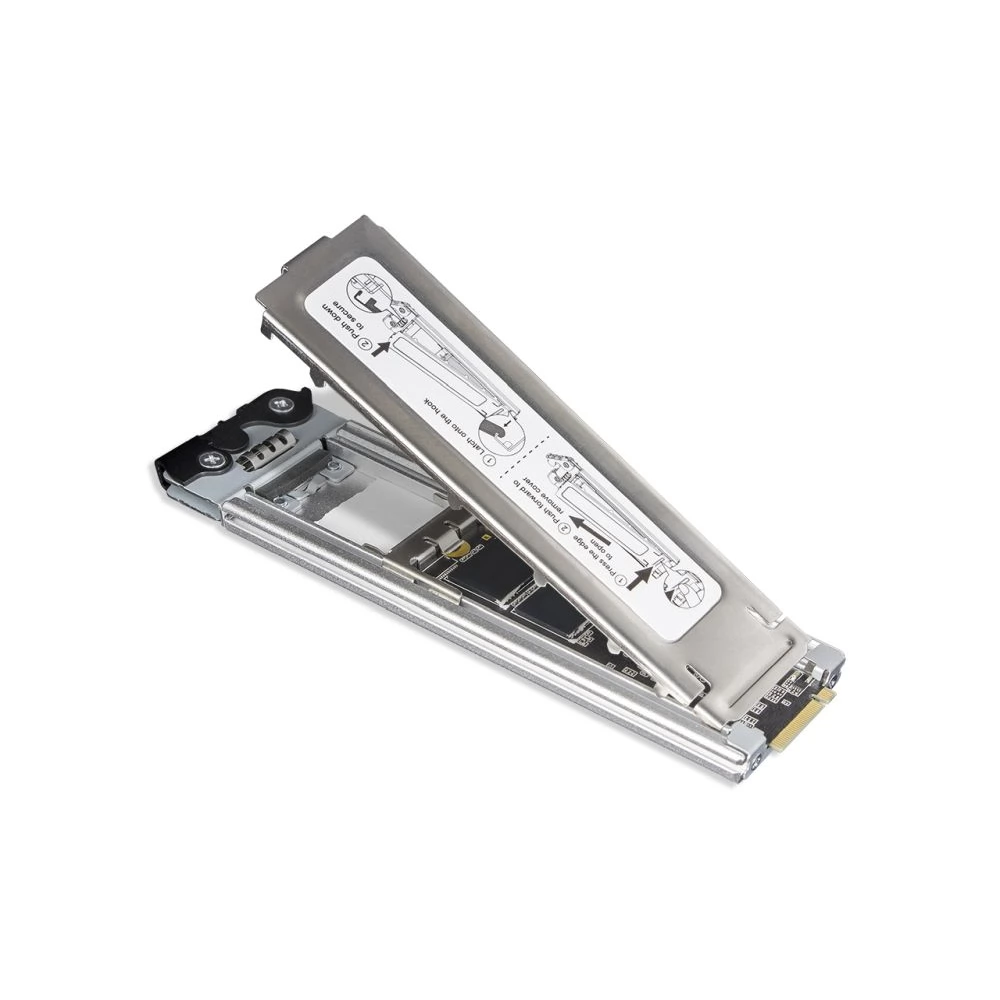

The tool-free M.2 tray enables easy and quick drive replacement, so there is no need to open the computer case or fiddle with small screws. The adjustable M.2 mounting mechanism keeps any SSD stable, and the tray supports a wide range of NVMe SSDs in sizes 2230, 2242, 2260, 2280 and 22110. The thick aluminum tray also functions as a heatsink, and the attached heat-conducting insert efficiently conducts heat away from the surface of the drive.

The all-metal construction characteristic of the ToughArmor series provides excellent protection in industrial environments such as military, manufacturing or on-board systems. Innovative EMI grounding technology prevents damage from static discharges, so your SSD stays safe during every replacement.

The model also has practical functions: unique LED status indicators, automatic energy recognition, and replaceable drive identification labels help with use. Thanks to its wide compatibility, it works with control cards of the biggest brands, such as Adaptec, Areca, Broadcom, HighPoint, Supermicro. And the SATA and OCuLink cable connectors with a locking mechanism ensure a stable connection even in vibration or transport environments.
