Portable R2R 1bit DAC and tubular headphones amplifier

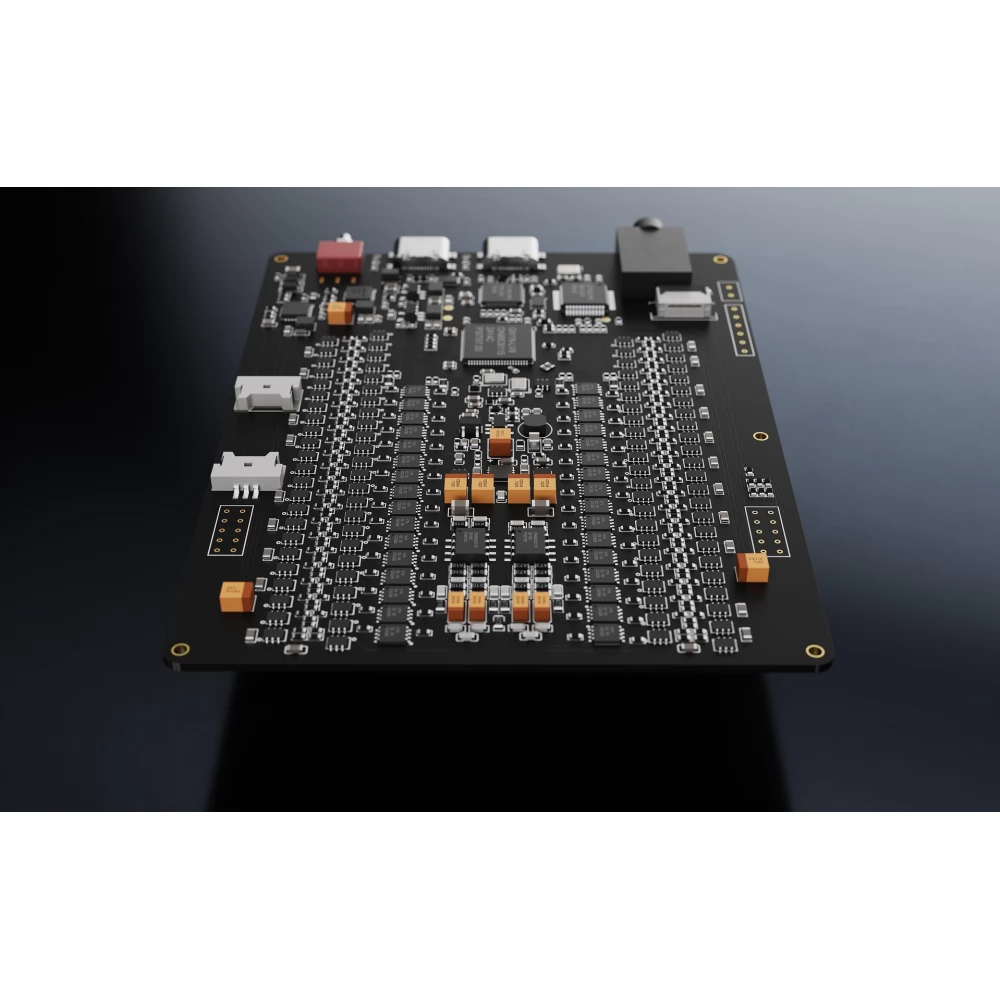

The Ibasso D17 is a portable premium DAC and headset amplifier that provides a clear, detailed sound with a special R2R and 1bit Dual DAC architecture and two Nutube 6P1 tubes. The four-band is fully balanced R2R design and the 64 PWM-DAC unit bring music to life, gently and naturally returned.

The device has three DAC modes (NOS, All to R2R, All to 1Bit), USB-C, coaxial and optical inputs, and 4.4 mm balanced and 3.5 mm single-ended outputs. Dual Battery architecture and FPGA-Master 3.0 control provide stable and clean sound transmission, while analog and digital volume control provides precise control.

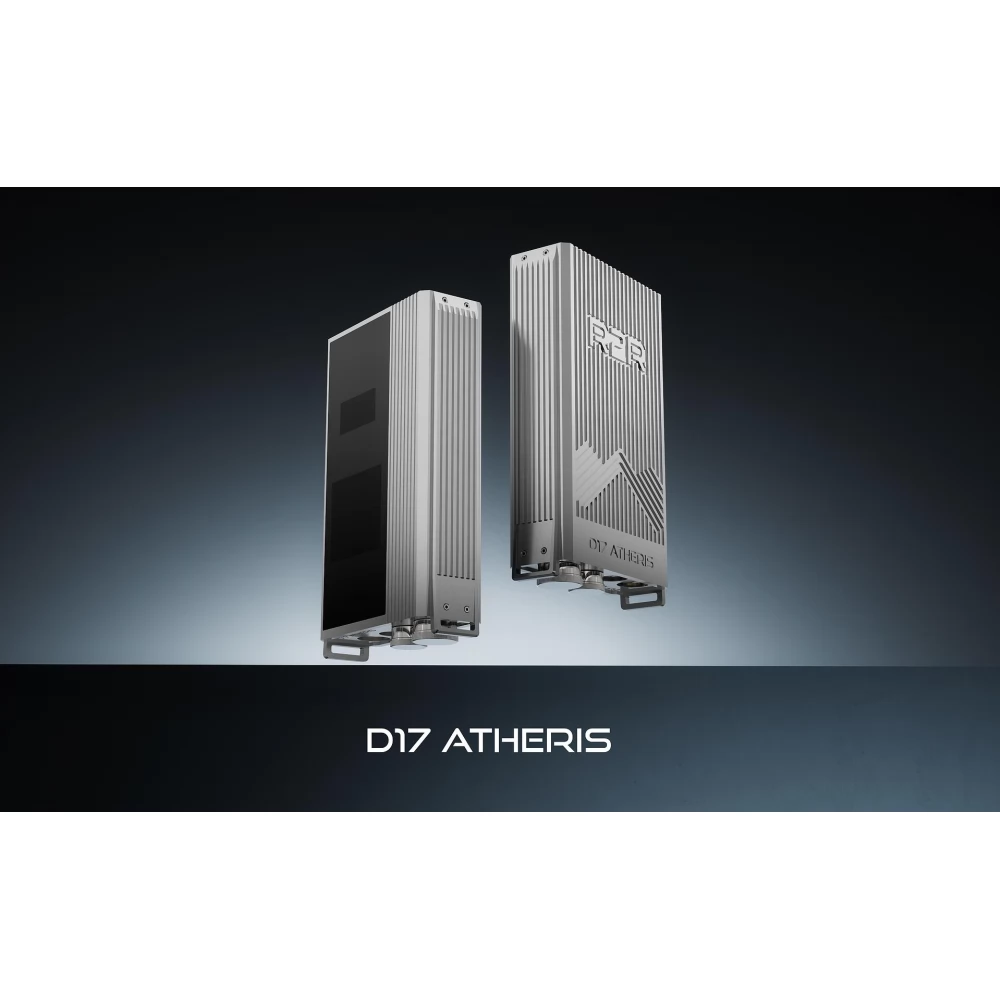

The D17 is a compact 470g device with an OLED display and a three-layer vibration damping system that minimizes the microphone effect. In every detail, precision and quality feel, so the device is really vivid, warm and natural.

Other features:

- DAC architecture: R2R + 1 bit double discreet DAC
- DAC modes: Well, all to R2R (OS), all to 1bit (SD)
- Headphone amplifier: Double Nutube 6P1 + BUF634A
-Outputs: 4.4 mm symmetrical Po and Lo, 3.5 mm SE PO and LO
-Inputs: USB-C (data), 3.5 mm coaxial, 3.5 mm optical
- USB-C charge: 5 V/3 A, QC3.0
- Filling time: 3 hours
- Play time: up to 15 hours
- Display: 1.3 -inch OLED
- Weight: 470 g
- Dimensions: 145 mm x 86.3 mm x 31.6 mm

Power (4.4 mm symmetrical PO, R2R DAC):

- Output power: 1200 MW + 1200 MW @ 32 Ω
- Thd+n -76 pcs (pipe amplifier)
- SNR 116 pcs
- Dynamic range: 116 pcs
- Transfer Disorder: 129 pcs
-Frequency transfer: 15 Hz-22 khz (-1 pcs), 15 Hz-40 khz (-2.5 pcs)

Power (3.5 mm SE PO, R2R DAC):

- Output power 320 MW + 320 MW @ 32 Ω
- SNR 112 pcs
- thd+n -70db

Line-Out power (4.4 mm / 3.5 mm):

-Symmetrical Line -Out up to 4 vrms, thd+n: -104db
-SE LINE -OUT up to 2.4 VRMS, Thd+N: -103db
