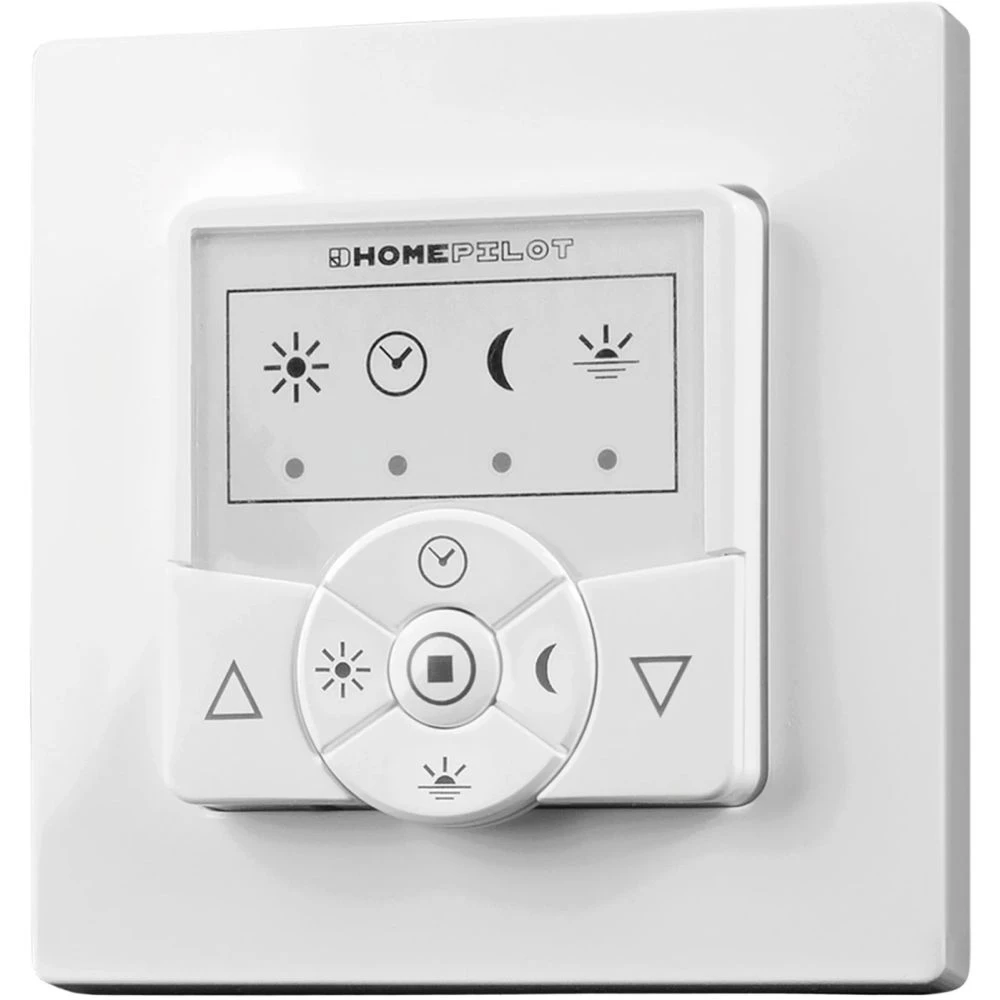

HOMEPILOT's classic intelligent time switch is used to connect and control up to three tubular motors for shutters, blinds, slats or awnings. With the classic smart timer, you can lower the blinds to the desired height, for example via your smartphone, when the sun suddenly shines brightly on your desk in your home office. You can also raise or lower them at specific times of the day, at sunrise and sunset. The random function allows the blinds to be raised and lowered at different times, simulating an occupied house when you are away and deterring burglars. The application also allows you to check the status remotely (e.g. "Is the shutter closed yet?"). The classic smart time switch can also be controlled by other smart devices, such as a remote control. The classic smart timer not only boasts a modern design, but also has a large display with illuminated LED symbols, which provides a quick and easy overview of the activated automatic functions. It also provides automatic brightness control of the indicator lights. The lower you lower the shutter, the dimmer the LEDs will be. The existing manual switch can easily be replaced with a timer and the blinds will then operate automatically. Of course, you can still use the device's buttons and operate the shutter manually. The classic smart timer can also be connected to the premium gateway, which opens up many smart automation options. Whether you set the standard, weekly or daily program, the random function or the astronomical function for radio control, these options provide convenience and safety in everyday life. Of course, you can easily switch between manual and automatic control of the radio receiver at any time with the push of a button. The classic intelligent timer for shutters is made according to the DIN 49075 standard and can be integrated into all common switch families using adapter frames. The perfect solution for upgrading existing, non-radio-controlled shutter motors. This allows you to conveniently manage your blinds via tax, premium gateway or manually.

Description:

- Type: timer
- Color: white
- EAN: 4031909025920
- Manufacturer number: 10502002
- Series: classic
- Smart home compatible: DuoFern, HOMEPILOT, DuoFern, Homepilot
- Intended use: For controlling shutters, blinds or awnings
- Area of application: Interior spaces
- Switch type: timer
- Control: Manufacturer application
- Communication: Wi-Fi
- Switching functions: Random switching, timer function, sun sensor, dawn sensor, dusk sensor, end point setting (only for electronic HOMEPILOT tube motors), rotation direction reversal, registration and deregistration
- Number of keys: 7 pieces
- Devices: A maximum of 3 devices can be controlled.
- Radio range in open terrain: 100 meters
- Building range: 30 meters (depending on the structure of the building)
- Tax: A maximum of 20 channels can be registered.
- Frequency: 434.5 MHz
- Transmitter power: 10 mW
- Power supply Switching power: Max. 8 A
- Switching power for ohmic load: Max. 8 A
- Switching power for inductive load: Max. 4 A
- Supply voltage: 230 volts, 50/60 Hz
- Power consumption in standby mode: < 0.4 watts
- Protection class: IP30
- Protection class: II
- Operating temperature: between 0 °C and 40 °C
- Mounting: Flush mounting, for frame sizes 50 x 50 mm and 55 x 55 mm
- Installation depth: 32 mm
- Features: DuoFern radio technology and manual operation on site
- Available accessories: Control unit (50 x 50 mm), cover frame, installation housing, user manual
- Optional: Gateway premium
- Dimensions: Width: 50 mm x Height: 50 mm x Depth: 12 mm
