HISENSE HSXM-FE01 touch screen controller
Product description
The Hisense HSXM-FE01 Wired Remote Control External Control Option for Hi-Terma Air-Water Heat Pumps. Monoblock systems are standard and optionally available for Split and Integra Kombi-Split systems.
Not compatible with:
- Ahm-044hcdsaa
- Ahm-060hcdsaa
- Ahm-080hcdsaa

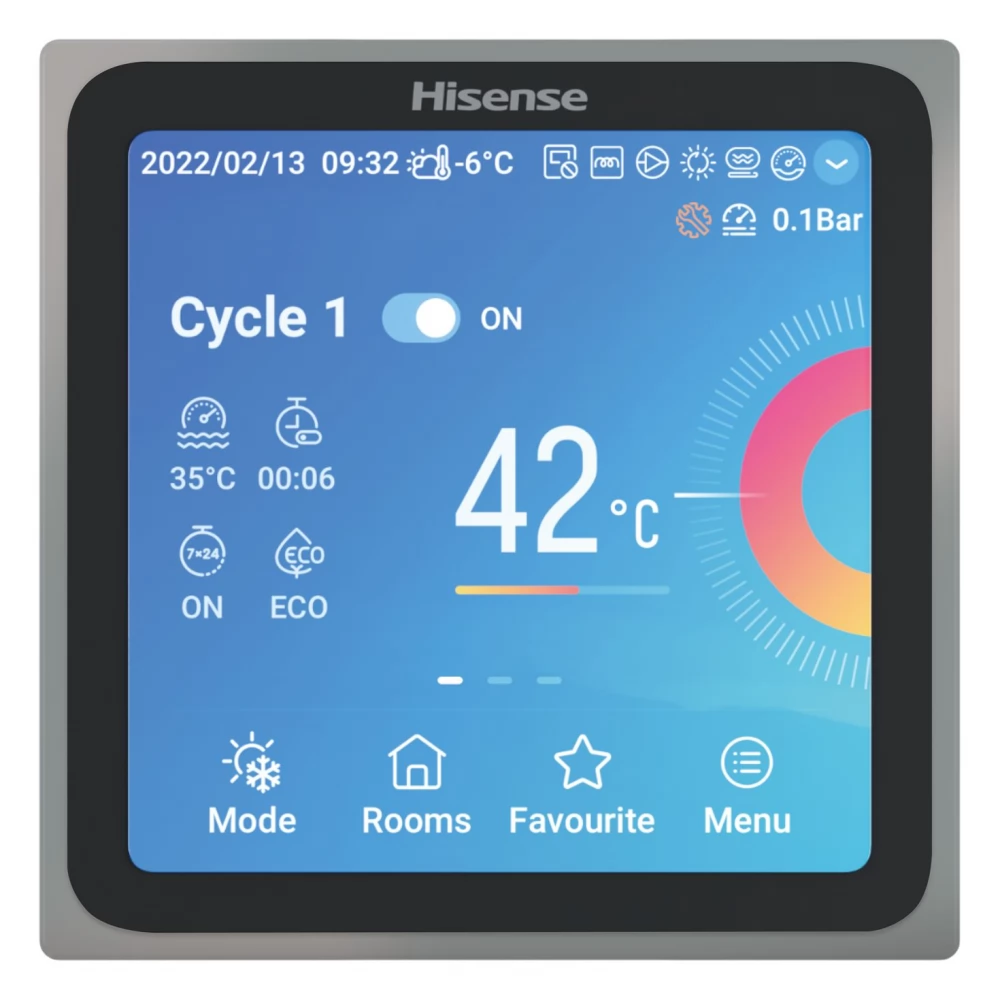

The slender and elegant house is designed for surface mounting so no recessed boxes are required. The compact 90x90x16 mm sizes make the touch screen controller a space-saving solution. The large, transparent touch screen provides a clean image and is incredibly easy to use. Use the button at the bottom of the device to turn it on and off and restore the device and, thanks to its hidden design, does not reduce the aesthetic appearance.
The remote control is connected to the indoor unit with a two -wire, shielded, Liycy 2x0.75 mm² bus control cable.
Display during normal operation:
- Display Date and Time
- Display of Consumer Circles, Mode and Temperature
- Display external ambient temperature
- Display the target/actual value of water temperature
- Display selected mode ECO mode, solar panel mode, boiler mode, sleep mode, defrost, test plant
- Timer on/Off Display
- Display of alarm message and alarm code
Features:
- external control option for hi-theerma air/water heat pumps
- Control for installation outside the heat center
- Control of max 2 different heating circles
- Unique control of premises
- Mode change between Eco, sleep, night mode
- Temperature setting
- 24 -hour weekly timer and vacation mode
- Select system setup functions, modes
- Error Code Display and Error Code History
- Visualization of power consumption and power
