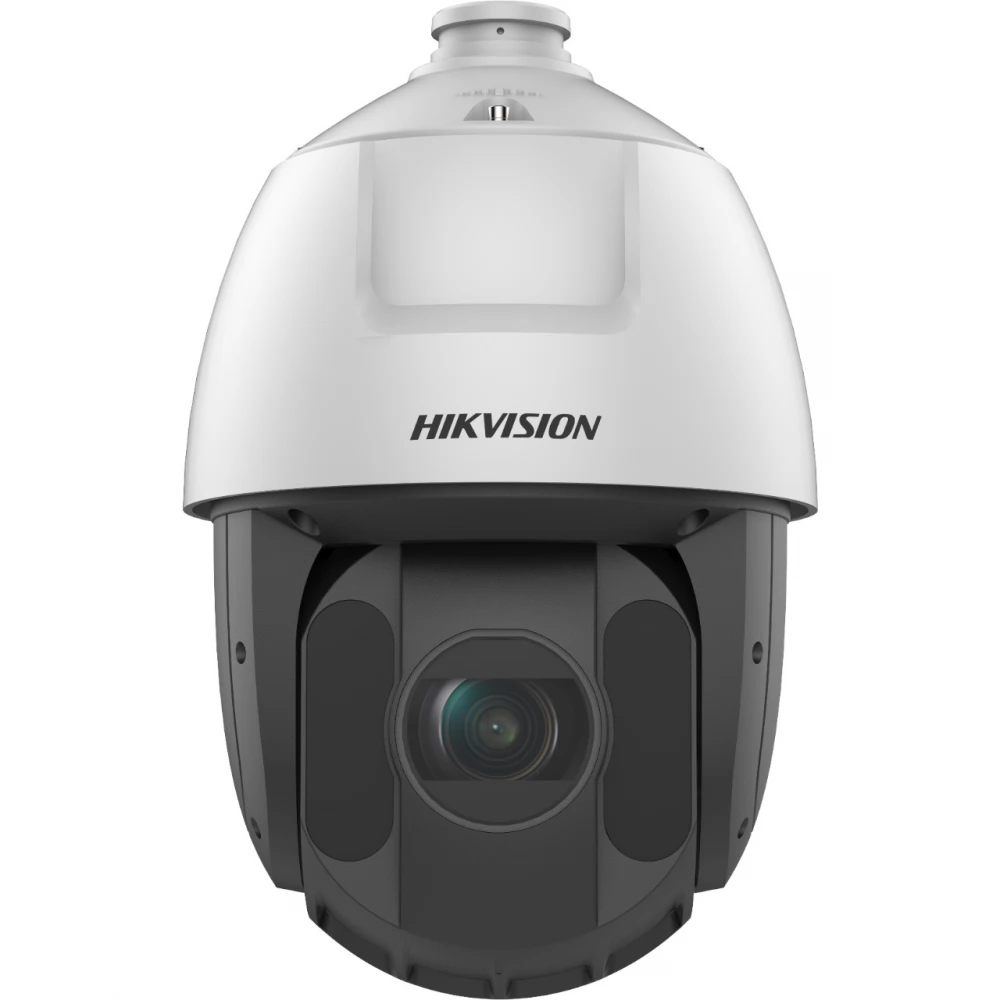

4 megapixel 25 times Network Infrared Speed ​​Dome Camera

Hikvision DS-2DE5425IW-AE 4 megapixel 25-fold network infrared Speed ​​Dome Camera uses 1/2,5 "progressive CMOS chip.
These camera series can be widely used in high resolution, such as rivers, roads, railways, airports, squares, parks, picturesque spots and locations, etc.

- 1/2.5 "progressive scanning cmos
- up to 2560x1440 resolution
-Minimum illumination: color: 0.005 lux @ (F1.5, AGC turned on), black and white: 0.001 lux @ (F1.5, AGC turned on), 0 lux IR
-25 times optical zoom, 16 times digital zoom
- WDR, HLC, BLC, 3D DNR, dehumidification, EIS, regional exposure, regional focus
- IR distance up to 150 meters
- 24 V AC and Hi-poe
- H.265+/H.265 Video compression support

Technical data
- Image sensor: 1/2.5 "Progressive scanning CMOS
-Minimum illumination: color: 0.005 lux @ (F1.6, AGC turned on), black and white: 0.001 lux @ (F1.6, AGC on), 0 lux IR
- White balance: automatic/manual/automatic tracking/indoor/outdoor/fluorescent lamp/sodium lamp
- profit: automatic/manual
- lock time: 50 Hz: 1/1 S ~ 1/30000 S, 60 Hz: 1/1 S ~ 1/30000 S
- Day and night: IR cut filter
- Digital zoom: 16 times
- Privacy mask: 24 pieces programmable privacy mask
- Focus mode: automatic/semi -automatic/manual
- Wide Dynamic Range: 120 pieces (not supporting total image speed)
- Focus Distance: 4.8 mm ~ 120 mm, 25 times optical zoom
- Zoom speed: approx 3.6 s (optical lens, wide-meal)
-Angle: horizontal: 59.5 ° ~ 2.6 ° (wide-me), vertical: 35.7 ° ~ 1.5 ° (wide-me
- Operating distance: 10 mm ~ 1500 mm (wide-me
- Awaiting range: F1.6 ~ F3.5
- IR distance: 150 meters
- Intelligent IR Support
- Scanning range: 360 ° Infinity
- Scan speed: configurable, 0.1 °/s ~ 120 °/s, pre -set speed: 120 °/s
- Billing range: -15 ° ~ 90 ° (automatic flip)
- Tilt speed: configurable, 0.1 °/s ~ 80 °/s, pre -set speed: 80 °/s
- Support for Zoom proportional
- Pre -settings: 300 pieces
- patrol scan: 8 patrols, up to 32 pre -setting for each patrol
- Sample Scan: Scan 4 samples, recording time every 10 minutes for each test
- Disconnecting memory support
- Parking operation: pre -configured, sample scanning, patrol scan, automatic examination, tilt scanning, random scan, frame scanning, panorama scanning
- 3D location allowance
- PTZ position display support
- pre -set freezing aid
- scheduled task: pre -set, template scan, patrol scan, automatic examination, tilt scanning, random scanning, frame scanning, panoramic scanning, dome restart, Dome adjustment, aux output
- Video compression: Main data stream: H.265+/H.265/H.264+/H.264, sub data stream: H.265/H.264/MJPEG, Third Data Stream: H.265/H.264/MJPEG
- Video bit speed: 32 kbps ~ 16384 kbps
- Support for SVC
- Principle event: motion detection, detection of video failure, exception
- smart event: intrusion detection, lines perception, region detection, region exit detection, object removal detection, unattended baggage detection
- Intelligent Recording: ANR (automatic network upload), dual VCA
- Interesting Region: The main stream of data, the sub -stream and the third data stream support four recorded areas
- Maximum resolution: 2560x1440
- Main stream: 50 Hz: 25 fps (2560x1440, 2048x1536, 1920x1080, 1280x960, 1280x720), 50 fps (1920x1080, 1280x960, 1280x720); 60 Hz: 30 fps (2560x1440, 2048x1536, 1920x1080, 1280x960, 1280x720), 60 fps (1920x1080, 1280x960, 1280x720)
- sub data stream: 50 Hz: 25 fps (704x576, 640x480, 352x288); 60 Hz: 30 fps (704x480, 640x480, 352x240)
- Third Stream: 50 Hz: 25 FPS (2560x1440, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288); 60 Hz: 30 fps (2560x1440, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x480, 640x480, 352x240)
- Image repair: HLC, BLC, 3D DNR, humidification, EIS, regional exposure, regional focus
- Network storage: Built -in memory card opening, micro SD/SDHC/SDXC support, up to 256 GB; NAS (NPS, SMB/CIPS), ANR
- Protocols: IPv4/IPv6, http, https, 802.1x, QOS, FTP, SMTP, UPNP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPOE, PPPOE, Bonjour
-API: Open-ended, supports ONVIF, ISAPI and CGI, supports Hikvision SDK and third-party management platform
- Simultaneous live image: up to 20 channels
- user/host: up to 32 users; Level 3: Administrator, Operator and User
- Safety Measures: User Certification (ID and Password), Hiking Certification (Mac Address), HTTPS Encryption, IEEE 802.1x Port Based Network
