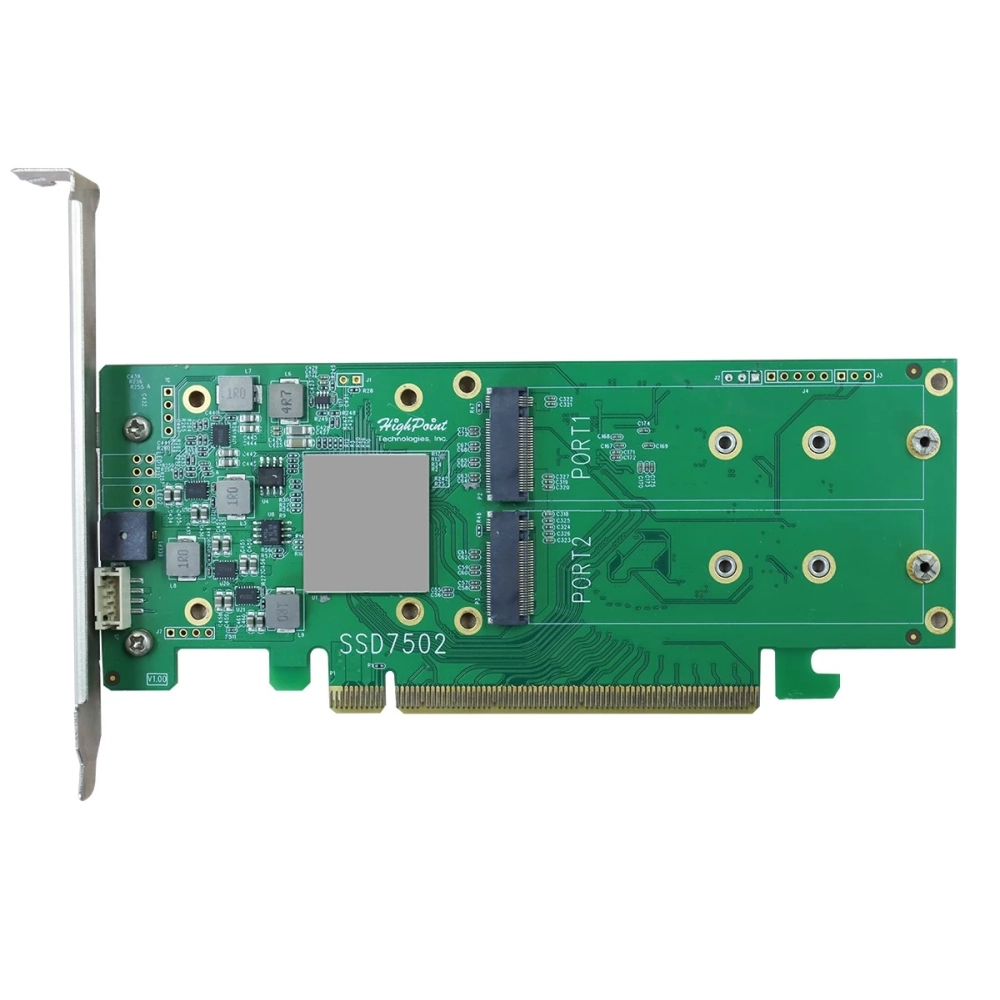

The SSD7502 is the fastest dual-port PCIe Gen4 RAID AIC available on the market today and features bootable RAID support for Windows and Linux-based platforms. The compact, half-height (low-profile) AIC features state-of-the-art, performance-focused PCIe switch architecture that ensures all M.2 ports are operating at peak performance and can deliver sustained transfer rates of up to 14,000. MB/s using only two Gen4 NVMe SSDs!

The SSD7502 AICs are equipped with HighPoint's proven NVMe RAID technology, which can support RAID 0 striping, RAID mirror arrays, and individual SSDs that can be used as data volumes or system boot disks.

- Dedicated PCIe 4.0 x16 directly for CPU NVMe RAID solution

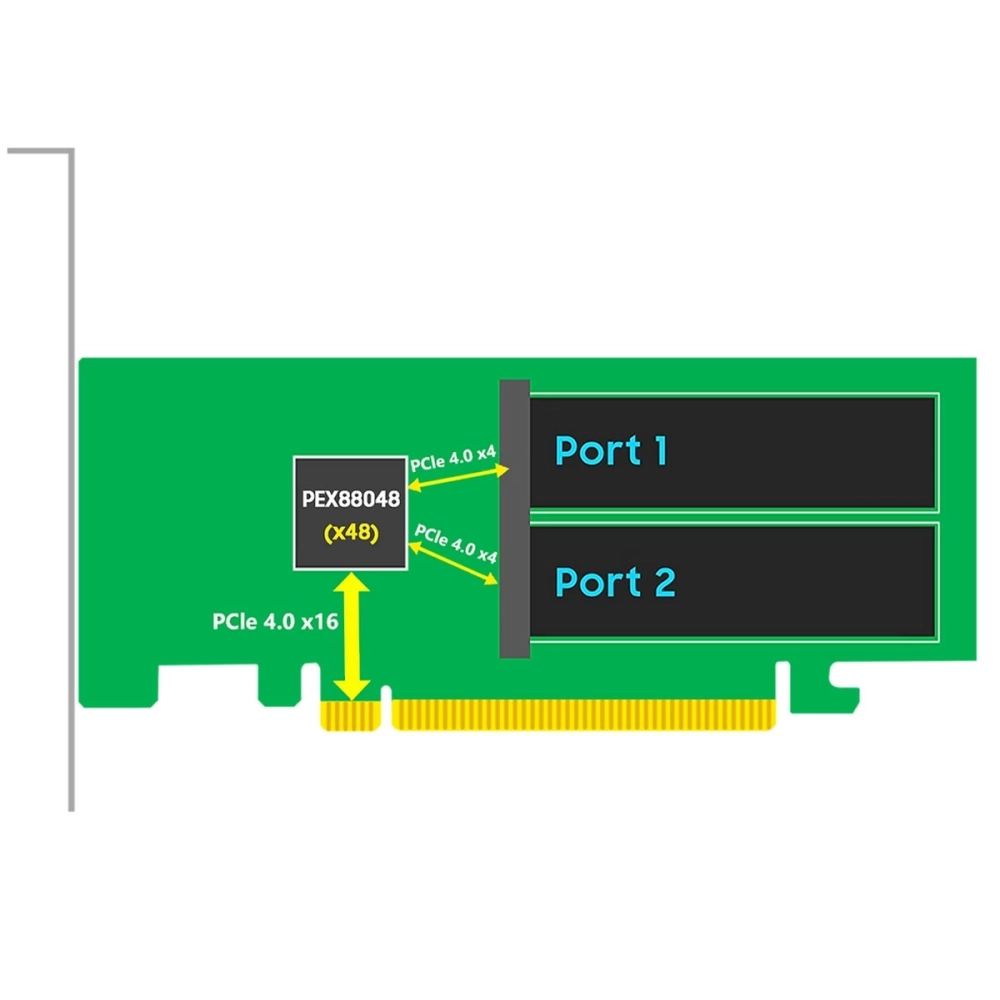

- High-performance PCIe Gen4 switching technology: x16 lane dedicated upstream and x4 lane downstream bandwidth for all device channels
- 2x dedicated M.2 NVMe device channel
- Supports 2242/2260/2280 M.2 form factors
- Compact, half-height form
- Supports RAID 0, 1 and Single Disk configurations

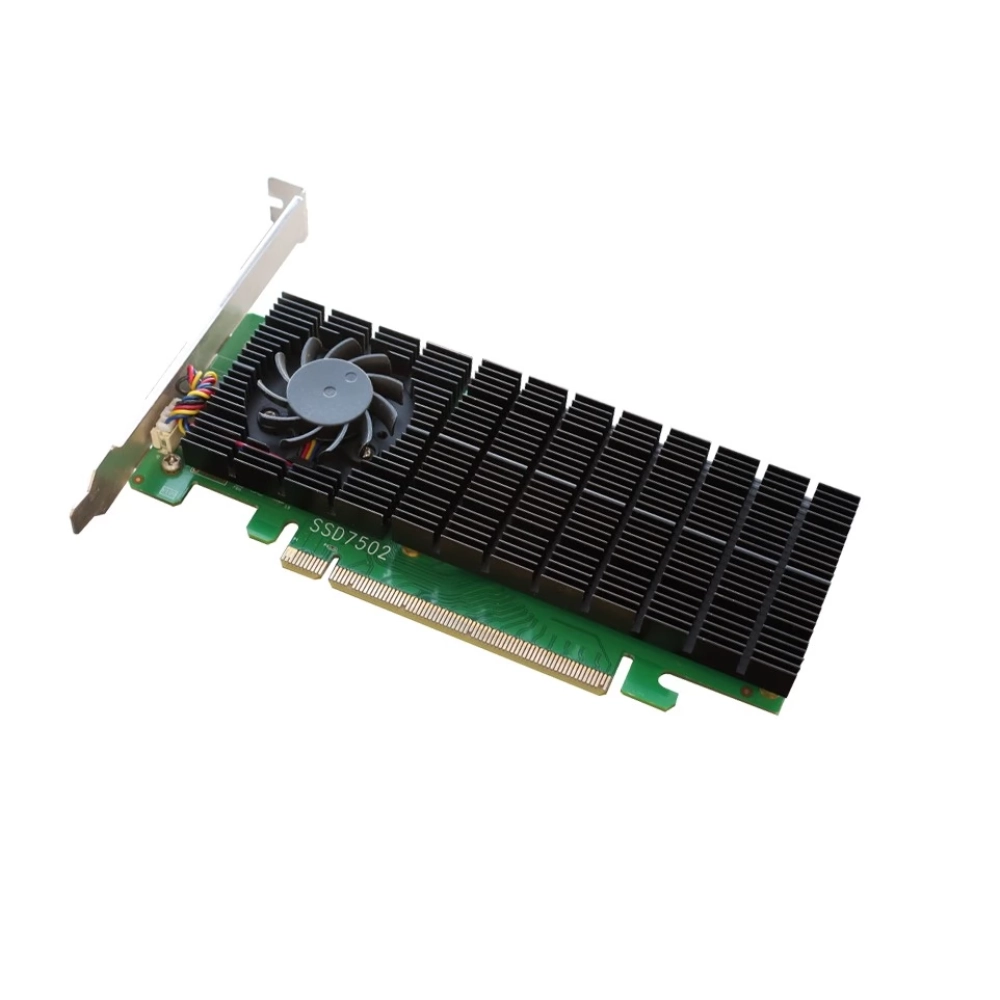

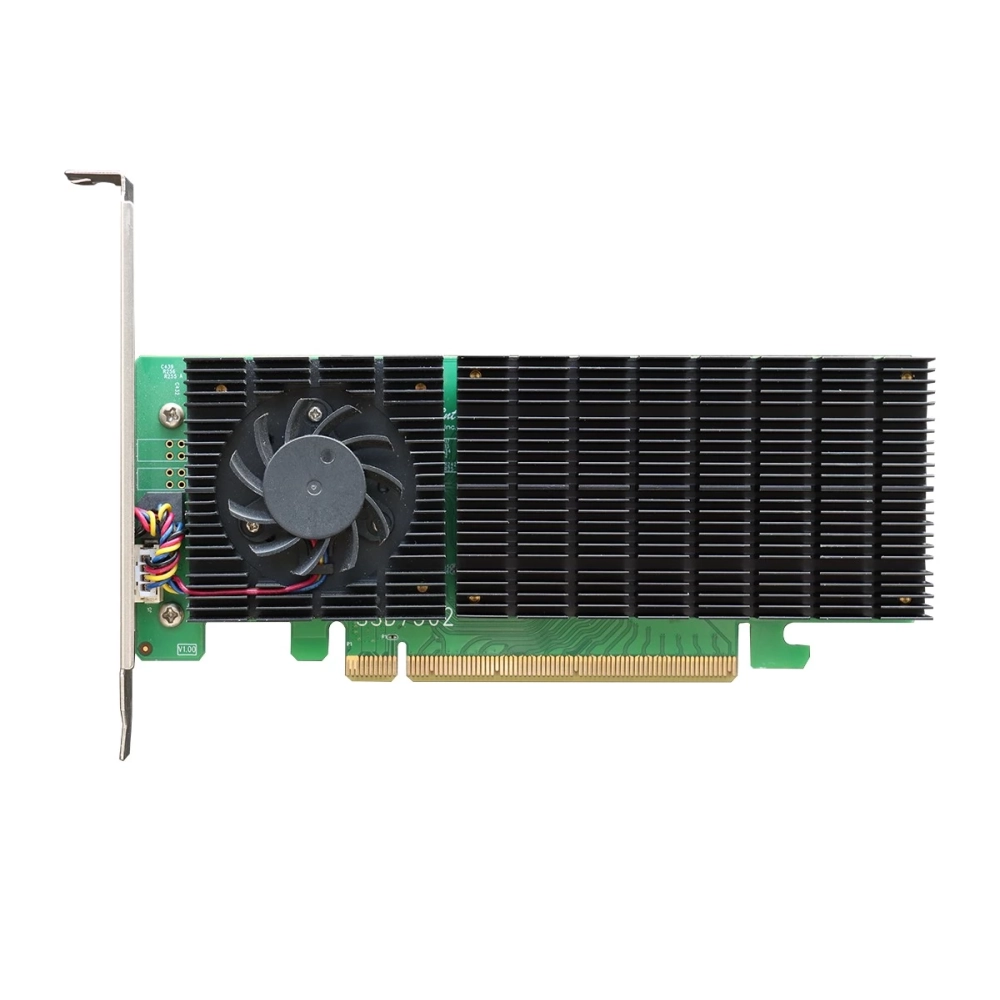

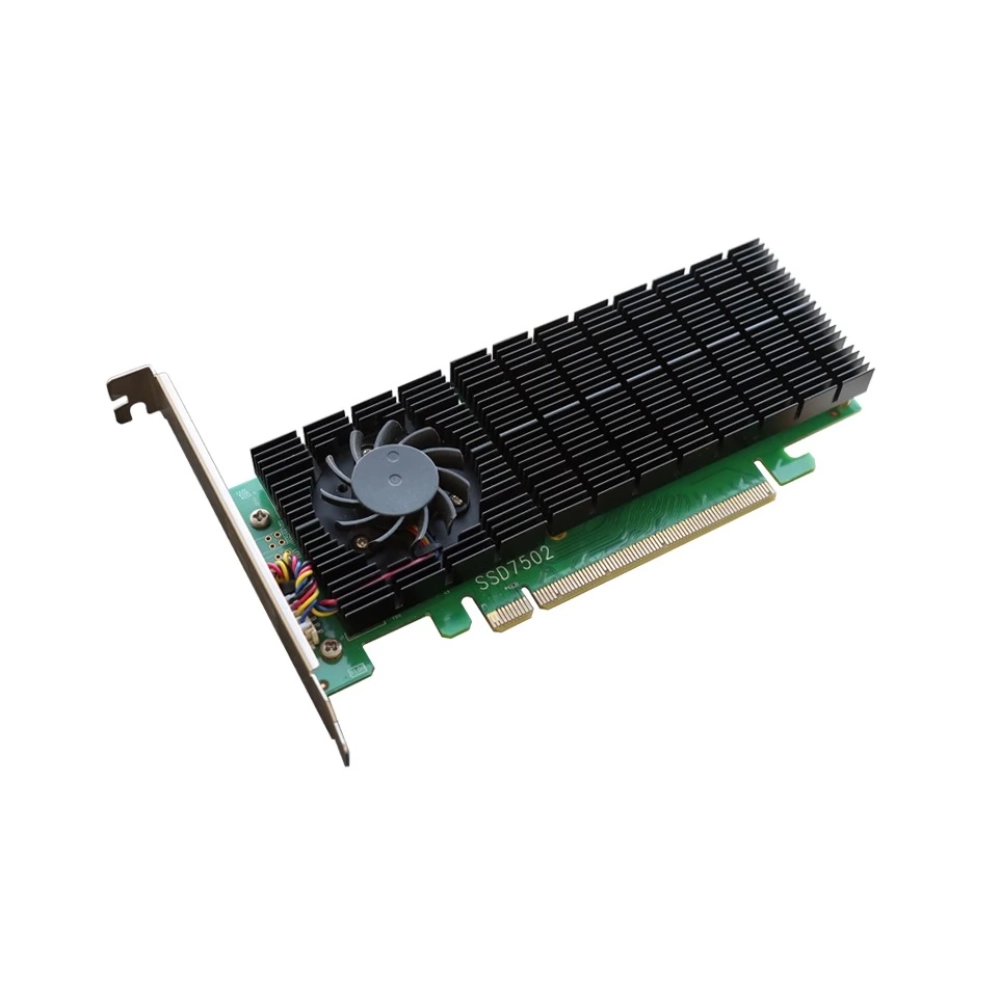

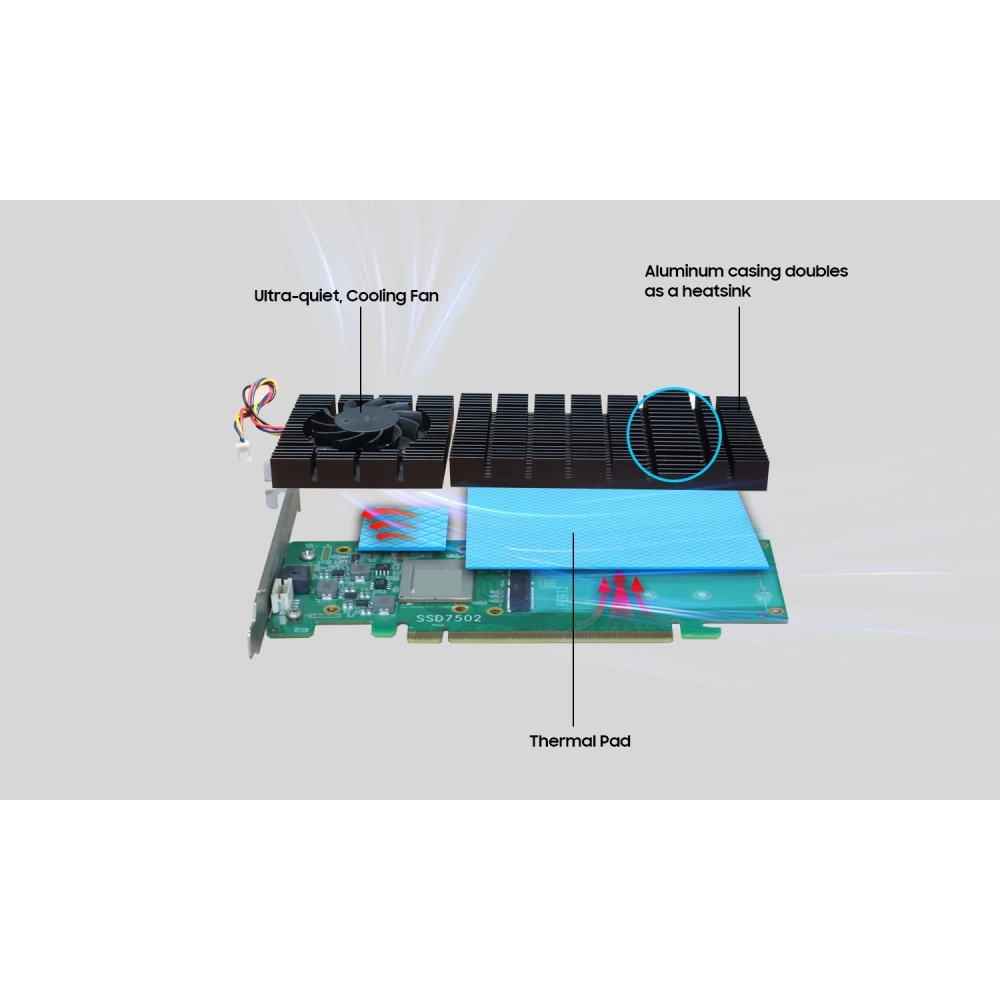

- Advanced Gen4 Hyper Cooling Solution
- Comprehensive Management Suite with real-time SSD TBW and temperature monitoring solution
- Bootable RAID support on Windows and Linux
