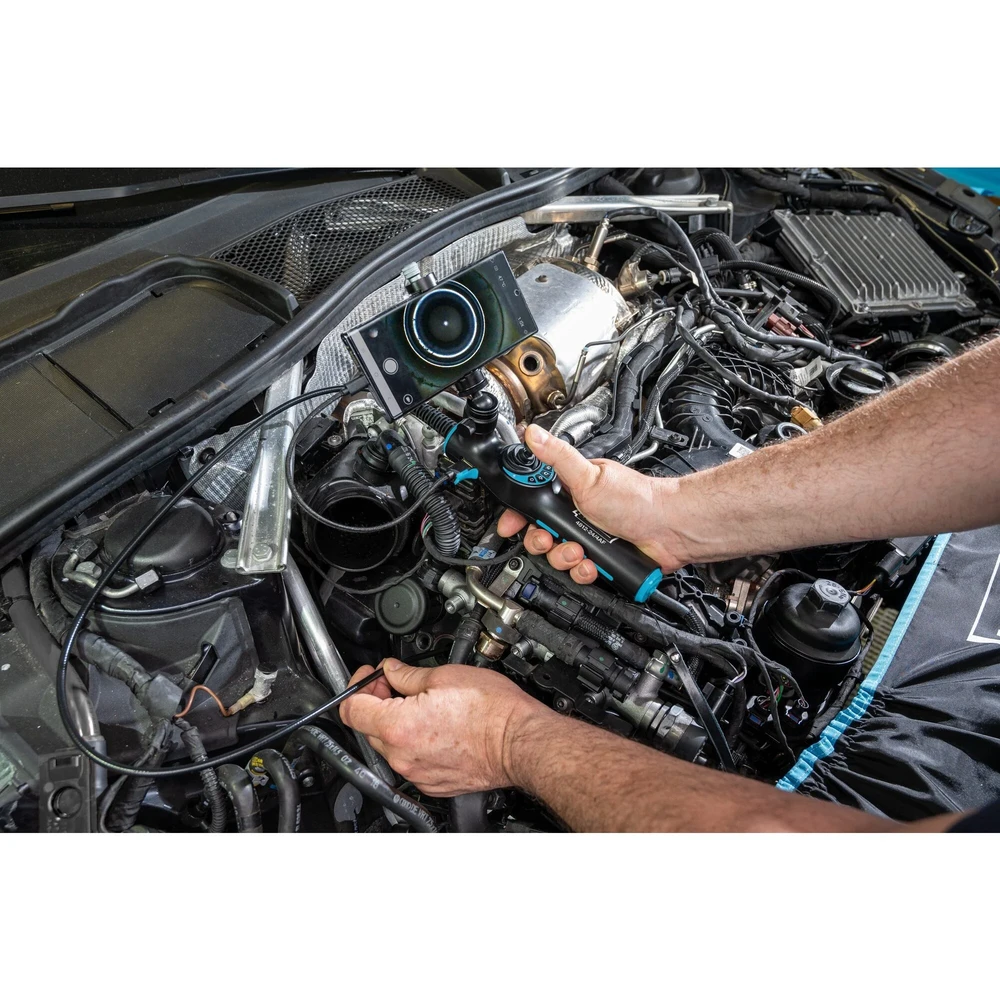

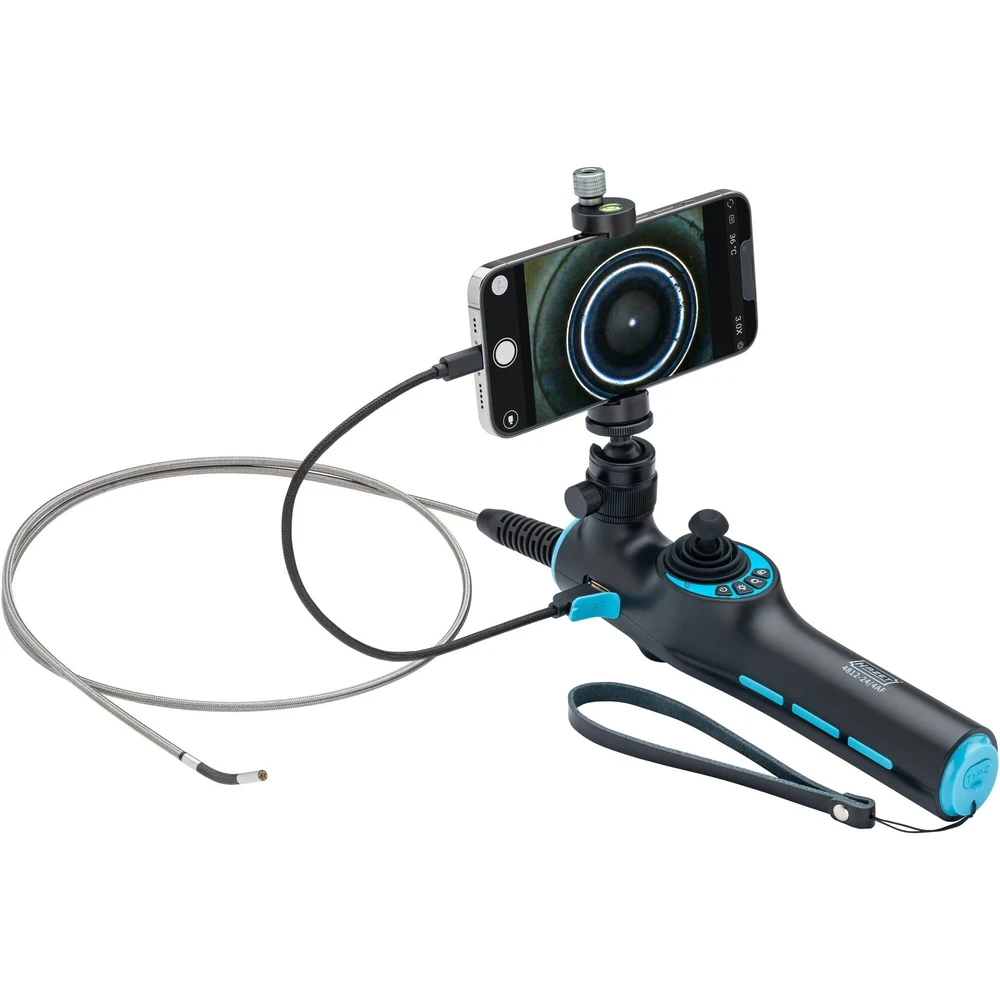

The HAZET 4812-24/4AF portable video endoscope is ideal for diagnosing and documenting damage or rust using video and/or image recording in hidden, hard-to-reach areas such as gearbox damage and wear marks, shaft wear, cylinder walls, piston crowns, valves, cavities, frame structures, sunroofs, axles, brake pads and more. The fully articulating 3.9 mm diameter probe allows for easy navigation in cavities. The 6000-8000 lux white light LEDs provide optimal lighting with three brightness levels. Recordings can be viewed live on a smartphone or saved for later processing. The image can be enlarged using the standard smartphone screen controls (drag). The device has a robust, rotatable and adjustable smartphone holder. The temperature warning alarm (app) and automatic shutdown when the maximum permissible camera temperature is exceeded protect the device from damage.

- Battery system: Li-ion battery, 3.35 Ah, operating time 120 minutes

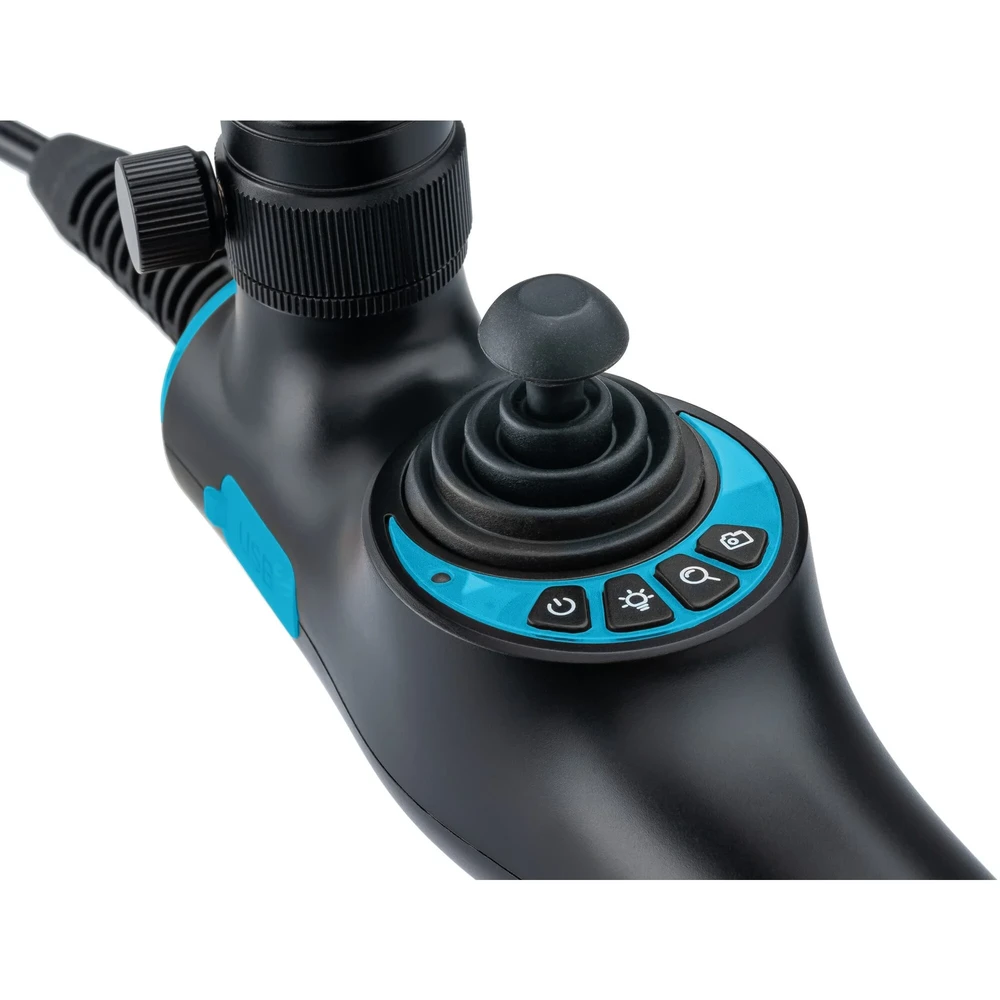

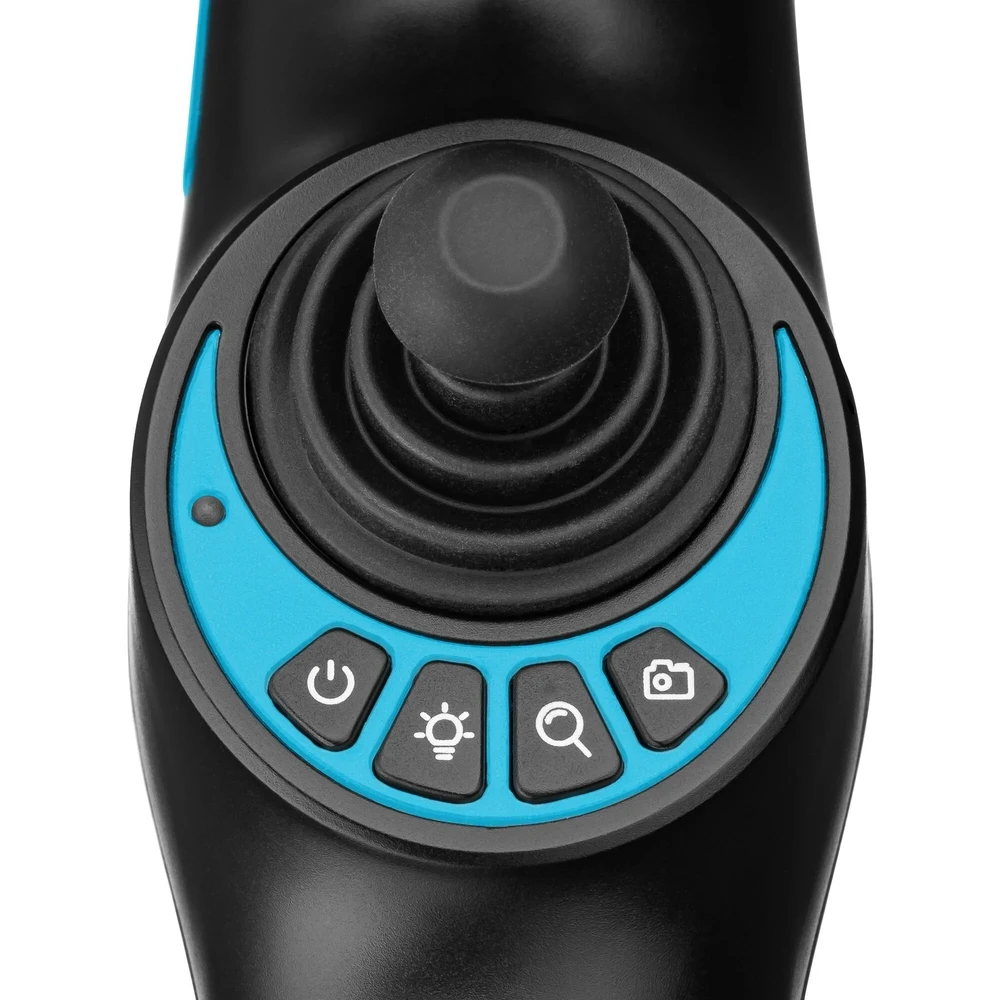

- Operation: Photo and video recording via application or with the endoscope controls, joystick control of the camera probe with the controls on the main unit

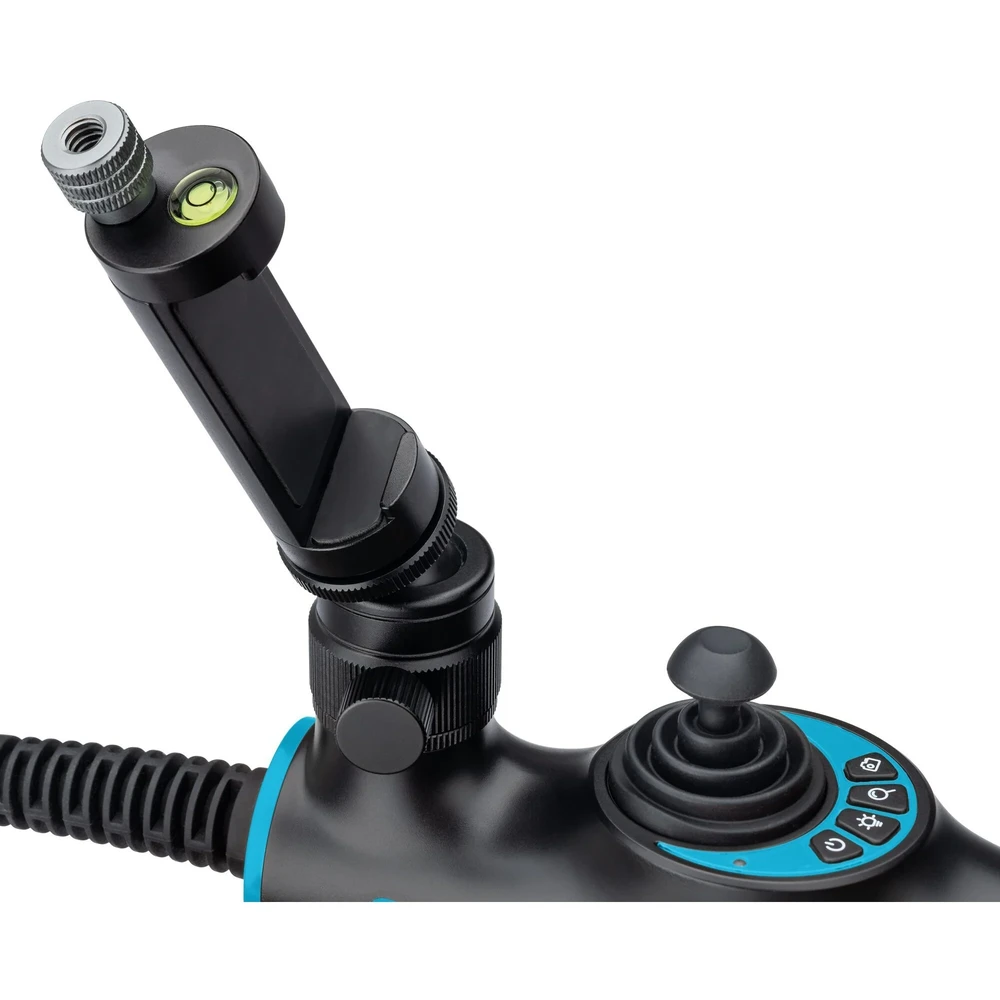

- Display: Image display via smartphone application, smartphone holder (58-100 mm capture range) directly on the device, zoom function
- Lighting: with LED white light 6000-8000 lux, adjustable in 3 levels, 3 LED brightness levels
- Camera head: Ø 3.9 mm
- Camera probe: Length 100 cm, Ø 3.9 mm, waterproof
- Security: Main unit IP54, probe IP67 protection class

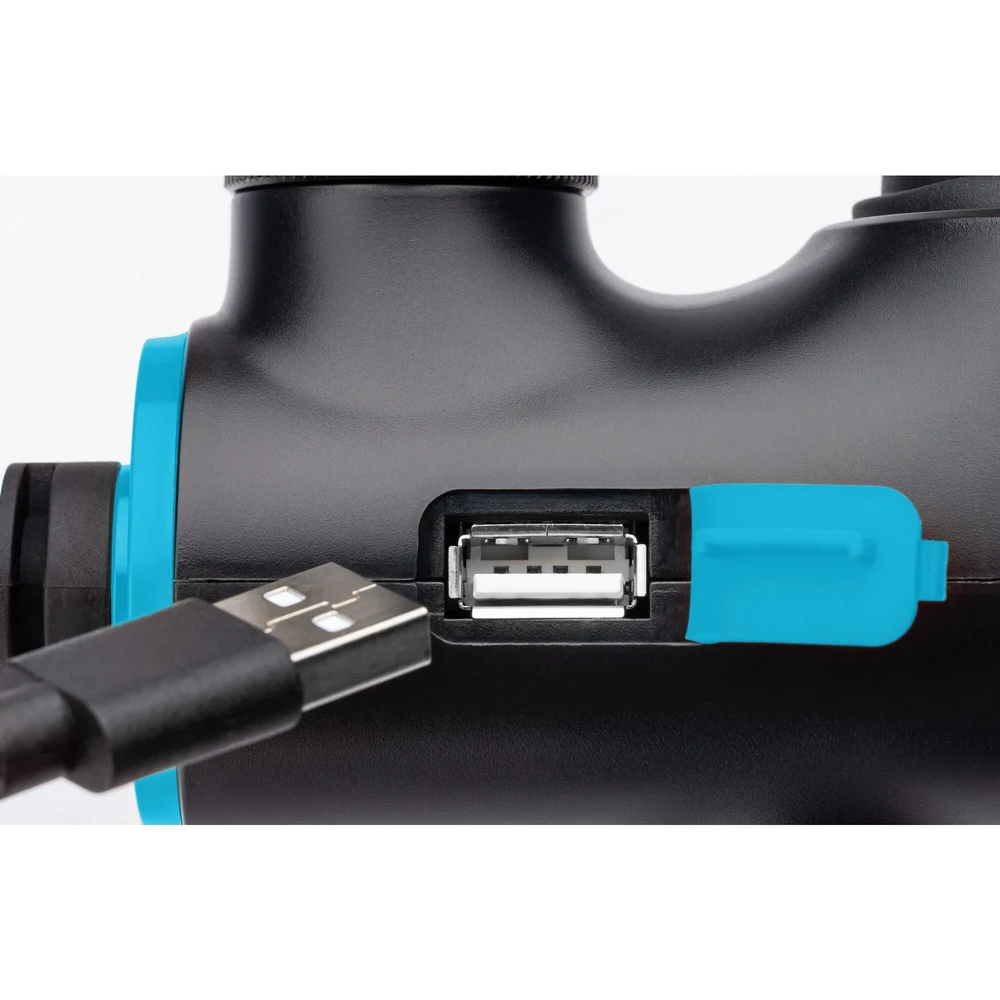

- Connectivity: USB
- Operating temperature range: 10 °C to 50 °C
