Product features

- Strict stress, stability and functional tests guarantee high quality requirements
- Extremely flexible: the stable design allows you to securely attach TVs weighing up to 75 kg and up to 229 cm (90 inches) screen size
- The TV console adapts to your individual needs, whether it is a rotatable, tiltable or pull-out TV set
- Vibration dampers for the perfect sound experience
- The cable guide ensures orderliness and the necessary relief
- Easy-Fix ​​system for simple and fully adjustable orientation of the TV
- TV wall bracket, which is particularly suitable for flat screen televisions, allows the optimal placement of the flat screen TV in any room, ideal for open plan living rooms
- VESA standard: 300 x 100, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 300, 400 x 300, 400 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 300, 600 x 400, 600 x 400, 600 x 500, 600 x 600, 800 x 200, 800 x 400, 800 x 500, 800 x 600, 800 x 600

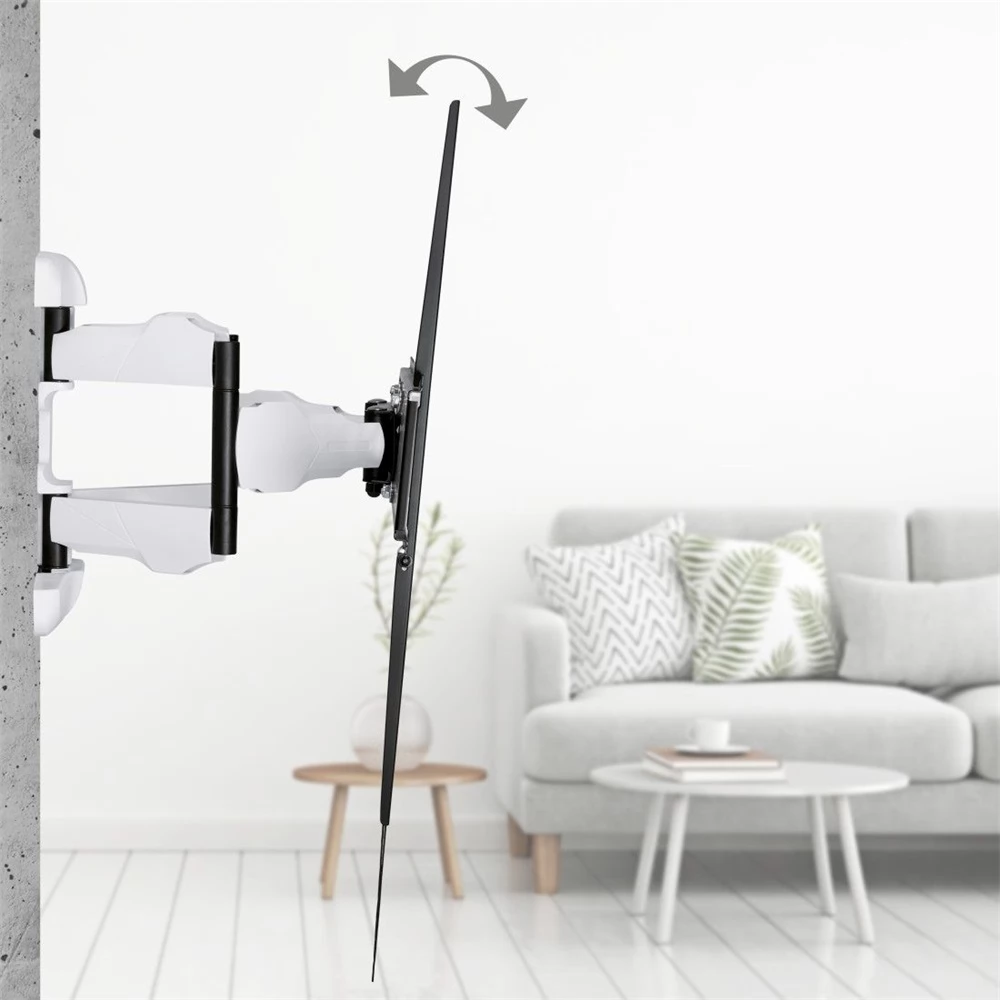

- Up to +2°/-10° continuous tilt angle
- With 2 double support arms and 3 joints, can be rotated up to 120°
- Maximum load capacity: 75 kg

Specifications:

- Outer width 91.2 cm
- External height 63 cm
- Mounting plate width 47.7 cm
- Mounting plate length 36.1 cm
- Decline +/2 / 10 °
- 6° rotation
- Rotation range 120°

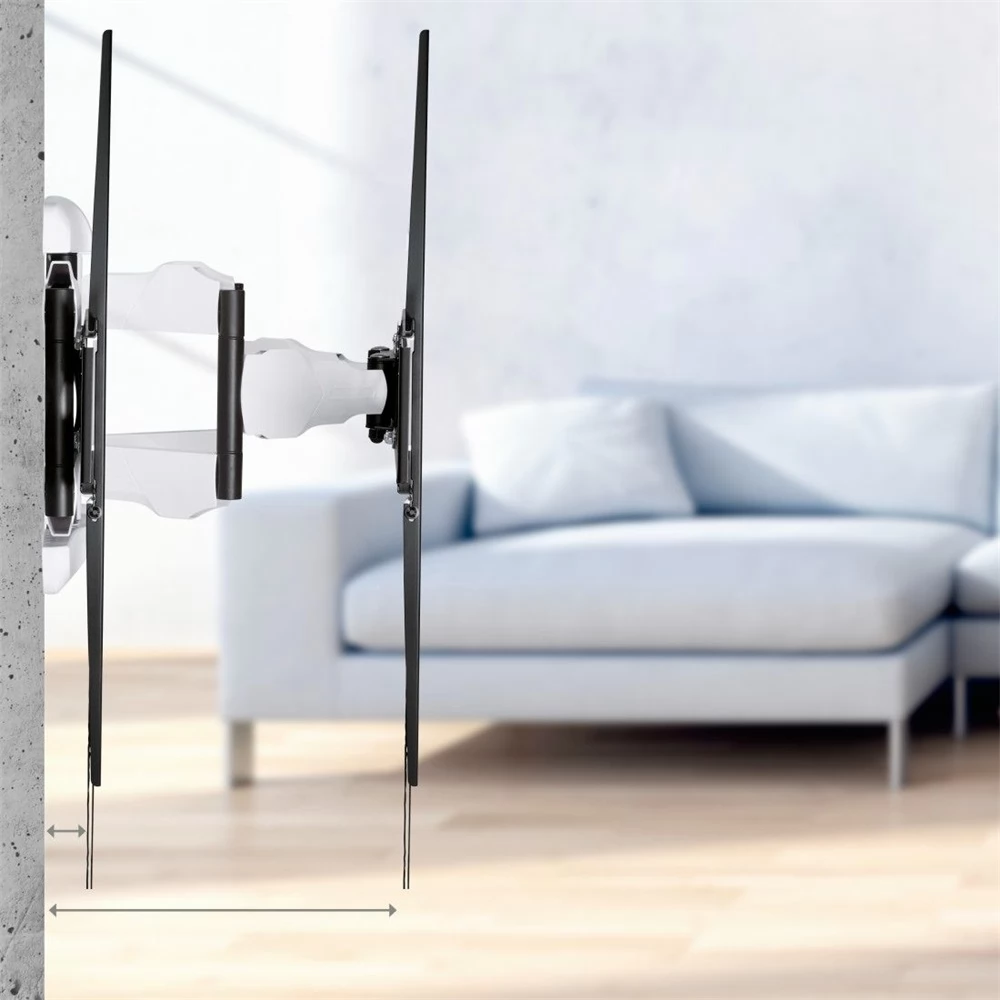

- Distance from the wall max. 44.9 cm
- Distance from the wall min. 5.5 cm
