The HA BDH 1200 – 2000 mm is a universal projector mount for ceiling mounting.

Thanks to the fixing arms of variable length (Ø min. 100 - Ø max. 400 mm), the holder is suitable for almost all commercially available projector models.

Precise X- and Y-axis adjustment options allow precise alignment to the projection surface at any time, even after installation.

The projector is quick and easy to install. The distance from the ceiling can be telescopically adjusted between 1200 mm and 2000 mm.

The ceiling bracket can be tilted ±45°, which allows installation on sloping ceilings.

Cables are routed internally and protected against unauthorized access.

The surfaces are coated with shock- and scratch-resistant powder coating in white.

The maximum load capacity is 25 kg.

Technical data

- Version / Designation: HA BDH 1200-2000 mm
- Installation: Can be installed on the ceiling

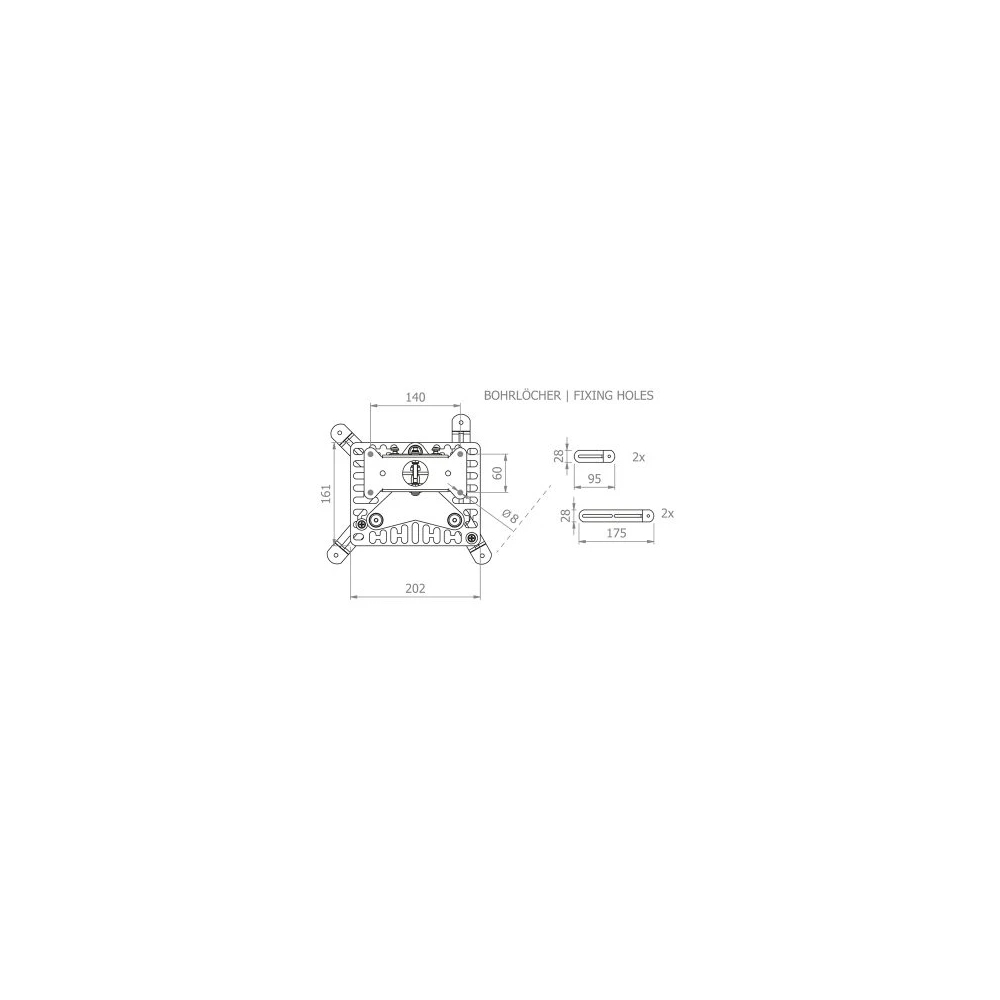

- Ceiling mounting plate: Width 160 x Depth 80 mm
- Ceiling clearance: 1200-2000 mm
- Maximum load capacity: 25 kg
- Color: White

Special features

- Can be mounted on a universal ceiling
- Adjustable length mounting arms Ø min. 100 and Ø max. between 400 mm
- Can be mounted on a ceiling that can be tilted at ±45°
- X and Y axis fine-tuning adjustment ± 5°
- Cable management
- Variable ceiling distance, 1200-2000 mm
