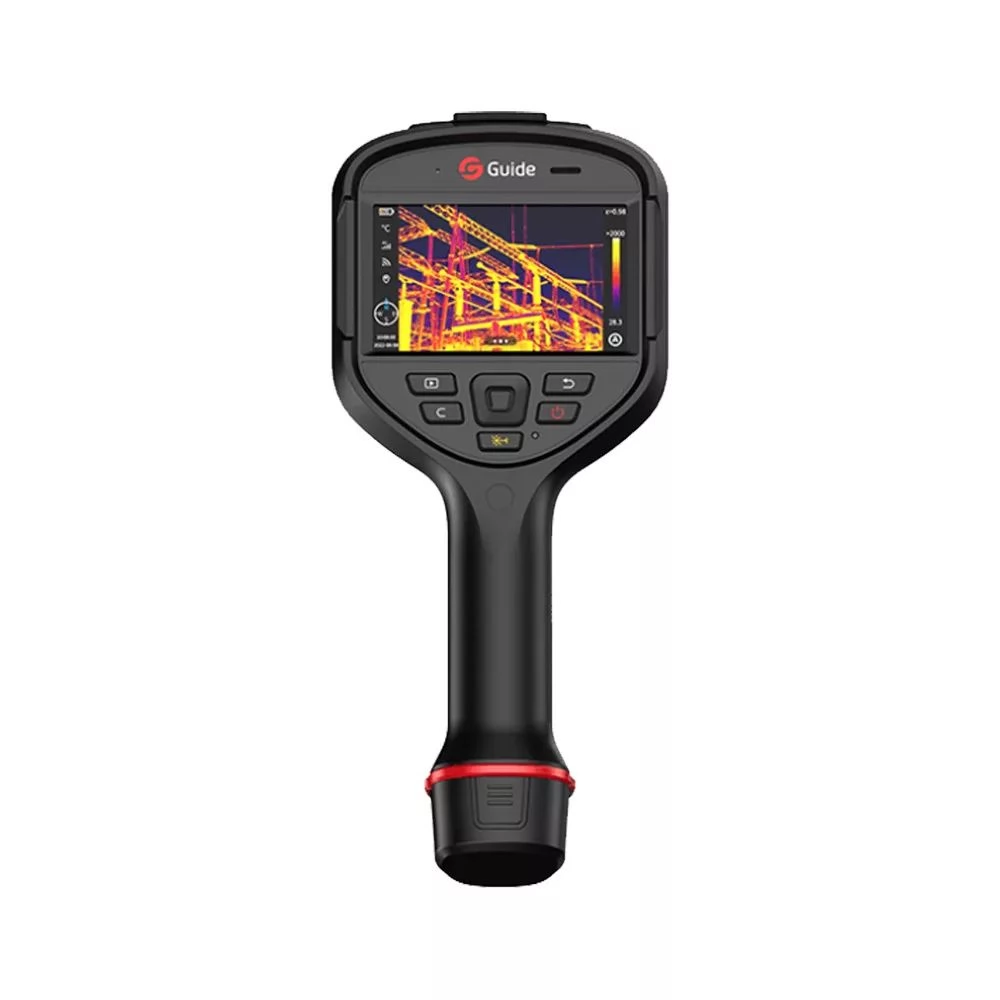

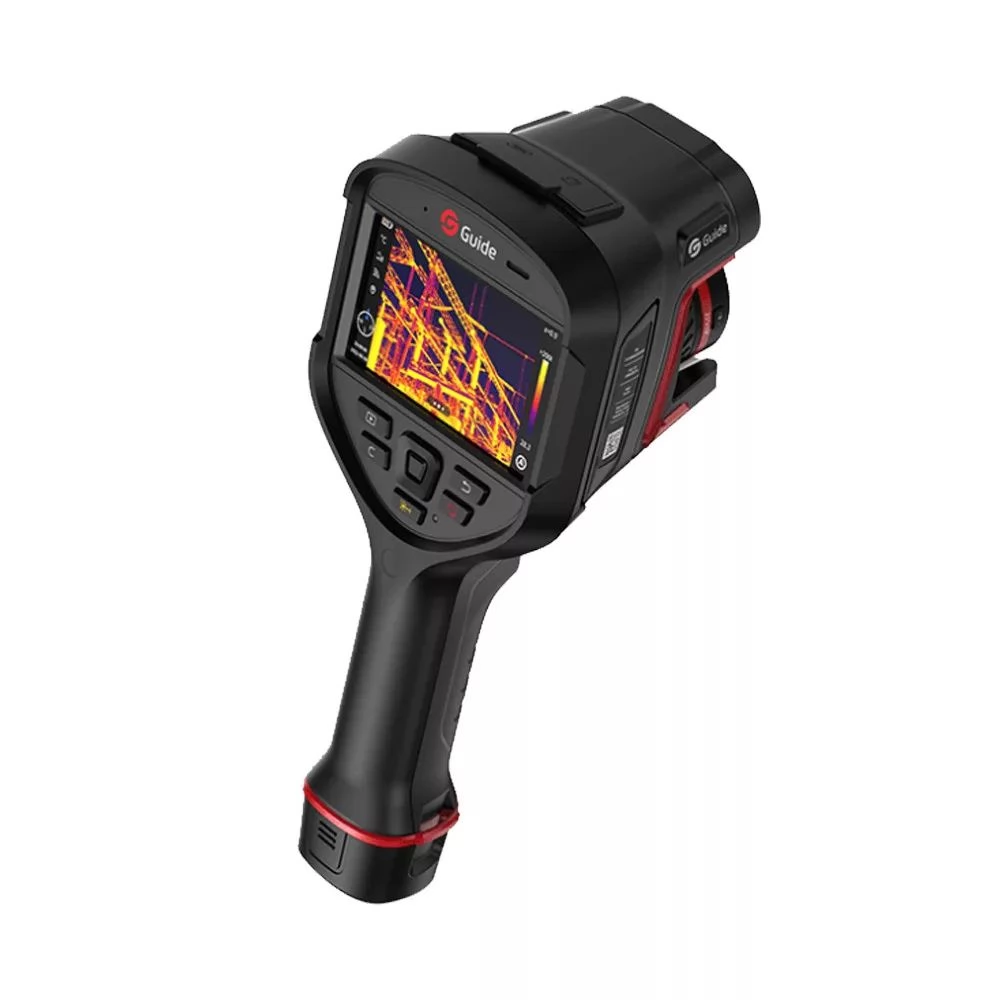

The "Hammer" series is Guide's latest development, precision industrial thermal camera family.

The entry level is represented by H2. With the help of its own developed, 256x192 pixel resolution, extremely sensitive hero sensor, the 5 MP daylight digital camera and 5 different focus modes, it always provides the necessary information in the most suitable way, adapted to different needs. What is new is that the thermal camera image is interpolated in real-time using an internal algorithm, so that the events can be followed with extremely high resolution. The 256x192 image is displayed in 512x384 resolution.

The carefully designed and well-thought-out tool can show something new in almost every field, so it will be a valued piece in the most varied areas of use. The informative images, the continuous display and the detailed thermal image surpass everything within its price category.

- Self-developed 256x192 heat sensor
- ASIC algorithm to display pixel point details and hidden warnings
- 5 MP visible image camera and double illumination for easy and precise localization of defects
- 30 Hz frame refresh for temperature analysis
- IP54 water resistance, protection against dust and shock resistance up to a drop of 2 m
- OTA online updates to keep your device software up to date
- Built-in WiFi module for easy and simple data transmission to the cloud, immediate download or analysis

For industrial purposes, one of the most convenient and comfortable forms to use is the Hammer form. The device provides an innovative, mature, high-quality solution with all its functions.

Its resolution of 1.7 mrad is easy to use, it basically offers two types of measurement functions, so it provides high-precision data from -40°C to +650°C.

The internal memory is 64 GB, which is complemented by an external SD card slot, which handles cards up to 256 GB. "jpg" images contain temperature information, "mp4" records videos with sound, and "lrgd" format can be recorded with a frame rate of up to 30 Hz, with temperature information - for further analysis.

The built-in laser pointer provides a stable beam of up to 40 m. The device also has a light, microphone, speaker, electronic compass and GPS.

Available software
- Thermo Tools (PC)
- Thermography (iOS / Android)

If you're looking for the best, the Guide Hammer H6 won't disappoint. The predecessors were also outstanding in the field, and the new series has set the bar high again.
