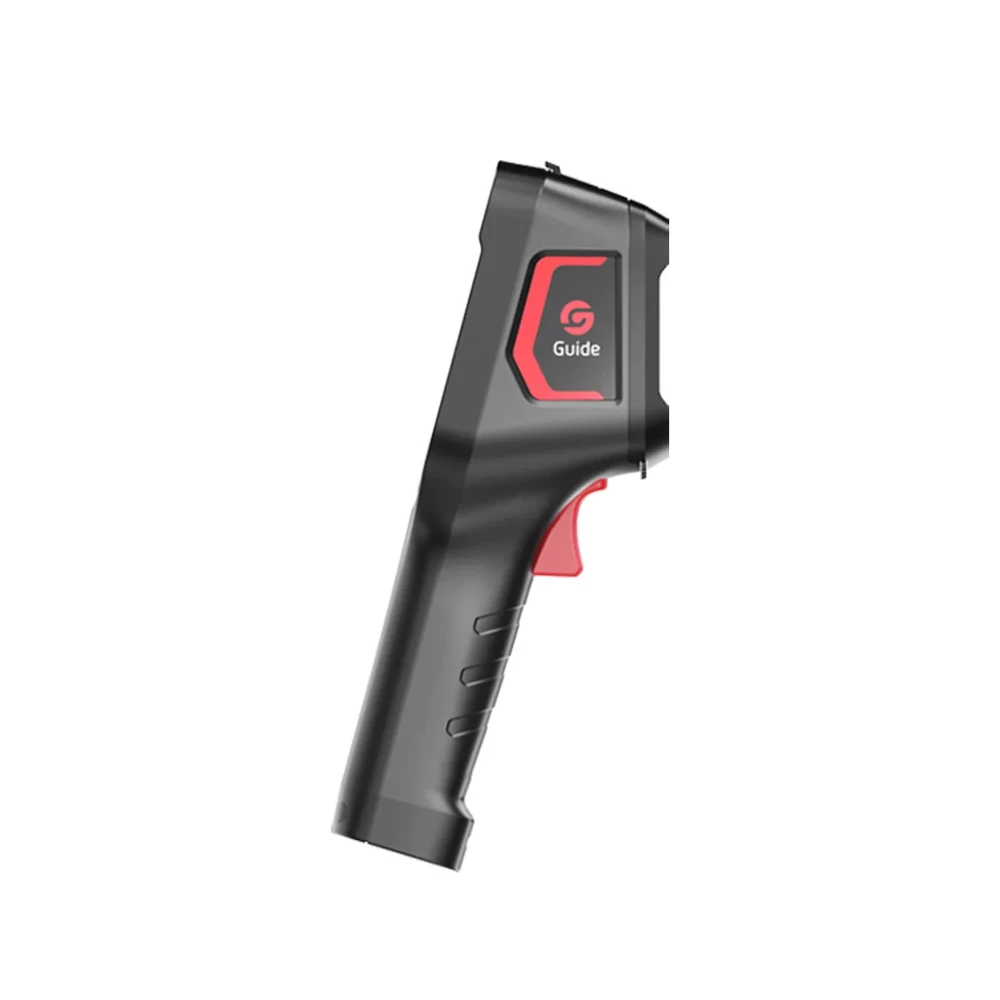

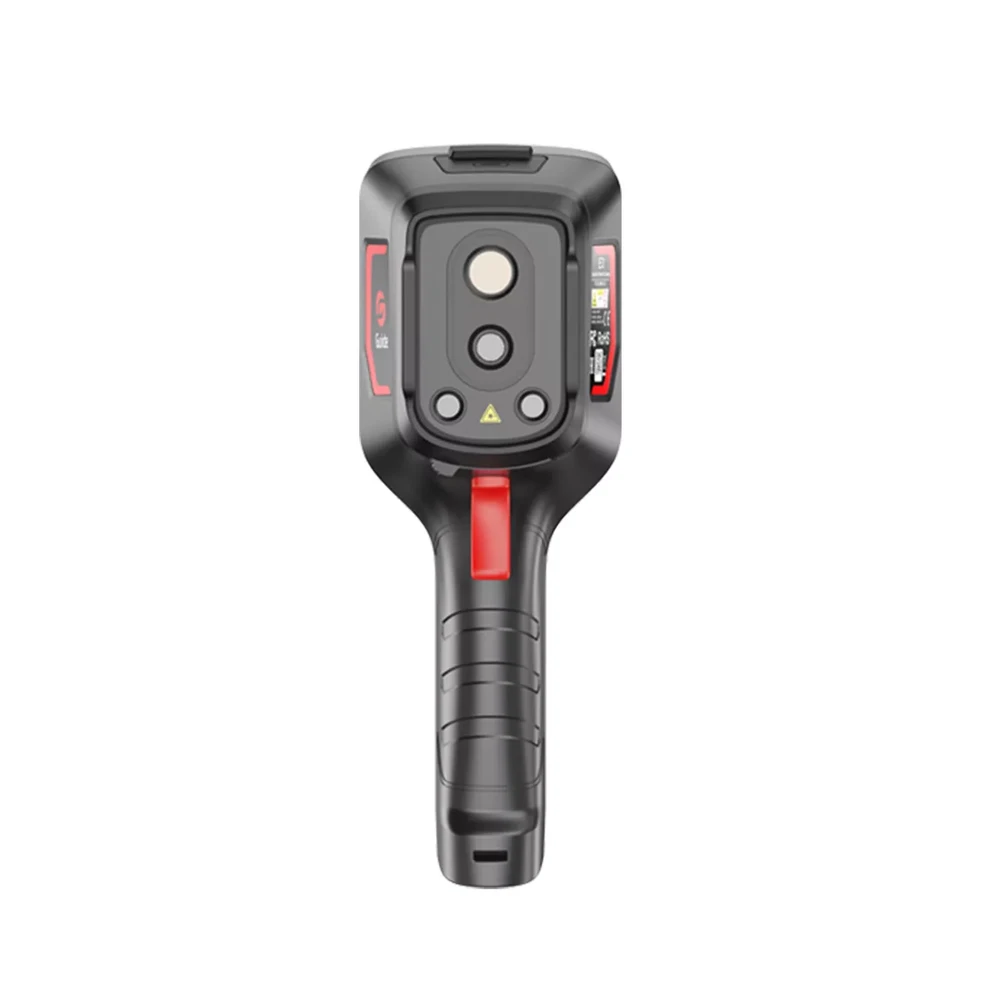

GUIDE E3 industrial thermal Imager

Guide E3 has 256×192@12μm IR resolution, 30 mK NETD sensitivity and -20 °C ~ 550 °C measurement range. The device offers an image refresh rate of 30 Hz / 9 Hz, so even the smallest temperature differences can be accurately detected. IR-Perfclear technology optimizes image details and reduces noise in real time, providing an exceptionally clear thermal image. The device is equipped with a 3.5-inch bright HD display and a 2MP visible light camera that supports synchronous display or fusion of thermal image and visible light image. Smart functions - live video stream, recording, Wi-Fi connection and OTA update - significantly increase work efficiency.

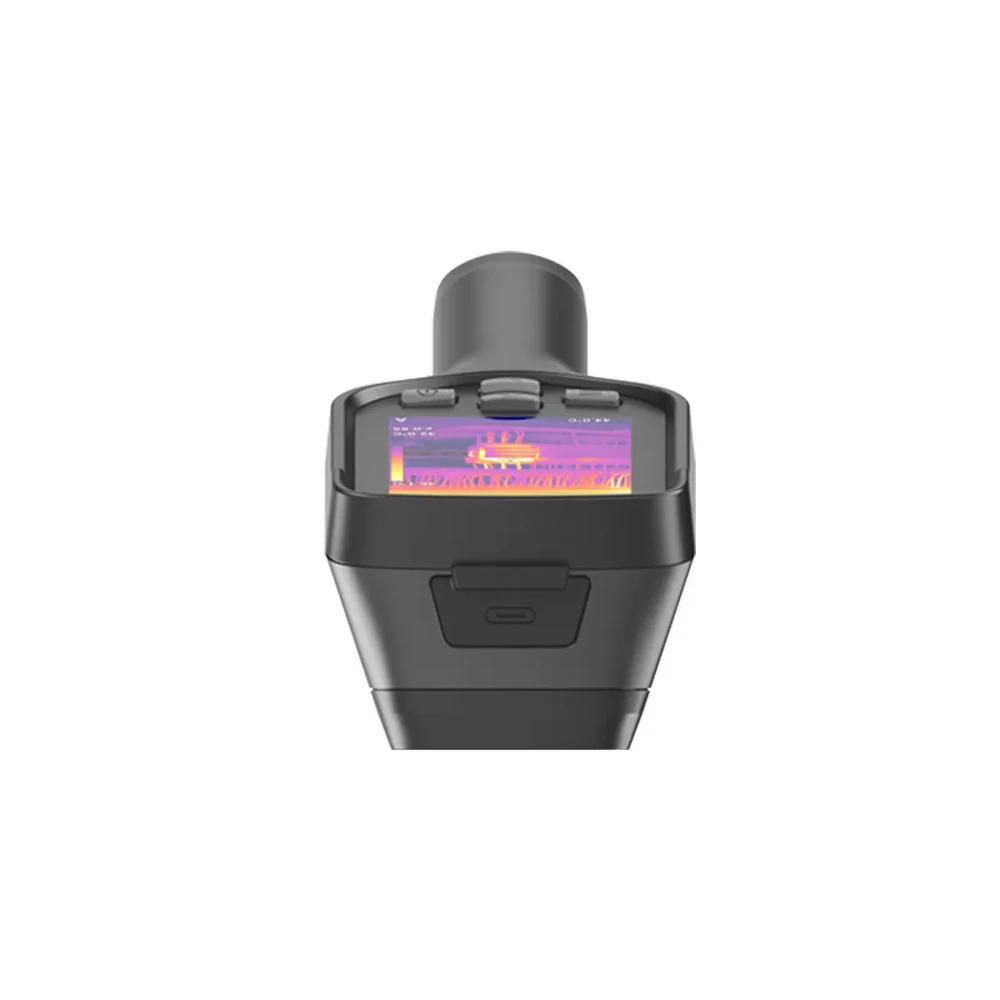

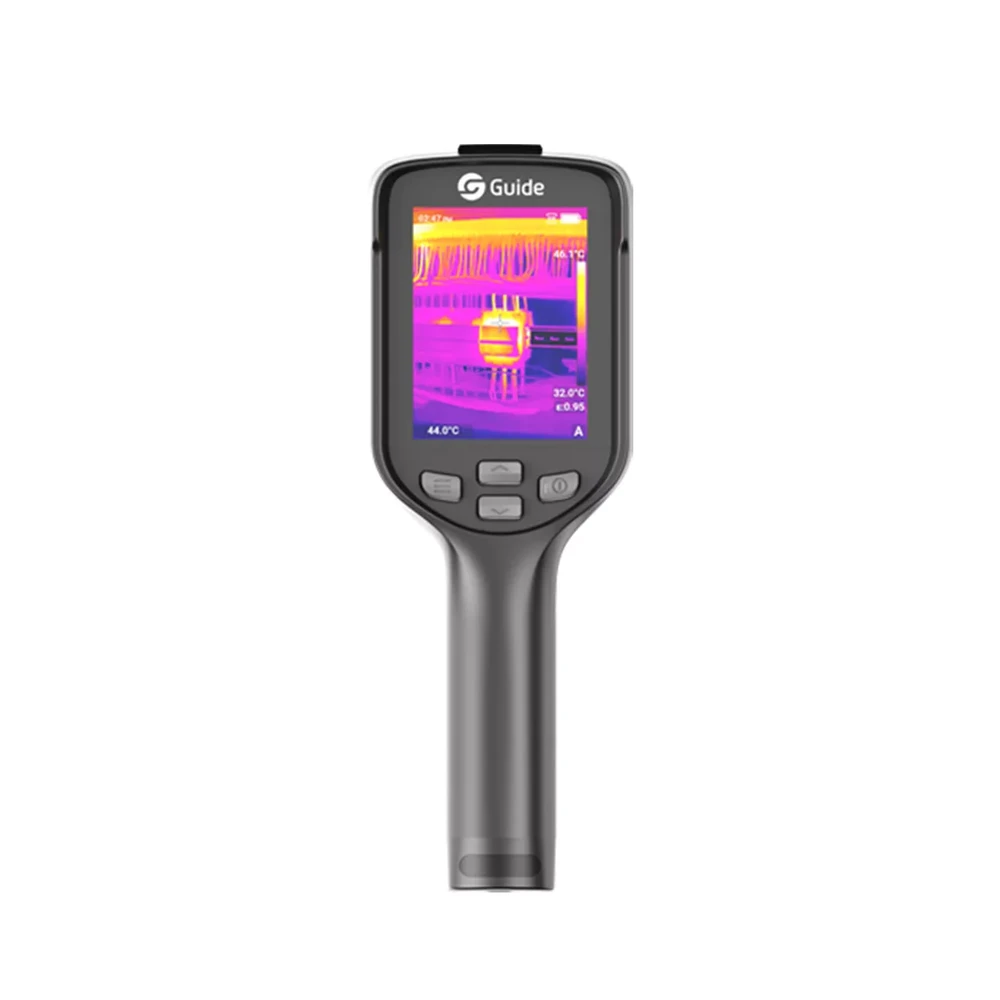

3.5 inch large display
The large 3.5-inch display provides a detailed image, allowing you to accurately monitor critical information.

Real-time IR-Perfclear technology
IR-Perfclear real-time super-resolution technology provides a four-fold improvement in image quality.

Measuring range up to 550 ℃
The measurement range ranges from -20°C to 150°C, 0°C to 550°C, so it provides stable analysis even in extreme environments.

OTA updates
It ensures secure, stable updates with encrypted data transfer and verification. They can be installed anywhere, anytime with one click.

2 meter impact resistance
Certified to withstand a 2-meter drop. He is not bothered by rain, high temperatures, or harsh environments.
