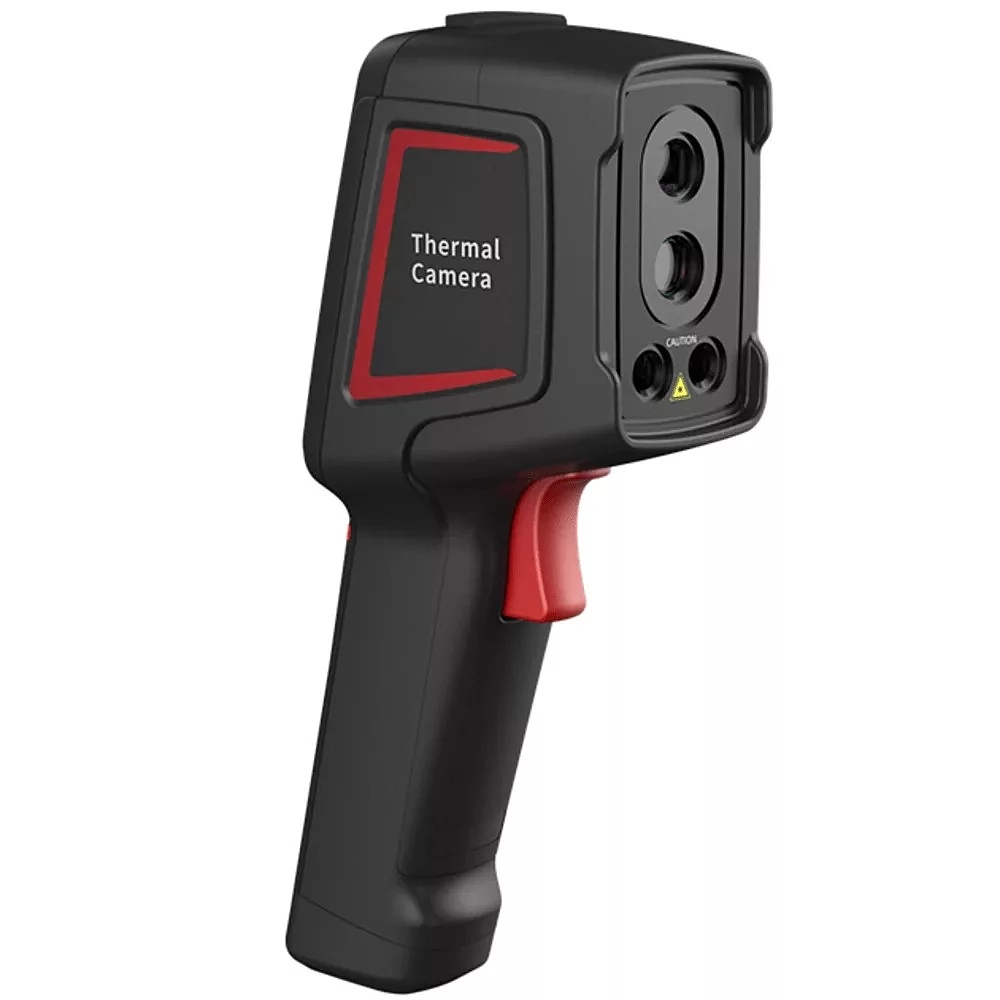

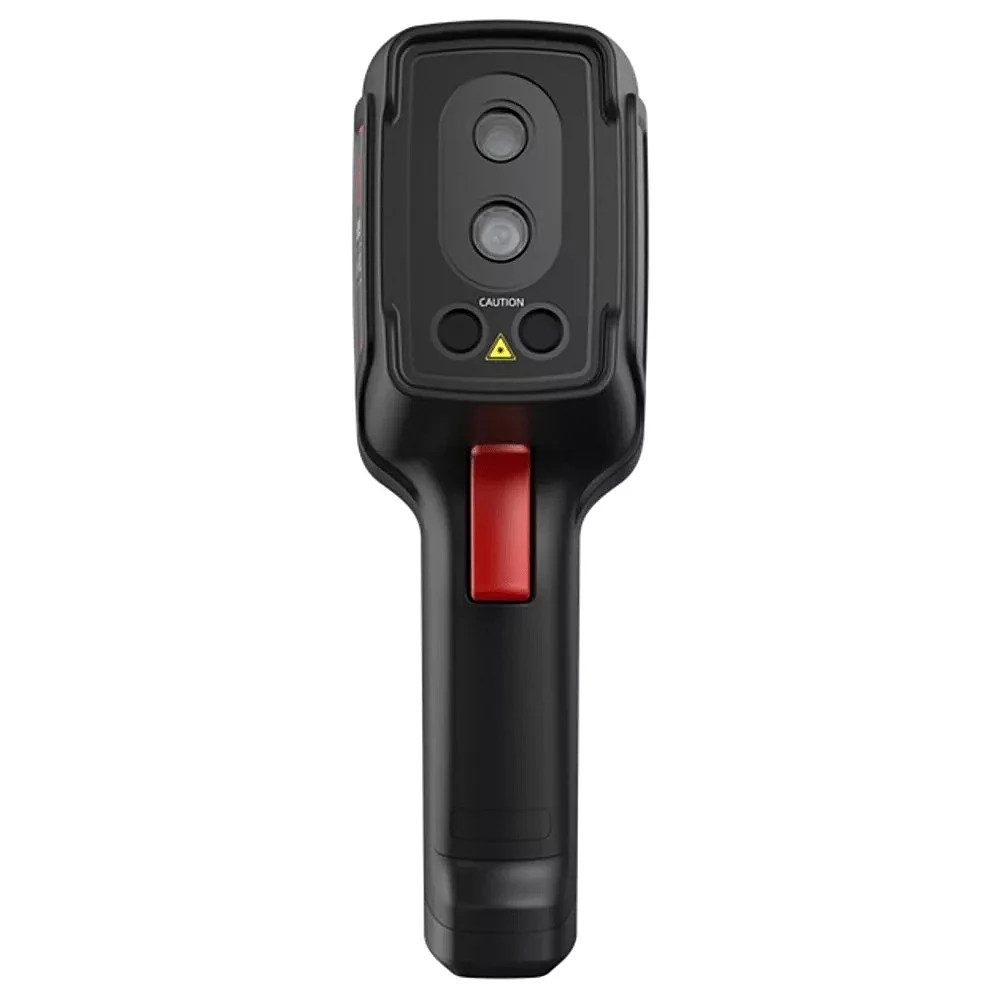

The Guide introduces entry -level industrial heat cameras. The thermal cameras with small sensors are usually advantageous thanks to their high viewing angle, and they are advantageous at short distance when checking small areas.

E2 is a available device for building engineers, inspectors, electrical examinations and in all areas where temperature differences can provide substantial information in detecting a problem. It can be a great help for professionals to work smarter, safer and faster.

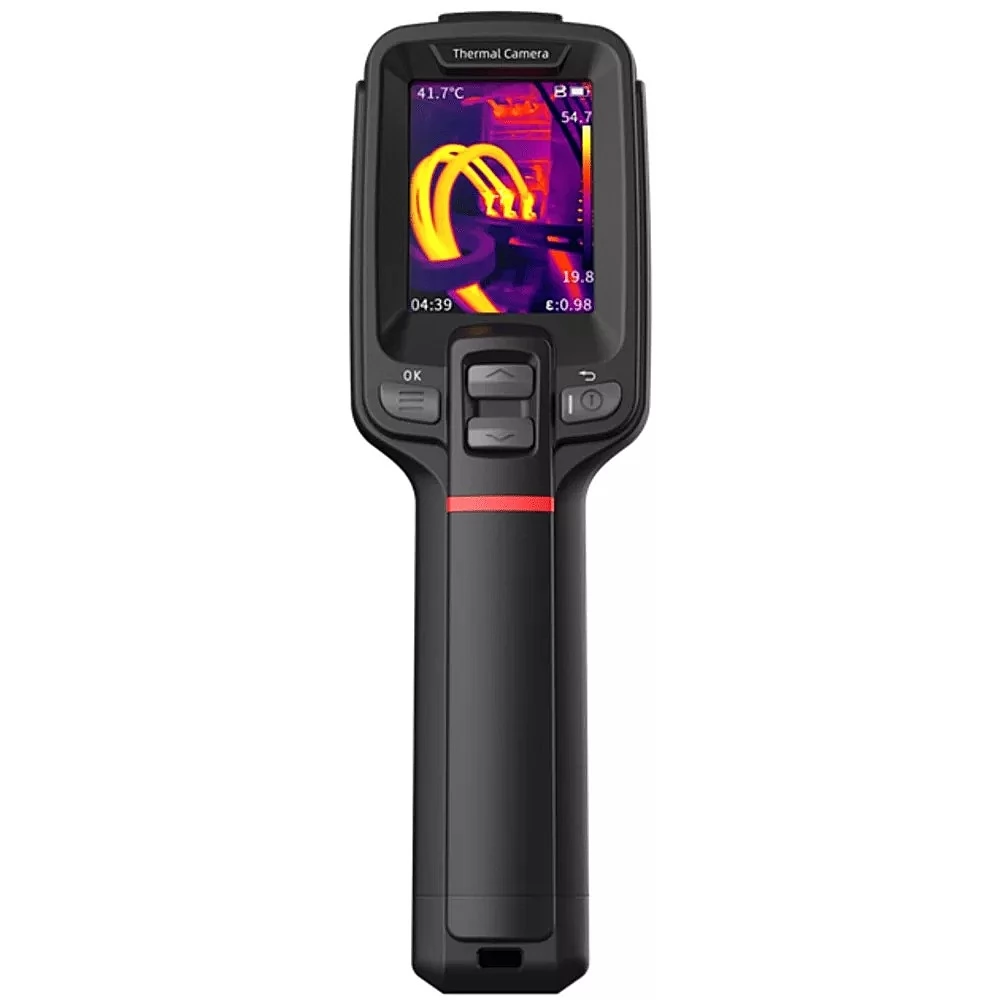

E2 has a built -in visible image with a camera. In many cases, it is practical to record the problem not only with heat but also visually. The 512x384 pixel camera can add a lot to the recorded information in situations. From the menu, you can select the user's infrared thermal image, visible image, or image mode for viewing and recording.

The Guide draws the area under investigation with the help of a guide -developed 256x192 pixel WLP heat sensor. In many cases, the problem areas can be detected extremely precisely at a large angle. And thanks to the 16GB Micro SD card, the thermal photos are also solved - to evaluate the data later. The cancer of the incoming heat cameras is a less interpreted image on a computer due to the small sensor resolution. This helps the E2 series's real-bridged IR-Perfclear technology and super resolution, which creates a four-time better quality image with virtually sophisticated interpolation than the sensor would allow.

The camera is capable of tracking the lowest and highest temperatures, as well as the set low and high temperatures.

Turning on only 1 seconds. A well -gripped house provides comfortable treatment, even in gloves. Thanks to low power consumption, the device is up to 11 hours of downtime throughout the shift and can be reloaded with a USB-C charger in up to 2.5 hours.

And the massive house is responsible for the long -term reliable operation, which guarantees operational safety when dropped from up to 2 meters.

The GUIDE Android application can be found here: Thermography App

Technical data
- Heat sensor netd: 45 mk
- Display: 512 × 384 pixels 2.4 Coll LCD
- Zoom range (x): 1 1
- lens: 3.2 mm focal length
- Data storage: 16GB of built -in memory
- Connectors: USB-C
- resolution: 2 mp
- Recording modes: Image and video
- Heat camera structure: manual search engine
- IFOV: 3.75 Mrad
- Image update: 25 /9 Hz
- Display Color modes: 6 color mode
- Angle (°): 56 ° × 48 °
- lowest focal length (m): 0.1 m
- Operating / storage temperature: -15 +50 / -
- magnification: 1x
- Spectral measurement range: 7.5 14 μm
- WiFi: Yes
- Weight: 375 g
