The Guide introduces entry -level industrial heat cameras. The thermal cameras with small sensors are usually advantageous thanks to their high viewing angle, and they are advantageous at short distance when checking small areas.
E1+ is a available device for building engineers, inspectors, electrical tests and in all areas where temperature differences can provide substantial information in detecting a problem. It can be a great help for professionals to work smarter, safer and faster.

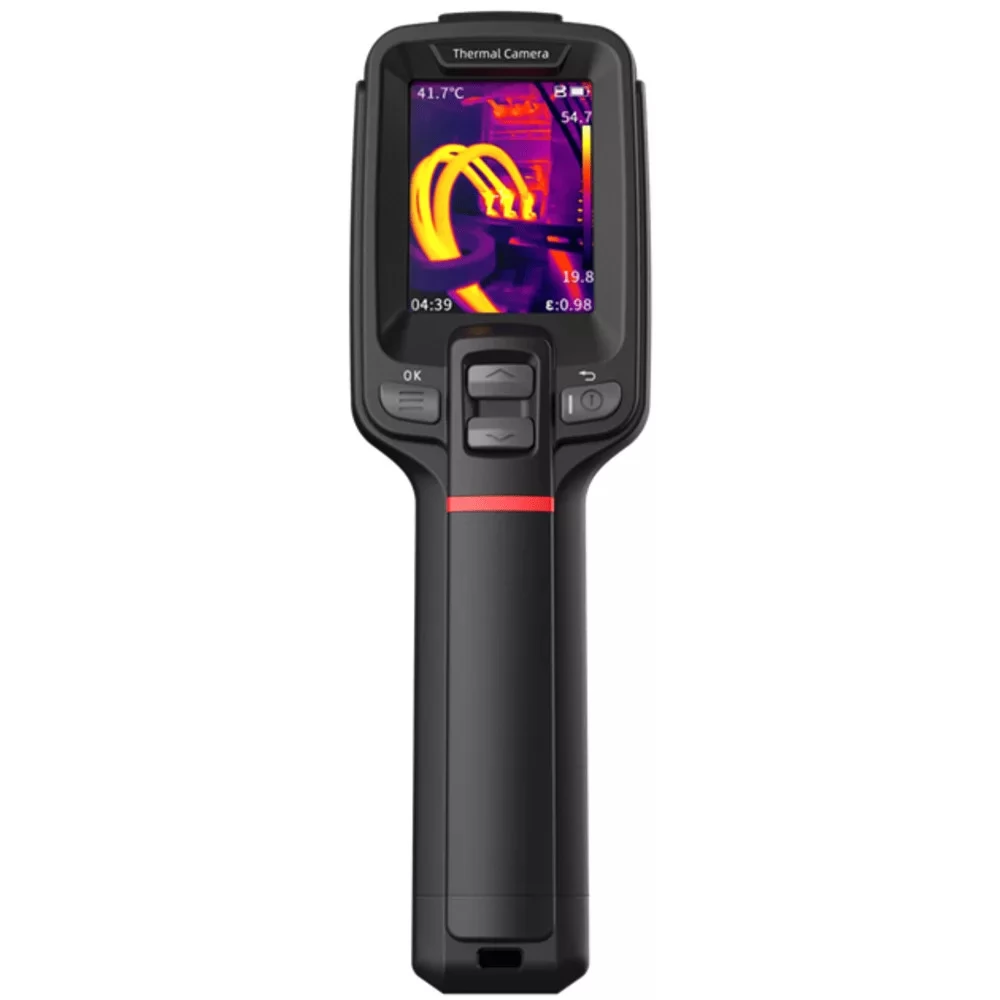

The E1+ built -in visible image has a camera. In many cases, it is practical to record the problem not only with heat but also visually. The 240x180 pixel camera has a lot to add to the recorded information in situations. From the menu, you can select the user's infrared thermal image, visible image, or image mode for viewing and recording.

The Guide, developed with a 120x90 pixel WLP heat sensor with 10,800 pixels, draws the area under investigation. In many cases, problematic areas can be detected at a large angle. There will be no professional camera with high resolution, you should not expect a miracle, but it is very good. And thanks to the 16GB Micro SD card, the thermal photos are also solved - to evaluate the data later. The cancer of the incoming thermal cameras is an incomprehensible image on a computer due to a small sensor resolution. This helps the E1 series's real bridged IR-Perfclear technology, a super resolution, which creates a four-time better quality image with virtually sophisticated interpolation than the sensor would allow.

The camera is capable of tracking the lowest and highest temperatures, as well as the set low and high temperatures.

Turning on is fast. A well -gripped house provides comfortable treatment, even in gloves. Thanks to low power consumption, the device is up to 8 hours of operating time throughout the shift and can be reloaded with a USB-C charger for up to 2.5 hours.

And the massive house is responsible for the long -term reliable operation, which guarantees operational safety when dropped from up to 2 meters. Autumn sensor:

- Heat sensor: 120x90 17μm
- Heat sensor netd: 60 mk
- Display: 240 × 180 pixels 2.4 Coll LCD
- Zoom range (x): 1 1
- lens: 2.28 mm focal length
